Symphony SYK-1023 Manuale

Order #XXXXX

Locked layer contains

placeholder marks.

Perspective View

Plan View

10’

SYK-1023 - 10’ x 10’ Portable Display

If you would like to tell us about your experience with your setup instructions please email us at [email protected]

SETUP INSTRUCTIONS

REV 11/2021

Order #XXXXX

Locked layer contains

placeholder marks.

= 1 sq ft

Plan View

Order #XXXXX

General Setup Instructions

- Read entire setup instruction manual prior to

unpacking parts and pieces.

- The setup instructions are created specifically

for this configuration.

- Setup instructions are laid out sequentially in

steps, including exploded views with detailed

explanation for assembly.

Cleaning & Packing

- For Cleaning Metal, Plex, & Laminate Parts:

Use a MILD NON-ABRASIVE cleanser and

soft cloth/paper towel to clean all surfaces.

- Keep exhibit components away from heat

and prolonged sun exposure.

Heat and UV exposure will warp and

fade components.

- Retain all provided Packing Materials.

All provided packing materials are for

ease of repacking & component protection.

Disassembly

- For loss prevention, keep all

knobs & connectors attached to

extrusions during disassembly.

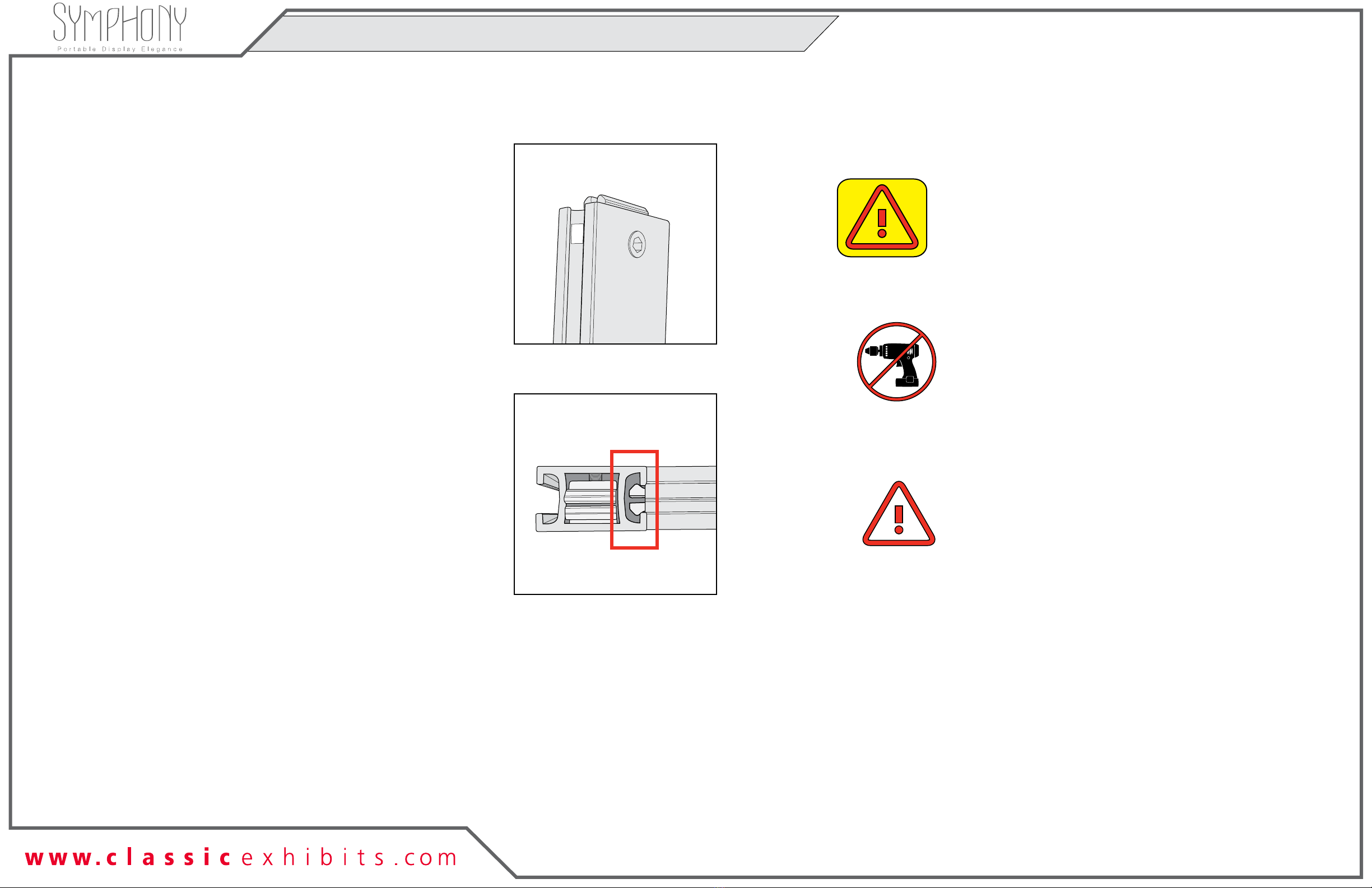

Part Identification - Numbering

Engaged Lock

DO NOT USE POWER TOOLS

ALL CONNECTIONS MUST

BE TIGHTLY SECURED

WARNING

General Information

Order #XXXXX

TSP49 Profile

All knobs must be tightened securely to ensure a proper connection.

Adjust connectors if necessary to

prevent gaps in connection.

Upper Horizontal Extrusion

Lower Horizontal Extrusion

Corner

Connector Corner

Connector

Corner

Connector

Corner

Connector

COMPLETED ASSEMBLY

Slide verticals over

lower connectors.

Then slide upper

connectors into

groove of verticals.

Tighten all knobs.

Corner Connection

3) Tighten all knobs to secure connection.

Disassembly

1) Loosen knobs on vertical extrusions.

2) Slide the vertical extrusions off of

corner connectors on lower and upper

horizontal extrusions.

1) Loosen knobs, then slide vertical extrusions onto

corner connectors of lower horizontal extrusion.

2) Slide corner connectors of upper horizontal

extrusion into grooves of vertical extrusions.

Disassembly

1) Loosen all knobs.

2) Slide connectors off of one extrusion.

3) Tighten knobs to prevent loss during

packing & shipping.

Keep straight connectors in groove of

extrusion. Do not remove connectors

during disassembly.

Straight Connection

3) Tighten all knobs to secure connection.

When assembling frame, first attach all straight

connectors, then attach corner connectors.

1) Place extrusions end-to-end.

Slide connector across seam of extrusions.

Tighten all knobs.

All knobs must be tightened securely to ensure a proper connection.

Straight Connector

2) Loosen all knobs, then slide straight

connector across the seam of extrusions.

Tool-less Frame Assembly

Step 1 of 7

Order #XXXXX

Locked layer contains

placeholder marks.

Item

Qty.

Description

45”h TSP49 Vertical Extrusion

31.305”h TSP49 Vertical Extrusion

45”h TSP49 Vertical Extrusion

27.35”w TSP49 Horizontal Extrusion

28.514”w TSP49 curved Horizontal Extrusion

6” x 22” End Base Plate w/ foot

Steps:

Refer to the Tool-less Frame Assembly general information page.

1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]

together, using Tool-less Spline connectors labeled [A] & [B].

2) Connect vertical assemblies [1/2], [3/4] between horizontal

assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A] & [B].

3) Install Base Plate [9] to bottom corners of frame assembly

as shown. See Base Plate Attachment detail.

FRONT VIEW

Tool-less Spline Connector

1. Place extrusions end-to-end.

2. Slide tool-less connectors

across seam of extrusions.

3. Tighten all knobs to secure connection.

Tool-less Corner Connector

1. Slide extrusion onto

Corner Connector.

2. Tighten all knobs to

secure connection.

Keep corner connectors attached to horizontal extrusions.

Assemble frame flat on ground.

1) Place key hole over bolt on panel

& slide down.

2) Twist knob to secure connection.

Base Plate Attachment

bolt

knob

Base Plate

threaded

hole

key hole

When assembled

Curved

connector

*Arch corner

connector

Left Backwall Frame Assembly

Step 2 of 7

Order #XXXXX

Locked layer contains

placeholder marks.

Item

Qty.

Description

45”h TSP49 Vertical Extrusion

31.305”h TSP49 Vertical Extrusion

45”h TSP49 Vertical Extrusion

27.35”w TSP49 Horizontal Extrusion

28.514”w TSP49 curved Horizontal Extrusion

6” x 22” End Base Plate w/ foot

Steps:

Refer to the Tool-less Frame Assembly general information page.

1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]

together, using Tool-less Spline connectors labeled [A] & [B].

2) Connect vertical assemblies [1/2], [3/4] between horizontal

assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A] & [B].

3) Install Base Plate [9] to bottom corners of frame assembly

as shown. See Base Plate Attachment detail.

FRONT VIEW

Tool-less Spline Connector

1. Place extrusions end-to-end.

2. Slide tool-less connectors

across seam of extrusions.

3. Tighten all knobs to secure connection.

Tool-less Corner Connector

1. Slide extrusion onto

Corner Connector.

2. Tighten all knobs to

secure connection.

Keep corner connectors attached to horizontal extrusions.

Assemble frame flat on ground.

When assembled

1) Place key hole over bolt on panel

& slide down.

2) Twist knob to secure connection.

Base Plate Attachment

bolt

knob

Base Plate

threaded

hole

key hole

Curved

connector

Arch corner

connector

Right Backwall Frame Assembly

Step 3 of 7

Order #XXXXX

Locked layer contains

placeholder marks.

When assembled

FRONT VIEW

Steps:

1) Install Base Plate [15] to vertical [3/4] of right frame.

See Right Frame Base Plate Attachment detail.

2) Connect vertical [3/4] of left frame to Base Plate [15].

See Left Frame Base Plate Attachment detail.

TOP VIEW

Item

Qty.

Description

6” x 22” Two-Connection Base Plate

Left Frame Base Plate Attachment

Place key hole over bolt on panel & slide down.

Twist knob to secure connection.

Front

Base Plate

key hole

bolt

Right Frame Base Plate Attachment

bolt

knob

Front

key hole

1) Place key hole over bolt

on panel & slide down.

2) Twist knob to secure

connection.

threaded

hole

Base Plate

Backwall Frames Connection

Step 4 of 7

Order #XXXXX

Locked layer contains

placeholder marks.

SEG Graphic Installation

Corner A

Corner D

Corner B

Corner C

It is important to first insert

graphic into each alternate

corner, then to the sides of

the frame. If this is not done,

graphic will not fit into the

frame correctly.

Step 1

Insert corner A. Turn edge of

graphic so silicon welt is

perpendicular to face of

graphic. Insert narrow side

of welt with fabric to outside

into the channel. Repeat for

other side of this corner.

Step 2

Repeat Step 1 for opposite

corner C, then insert corner

B, followed by corner D, to

complete the installation of

the corners.

Graphic Removal

To remove the graphic from

the frame, locate the fabric

pull tab. Gently pull up on

the tab to remove the fabric.

Step 3

Once all corners are inserted,

press one silicon edge into

channel from corners and

work toward the center.

Make sure welt is fully inserted

into channel. Continue until

all sides are done. Smooth

out edges of graphic.

When assembled

FRONT VIEW

G G

phi

G G

aphi

Steps:

1) Apply SEG Graphics to front of assembled frames.

Fabric Graphics Application

Step 5 of 7

Order #XXXXX

Locked layer contains

placeholder marks.

Workstation

Light

When assembled

Attach clamp of stem light

to top of horizontal extrusion

where desired.

Twist knob on back to

tighten in place.

Light Attachment

knob

Light

BACK VIEW

Extrusion

Hook the Mounting Bracket

over the vertical extrusion.

Slide

Bracket

forward

Slide down onto

V4 connector

Tighten knobs

to secure.

Mounting

Bracket

Workstation Bracket Attachment

Slide bracket forward, then

down onto V4 connector.

Tighten thumb screws to

secure connection to inside

of frame.

Bracket

TOP VIEW SIDE VIEW

123

V4 connectors stay permanently

attached to vertical extrusion.

Threaded

Studs

Wing

nuts

Counter Top

Mounting

Bracket

Counter

Legs

UNDERSIDE VIEW

3) Attach power cords to

wireless chargers.

2) Connect Counter Top to

Mounting Bracket, using

wing nuts.

1) Attach threaded studs on underside

of Counter Top to Counter Legs;

secure with wing nuts.

Workstation Assembly

Keep cords attached to

underside of counter top.

Underside View of Counter

To Power

USB

charging

pad

power

cords

charging

block

Counter Top

Graphic

Steps:

1) Attach Workstation Mounting Bracket

to backwall vertical as shown.

See Workstation Bracket Attachment detail.

2) Assemble Workstation legs & counter top to

bracket. See Workstation Assembly detail.

3) Affix Graphic to front of workstation assembly,

using Velcro.

4) Attach Lights to top of backwall as shown.

See Light Attachment detail.

Backwall Attachments

Step 6 of 7

Order #XXXXX

Locked layer contains

placeholder marks.

Completed Assembly

Steps:

1) Attach iPad Mount to backwall vertical.

See iPad Swivel Mount Attachment detail.

Attach iPad Mount to angled

extrusion of bracket; tighten

knob to secure lock.

Slide bracket over

V4 connector on

vertical extrusion.

Tighten knobs of V4 connector

to secure bracket in place.

Extrusion

Bracket

iPad Mount

Slide

Bracket

forward

TOP VIEW

123

iPad Swivel Mount Attachment

Tighten knob

to secure

lock.

SIDE VIEW

Bracket

Tighten knobs

V4 Slide down onto

V4 connector

V4 connectors stay permanently

attached to vertical extrusion.

iPad

Mount

Backwall Attachments (cont’d)
