Synology DiskStation DS114

Quick Installation Guide

Synology_QIG_DS114_20130716

Table of Contents

Chapter 1: Before You Start

Package Contents .............................................................................................................................................................. 3

Synology DiskStation at a Glance.................................................................................................................................... 4

Safety Instructions .............................................................................................................................................................. 5

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation....................................................................................................................... 6

Install Hard Disks................................................................................................................................................................ 6

Start up your DiskStation................................................................................................................................................... 7

Chapter 3: Install DSM on DiskStation

Install DSM from the Web Browser .................................................................................................................................. 8

Learn More .......................................................................................................................................................................... 9

Appendix A: Specifications

Appendix B: LED Indication Table

Chapter

Chapter 1: Before You Start

Before you start setting up DiskStation, please check the package contents to verify that you have received the

items below. Please also read the safety instructions carefully before use to prevent your DiskStation from any

damages.

Package Contents

Main unit x 1 AC power cord x 1

AC power adapter x 1

Screws for hard drives x 6 Screws for securing the Synology case x 3 RJ-45 LAN cable x 1

4 Chapter 1: Before You Start

Synology DiskStation at a Glance

No. Name Location Description

1) LED Indicators Front Panel

The LED indicator is used to display the status of the internal disk and the

system. For more information, see "Appendix B: LED Indication Table" on Page

11.

2) Power Button Front Panel

The power button is used to turn Synology DiskStation on or off.

To turn off Synology DiskStation, press the power button and hold it until you

hear a beep sound and the Power LED starts blinking.

3) Fan Back Panel The fan is built to exhaust waste heat out of Synology DiskStation. If the fan is

malfunctioning, the system will beep every few seconds.

4) eSATA Port Back Panel The eSATA port is used to connect external SATA disk or Synology Expansion

Unit1

to Synology DiskStation.

USB3.0 Ports Back Panel The Synology DiskStation offers USB3.0 ports for adding additional external

hard drives, USB printers, or other USB devices.

6) RESET Button Back Panel 1.To restore IP, DNS, passwords for the admin account to default value.

2.To reinstall the Synology DiskStation.

7) LAN Port Back Panel The LAN port is where you connect RJ-45 cable to Synology DiskStation.

8) Power Port Back Panel The power port is where you connect the AC power adapter to

Synology DiskStation.

---------

1Synology Expansion Unit is supported on certain DiskStations only.

5 Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and

away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Do not place the Synology product close to any liquid.

Before cleaning, unplug the power cord first. Wipe Synology product with damp paper

towels. Do

not use chemical or aerosol cleaners to clean it.

Do not place the Synology product on a cart, table, or desk, which is not stable to avoid the

product from falling over.

The power cord must plug in to the right supply voltage. Make sure t

hat the supplied AC voltage

is correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected

from the power source.

Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries

appropriately.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation

A screwdriver

A 3.5" or 2.5" SATA hard disk

(Please visit www.synology.com for compatible hard disk models.)

Warning: If you install a hard disk that contains data, the system will format the hard disk and erase all data. If you

need the data in the future, please back it up before installation.

Install Hard Disks

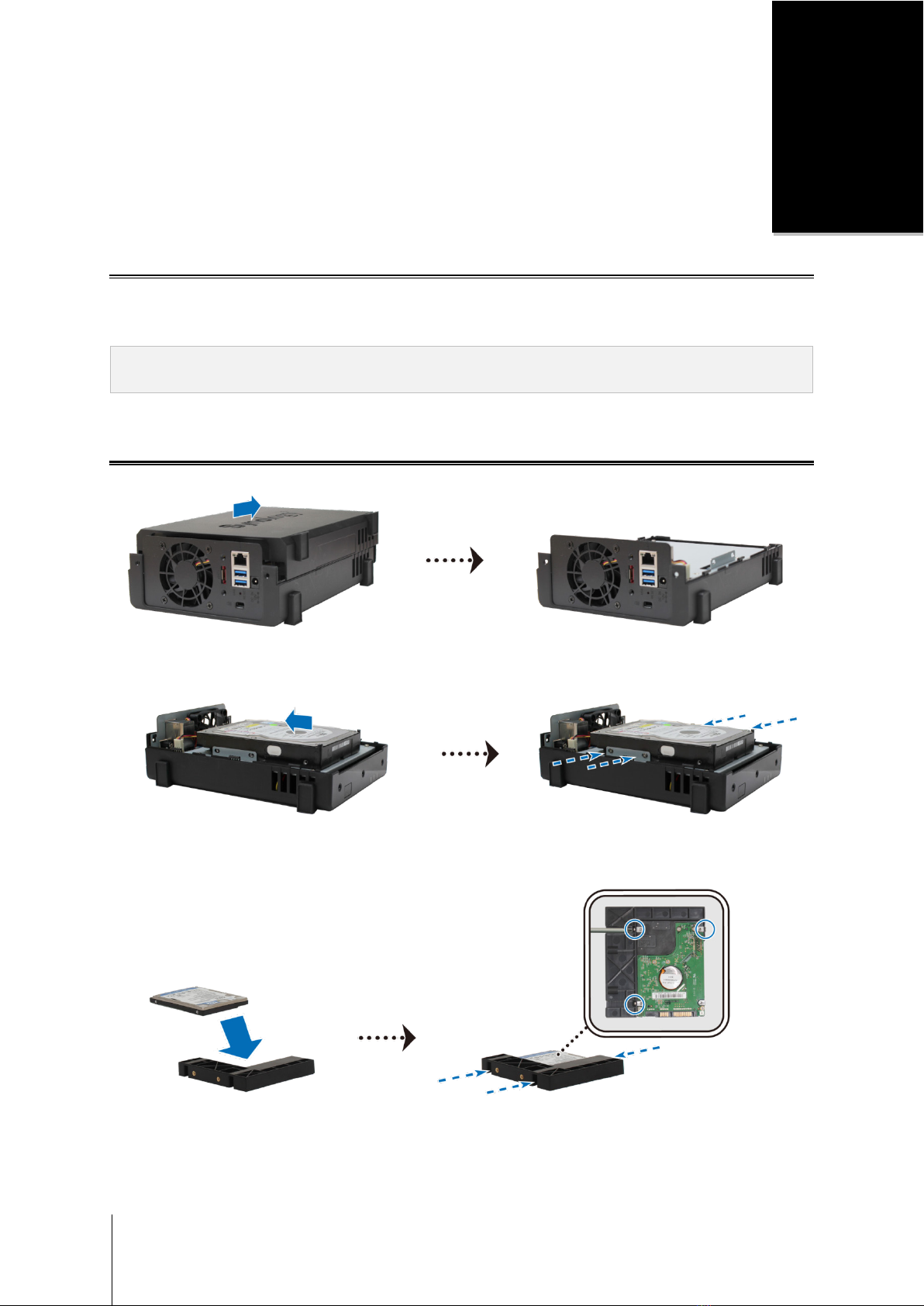

1 Push the upper case in the direction as shown below. Lift the upper case and set it aside.

2 Install the hard disk:

For 3.5" Hard Disk: Slide the hard disk into the hard drive bay, and push it all the way until it is connected

to the SATA connector. Secure the hard disk with the provided screws.

For 2.5" Hard Disk:

a Place the hard disk in the 2.5" Disk Holder (Type C, sold separately), and then tighten the 2.5" screws to

secure the hard disk.

7 Chapter 2: Hardware Setup

b Slide the 2.5" Disk Holder into the hard drive bay, and push it all the way until the hard disk is connected

to the SATA connector. Secure the Disk Holder with the provided screws.

3 Replace the upper case, and tighten the screws on the back panel.

Start up your DiskStation

1 Connect the AC adapter to the power port of DiskStation. Connect one end of the AC power cord to the AC

power adapter, and the other to the power outlet.

2 Use the LAN cable to connect DiskStation to your switch/router/hub.

3 Press the power button to turn on your DiskStation.

Your DiskStation is now online and detectable from a network computer.

Chapter

Chapter 3: Install DSM on DiskStation

Once the hardware is ready, your DiskStation requires DiskStation Manager (DSM) – the operating system

specifically designed for Synology DiskStations – to start working.

We highly recommend using Synology’s online Web Assistant for installing DSM from the web browser. Synology

Web Assistant automatically downloads the latest available software updates from the Internet and guides you

through the installation.

Install DSM from the Web Browser

By default your DiskStation model has a built-in tool called Web Assistant to help you configure and install the

DSM operating system. Please refer to the steps in the following section.

1 Power on DiskStation.

2 Depending on your network environment, there are two ways to start DSM installation on your computer’s web

browser:

With Internet access: Go to find.synology.com

Without Internet access: Go to diskstation:5000

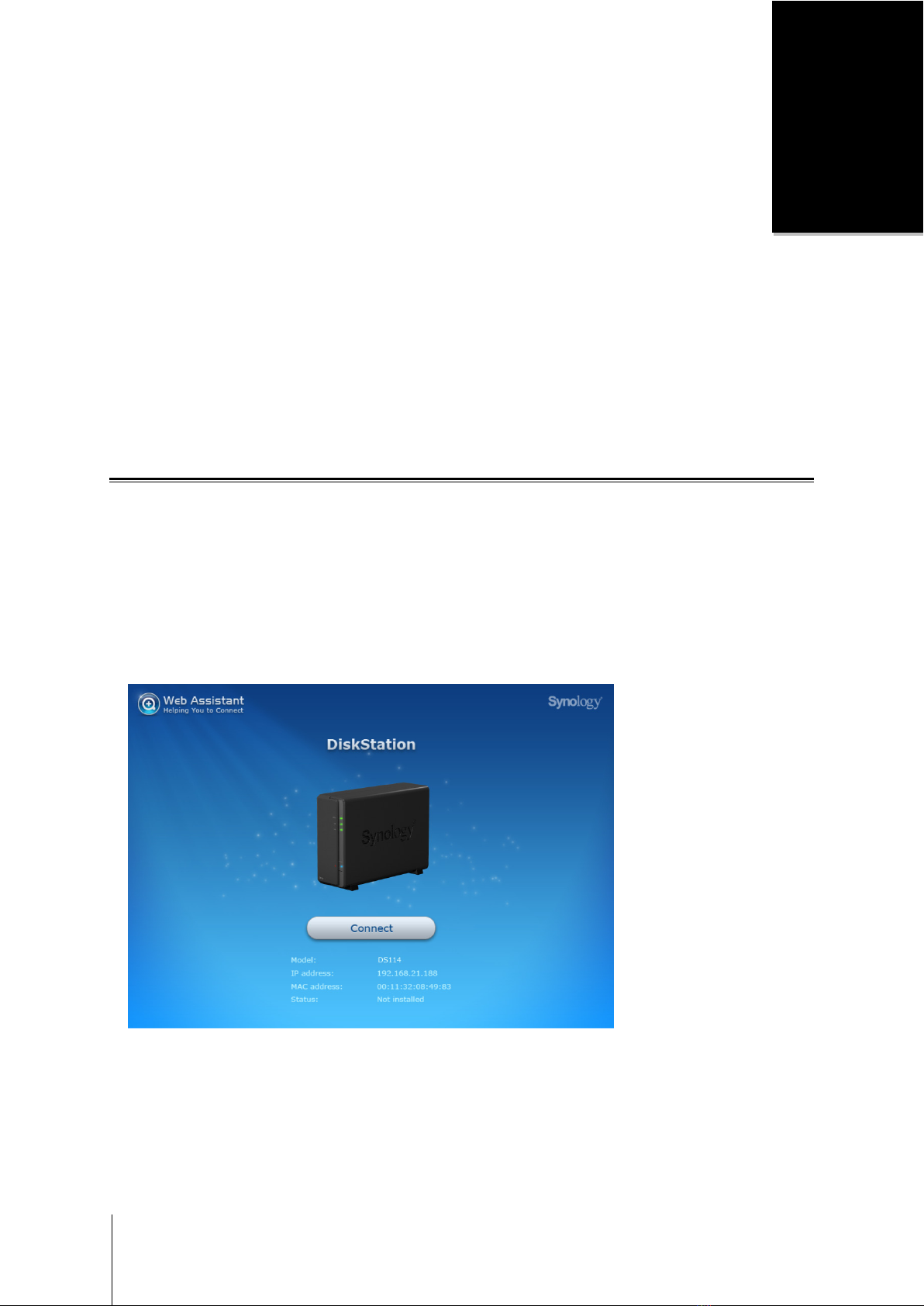

3 Web Assistant will be launched on your web browser. It will search and find your DiskStation within LAN, and

the status of your DiskStation should be Not Installed.

9 Chapter 3: Install DSM on DiskStation

4 Click Connect to start the setup process. Follow onscreen instructions to complete the setup process.

Note:

1. Suggested browsers: Chrome, Firefox.

2. Both the DiskStation and the computer should be in the same local network.

3. Internet connection must be available during DSM installation with Web Assistant.

Learn More

Congratulations! Your DiskStation is set up now. Refer to the User’s Guide in the installation disc for advanced

settings and management. For more information or online resources about your DiskStation, please visit

www.synology.com.

Appendix

Appendix A:Specifications

Item DS114

Internal HDD 3.5" or 2.5" SATA(II) X 1

Max. Capacity 4TB (1 X 4TB HDD)

External HDD Interface

‧USB 3.0 x 2

‧eSATA x 1

LAN Port Gigabit x 1

Size (HxWxD) (mm) 166 X 71 X 224

Weight (Kg) 0.705

Supported Clients

‧Windows XP onward

‧Mac OS X 10.5 onward

‧Ubuntu 9.04 onward

Max. User Accounts 2048

Max. Group Accounts 256

Max. Shared Folders 256

Max. Concurrent

Connections 128

File System ‧EXT4

‧EXT3, FAT, NTFS (External disk only)

Volume Type ‧Basic

Agency Certifications ‧FCC Class B ‧CE Class B ‧BSMI Class B

HDD Hibernation Yes

Scheduled Power On/Off Yes

Wake on LAN Yes

Language Localization

‧English ‧Deutsch ‧Français ‧Italiano ‧Español ‧Dansk ‧Norsk ‧Svensk

‧Nederlands ‧Русский ‧Polski ‧Magyar ‧Português do Brasil ‧Português Europeu

‧Türkçe ‧Český ‧日本語‧한국어‧繁體中文‧简体中文

Power Consumption And

Environment Requirements

‧Line voltage: 100V to 240V AC

‧Frequency: 50/60Hz

‧Operating Temperature: 40 to 95˚F (5 to 35˚C)

‧Storage Temperature: 15 to 155˚F (-10 to 70˚C)

‧Relative Humidity: 5% to 95% RH

‧Maximum Operating Altitude: 2,000 m (6,500 ft)

Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
