DX513 User’s Guide

Syno_UsersGuide_DX513_20120727

Table of Contents

TOC

1 Chapter 1: Get Started with DX513

1 Package Contents

2 

3 Appearance

4 Default/Manual Switch Behavior

4 LED Indication Table

6 Safety Instructions

7 Chapter 2: Set Up DX513

7 Tools and Parts for Hard Disk Installation

10 Install Hard Disks

11 Connect with Synology DiskStation

12 Work with Synology DiskStation

13 Learn More

Congratulations on your purchase of Synology DX513. This product is specially

designed for the storage expansion of Synology DiskStation. This user’s guide

will guide you through the installation.

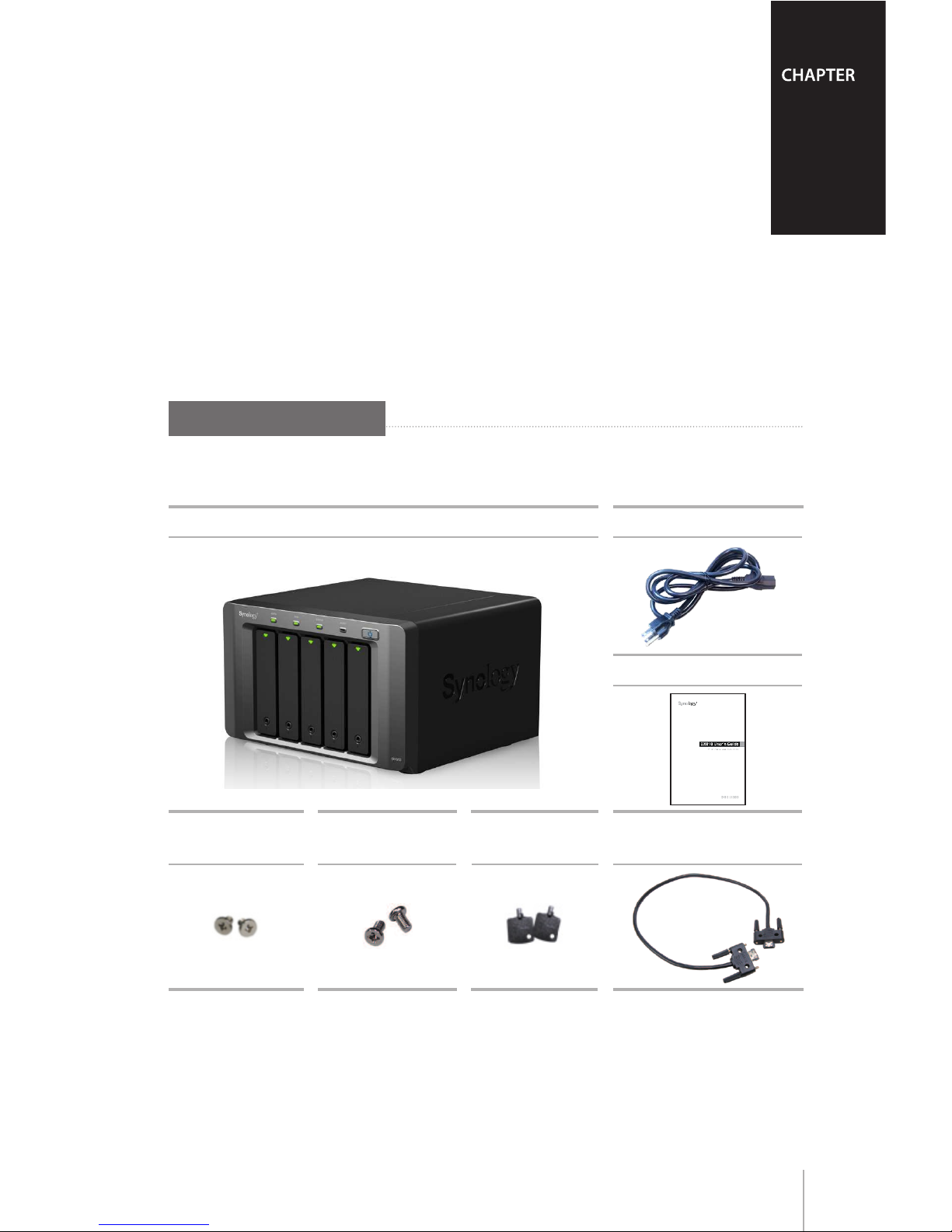

Package Contents

Before installation, please check the package contents to verify that you

have received the items below.

Main Unit AC power Cord

User’s Guide

Screws for 3.5”

Hard Drives x 24

Screws for 2.5”

Hard Drives x 24

Hard drive tray

key x 2 Expansion Cable

Get Started with DX513

2 Chapter 1: Get Started with DX513



Internal HDD 5X SATA(II)

Expansion Port # 1

Max Capacity (Internal HDD) 5X 4TB

Hot Swappable HDD Yes

Size (HxWxD) (mm) 157 x 248 x 233mm

Weight 3.91 kg

System Fan 2X (80x80mm)

Noise Level (Fan-only) 30dB (2500rpm)

Power Recovery Sync with the connected DiskStation

(Default Mode)

AC Input Power Voltage 100V to 240V AC

Power Frequency 50 / 60Hz, Single Phase

HDD Temperature (Room: 27°C) 46°C

HDD Temperature (Room: 40°C) 55°C

Operating Temperature 5°C ~ 35°C (40°F ~ 95°F)

Storage Temperature -10°C ~ 70°C (15°F ~ 155°F)

Relative Humidity 5% to 95% RH

Maximum Operating Altitude 10,000 feet

 FCC Class B, CE Class B, BSMI Class B

Supported Models

DS710+, DS712+, DS1010+, DS1511+,

DS1512+, DS1812+

(Used as independent volume: DS112, DS112+,

DS212+, DS213+, DS412+, DS413)

Note:

1 Please visit www.synology.com for the latest compatible models.

2 DSM needs to be upgraded to version 4.0-2240 or above.

Chapter 1: Get Started with DX513 3

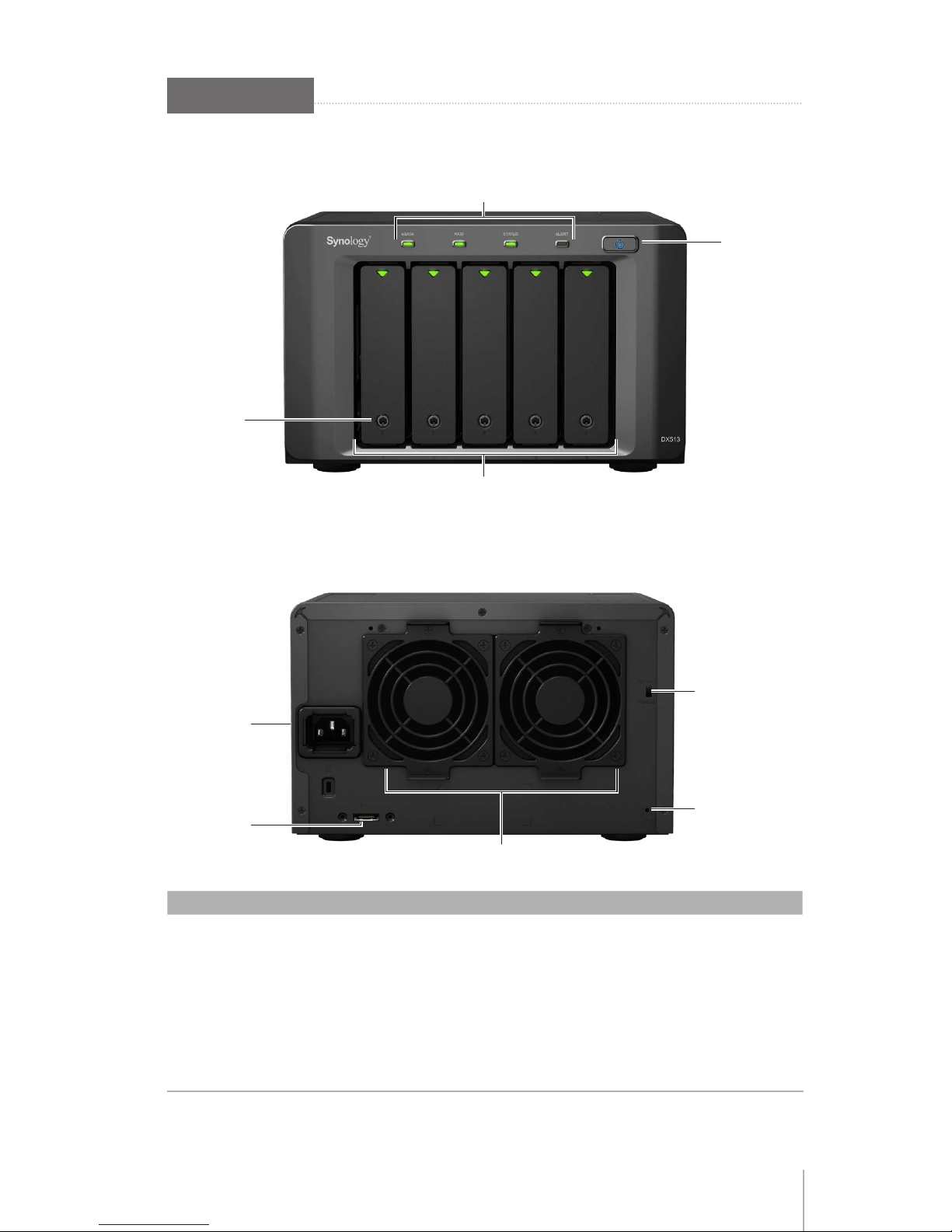

Appearance

Front View

LED Indicators

POWER

Button

Hard Drive Tray

Hard Drive

Tray Lock

Back View

Power Port

Expansion

Port

RESET Button

Fan

Default/Manual

Switch

Article Name Location Description

POWER Button Front

The POWER button is used to turn DX513 on or off.

Press and hold the button for 7 seconds to shut down

DX513.

Note: DX513 will be turned on or off automatically when

the connected Synology DiskStation powers on or off.

However, the POWER button has no power-off function

when volume is created to prevent accidental volume

damage.

4 Chapter 1: Get Started with DX513

Article Name Location Description

LED Indicators Front

The LED indicators are used to display the status of

the internal disks and the system. For complete details,

please refer to the table: LED Indication Table.

Hard Drive Tray Front The hard drive tray is designed for loading the hard

drives with DX513.

Hard Drive

Tray Lock Front Each hard drive tray is equipped with one tray lock to

lock or unlock the tray to DX513.

Default/Manual

Switch Back

In the default mode, DX513 can auto power on/off

with the connected Synology DiskStation, while in the

manual mode, DX513 cannot auto power on with the

DiskStation when using its independent volume. For

more details, please refer to the table: Default/Manual

Switch Behavior.

Expansion Port Back The expansion port is used to connect any Synology

DiskStation listed in the table: Supported Models.

Fan Back

The fan is built to exhaust waste heat out of DX513.

If the fan is not working, DX513 will “beep” every few

seconds.

RESET Button Back The RESET button is used to restore the settings to the

factory default.

Power Port Back The power port is where you connect the power cord to

DX513.

Default/Manual Switch Behavior

Mode Expand DiskStation

Internal Volume Independent Volume

Default Auto power on/off Auto power on/off

Manual Auto power on/off Auto power off

LED Indication Table

LED Behavior Description

POWER Solid Blue Power is on

Off Power is off

eSATA Solid Green Synology DiskStation is connected

Off Synology DiskStation is disconnected

RAID

Solid Green Volume is created

Flashing Green Volume is degraded

Off Volume is crashed or not created

Chapter 1: Get Started with DX513 5

LED Behavior Description

STATUS Solid Green System is functioning

Off System is not working

ALERT Solid Orange Fan is not working

Off Fan is functioning

Hard Disk

Status

(on tray)

Solid Green Disk is ready and idle

Flashing Green Disk is being accessed

Solid Orange Read/write or other errors are encountered

Off No internal disk is found
