Hardware Manual of 380V 2kW Servo Drive II
(SVD-32C1-020)
匯出日期：2023-03-05
修改日期：2021-04-19
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Preface–3
1 Preface
Thank you for your continued support of our products. Our servo team is forever committed to the research and
development of new products; we hope that our products and services can bring each user the best possible
experience.
The SYNTEC high-performance servo drive series consists of our company's latest servo drive models. Each
product is manufactured using high quality materials and has been through rigorous testing. In addition, our drives
adopt precise vector control, guaranteeing high accuracy, high stability and high efficiency.
This Operation Manual includes the drive's hardware specifications, installation instructions, as well as wiring
and signal descriptions, providing each user with detailed guidance. To achieve the best performance of our
products and to maintain the safety of both personnel and equipment, please read this manual carefully before use
and keep it in a safe place for future reference. If any doubts arise, please do not hesitate to contact our office-- we
will be happy to help!
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Application–4
2 Application
This manual is only applicable to Syntec 2kWSingle-Axis Servo Drive.
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Hardware Specification–5
3 Hardware Specification
3.1 Description
Each drive undergoes strict quality inspectionand anti-collision packaging before leaving the factory. Please check
for impact damage upon receiving the product. Users should also compare the serial numbers on the outer box and
on the product itself. If there is any discrepancy, please contact us immediately.

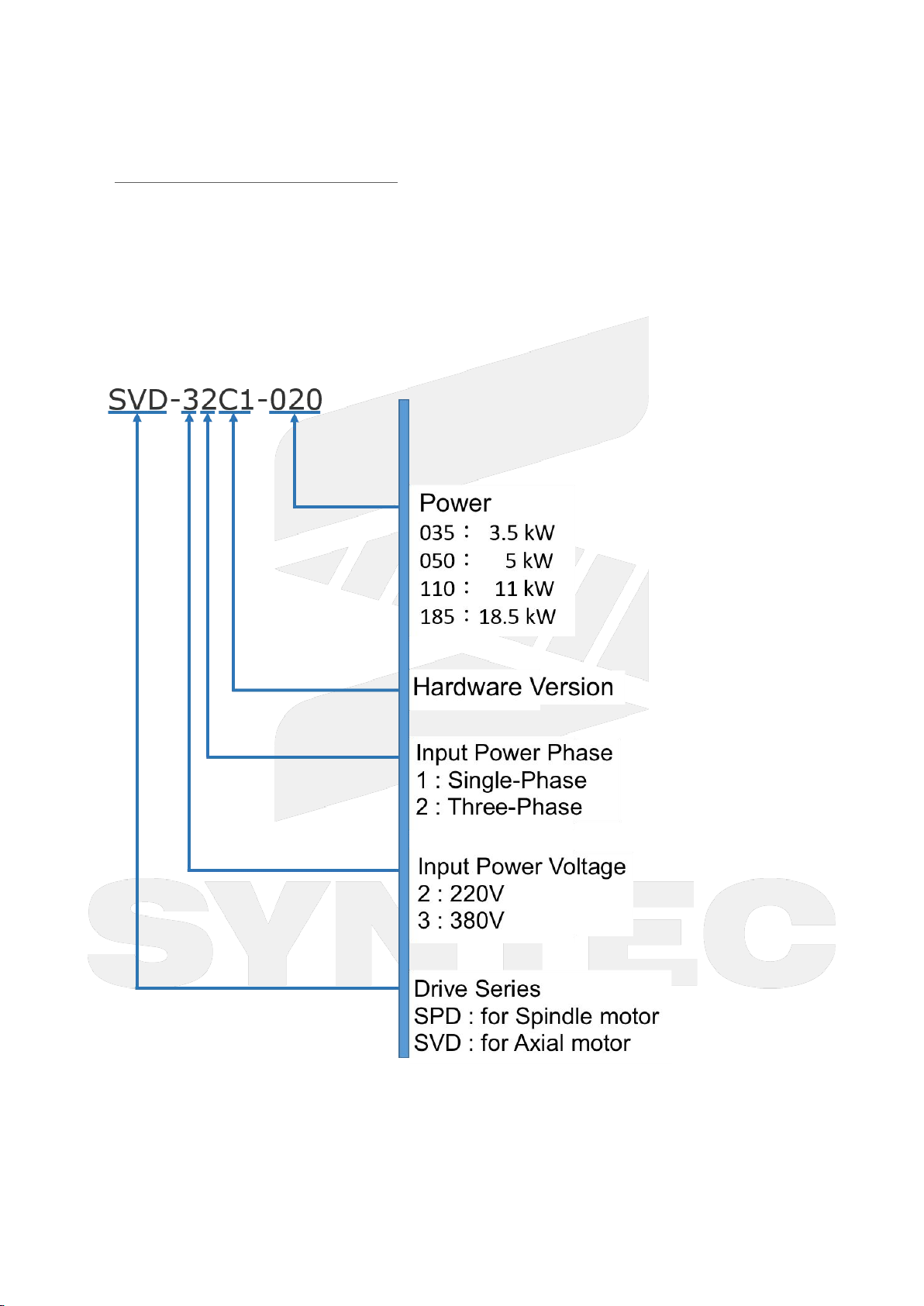

Model Description
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Hardware Specification–6

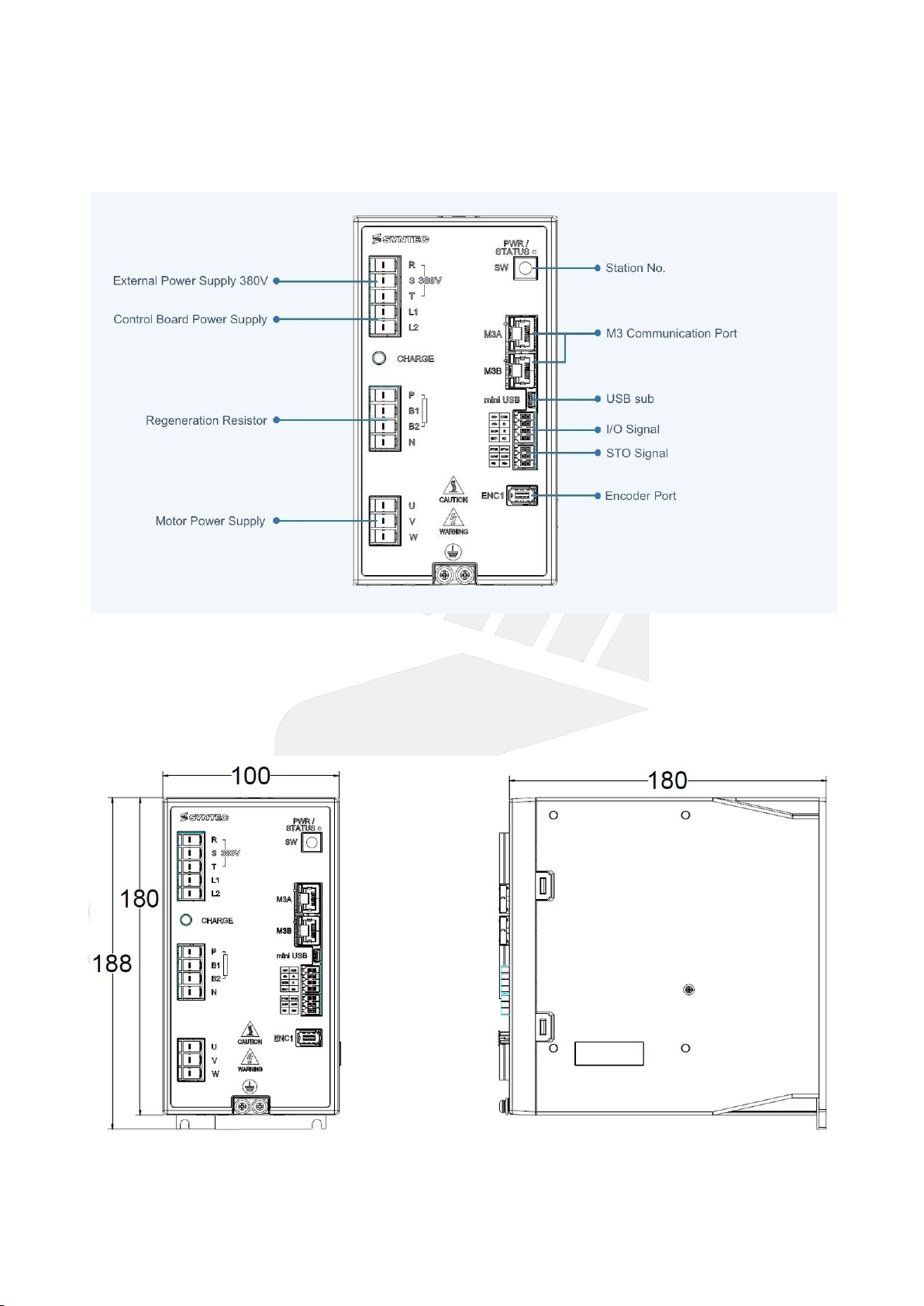

3.2 Appearance
3.3 Dimension
SVD-32C1-020
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Hardware Specification–7
3.4 Specification
Syntec Drive SVD-32C1-020
Power Rated Voltage 3-phase380~440V 50/60Hz
Voltage Error
Bound
-15 ~ +10%
Frequency
Error Bound
±5%
Output Rated
Current
8.4 A
Over-current 150% 60s、200% 1s
Control Method 3-phase full wave rectification,SVPWM－VVVFcontrol
Regenerator Internal type recommended; for external, refer toRegenerator
Selectionguide
Encoder Supported interfaces：Tamagawa, SYNNET, NIKON, FeeDAT
Extended encoder modules：Supports Tamagawa, SYNNET, NIKON, ABZ,
Serial, SSI, BiSS(Does NOT support UVW wire-saving encoders) (For more
about extended encoder modules, refer toServo 10PX1/10PX3 Extended
Module Operation Manual)
PC Interface USB
Controller
Serial
Communication
Mechatrolink III
I/O Signal Digital Input 2 ports, function alterable
Digital
Output
1 port, function alterable
STO Dual-channel Safe Torque Off switch (2I 1O)
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Hardware Specification–8
Cooling Method Fan cooling
Environment Temperature 0℃~ 55℃(If the surrounding temperature exceeds 45℃，implement
forced air circulation), storage：-20～65℃(non-freezing)
Humidity Maximum 90% RH (non-condensing); storage：under 90%RH (non-
condensing)
Location Indoors (avoid direct sunlight); keep away from oil, dust, and corrosive or
flammable gases
Altitude Below 1000 m until sea level
Vibration Maximum 5.9 m/s2
Weight 2.5 kg
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Transport and Installation–9
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4 Transport and Installation
4.1 Transportation
The entire body of the drive must be held during transportation. To avoid the risk of falling, do NOT hold the drive
by its upper cover or by any individual part.
4.2 Installation Environment Conditions and Precautions
Installation Environment Conditions
Locations without high heat generating devices.
Locations without floating dust or metal particles.
Locations without corrosive or flammable gasses and liquids.
Locations without water, steam, dust, or oily dust.
Locations without electromagnetic noise interference.
A sturdy, vibration-free location.
Suitable ambient temperature is 0 ° C ~ 55 ° C; if the ambient temperature is above 45 ° C, please put the
drive in a well-ventilated place or in an air-conditioned room.
Installation Precautions
Install the drive in the direction specified bythe instructions; incorrect positioning may lead to servo failure.
When installing the drive, do not block its ventilation holes and do not place it upside down, otherwise the
drive may malfunction.
Do not use on or near flammable materials.
Make sure that each fastening point is tight when fixing the drive in place.
Install on a surface that can withstandthe weight.
Operation Precautions
For long-term operation, it is recommended to maintain an ambienttemperaturebelow 45 °C to ensure
product reliability.
If the product is installed inanelectrical cabinet, the size and ventilation of thecabinetmust prevent any
internal electronic devices from overheating. Also pay attention to whether the machine's vibrations will
affect other electronics in the cabinet.
To enhancecooling circulation, maintain sufficient space between all sides and surrounding objects of the
drive and the baffles (walls); also take care not to block the ventilation holes, otherwise the drive may
malfunction.
Other Precautions
The cable between the drive and the motor should not be stretched too tightly.
Do not place heavy objects on top of the drive.
Keep the drive clear from conductive objects such as metal and screws or combustibles such as oil.
If the cable connecting the motor and the drive is longer than 20 meters, please thicken the U, V, W and
encoder cables.
伺服產品/Servo Products
–
Hardware Manual of 380V 2kW Servo Drive II (SVD-32C1-020)
Transport and Installation–10
•
•
Do not drop or impact the drive.
Do not force the drive to operate if it is damaged.
