System air SAVE VTC 300 Guida
SAVEVTC300
Changingthebypassdamper
Replacementinstructions
Documentinoriginallanguage209238-EN_GB
2014-11-12A002
Contents
1Warnings...................................................................................................................................1
2LeftandRightmodels................................................................................................................1
3Changingthebypassdamper.....................................................................................................2
4Changingthebypassdamperintheunitsproducedbefore10–08–2014.......................................7
4.1Disconnectingthetransformer...........................................................................................8
4.2Mountingthenewbypassdamperandconnectingtheadapter............................................11
1Warnings
Danger
•MakesurethattheMainssupplytotheunitisdisconnectedbeforeperforminganymaintenanceor
electricalwork!
•Allelectricalconnectionsandmaintenanceworkmustbecarriedoutbyanauthorizedinstallerand
inaccordancewithlocalrulesandregulations.
Warning
•Thesystemshouldoperatecontinuously,andonlybestoppedformaintenance/service.
•Theinstallationoftheunitandcompleteventilationsystemsmustbeperformedbyanauthorized
installerandinaccordancewithlocalrulesandregulations.
•Bewareofsharpedgesduringmountingandmaintenance.Useprotectivegloves.
•AlthoughtheMainssupplytotheunithasbeendisconnectedthereisstillriskforinjuryduetothe
rotatingpartsthathavenotcometoacompletestandstill.
•Makesurethatltersaremountedbeforestartingtheunit.
•Thisproductmustonlybeoperatedbyapersonwhichhassuitableknowledgeoreducationwithin
thiseldorcarriedoutwiththesupervisionofasuitablyqualiedperson.
2LeftandRightmodels
PositionDescription
RRighthandmodel(Supplyairconnectionandcontrolpanelissituatedontheright
handsideoftheunitviewedfromthefront).
LLefthandmodel(Supplyairconnectionandcontrolpanelissituatedontheleft
handsideoftheunitviewedfromthefront).
Note:
Thisdocumentdescribesinstallationofthebypassdamperontheright(R)model.Theinsideofaleft
(L)modelismirrored.
SAVEVTC300Replacementinstructions
2092381SystemairAB
3Changingthebypassdamper
1
Disconnecttheunitfromthemainssupply.
2
Openthefronthatch.
3
Removethelid(pos2)ofthebypassdamperbyloosening4screws(pos1).
SAVEVTC300Replacementinstructions
2092382SystemairAB
4
Disconnectallthecables:disconnect4–pinconnector(pos1),3–pinconnector(pos2),groundGND
connector(pos3)andmodularjackcablingtothefronthatch(pos4).
5
Loosenthedamperlockingscrewswithablackknob(pos1).
SAVEVTC300Replacementinstructions
2092383SystemairAB
6

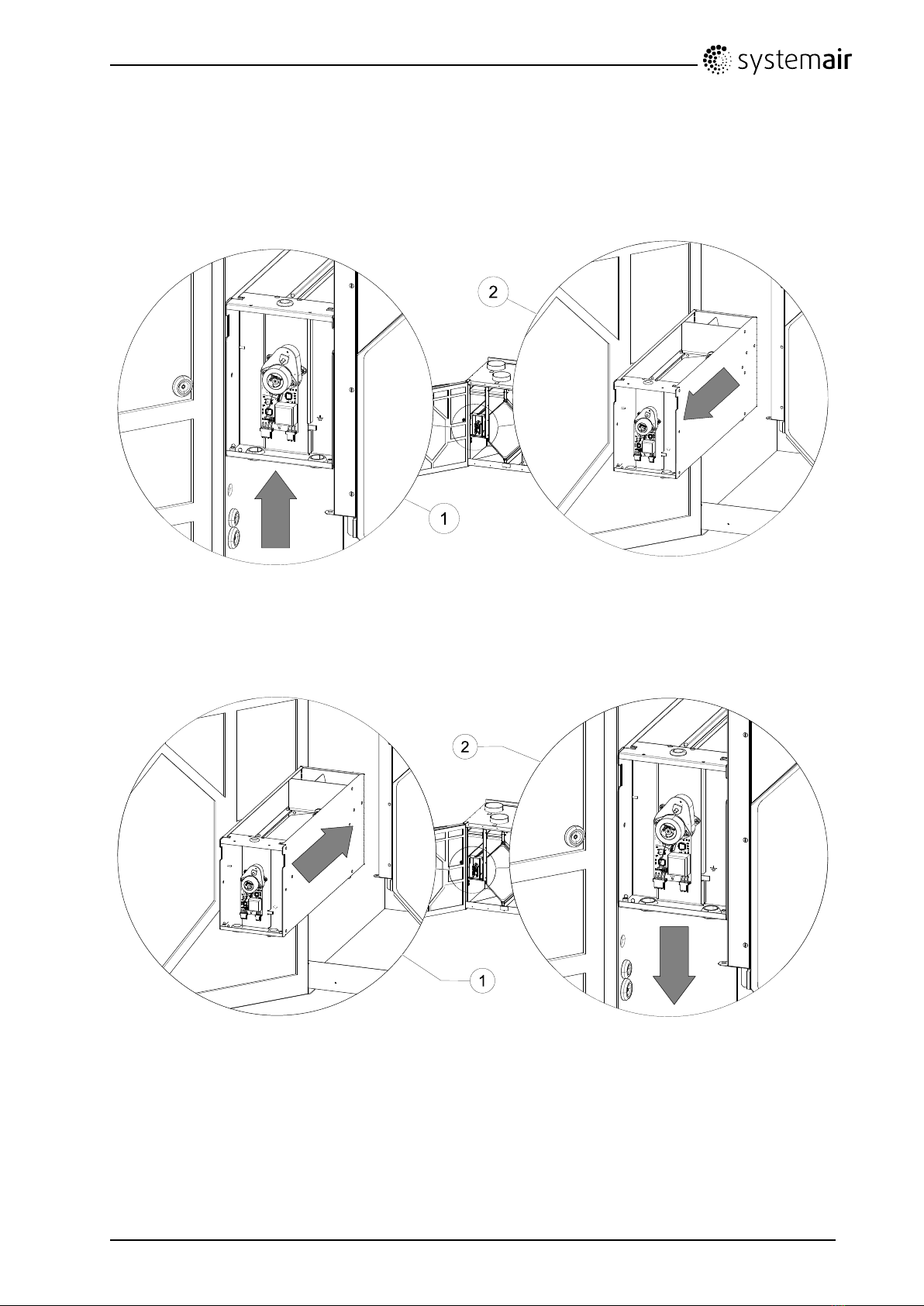

Slightlyliftupthebypassdamper(pos1)andthenremoveitbypullingitoutside(pos2).
7
Mountthenewbypassdamper(pos1),lockitintotheposition(pos2).
SAVEVTC300Replacementinstructions
2092384SystemairAB
8
Placeandtightenthedamperwithlockingscrewswithablackknob(pos1).
9
Connectallthecables:connect4–pinconnector(pos1),3–pinconnector(pos2),groundGNDconnector
(pos3)andmodularjackcablingtothefronthatch(pos4).
SAVEVTC300Replacementinstructions
2092385SystemairAB
10

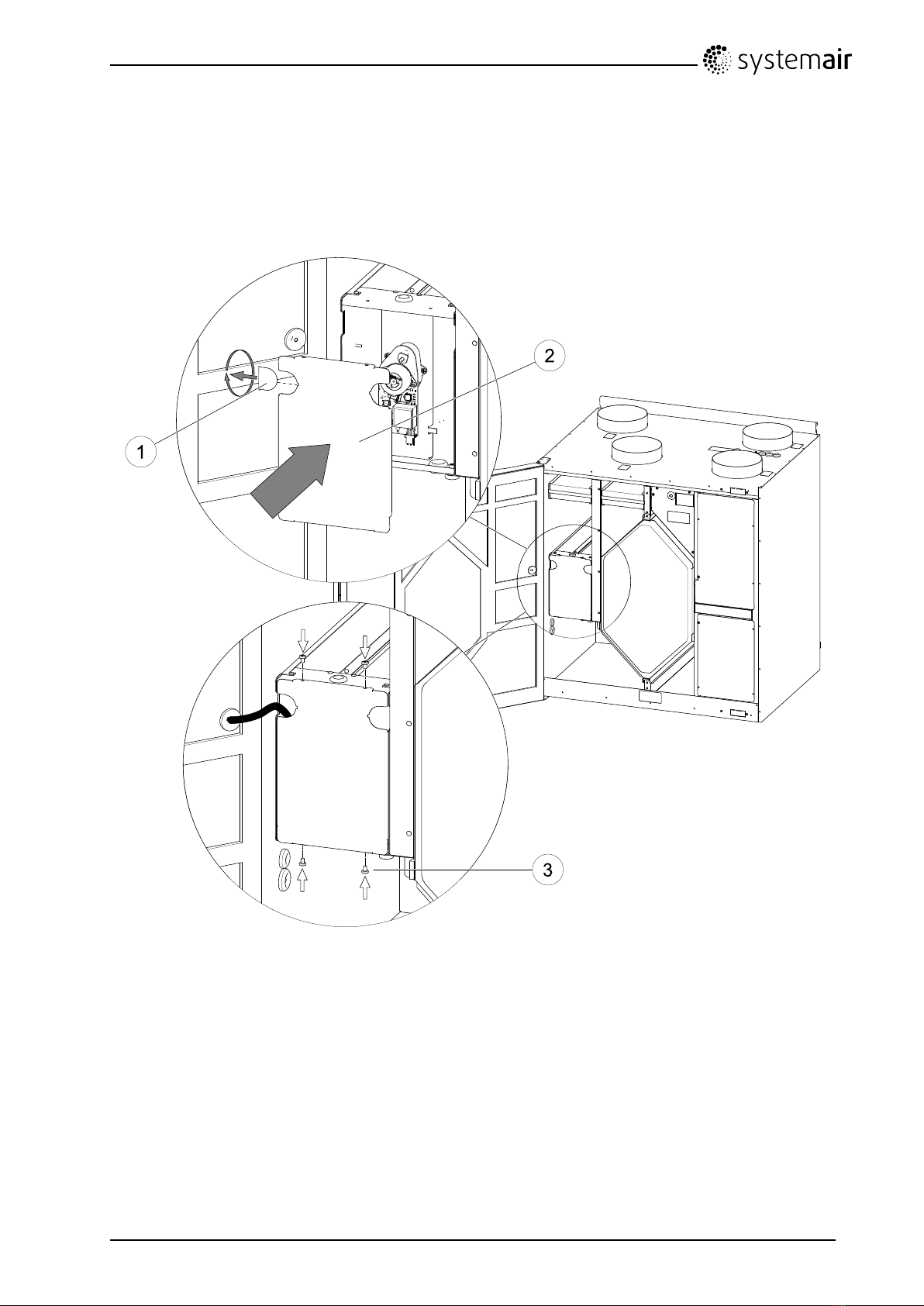

Removeaholecover(pos1)fromthedamperlid(pos2)topassthroughthecablingoftheCDcontrol
panel.Mountthelidofthebypassdamperbytightening4screws(pos3).Closethehatchandconnect
theunittothemainssupply.
SAVEVTC300Replacementinstructions
2092386SystemairAB
4Changingthebypassdamperintheunits
producedbefore10–08–2014
IftheSAVEVTC300unitwasproducedbeforethe10thofAugust2014,anewreleasedbypassdamper
cannotbechangeddirectlyanymoreasshownintheinstallationsection3Changingthebypassdamper.
Thenewbypassdamperdonotusethetransformerwhichislocatedintheconnectionbox,thereforeit
mustbedisconnectedandcablesconnectedviaadapterbeforemountingthenewbypassdamperinto
place.Carefullyperformadditionalstepsbellowtocompletetheinstallation:
Theunitproductiondatecanbefoundonthetypelabel(see:step2,page7,pos3),whichcanbefound
ontopoftheunitclosetotheductconnectionsorinsideinthebottomoftheunit.
1
Disconnecttheunitfromthemainssupply(step1,page2),openthehatch(step2,page2).
2

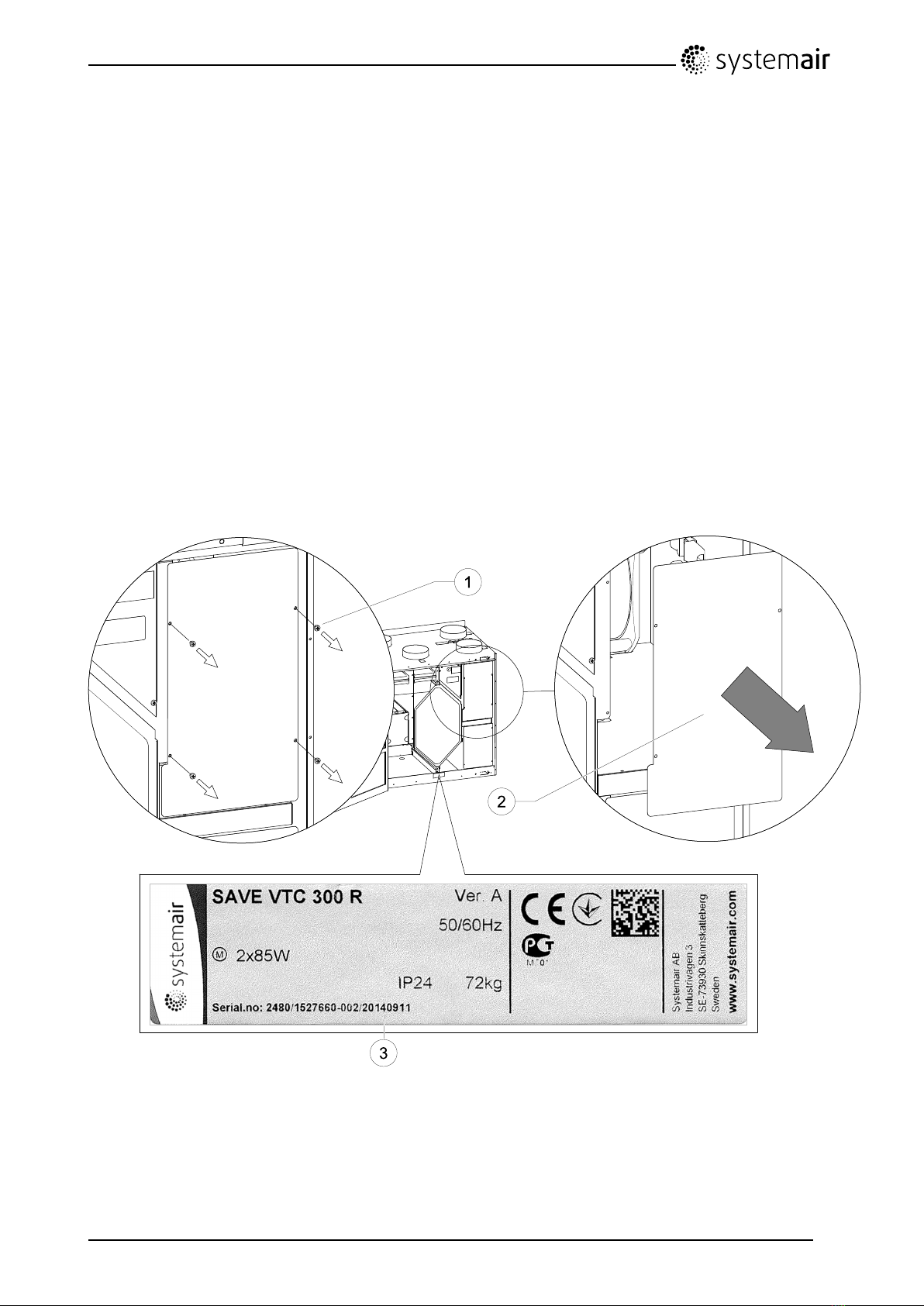

Removethefrontlid(pos2)bylooseningfourscrews(pos1).
SAVEVTC300Replacementinstructions
2092387SystemairAB
3
Removethecoverplateoftheconnectionbox(pos2)byloosening2screws(pos1).Pullthecover
asshowninillustrationtoremoveit.
4.1Disconnectingthetransformer
Generalchangesthatneedstobemadeoncomponentsintheconnectionboxareshowninthe
illustrationsbellow.
PositionDescription
1Transformer
2Printcard(PCU-EC)
34–polsocket
SAVEVTC300Replacementinstructions
2092388SystemairAB
