SySTIUM®TECHNOLOGIES

Assembly Guide

Model 555

SySTIUM®TECHNOLOGIES MotherBoard ReadyTM System • MODEL 555

Radio Frequency Interference Notice (USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to

operate the equipment. The customer is responsible for ensuring compliance of the modified product.

Only peripherals (computer input/output devices, terminals, printers, etc.) that comply with FCC class B limits may be

attached to this computer product. Operation with noncompliant peripherals is likely to result in interference to radio and

TV reception.

All cables used to connect to peripherals must be shielded and grounded. Operation with cables, connected to

peripherals that are not shielded and grounded may result in interference to radio and TV reception.

Manufacturer: SySTIUM® Technologies, LLC

New Hope, MN 55428

763-537-3600

Contact: Customer Support

NOTE

If a Class A device is installed within this system; then the system is to be considered a Class A system. In this

configuration, operation of this equipment in a residential area is likely to cause harmful interference.

Radio Frequency Interference Notice (CDN)

This Class B digital apparatus complies with Canadian ICES-003:2004

Cet appareil numérique de Ia classe B est conforme a Ia norme NMB-003:2004 du Canada.

Declaration of the Manufacturer or Importer

This system is compliant with Low Voltage Directive 2006/95/EC using the standard EN 60950-

1:2006/A11:2009/A1:2010/A12:2011, (IEC 60950-1:2005 (2nd Edition); Am 1:2009).

This system is compliant with EU directive 2004/108/EC using the standards EN55022:2010 and EN55024:2010.

Disclaimer Statement

SySTIUM® Technologies makes no warranty of any kind with regard to this material, including, but not limited to, the

implied warranties of merchantability and fitness for a particular purpose. SySTIUM® Technologies assumes no

responsibility for any errors that may appear in this document. SySTIUM® Technologies makes no commitment to

update nor to keep current the information contained in this document. No part of this document may be copied or

reproduced in any form or by any means without prior written consent of SySTIUM® Technologies.

Third-party brands and trademarks are the property of their respective owners.

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

ASSEMBLY GUIDE

Assembly Safety Instructions

Assembly of a computer system using the Systium

Model 555 enclosure t shall be done only by technically

qualified personnel. Follow the instructions in the

document “Model 555 Maintaining Regulatory

Compliance” to meet and maintain the safety and

product regulatory compliance of this product when

assembling a computer system using this product.

WARNINGS

Read and adhere to all of these instructions and

instructions supplied with this assembly. Failure

to follow these instructions will result in voiding

the products regulatory compliance statements.

The procedures in this document assume familiarity

with the general terminology associated with personal

computers and with the safety practices and regulatory

compliance required for using and modifying electronic

equipment.

WARNINGS

TO PREVENT ACCESS TO HIGH

ELECTRICAL ENERGY PARTS, DO NOT

REMOVE THE COVERS WHILE THE

SYSTEM IS POWERED ON!

Do not open the power supply. The power supply

in this computer contains no user-serviceable

parts. To avoid personal injury or damage to

your equipment, refer repair or replacement of

the power supply to qualified technical personnel

only. All other areas and components of this

computer are considered user-accessible.

CAUTIONS

Electrostatic discharge (ESD) can damage disk

drives, add-in cards, and other components.

Follow the procedures described in this chapter

only at an ESD workstation. If such a station is

not available, you can provide some ESD

protection by wearing an anti-static wrist strap

and attaching it to a metal part of the chassis.

Add-in cards can be extremely sensitive to ESD

and always require careful handling. After

removing the card from its protective wrapper or

from the computer, place the card flat on a

grounded, static-free surface, component side

up. Use a conductive foam pad (f available, but

not the board wrapper Do not slide the board

over any surface.

For proper cooling and airflow, always close the chassis

before turning on the computer system. Operating the

computer system without the chassis closed can

damage system parts.

Before You Begin

1. Be sure to follow each procedure in the correct

order.

2. Set up an equipment log to record the computer’s

model and serial numbers, all installed options,

and other information about the computer. This

information must be saved as a record of the

product’s configuration and compliance with the

allowable configuration options.

3. We recommend that you use an anti-static wrist

strap and a conductive foam pad when working

on the computer.

4. You will need a Phillips (#1 and #2 bits)

screwdriver and Needle Nose Pliers.

NOTE

The integration kit provides screws for the

following as shown in Figure 1:

• Six 3.5 peripheral mounting slides

• One lock tab and its associated .25” 6-32

Screw

• Eleven 6-32 Phillips Screws

• Six M3 Phillips screw

• Four Chassis Feet

FIGURE 1

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

Assembly Notes for Different

Motherboards

The Model 555 supports a number of different

motherboards. A number of the assembly step details

are different for each specific motherboard. This

manual describes the steps required to complete the

base system assembly task. Any steps or figures

specific to a particular motherboard are noted with a

reference to the assembly instructions specific to that

motherboard. If no other board instructions are present,

then the assembly step is consistent for all

motherboards.

NOTE

If the manual does not include information for your

specific motherboard check the Systium Technologies web

site www.Systium.com, support for updates to this manual.

Unpack the System

Systium Technologies offers MotherBoard Ready

products in two packaging configurations. The first is a

reusable “End-User” ready single package. The second

is a hi-volume bulk package. The instructions detailed

are for the single package. Any differences in

procedures between the single package and bulk

package are noted within each section. The integration

kits are the same for the single or bulk package

MotherBoard Ready Systems.

CAREFULLY UNPACK THE COMPUTER. Save the

box and packaging material for shipment to the

customer. If components are missing please contact

your supplier or Systium Technologies.

BULK PACKAGE

Please re-cycle the packaging when possible. None of

the bulk pack packaging is designed for reuse when

shipping to the end customer.

CONTENTS

The Model 555 MotherBoard Ready System product

contains the following:

•Model 555 Chassis with Power Supply

Installed

•North American Compliant Power Cord

•Integration Kit

• Quickstart Guide. (This manual must be

included in shipment to the End User.)

•Manual

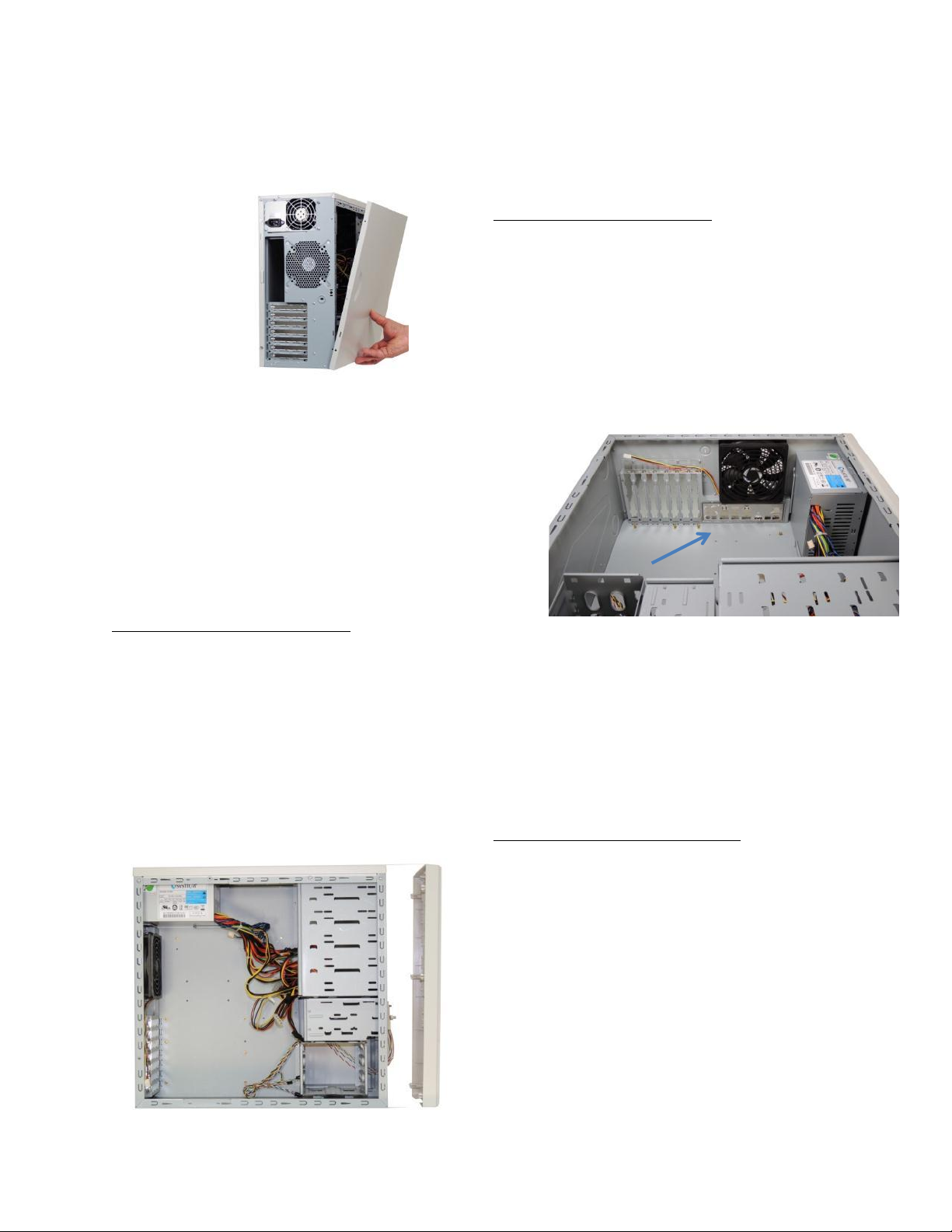

Removing a Side Cover

1. Remove the plastic bag protecting the chassis.

Save the bag for shipping the assembled

computer.

2. Remove the two screws securing the

right cover (as viewed from the rear of the

chassis) to the chassis. Refer to Figure 2

above.

3. Using the handhold in the cover slide the

cover toward the rear of the chassis. The

cover should move approximately .5 inch.

Refer to Figure 3 above.

FIGURE 3

left

cover

screws

right

cover

screws

FIGURE 2

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

4. The cover will easily pull away from the frame.

Refer to Figure 4.

5. Place the cover to the side where it will not get

scratched or damaged before reassembly.

NOTE

The same steps are followed for the left cover. The left

cover only needs to be removed for installation of a

peripheral in the lower 5.25” bay. If the left cover is not

removed then care must be taken not to scratch or damage

the cover when assembling the system.

Removing the Front Bezel

The front bezel must be removed to install a 5.25” or

3.5” external peripheral.

1. Grasp the top front of the bezel with one hand.

Place the other hand and the chassis to hold it

in place. Refer to Figure 4

2. Carefully pull the front bezel away from the

chassis. There are 6 snap locks that hold the

bezel in place.

3. Place the bezel to the side where it will not get

scratched or damaged before reassembly.

Installing the I/O Shield

1. Locate the I/O shield supplied with the

motherboard.

2. Place the lower surface of the I/O shield in the

I/O opening in the rear of the chassis. Ensure

the I/O shield is fully inserted into the opening.

Refer to Figure 6

3. Carefully press the top surface of the I/O

shield into the I/O opening. Be careful to only

place pressure at the outer edges of the I/O

shield when pressing on the I/O shield. Check

that the I/O shield is fully inserted into the I/O

opening.

NOTE: Failure to properly install the I/O shield can result

in EMI leakage that will result in the computer system not

meeting the product's EMC compliance.

Installing the Motherboard

1. Specific motherboards may require the

installation of a screw-in standoff(s) in the

chassis base to mount the motherboard to.

The standoff(s) are included with the

integration kit.

2. Following the instructions supplied with the

motherboard, install the CPU and memory.

Ensure that the recommended ESD protection

guidelines are followed.

3. Place the motherboard on the mounting

supports. Carefully slide the motherboard

towards the rear of the chassis to engage the

motherboard connectors into the I/O shield

openings. Refer to the assembly instructions

for the motherboard being installed for a figure

of the correct installation of the motherboard

into the I/O shield.

FIGURE 4

FIGURE 5

FIGURE 6

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

4. Using the mounting screws supplied, mount

the motherboard to the chassis. Ensure that

the motherboard is fully inserted into the I/O

shield while being tightened into place. Check

that the fingers on the I/O shield are in contact

with the connectors.

NOTE: Failure to ensure the fingers are touching the

connectors can result in EMI leakage that will result in the

computer system not meeting the product's EMC

compliance.

5. The power supply supports the connection of

the fan monitor cable to one of the

motherboard fan connectors. Refer to the

assembly instructions for the specific

motherboard being installed for the correct

installation of the power supply fan monitor

cable.

NOTE: Connection of the power supply fan monitor cable

is optional. The cable can be left unconnected, placed

cleanly inside the chassis.

6. Connect the front panel connectors to the

motherboard. Refer to the motherboard

manual for the correct positions. Refer to

assembly instructions for the specific

motherboard being installed for a figure of the

correct installation of the front panel

connectors.

7. Connect the ATX and ATX-12V power

connectors to the motherboard. Refer to the

motherboard specific assembly instructions for

any additional motherboard power

connections.

Installing a PCI-E Video Adapter

(Optional)

If the motherboard does not support a built-in video

adapter or the built-in video adapter is not being used,

you must install a video adapter in the slot provided.

1. Refer to motherboard manual for the location

of the PCI-E video slot. Remove the screw

holding the I/O slot cover.

2. To completely remove the I/O slot cover, slide

the cover upwards and away from the back of

the chassis.

3. Refer to the video adapter manual for any

installation or configuration steps that need to

be completed before installing the adapter into

the chassis.

4. Install the video adapter. Refer to the

motherboard manual for any motherboard

specific installation instructions.

5. Secure the video adapter to the chassis by

installing the I/O cover screw removed in step

Installing a I/O Adapter (Optional)

If an I/O adapter is part of the system configuration the

following instructions should be followed. If no I/O

adapter is to be installed, then this section can be

skipped.

1. Remove the screw holding the I/O slot cover

for the I/O slot to be used. Refer to Figure 8 for

the location of the I/O slot covers.

2. To completely remove the I/O slot cover, slide

the cover upwards and away from the back of

the chassis.

3. Refer to the I/O adapter manual for any

installation or configuration steps that need to

be completed before installing the I/O adapter

into the chassis.

4. Install the I/O adapter. Refer to the

motherboard manual for any motherboard

specific installation instructions. Refer to

Figure 8

FIGURE 7

PCI SLOTS

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

5. Secure the I/O adapter to the chassis by

installing the I/O cover screw removed in step

Installing a 3.5” External Peripheral(s)

(Floppy, Front Panel I/O, USB Slots)

NOTE

The system must have one 3.5" external peripheral

installed. Failure to install a 3.5" external peripheral can

result in EMI leakage that will result in the computer

system not meeting the product's EMC compliance. A 3.5"

EMI shield is not supplied with the Model 555 and must be

ordered separately from Systium.

1. Refer to the peripheral's user manual for

instruction on peripheral configurations.

2. Position the peripheral in one of the two 3.5”

bays on the 555 lining up the peripheral

screws holes with the 555 slots.

3. Using the mounting screws supplied with the

peripheral –secure the peripheral in place.

Refer to figure 9.

NOTE

If a second 3.5" external peripheral is installed you must

first remove the EMI shield built in to the chassis. The EMI

shield can be removed by inserting a screwdriver into the

hook in the EMI shield.

The shield can then be rotated carefully to break the

mounting slips.

Completely remove the EMI shield form the chassis and

dispose of it properly.

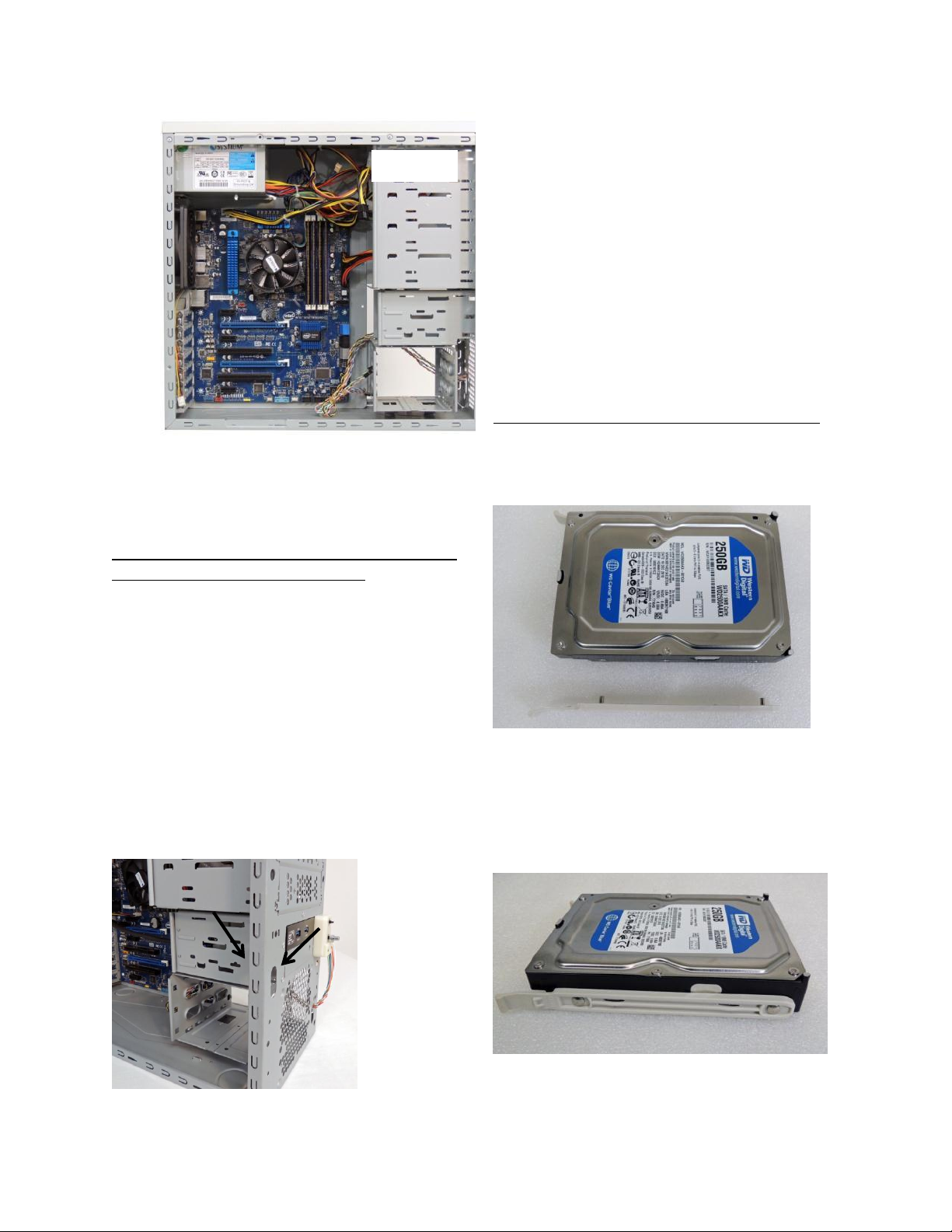

Installing 3.5” Internal Peripheral(s)

1. Position the mounting rails on the side of the

peripheral (HDD) as shown in Figure 10.

2. Press the mounting rail in the peripheral

mounting screw holes. Install the second

mounting rail on the opposite side of the 3.5”

peripheral. Refer to Figure 11.

FIGURE 9

FIGURE 8

FIGURE 10

FIGURE 11

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

3. Line up the mounting rails with the

corresponding guides in the 3 bay internal

peripheral bay of the chassis. Insert the

peripheral into the chassis until the front tabs

lock to the side of the chassis. Refer to Figure

Re-install Front Bezel

1. It is recommended to re-install the front bezel

prior to placing the 5.25” peripherals so that

aligning the front of the optical drives with the

bezel front is easier and more precise.

2. Remove any plastic filler panels required for

access to installed external peripherals.

3. Position the 6 snap locks with their

corresponding holes. Carefully snap the front

bezel back into place. Refer to Figure 13.

Installing 5.25” External Peripheral(s)

(All Bays)

1. Refer to the peripheral's user manual for

specific instructions to configure the peripheral

2. Position the peripheral in the slot lining up the

front of the peripheral with the bezel front.

3. Secure the 5.25” external peripheral to the

chassis with the supplied mounting screws.

Refer to Figure 14

NOTE

The system must have one 5.25" external peripheral

installed or an

EMI shield must be installed. Failure to install a 5.25"

external peripheral or EMI shield can result in EMI

leakage that will result in the computer system not meeting

the product's EMC compliance. A 5.25" EMI shield is not

supplied with the Model 545 and must be ordered separately

from Systium.

Install Cover Lock Tab

NOTE

The Model 555 utilizes a power supply with an Energy

Hazard on the 12V circuit. Compliance with CE requires

installation of the cover lock tab and a lock or the use of the

6-32 TORX screw to secure the top cover.

1. Locate the locking tab and mounting screw in

the accessory package.

2. Position the locking tab in the notch on the

right rear edge of the chassis. Secure the

locking tab to the chassis using the screw

supplied. Refer to Figure 15.

FIGURE 12

FIGURE 13

FIGURE 14

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

Connect Peripheral Cables

1. Connect the cables supplied with the motherboard

and/or installed peripheral devices. Care should be

given to ensure the cables do not block airflow within

the chassis and are routed cleanly to facilitate future

system maintenance. Refer to assembly instructions for

the specific motherboard being installed for a figure

showing an example of cable routing.

2. Connect the power cables to the peripherals.

Install Side Cover(s)

NOTE

Before installing the right side cover please check that all

cables are connected and no tools, screws or accessories are

left inside the chassis.

1. Position the lower groove in the side cover to

fit onto the lower and upper edges of the

chassis.

2. Close the side cover so as to be flush with the

chassis.

3. Slide the cover towards the front of the

chassis. Ensure that all the mounting clips on

the cover are fully engaged with the chassis. If

the optional locking tab is installed, ensure that

the tab is inserted into the slot in the cover.

4. Secure the cover to the chassis with the two

screws removed when the cover was originally

removed.

Install Chassis Feet

1. Remove the chassis feet and install in proper

location on the bottom of the chassis as shown

in Figure 16.

NOTE

To install the left cover the same steps are followed except

there is no locking tab on the left side of the chassis.

Power up the System

1. Connect the keyboard, mouse, monitor and

any other required peripheral for the correct

operation of the computer. Refer to the Quick

Start section in this manual for assistance in

connecting the peripherals to the computer.

2. Turn on the computer by pressing the power

switch on the front panel. Refer to the Quick

Start Section of this manual for more

information.

3. Verify the operation of the POWER ON

indicator on the front panel. The LED should

glow constantly when the computer is turned

on. Verify that the floppy LED turns on when

the system resets the floppy drive during the

POST. Verify the operation of the hard drive

LED on the front panel. The LED should turn

on when the POST resets the hard drive or

attempts to boot the computer. Correct any

problems detected during the initial power up

phase.

FIGURE 15

FIGURE 16

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 555

PN: 91609-00 Rev01

4. Test the complete operation of the computer

using a known good computer functional test

program such as Intel’s Test view. Install any

required operating system or application

software.

NOTE

The computer must have all the required warning and

information lights functioning before shipping to the end

user.

5. Disconnect the computer from the peripherals used

during the testing phase. Package the computer using

the original packaging. (Single Pack Only).

NOTE

You must include the End User Quick

Start manual in the shipment to the

customer to maintain Regulatory

Compliance.

NOTE

If the computer was assembled from a bulk pack

Motherboard Ready product the computer must be

packaged in a Single pack box or similar packaging before

being shipped to the end user.

Indice

Altri manuali Systium Technologies Accessori per computer

Systium Technologies

Systium Technologies MotherBoard Ready 215 Manuale utente

Manuali Accessori per computer popolari di altre marche

Motorola

Motorola ATRIX Manuale utente

HP USB Media Docking Station Manuale utente

Cherry

Cherry B.UNLIMITED 3.0 Manuale utente

Logitech

Logitech IO2 Manuale utente

ARM

ARM DSTREAM-ST Manuale utente

Bartec

Bartec TC 7 Series Manuale utente

Philips

Philips SPC3540 Manuale utente

Logitech

Logitech mk220 Manuale utente

SilverStone

SilverStone LC02 Manuale utente

Flexispot

Flexispot ML2B Manuale utente

Hamlet

Hamlet UNIVERSAL COVER 101 KBT2 Manuale utente

Adam Equipment

Adam Equipment RS-485 Manuale utente

Vivo

Vivo MOUNT-KB05-4DW Manuale utente

Kvaser

Kvaser Memorator Professional Manuale utente

DRC

DRC D-Imaging Manuale utente

Sven

Sven Base 305 сombo Manuale utente

Hama

Hama 108310 Manuale utente

SpeechWare

SpeechWare FlexyMike FMK03 Manuale utente
