Remove machine from carton and place on a stable surface.
Remove machine from plastic bag
Remove bubble-wrap from mandrills
TCC 2700 Laminating Machine
Operating Instructions
TCC 2700 Laminating Machine
TCC 2700 Laminating Machine
Operating Instructions
Operating Instructions

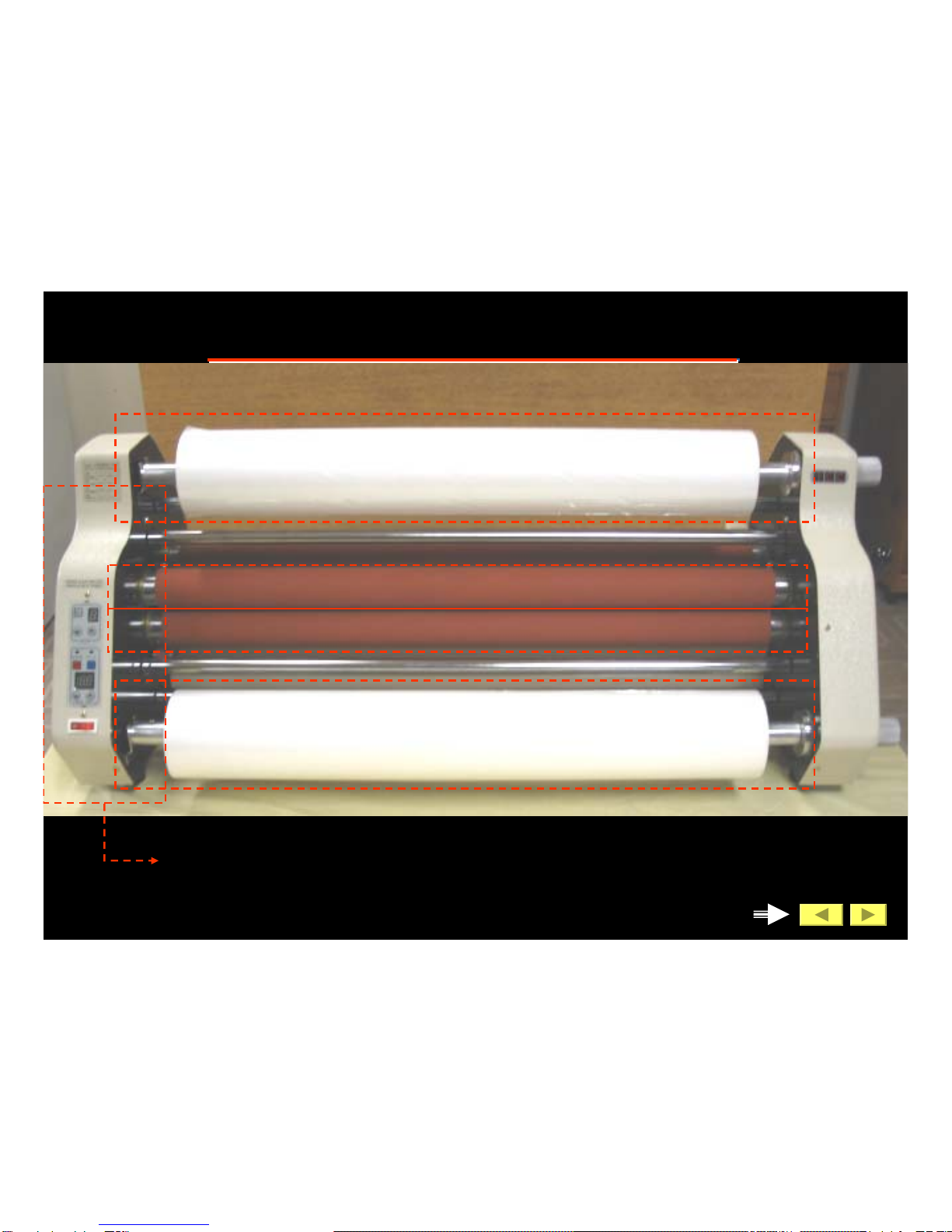

Lower mandrill inside laminating roll
Upper mandrill inside the laminating roll
Lower heat roller
Upper heat roller
Operating Panel
TCC 2700 Laminating Machine
TCC 2700 Laminating Machine
TCC 2700 Laminating Machine
Upper Mandrill Lower Mandrill
Laminating roll Laminating roll

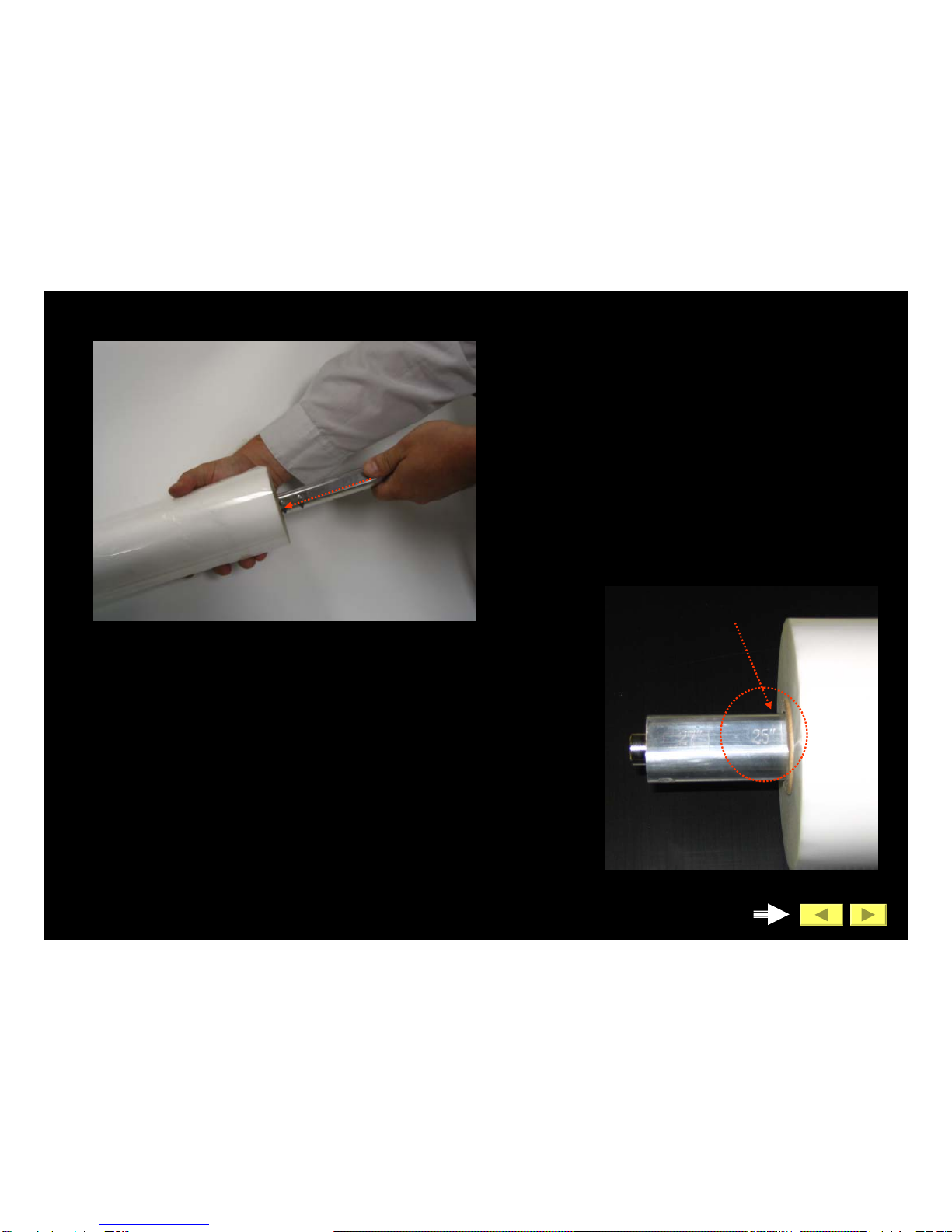

Insert upper and lower
mandrills into core of the
film
Line up film with
appropriate notches on
mandrill (25” film lines
up with notch that reads
“25”” and so forth)
Upper Mandrill inside the laminating roll Lower Mandrill inside the laminating roll
After inserting the upper and lower mandrills into
the core of the film, it should look like the pictures
shown below
How to thread the laminating film
How to thread the laminating film
How to thread the laminating film

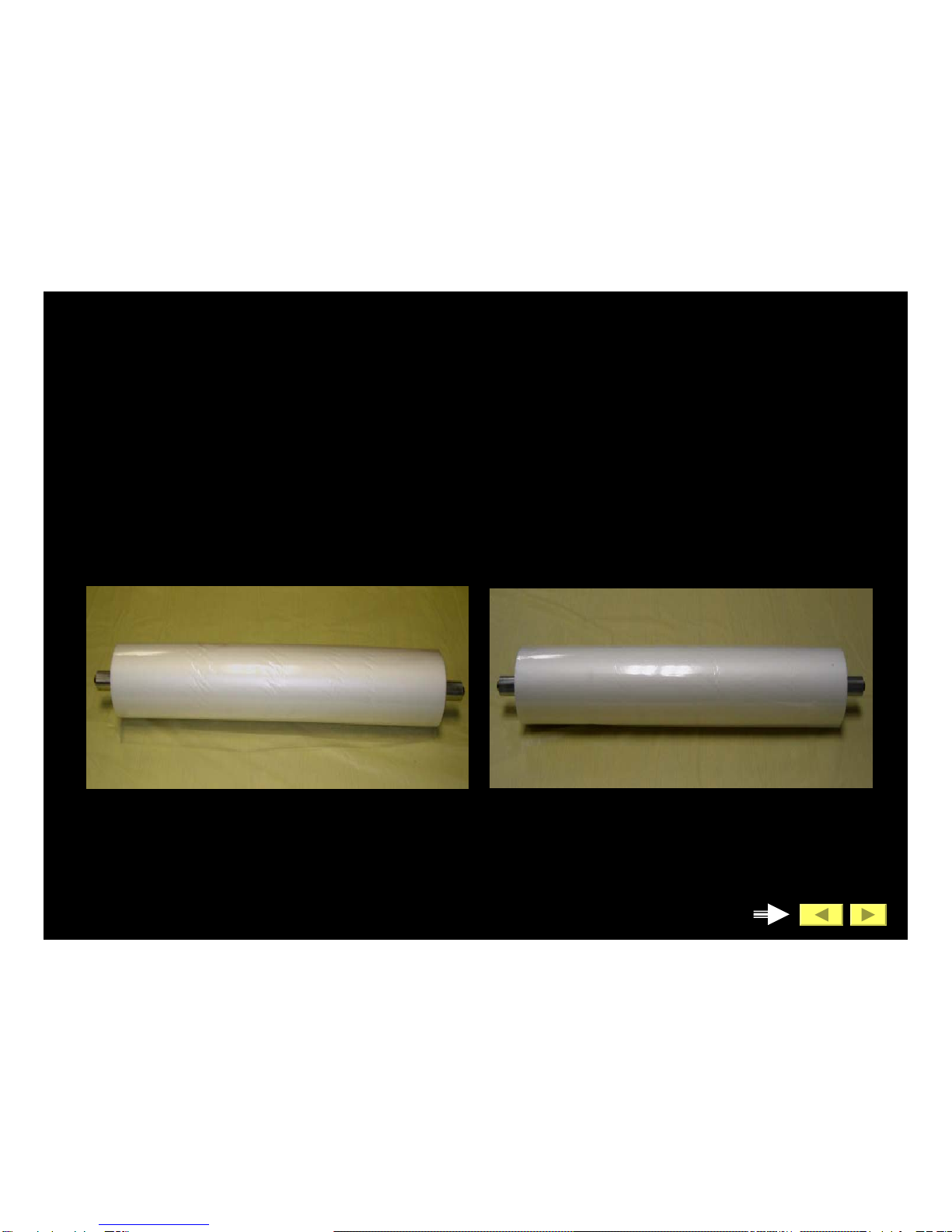

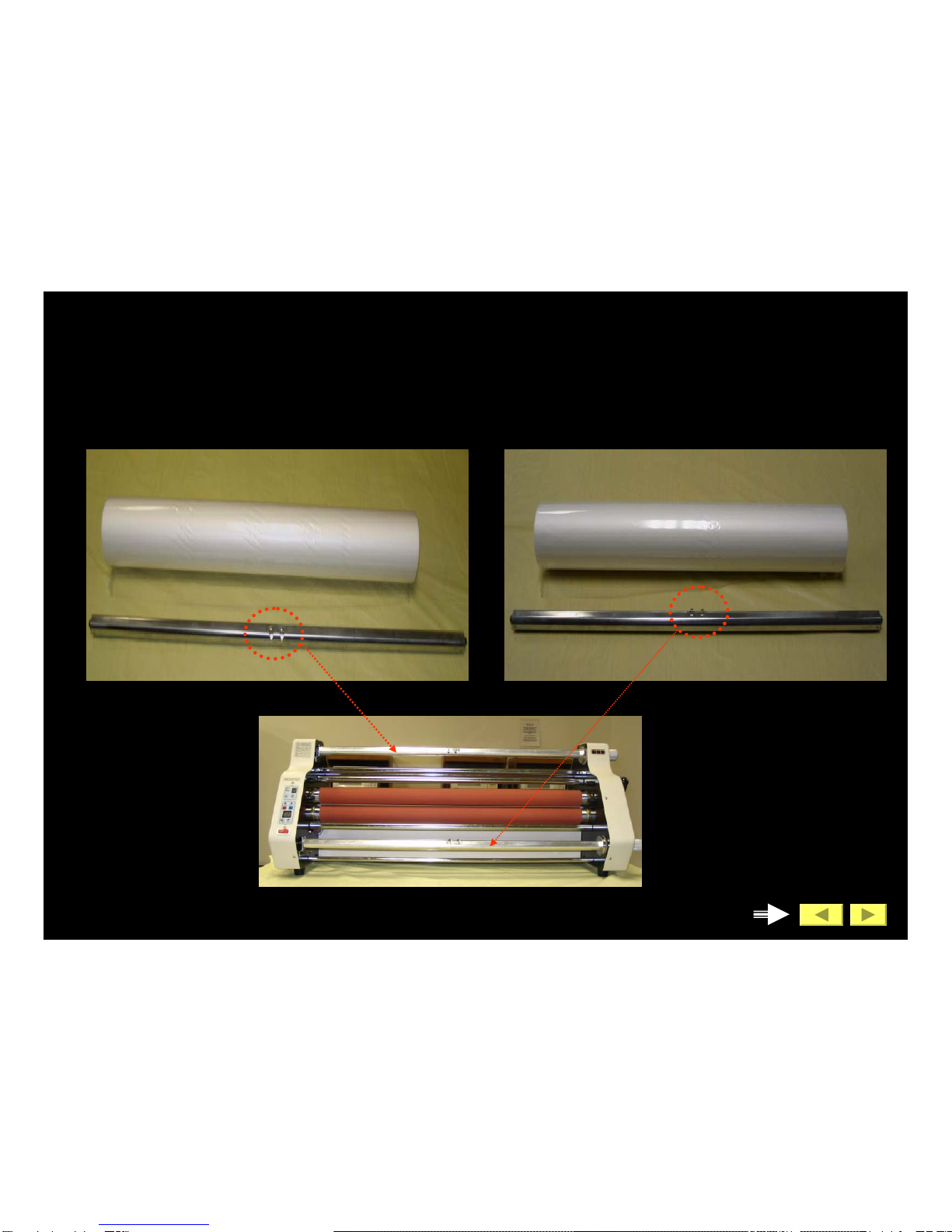

shiny side
dull side
UPPER HEAT ROLLER
LOWER HEAT ROLLER
dull side
shiny side
laminating roll
laminating roll
Upper mandrill
Lower mandrill
Threading Bars
Pass film over the first threading bar

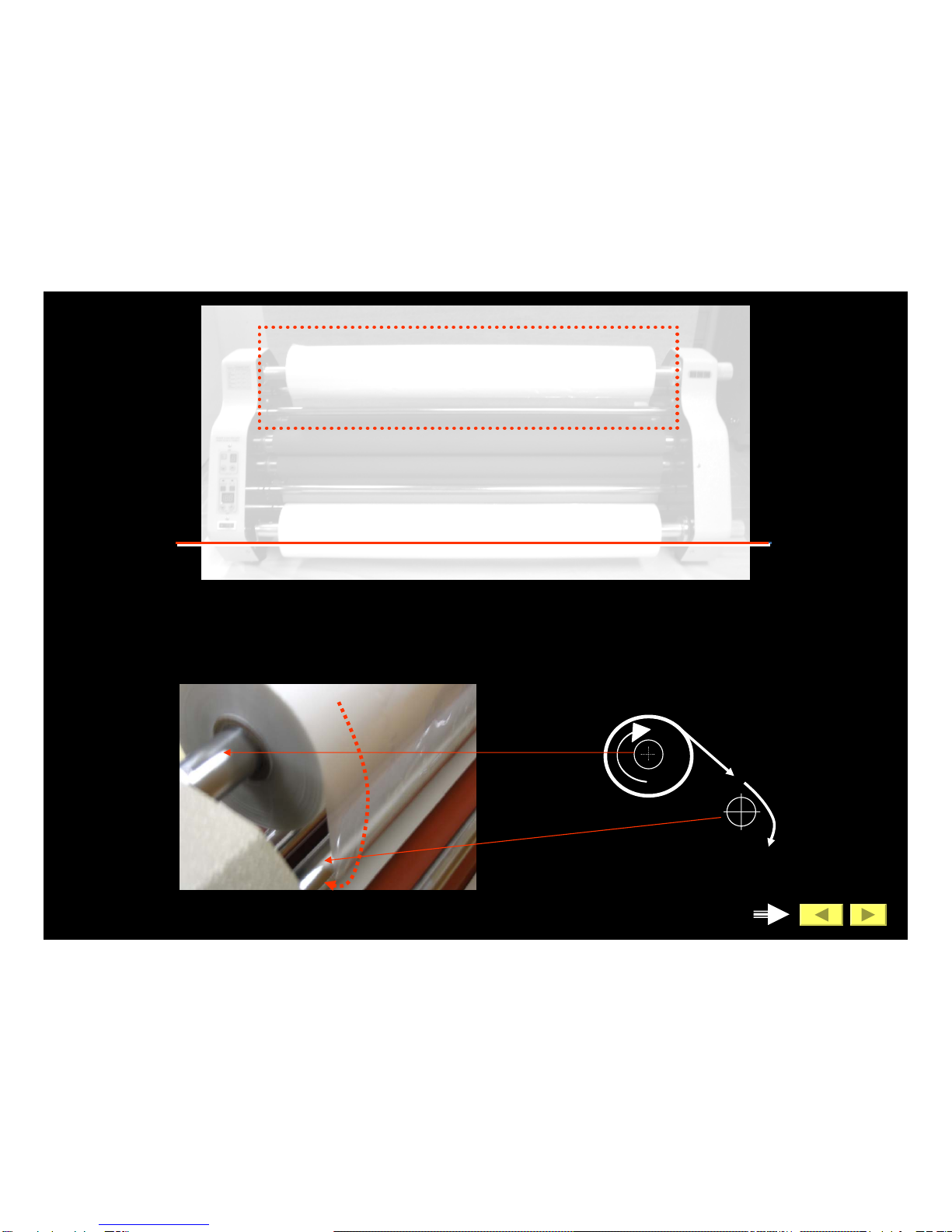

Threading the upper laminating roll
Threading the upper laminating roll
Threading the upper laminating roll
Pull film towards front and over the second
threading bar
Threading the upper laminating roll
Threading the upper laminating roll
Threading the upper laminating roll
Pass film over stable support rod

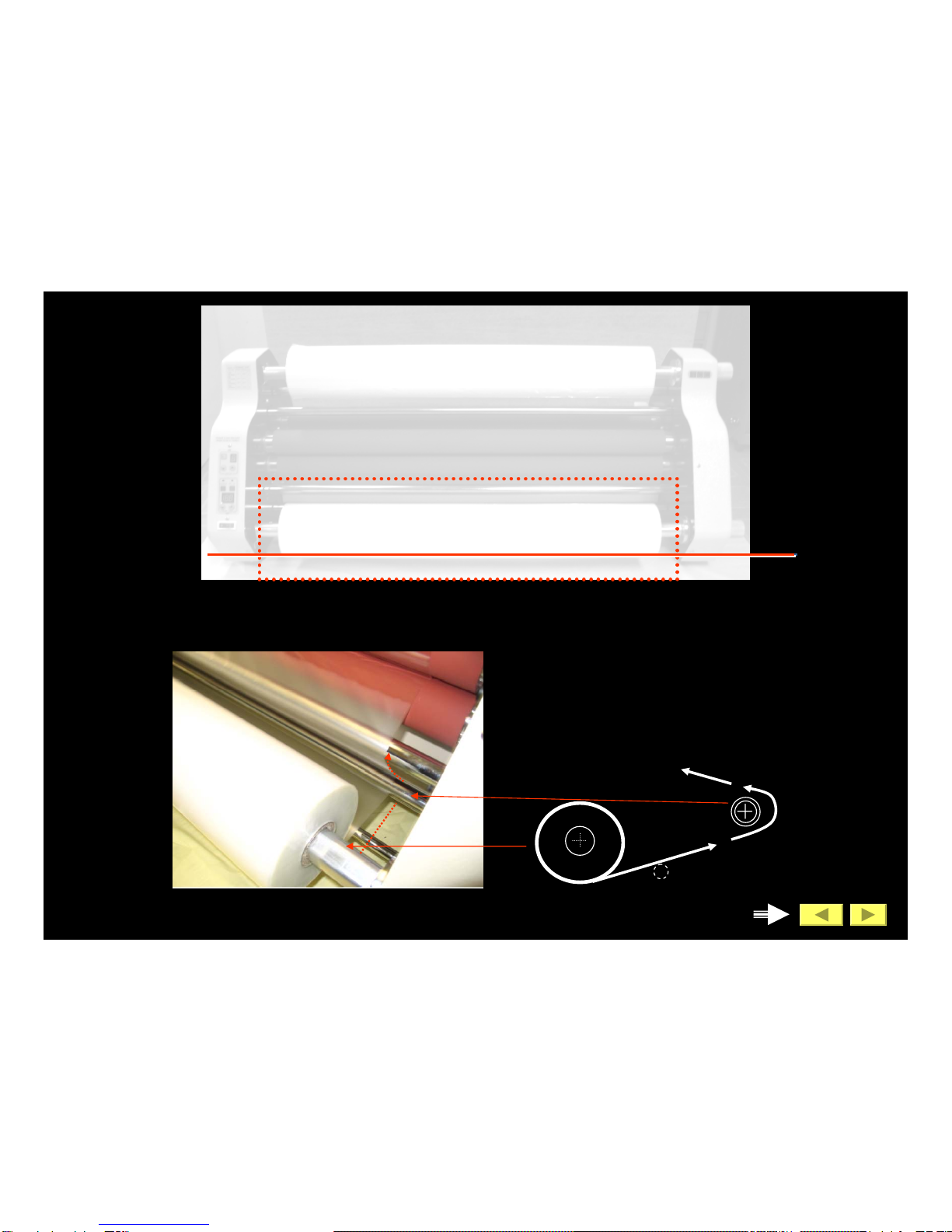

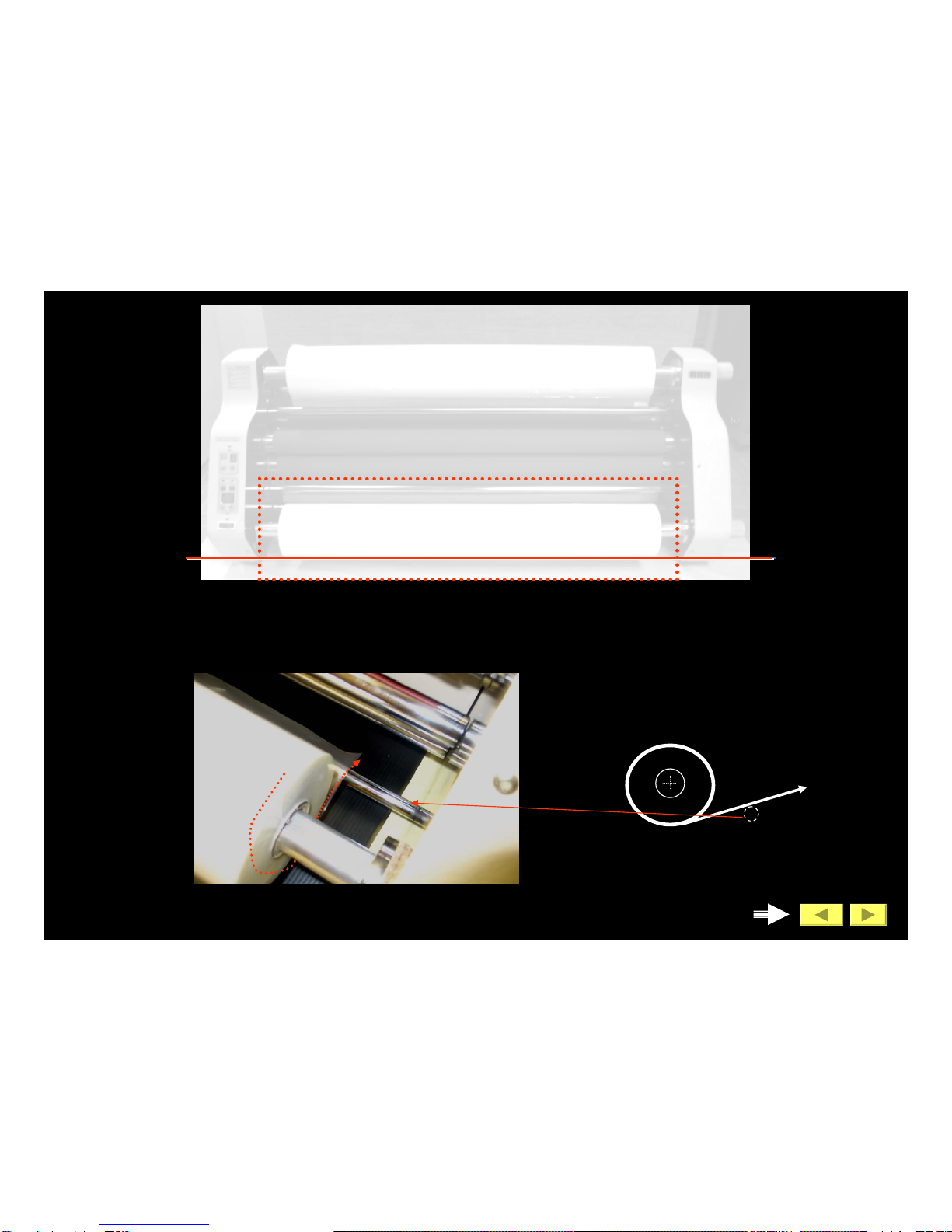

Threading the lower laminating roll
Threading the lower laminating roll
Threading the lower laminating roll
Pass film under and back over the lower threading bar
Threading the lower laminating roll
Threading the lower laminating roll
Threading the lower laminating roll
