Tanaka ECS-3301/B Guida all'installazione
IllustrIllustr
IllustrIllustr
Illustraa
aa
ated Pted P
ted Pted P
ted Parar
arar
arts Mants Man
ts Mants Man
ts Manualual
ualual
ual
Model Number:
ECS-3301/B
32cc CHAINSAW
P/N 40135
Rev 000
Date 5-14-07
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
www.tanakapowerequipment.com [email protected]
www.tanakapowerequipment.com
PARTSINFORMATION
Page 1
ECS-3301/B

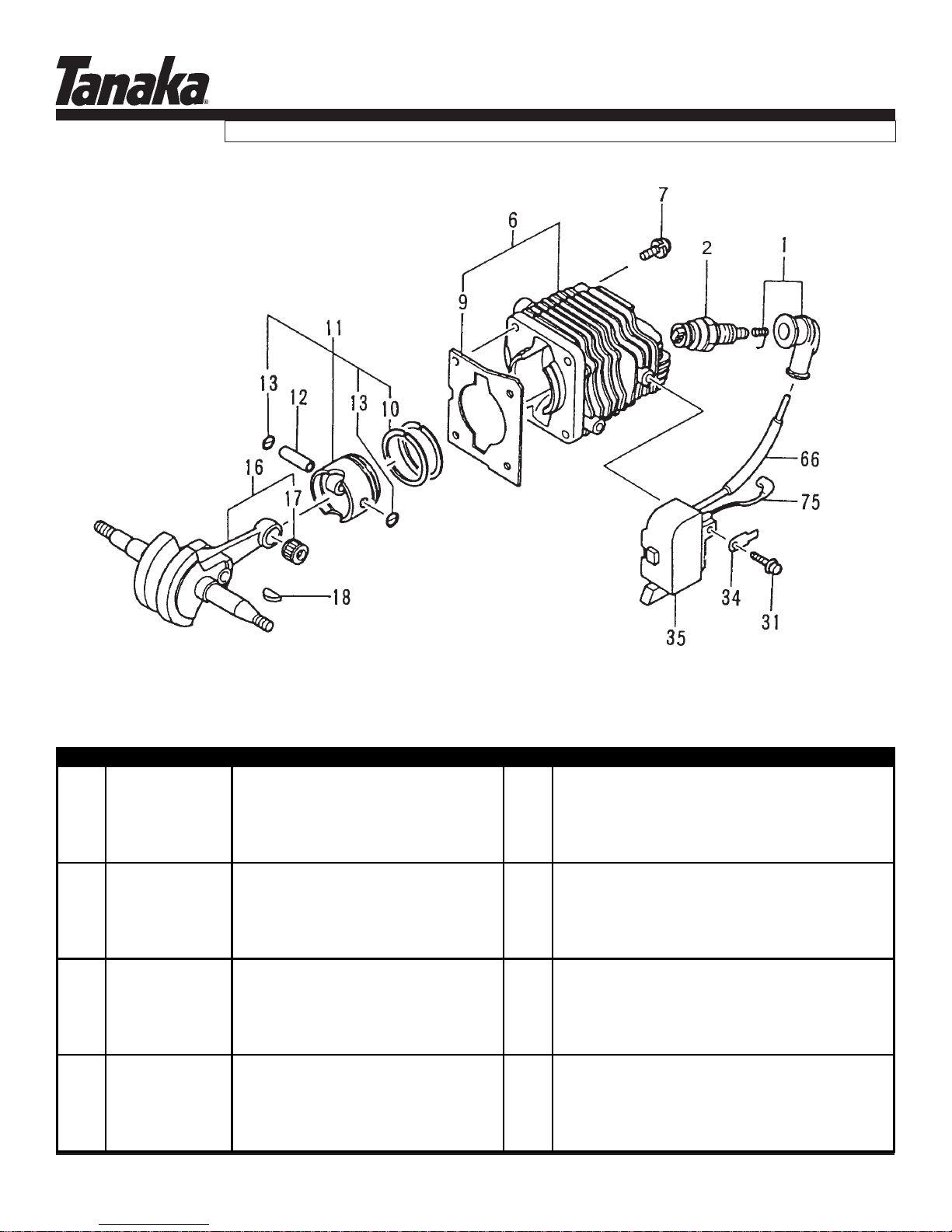

ENGINE / CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 15711666900 CAP,SPARK PLUG 1
1-2 01801805200 PLUG,SPARK 1
1-6 0010174090 CYLINDER SET 1 ~R232011 Includes cylinder gasket
1-6 0010174091 CYLINDER SET 1 R232012~ Includes cylinder gasket
1-7 99461050164 BOLT,HEX,5X16,S 4
1-9 0170174020 GASKET,CYLINDER 1
1-10 04101730200 RING,PISTON 2
1-11 0300174090 PISTON SET 1 ~R232011 Includes rings and circlips
1-11 0300174190 PISTON SET 1 R232012~ Includes rings and circlips
1-12 03701400200 PIN,PISTON 1
1-13 03900000201 CIRCLIP,PISTON PIN 2
1-16 0460174080 CRANKSHAFT 1
1-17 99962091325 BEARING,NEEDLE,F-910 1
1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1
1-31 99416040186 SCREW,WS,4X18 2
1-34 20501700200 TAB,TERMINAL 1
1-35 1672152980 COIL,IGNITION 1 ~S039107
1-35 1672154080 COIL,IGNITION 1 S039108~
1-66 75532050200 TUBE,CORD 1
1-75 1780174080 CORD,STOP 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 2
ECS-3301/B

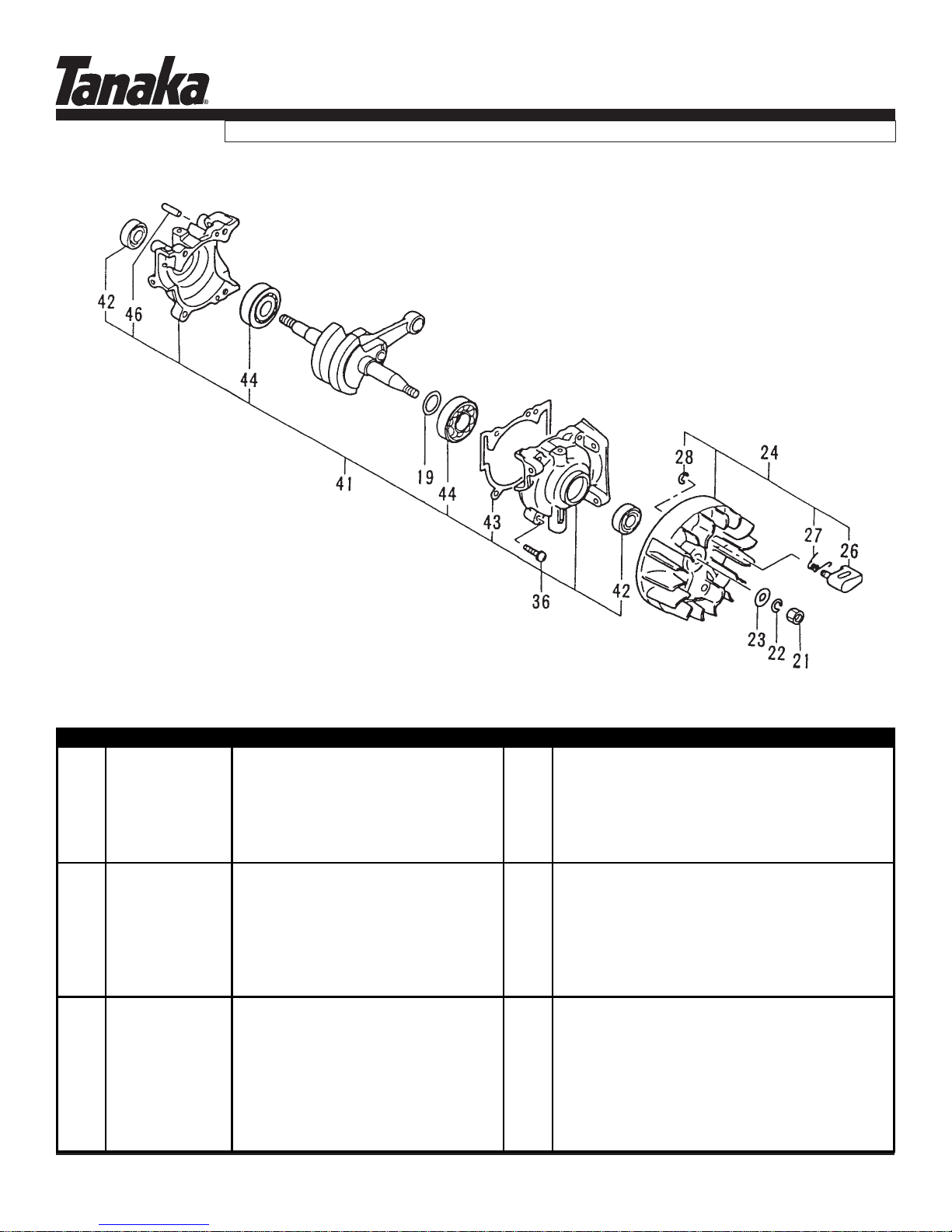

CRANKCASE / FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-19 0710406321 SHIM,CRANKSHAFT,0.1 V
2-19 0710406323 SHIM,CRANKSHAFT,0.2 V
2-19 0710406324 SHIM,CRANKSHAFT,0.3 V
2-19 0710406325 SHIM,CRANKSHAFT,0.4 V
2-21 06600000200 NUT,FLYWHEEL 1
2-22 99210070012 WASHER,S,7 1
2-23 99201070011 WASHER,7 1
2-24 1552152991 ROTOR,MAGNETO 1 ~S039107
2-24 1552154090 ROTOR,MAGNETO 1 S039108~
2-26 7880174020 PAWL,STARTER 2
2-27 7900174020 SPRING,STARTER PAWL 2
2-28 99355040001 RING,STOP 2
2-36 99461050204 BOLT,HEX,HOLE,5X20,S 4
2-41 0720174093 CRANKCASE,ASS'Y 1 ~C110350 - Incl brgs, seals and gasket
2-41 0720174094 CRANKCASE,ASS'Y 2 C110351~ Incl brgs, seals and gasket
2-42 99966122240 SEAL,OIL,#12227 2
2-43 0900174021 GASKET,CRANKCASE 1 ~Y211450
2-43 0900174120 GASKET,CRANKCASE 1 Y211451 to C110350
2-43 0900174G20 GASKET,CRANKCASE 2 C110351~
2-44 99961620106 BEARING,BALL,#6201 2
2-46 99905250980 ROLLER,NEEDLE,2.5X9.8 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 3
ECS-3301/B
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-51 5603291090 CASE,ENGINE 1
3-52 56204060200 VALVE,AIR VENT,B 1
3-54 6450175090 AIR VENT VALVE SET 1
3-57 99463050204 BOLT,HEX 5X20 4
3-71 16201570900 SWITCH,STOP,ASS'Y 1
3-72 18301300200 NAME PLATE,SWITCH 1
3-73 27401700800 CORD,EARTH 1
3-80 0523290021 GROMMET,A 1
ENGINE CASE • FIGURE 3
www.tanakapowerequipment.com
PARTSINFORMATION
Page 4
ECS-3301/B
AIR BOX, INTAKE, CARBURETOR • FIGURE 4
Unitsafterserialnumber
C110351~
Unitsbeforeserialnumber
~T017501
www.tanakapowerequipment.com
PARTSINFORMATION
Page 5
ECS-3301/B
AIR BOX, INTAKE, CARBURETOR • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-1 3800631A200 BOLT,CLEANER COVER 1
4-2 0513290091 SET,CLEANER COVER 1
4-3 4460174020 FILTER,AIR-FOAM 1 R032271~
4-4 4200174080 ELEMENT,CLEANER 1
4-5 99414050451 SCREW,5X45/S 2
4-7 99200050011 WASHER,SMALL,5 1
4-8 70832350200 SHIM,5.2X8X.80 2
4-9 7003291820 VALVE,CHOKE,4.0 1
4-10 4553290091 CARBURETOR SET 1 ~T017501 Includes gasket
4-11 4020174020 GASKET,CARBURETOR 1
4-12 99461050204 BOLT,HEX,HOLE,5X20,S 2
4-14 99200050011 WASHER,SMALL,5 2
4-15 4040174091 SET,INSULATOR 1 ~C110350
4-15 4040174G90 SET,INSULATOR 1 C110351~
4-16 39401700200 VALVE,REED 1 ~C110350
4-16 3940174G20 VALVE,REED 1 C110351~
4.17 3950173020 HOLDER,REED VALVE 1 ~C110350
4.17 3950174G20 HOLDER,REED VALVE 1 C110351~
4-19 99015030121 SCREW,3X12 2
4-20 40901700200 RUBBER,CARB INSULATOR 1
4-21 4030174021 GASKET,INLET MANIFOLD 1 ~C110350
4-21 4030174G20 GASKET,INLET MANIFOLD 1 C110351~
4-36 99075045144 SCREW, TAPPING,4X14 3
4-39 1523290J21 COVER,CLEANER B 1
4-40 4553290G91 CARBURETOR SET 1 T017501~ Includes gasket
4-45 1290173020 COVER,SEAL 1
4-46 1913297020 GROMMET,IDLE 1 Z179051~
www.tanakapowerequipment.com
PARTSINFORMATION
Page 6
ECS-3301/B
MUFFLER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-26-1 99011050351 SCREW,5X35 2 ~R232011
5-26 99011050401 SCREW,5X40 2 R232012~
5-27 99201050011 WASHER,5 2
5-28-1 7040171090 SET,MUFFLER 1 ~R232011
5-28 7040174291 MUFFLER SET 1 R232012~
5-29-1 71701712800 BODY,MUFFLER,B 1 ~R232011
5-29 7170174080 BODY,MUFFLER,B 1 R232012~
5-30-1 72401700200 METAL,MUFFLER FITTING 1 ~R232011
5-30 7240170920 METAL,MUFFLER FITTING 1 ~T128443
5-30 7240174220 MUFFLER METAL 1 T128444~
5-31-1 73201710200 ARRESTER,SPARK 1 ~R232011
5-31 7320174020 ARRESTER,SPARK 1 R232012~
5-32-1 71601700800 BODY,MUFFLER A 1 ~R232011
5-32 7160170980 BODY,MUFFLER A 1 R232012~
5-33 73701700200 GASKET,MUFFLER 1
5-34 7390170920 GASKET,MUFFLER 1 R232012~
www.tanakapowerequipment.com
PARTSINFORMATION
Page 7
ECS-3301/B
FUEL PIPE, OIL FILTER & CHOKE • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-1 50532710200 PIPE,OIL,B 1
6-2 68004019210 CLIP,7 3
6-3 99201050011 WASHER,5 1
6-4 48732712201 FILTER,OIL 1
6-5 4863271090 FILTER,ASS'Y 1
6-6 4903291020 ROD,THROTTLE 1
6-7 49132710200 GUIDE,THROTTLE 1
6-16 6780174020 PIPE,RUBBER 1
6-17 6750404280 FILTER,FUEL 1
6-26 99967018000 O-RING,P18 1
6-28 19032710200 CAP,ADJUSTER 1
6-29 70732710200 GROMMET 1
6-30 70432710800 BUTTON,CHOKE 1
6-31 19132710200 GROMMET 1
6-32 99967020000 O-RING,P20 1
6-35 6353271990 CAP,FUEL ASS'Y 1
6-36 6423271990 CAP,OIL TANK 1
6-40 1903290G20 CAP,ADJUSTER 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 8
ECS-3301/B
STARTER • FIGURE 7
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-0 7560174090 STARTER,RECOIL,ASS'Y 1
7-1 99072050144 SCREW,TAPPING,5X14 1
7-2 36832350200 WASHER,BRAKE SHAFT 1
7-3 7740174020 PULLEY,STARTER 1
7-4 7830174020 ROPE,STARTER,3X890 1
7-5 7780174090 SPRING,RECOIL ASSY 1
7-7 7850174020 HANDLE,STARTER 1
7-9 1120174080 CASE,FAN 1
7-10 99072045204 SCREW,TAPPING,4.5X20 4
www.tanakapowerequipment.com
PARTSINFORMATION
Page 9
ECS-3301/B
CARBURETOR • FIGURE 8 / 9
Units AfterSerial
NoT017501~
Units Prior to Serial
No~T017501
