Tanaka TED-262HS Guida all'installazione

IllustrIllustr

Illustraa

ated Pted P

ted Pted P

ted Parar

arar

arts Mants Man

ts Mants Man

ts Manualual

ualual

ual

Model Number:

TED-262HS

HIGH SPEED PORTABLE DRILL

P/N 30058

Rev 000

Date 4-1-08

Unit shown equipped

with optional Wet Kit

Order#29898

Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

www.tanakapowerequipment.com [email protected]

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 1

TED-262HS

CYLINDER, PISTON & CRANKSHAFT • FIGURE 1

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-1 0010160090 SET,CYLINDER 1 Includes gasket

1-2 01801805200 PLUG,SPARK 1

1-3 1570097A900 CAP,SPARK PLUG,ASS'Y 1

1-4 01701620200 GASKET,CYLINDER 1

1-5 04101601200 RING,PISTON 2

1-6 0300162090 PISTON SET 1 Includes rings and circlips

1-7 03701700200 PIN,PISTON 1

1-8 03900000201 CIRCLIP,PISTON PIN 2

1-9 0460162S81 CRANKSHAFT 1

1-10 99962091338 BEARING,NEEDLE,KTV91313 1

1-11 06810100200 KEY,WOODRUFF,3X13X4.5 1

1-30 99461050164 BOLT,HEX,5X16,S 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 2

TED-262HS

CRANKCASE, IGNITION COIL, FLYWHEEL • FIGURE 2

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

2-12 07102007200 SHIM,15.2X20X.05 1

2-12 07102007210 SHIM,15.2X20X.10 1

2-12 07102007220 SHIM,15.2X20X.15 1

2-12 07111600230 SHIM,16X21X.20 1

2-12 07111600240 SHIM,16X21X.30 1

2-13 99961600200 BEARING,BALL,#6002 1

2-14 99961600115 BEARING,BALL,6001 C3 1

2-15 99966152564 SEAL,OIL,UD15257 1

2-16 99966122240 SEAL,OIL,#12227 1

2-17 0900060120 GASKET,CRANKCASE 1

2-18 07201620900 CRANKCASE,ASS'Y 1 Includes bearings, seals and gasket

2-19 35910112203 WASHER,CLUTCH B 1

2-20 79801630200 PULLEY,STARTER 1

2-21 1552172080 ROTOR,MAGNETO 1

2-22 1650162V200 PLATE,COIL HOLDING 1

2-23 1672054790 COIL,IGNITION 1

2-32 99101080011 NUT,8 1

2-34 99200080011 WASHER,8 1

2-36 99101080011 NUT,8 1

2-42 99461050304 BOLT,HEX,5X30S 4

2-44 99414050161 SCREW,5X16/S 2

2-46 99416040186 SCREW,WS,4X18 2

2-53 1780160080 CORD 1

2-55 56020517200 CAP,RUBBER 1

2-56 1782054420 LEAD,HIGH TENSION 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 3

TED-262HS

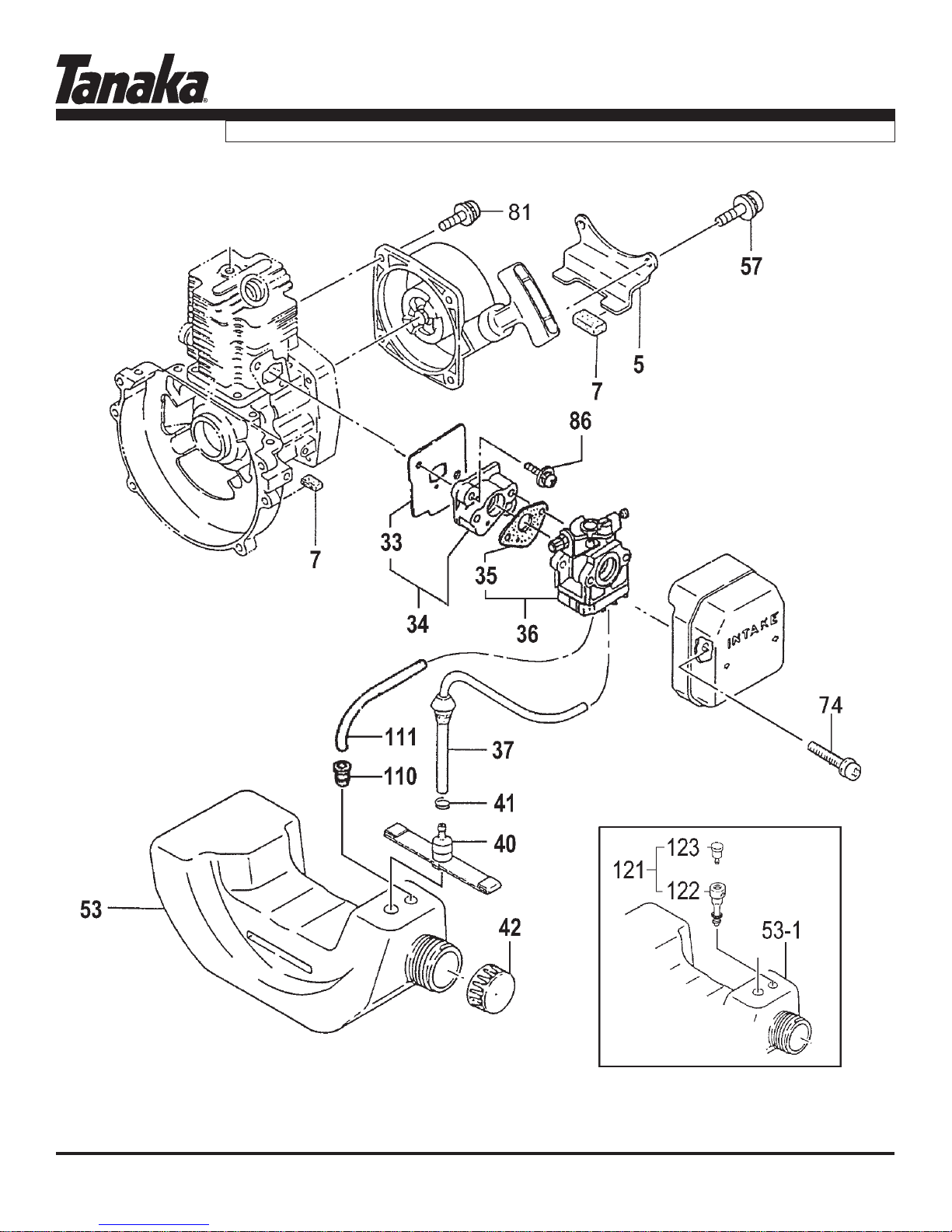

FUEL TANK, CARBURETOR, FUEL SYSTEM • FIGURE 3

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 4

TED-262HS

FUEL TANK, CARBURETOR, FUEL SYSTEM • FIGURE 3

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

3-5 65301620200 BRACKET,TANK 1

3-7 65506100200 CUSHION,TANK 4

3-33 4030160020 GASKET,INLET MANIFOLD 1

3-34 4040160091 INSULATOR SET 1 Includes gasket

3-35 4020602K21 GASKET,CARBURETOR 1

3-36 4550160090 CARBURETOR SET 1 Includes gasket ~Z207350

3-36 4550160290 CARBURETOR SET 1 Includes gasket Z207351~

3-37 2230650090 PIPE,FUEL,ASS'Y 1

3-40 6750608A900 FILTER,FUEL 1

3-41 68000731201 CLIP 6.3 1

3-42 5950656B90 CAP,FUEL BLACK,NON VENT 1 ~Z207350

3-42 5950300290 CAP,TANK (BLACK/RED) 1 Z207351~

3-53-1 5910160020 TANK,FUEL 1 ~Z207350

3-53 5910162080 TANK,FUEL 1 Z207351~

3-57 99415040182 SCREW,PS,4X18 2

3-74 99416050601 SCREW,5x60WS 2

3-81 99415040142 SCREW,4X14/PS 2

3-86 99416050241 SCREW 5x24WS 2

3-110 53432710200 GROMMET,FUEL PIPE 1 Z207351~

3-111 7000300507 PIPE,FUEL,3X5X75 1 Z207351~

3-121 5640661190 VENT,AIR ASS'Y 1 ~Z2073510

3-122 5650441020 PIPE,AIR VENT 1

3-123 6460661290 VALVE 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 5

TED-262HS

MUFFLER, COVER, FLYWHEEL, CLUTCH • FIGURE 4

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 6

TED-262HS

MUFFLER, COVER, FLYWHEEL, CLUTCH • FIGURE 4

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

4-1 7380162021 PROTECTOR,MUFFLER 1

4-3 2030630B201 GROMMET,CORD,PRIMARY 1

4-8 35902103200 WASHER,CLUTCH,B 2

4-9 29001620800 SHOE,CLUTCH 2

4-10 3420630B200 SPRING,CLUTCH 1

4-11 35802103200 WASHER,CLUTCH A 2

4-12 3570075T200 BOLT,STEP 2

4-18 1120162S801 CASE,FAN 1

4-25 13301620220 SHIELD,HEAT 1

4-26 73701620200 GASKET,MUFFLER 1

4-27 7040162T90 SET,MUFFLER 1

4-28 73901620210 GASKET,MUFFLER COUPLING 1

4-29 7170162T800 BODY,MUFFLER,B 1

4-30 71601620210 BODY,MUFFLER,A 1

4-63 99415050122 SCREW,5X12/PS 3

4-63 99416050122 SCREW,5X12/WS 2

4-64 99415050162 SCREW,5X16/PS 1

4-77 99413040122 SCREW,4X12/P 2

4-79 99051050453 BOLT,HEX,5X45 2

4-80 99201050061 WASHER,5 2

4-84 99414050161 SCREW,5X16/S 4

4-89 99413050101 SCREW,5X10/P 1

4-91 13201620200 DEFLECTOR,AIR 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 7

TED-262HS

AIR FILTER • FIGURE 5

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 4100650D90 AIR CLEANER ASSY 1

5-1 4240602K201 CAP,CLEANER 1

5-2 4460072Z20 ELEMENT CLEANER 1

5-3 4530602K200 COLLAR 1

5-4 47000025200 COLLAR 2

5-5 5280635A200 PLATE,CHOKE 1

5-6 4230072Z81 BODY,CLEANER 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 8

TED-262HS

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

6-0 7620094090 STARTER,RECOIL ASS'Y 1

6-2 78500940200 HANDLE,STARTER 1

6-3 77200940801 BODY,STARTER 1

6-4 78000940200 SPRING,RECOIL 1

6-5 78300940200 ROPE,STARTER 1

6-6 77400940200 REEL,STARTER ROPE 1 ~V202950

6-6 7740163021 PULLEY,STARTER 1 V202951~

6-7 7880163021 PAWL,STARTER 1

6-8 80105015200 WASHER,STARTER PULLEY 1

6-10 8370501521 PLATE,FRICTION 1

6-11 82205015200 SHIM,PULLEY 1 ~V202950

6-11 8220423020 SHIM,STARTER PULLEY 1 V202951~

6-12 8390423020 BOLT,SET 1

STARTER • FIGURE 6

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]m

Page 9

TED-262HS

CARBURETOR •FIGURE 7

1-0

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

teksaglcnI-053702ZN/SerofebstinU1TESROTERUBRAC09006105540-1-7

7-1-1 51425100200 SCREW,THROTTLE SET 2

1ELBAC,TSUJDA,YATS002461524451-4-7

1LEVIWS002021529351-5-7

1POTS,GNIR002001529841-7-7

1GNIR-O002001520551-01-7

15.73#NIAM,TEJ73WA0029951-11-7

tiKbraC009.42152.056nidedulcnI~1PMUP,TEKSAG~~~1-21-7

)yllaudividnidlostonsmeti(1PMUP,MGARHPAID~~~1-31-7

1TELNI,NEERCS002700

528751-61-7

1PMUP,YDOB08251525751-71-7

1MGARHPAID,TEKSAG~~~1-81-7

7-19-1 ~ ~ ~ DIAPHRAGM,METERING 1

1MGARHPAID,REVOC002400526741-02-7

4TES,WERCS002101528451-12-7

1ELBAC,RETSUJDA002731524161-22-7

16,TUN310060101991-32-7

1RENAELC,TEKSAG002C43601341-42-7

1TSURHT,REHSAW02561529451-14-7

Tanaka Parts Update

To Convert To The Primer Type

Fuel System Order The Following Parts*;

455.01602.90 Carburetor

591.01620.80 Fuel Tank

700.03005.350 Fuel Pipe

534.32710.200 Grommet

595.03002.90 Gas Cap

*Only For Use With Units With Serial Numbers

Before Z207350
