Tanaka THT-2530/2540 Guida all'installazione
Illustrated Parts ManualIllustrated Parts Manual
Model Number:
THT-2530 / 2540
24cc, 1.3 hp Single Sided Hedge Trimmers
P/N 28581
Rev 000
Date 7/30/99
Note: The THT-2530 has 30 inch blades. The THT-2540 has 40 inch blades.
ISM, Inc. • 1028 4th Street SW, Suite B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212 • E-mail: [email protected]

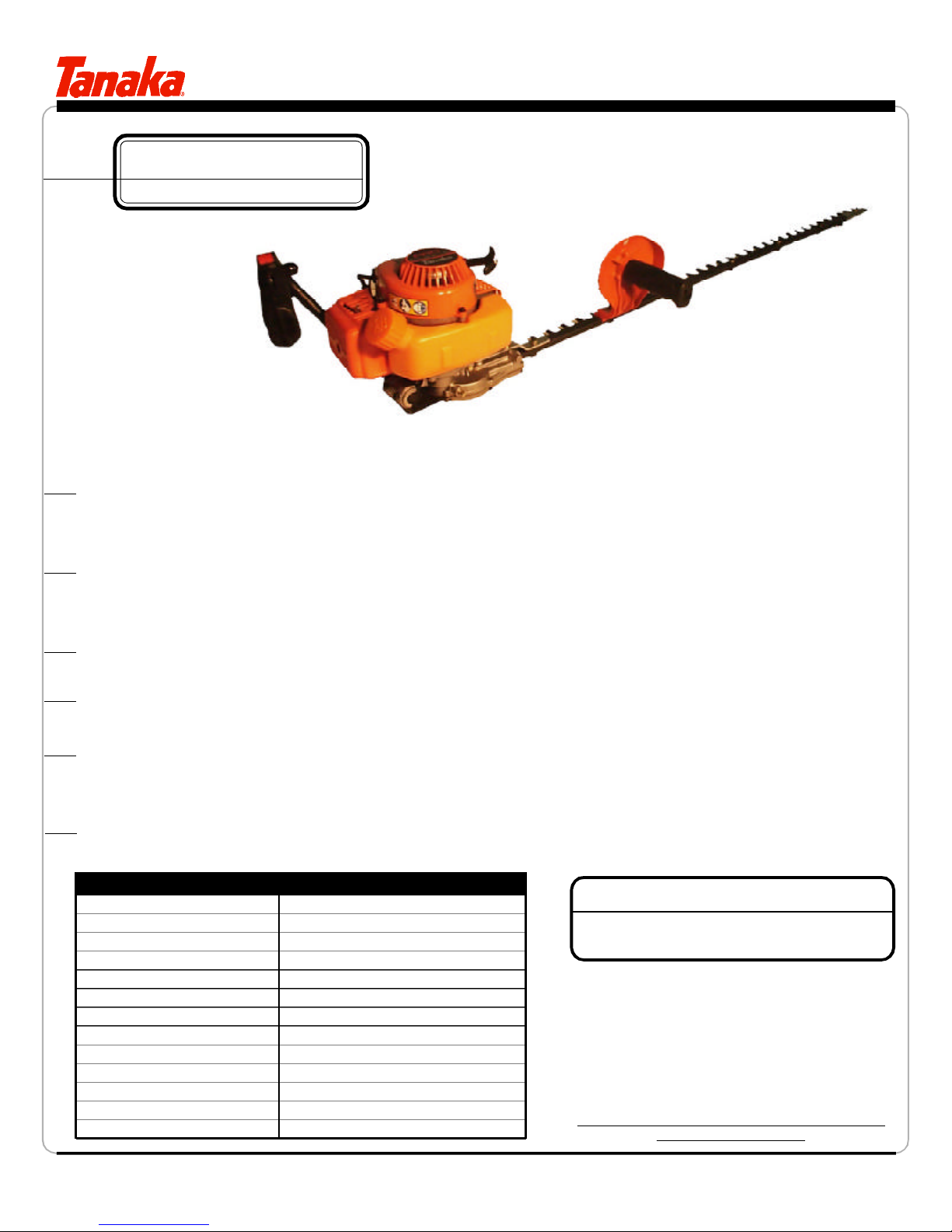

PRODUCTINFORMATION
Features / Benefits
PRODUCTINFORMATION
All data and specifications are subject to change without notice
For more information, contact:
24cc, 1.3 hp engine features two piston rings and a stress relieved, chrome plated
cylinder for long engine life.
40 inch single-sided, dual reciprocating blades
provide powerful cutting action and added reach for larger jobs.
Heavy-Duty Gear Case provides added strength for tough cutting jobs.
Sound reduction system™reduces engine noise up to 44 percent.
Anti-vibration system reduces engine vibration which provides for longer and more
comfortable operation.
1 / 2 / 5 Warranty Coverage provides One-Year coverage for professionals, Two-
Year Coverage for Homeowners, and Five Years on the Electronic Ignition Module.
Optional Accessories:
ORDER # DESCRIPTION
Varies Perfect Mix™ 2-Cycle Engine Oil
Specifications
Engine Displacement cc (cu. in.)
24(1.4)
Power (h.p.) 1.3
Carburetion Walbro Diaphragm
Ignition System Transistorized Electronic
Fuel Tank Capacity / fl. oz. (cc) 11.8 (350)
Muffler System Sound Reduction System
Anti-Vibration Rear Handle
Clutch System Heavy-Duty Centrifugal
Rear Handle Fixed Position
Front Handle 2 Position / Single Post with Guard
Throttle Squeeze Type Safety Trigger
Blades / inches (mm) 40" (1016mm), Single Sided
Dry Weight / lbs. (kg) 13.0 (5.9)
Single Sided Hedge Trimmer
THT-2540-2540
www.tanaka-usa.com
PARTSINFORMATION
Page 1
THT-2530/40
ENGINE / CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1 157-06500-91 CAP,SPARK PLUG ASS’Y 1
2 018-11660-21 PLUG,SPARK 1
3 001-06600-90 SET,CYLINDER 1
4 994-16050-201 SCREW,5X20/WS 2
7 017-06500-20 GASKET, CYLINDER 1
8 041-01601-200 RING,PISTON 2
9 030-06600-90 SET,PISTON 1
10 037-01601-200 PIN,PISTON 1
11 039-01620-200 CIRCLIP,PISTON PIN 2
12 046-06500-801 CRANKSHAFT 1
13 999-62081-225 BEARING,NEEDLE,F-810 1
27 153-21533-90 SET, COIL, IGNITION 1
28 994-16040-226 SCREW,WS,4X22 2
36 250-06500-200 TUBE,INSULATOR 1
37 178-06500-80 CORD,STOP COMPLETE 1
40 274-0700D-80 CORD, 130MM 1
www.tanaka-usa.com
PARTSINFORMATION
Page 2
THT-2530/40
CRANKCASE, FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
21 072-06500-90 CRANKCASE ASS’Y 1
22 090-06500-200 GASKET,CRANKCASE 1
23 999-66122-269 SEAL,OIL,#12227 2
24 999-61600-100 BEARING,BALL,#6001 2
25 330-00200-210 SHIM,12.2X19X.10 V
25 330-00200-220 SHIM,12.2X19X.15 V
25 330-00200-230 SHIM,12.2X19X.20 V
25 330-00200-240 SHIM,12.2X19X.30 V
26 599-00601-200 CUSHION 1
30 994-14050-301 SCREW,5X30/S 3
31 155-21523-80 ROTOR, MAGNETO 1
32 992-01080-011 WASHER,8 1
33 992-10080-012 WASHER,S,8 1
34 991-01080-011 NUT,8 1
35 100-02100-200 BOLT,STUD,6X22 2
Shims are “as needed” to obtain
correct c/s side clearance
Includes bearings, seals & gasket
P/N046-06500-801
www.tanaka-usa.com
PARTSINFORMATION
Page 3
THT-2530/40
CARBURETOR, FUEL TANK, FUEL SYSTEM • FIGURE 3
P/N455-06500-90
www.tanaka-usa.com
PARTSINFORMATION
Page 4
THT2530/40
CARBURETOR, FUEL TANK, FUEL SYSTEM • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
25 403-06500-200 GASKET,INTAKE 1
26 404-06500-90 MAINFOLD,INTAKE 1
27 994-16050-252 SCREW,5X25WS 2
30 402-06500-200 GASKET,CARBURETOR 1
33 999-67015-000 O-RING,P15 1
35 423-06500-80 BODY,CLEANER 1
36 470-06500-200 COLLAR 2
37 528-0650T-20 LEVER,CHOKE 1
38 992-04080-030 WASHER,8 1
39 476-01700-200 BOARD,BLOW OVER CHECK 1
40 992-10050-012 WASHER,S,5 2
41 990-11050-602 SCREW,5X60 2
43 446-06500-20 ELEMENT,CLEANER 1
44 452-06600-90 COVER,CLEANER 1
45 380-0637C-200 BOLT,CLEANER COVER 1
46 455-06500-90 CARBURETOR,SET 1
50 223-06500-90 PIPE,FUEL,ASS'Y 1
51 680-00731-201 CLIP 6.3 1
52 675-04042-80 FILTER,FUEL 1
53 591-06601-21 TANK,FUEL 1
54 595-0656B-90 CAP,GAS BLACK,NON VENT 1
55 659-00801-200 COLLAR 2
58 994-63050-185 BOLT,HEX 5X18PS 2
121 564-06601-90 VENT,AIR ASSY 1
122 565-06601-20 PIPE,AIR VENT 1
123 646-3252L-90 AIR VENT VALVE ASSY 1
124 680-00206-200 CLIP,5.5 1
125 561-00070-20 COVER,AIR VENT 1
www.tanaka-usa.com
PARTSINFORMATION
Page 5
THT-2530/40
CLUTCH, STARTER, MUFFLER COMPONENTS • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
03 738-06600-20 PROTECTOR,MUFFLER 1
04 737-06500-200 GASKET,MUFFLER 1
05 133-06500-200 SHIELD,HEAT 1
06 704-06500-90 SET,MUFFLER 1
07 992-01050-011 WASHER,5 2
08 990-51050-503 BOLT,HEX,5X50 2
11 112-06500-80 CASE,FAN 1
12 780-06097-200 SPRING,RECOIL 1
13 774-06097-200 PULLEY,STARTER 1
15 839-02010-20 SCREW,SET 1
16 798-06500-900 PULLEY,STARTER,ASS’Y 1
17 203-0604A-202 GROMMET 1
18 783-06097-200 ROPE,STARTER 1
19 785-06410-200 HANDLE,STARTER 1
20 994-15040-162 SCREW,PS,4X16 3
21 751-06500-200 GASKET, TAIL PIPE 1
22 721-06611-90 SET,TAIL PIPE 1
23 994-34040-081 SCREW,4X8/S 2
47 277-0634F-900 CLUTCH,ASS’Y 1
61 990-72045-164 SCREW,TAPPING,4.5X16 1
62 994-25040-128 BOLT,PS,4X12 2
65 790-06097-200 SPRING,STARTER PAWL 1
66 788-06500-20 PAWL,STARTER 1
www.tanaka-usa.com
PARTSINFORMATION
Page 6
THT-2530/40
CARBURETOR ASSY • FIGURE 5
0
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
0 455-06500-90 CARBURETOR 1 *Contained in Carb Repair Kit
01 548-25140-200 SCREW,THROTTLE SET 2 P/N 650-25140-900
05 539-25120-200 SWIVEL 1 (not available individually)
07 489-25100-200 RING,STOP 1
10 550-25100-200 O-RING 1
11 599-2000W-35 JET,MAIN,#35 1
13 ~ *GASKET, PUMP 1
14 ~ *DIAPHRAGM, PUMP 1
17 ~ *SCREEN, INLET 1
18 575-25182-80 BODY,PUMP 1
19 ~ *GASKET, DIAPHRAGM 1
20 ~ *DIAPHRAGM, METERING 1
21 476-25004-200 COVER,DIAPHRAGM 1
22 548-25101-200 SCREW,SET 4
www.tanaka-usa.com
PARTSINFORMATION
Page 8
THT2530/40
GEAR CASE • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
01 300-33185-20 CASE, GEAR"A" 1
02 993-51026-002 RING,STOP,IN,C-26 1
03 999-61600-000 BEARING,BALL,#6000 1
04 999-61600-002 BEARING,BALL,#6000Z 1
05 288-33185-80 HOUSING,CLUTCH 1
06 306-33185-20 GEAR 1 1
07 307-33185-20 GEAR 2 1
08 101-33185-80 ROD,CAM 2
09 100-33185-20 SHAFT,CAM 1
10 303-33185-20 GASKET,GEAR CASE 1
11 999-61608-000 BEARING,BALL,#608 2
16 085-33185-20 SEAL,GREASE A 2
19 247-33185-20 COLLAR 2
21 994-61050-254 BOLT,HEX HOLE,5X25S 6
22 300-32250-801 NIPPLE,GREASE 1
23 990-51060-183 BOLT,HEX.HOLE,6X18 2
26 990-53060-153 BOLT,HEX,6X15 1
27 992-00060-011 WASHER,SMALL,6 1
29 070-33185-20 PLATE,FIXING 2
30 462-33185-20 PLATE,SUPPORT 1
31 990-51040-083 BOLT,HEX.HOLE 4X8 4
43 994-40060-011 NUT,SPRING 6 2
60 301-33185-20 CASE,GEAR B 1
71 992-10060-012 WASHER,S,6 2
72 994-40060-011 NUT,SPRING 6 2
