Model Number:

TPH-200/210

HEDGETRIMMER ATTACHMENT

P/N 31778

Rev 000

Date 10-25-07

Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

www.tanakapowerequipment.com [email protected]

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 1

TPH-200/210

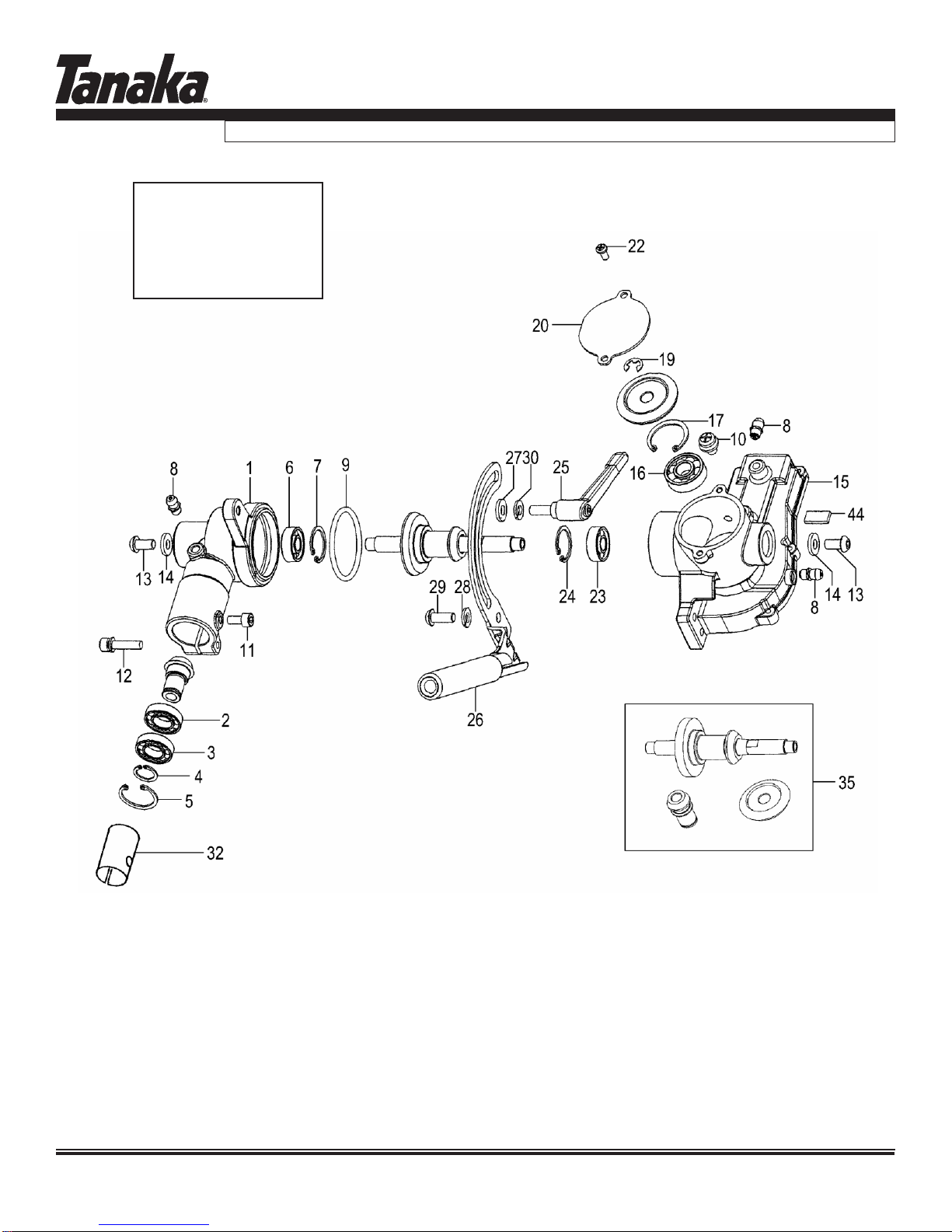

GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 1

TPH-200 Units

Prior to S/N

V258936

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 2

TPH-200/210

GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 1

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

1-1 3003228520 GEAR,CASE,A 1

1-2 99961690100 BEARING,BALL,#6901 1

1-3 99961690101 BEARING,BALL,#6901ZZ 1

1-4 99352012002 RING,STOP,S12,OUTER 1

1-5 99351024002 RING,STOP,C-24,IN 1

1-6 99961608002 BEARING,BALL,#608Z 1

1-7 99351022002 RING,STOP,C22,IN 1

1-8 30032250801 FITTING,GREASE 3

1-9 99967041000 O-RING,P-41 1

1-10 99413060101 SCREW,PLUS,6x10P 1 U228059~

1-11 99051050103 BOLT,HEX.HOLE,5X10 1

1-12 99461050224 BOLT,HEX HOLE 5x22/S 1

1-13 99053060125 SCREW,HEX HOLE 6X12 2

1-14 87132600200 WASHER,SPECIAL,B 2

1-15 3013228022 CASE,GEAR B 1 ~U228058

1-15 3013228025 GEAR CASE 1 U228059~

1-16 99961600004 BEARING,BALL,#6000DD 1

1-17 99351026002 RING,STOP,IN,C-26 1

1-19 99355060000 RING,STOP,E6 1

1-20 3273228020 COVER,GEAR CASE A 1

1-22 99011040081 SCREW,4X8 2

1-23 99961608002 BEARING,BALL,#608Z 1

1-24 99351022002 RING,STOP,C22,IN 1

1-25 0493228080 HANDLE 1

1-26 0333228081 GUIDE,SLIDE 1

1-27 87132600200 WASHER,SPECIAL,B 1

1-28 99210060062 WASHER,S,6 2

1-29 99053060153 BOLT,HEX,6X15 2

1-30 99210060062 WASHER,S,6 1

1-32 34833130200 COLLAR,B 1

1-35 3023228600 GEAR & PINION SET 1

1-44 0863228620 SEAL,GREASE,B 1 U288322~

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 3

TPH-200/210

GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 2

TPH-200 - Units

from S/N W040351

to Z101320

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 4

TPH-200/210

GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 2

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

2-1 3003228521 CASE,GEAR,A 1

2-2 99961690100 BEARING,BALL,#6901 1 ~Z042000

2-3 99961690101 BEARING,BALL,#6901ZZ 1 ~Z042000

2-3 99961690101 BEARING,BALL,#6901ZZ 2 Z042001~

2-4 99352012002 RING,STOP,S12,OUTER 1

2-5 99351024002 RING,STOP,C-24,IN 1

2-6 99961608013 BEARING,BALL,#608Z 1

2-8 30032250801 FITTING,GREASE 3

2-9 99967041000 O-RING,P-41 1

2-10 99413060101 SCREW,PLUS,6x10P 1

2-11 99051050103 BOLT,HEX.HOLE,5X10 1

2-12 99461050224 BOLT,HEX HOLE 5x22/S 1

2-13 99144080022 NUT,FLANGE 8 2

2-14 0273180020 WASHER 2

2-15 3013228620 CASE,GEAR B 1

2-16 99961600014 BEARING,BALL,#6000DD 1

2-17 99351026002 RING,STOP,IN,C-26 1

2-19 99355060000 RING,STOP,E6 1

2-20 3273228020 COVER,GEAR CASE A 1

2-22 99011040081 SCREW,4X8 2

2-23 99961608013 BEARING,BALL,#608Z 1

2-25 5123228580 KNOB,HANDLE 1

2-26 0333228081 GUIDE,SLIDE 1

2-27 1963228520 BOLT,SPECIAL 1

2-28 99210060062 WASHER,S,6 2

2-29 99053060153 BOLT,HEX,6X15 2

2-32 34833130200 COLLAR,B 1

2-35 3023228200 SET,GEAR & PINION 1

2-36 5123229820 KNOB,HANDLE 1

2-37 3053228222 SHAFT,GEAR 1

2-38 3813228920 NUT,SPECIAL 1

2-40 0713228221 SHIM 1

2-40 0713228222 SHIM 1

2-40 0713228223 SHIM 1

2-41 0963228920 COLLAR,26.8 1

2-44 0863228620 SEAL,GREASE,B 1

2-45 12132530200 NUT,CLAMP,BAR 1

2-46 7603228220 WASHER,1.6 1

2-47 99431060081 SCREW,6X8 1

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 5

TPH-200/210

GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 3

TPH-210 Units

After S/N

Z101321

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 6

TPH-200/210

GEAR CASE, ADJUSTING HANDLE, GEARS • FIGURE 3

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

3-1 3003223020 CASE,GEAR,A,26mm 1

3-3 99961690101 BEARING,BALL,#6901ZZ 2

3-4 99352012002 RING,STOP,S12,OUTER 1

3-5 99351024002 RING,STOP,C-24,IN 1

3-6 99961608013 BEARING,BALL,#608Z 1

3-7 99351022002 RING,STOP,C22,IN 1

3-8 30032250801 FITTING,GREASE 3

3-11 99051050103 BOLT,HEX.HOLE,5X10 1

3-12 99461050254 BOLT,HEX HOLE,5X25S 1

3-13 99053060125 SCREW,HEX HOLE 6X12 2

3-14 87132600200 WASHER,SPECIAL,B 2

3-15 3013228620 CASE,GEAR B 1

3-16 99961600014 BEARING,BALL,#6000DD 1

3-17 99351026002 RING,STOP,IN,C-26 1

3-19 99355060000 RING,STOP,E6 1

3-20 3273228020 COVER,GEAR CASE A 1

3-22 99051040085 BOLT,HEX,4x8 2

3-23 99961608013 BEARING,BALL,#608Z 1

3-24 99351022002 RING,STOP,C22,IN 1

3-26 2103228620 HANDLE 1

3-29 99053060153 BOLT,HEX,6X15 2

3-30 0883228720 SEAL,D 1

3-32 34833130200 COLLAR,B 1

3-35 3023228600 GEAR & PINION SET 1

3-36 5123228680 KNOB,HANDLE,A 1

3-41 99023060141 BOLT,PLUS,6X14 1

3-42 99101060041 NUT,6 1

3-43 4623228620 PLATE,SUPPORT 1

3-44 0863228620 SEAL,GREASE,B 1

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 7

TPH-200/210

BLADES, CUTTER GUIDE, BLADE HARDWARE • FIGURE 4

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 8

TPH-200/210

BLADES, CUTTER GUIDE, BLADE HARDWARE • FIGURE 4

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

4-1 1003228280 SHAFT,CAM 1

4-2 1013316022 ROD,CAM 2

4-3 0753228020 PLATE,GUIDE 2

4-4 1223316021 GUIDE,CUTTER 625MM 1 ~Z101320

4-4 1223228721 GUIDE,CUTTER 1 Z101321~A290200

4-4 1223228621 GUIDE,CUTTER 1 A290201~

4-5 CB-21A BLADE,A,DS,22" 2 ~U228058

4-5 1203228721 BLADE,A,DS,22" 2 U228059~

4-6 1243320221 BOLT,CUTTER FIXING,A 4 ~A290200

4-6 1243228720 BOLT,FIXING,A 1 A290201~

4-7 12933202201 WASHER,7 4

4-8 1233317A20 NUT,SPECIAL 4 ~A290200

4-8 40927 NUT,FLANGE,6 4 A290201~

4-9 99052060165 BOLT,HEX,6X16 2 ~Z101320

4-9 99052060165 BOLT,HEX,6X16 1 Z101321~

4-10 08533160200 SEAL,GREASE A 2 ~Z101320

4-10 0853228620 SEAL,GREASE,A 2 Z101321~

4-11 1053228020 HOLDING,PLATE 1

4-12 3283228021 COVER,GEAR CASE B 1 ~U203600

4-12 3283228022 COVER,GEAR CASE 1 U203601~

4-13 99961608013 BEARING,BALL,#608Z 1

4-14 99461040104 BOLT,HEX,4X10,S 2

4-15 99461040124 BOLT,HEX,4X12 6

4-16 13833160200 COVER,CUTTER,22" 1 ~Z101320

4-16 1383316820 COVER,CUTTER,22" 1 Z101321~

4-21 99052060255 BOLT,HEX FLUSH,6X25 1 Z101321~

4-22 0873228620 SEAL,C 1 Z101321~

4-23 2963228620 SPACER 1 Z101321~

4-61 1253228720 BOLT,CUTTER FIXING,B 3 A290201~

www.tanakapowerequipment.com

PARTSINFORMATION

[email protected]

Page 9

TPH-200/210

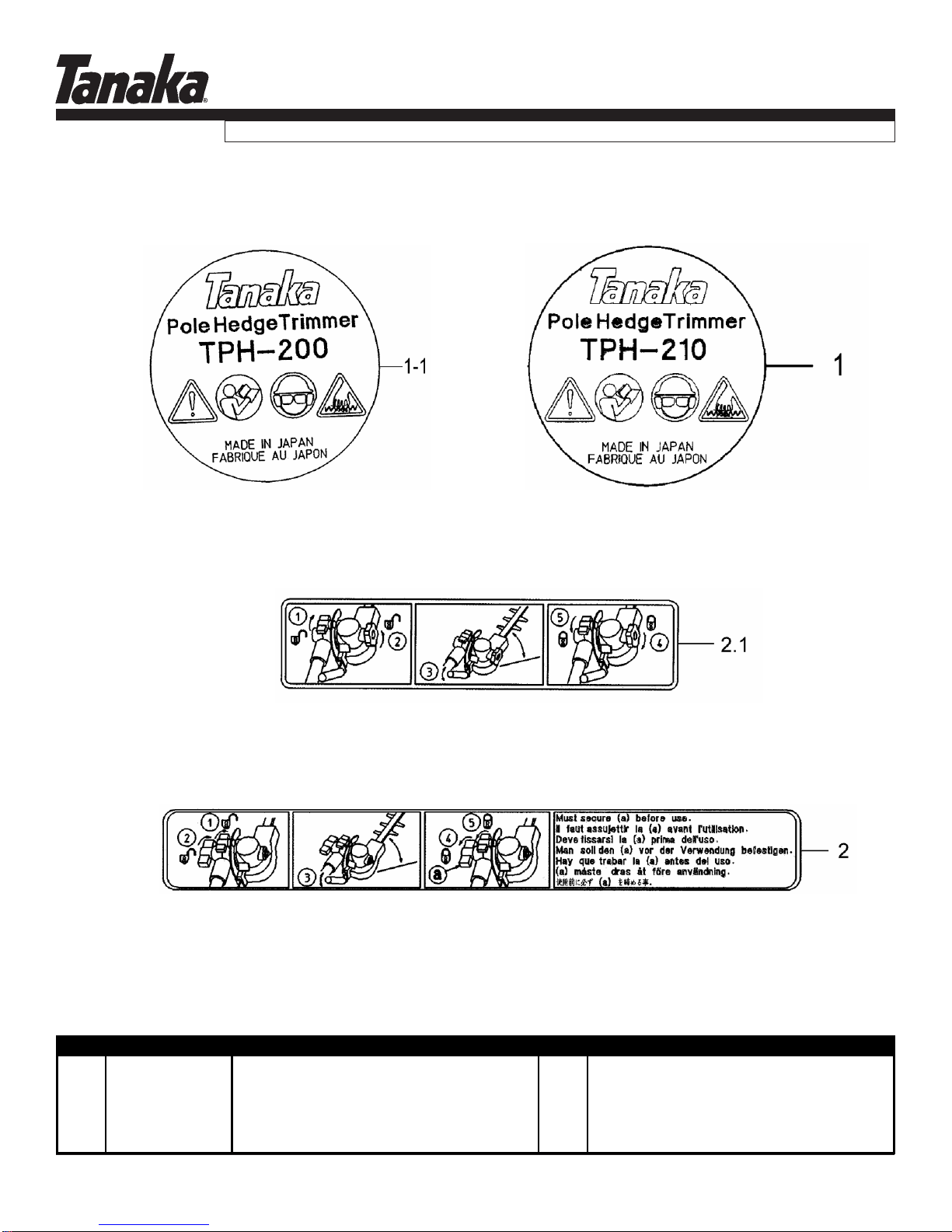

DECALS • FIGURE 5

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

5-1-1 9193228020 DECAL,CAUTION 1 ~Z101320

5-1 9193233120 DECAL,CAUTION,TPH-210 1 Z101321~

5-2-1 9203228520 DECAL,CAUTION B 1 V258937~

5-2-1 9203228520 DECAL,CAUTION B 1 ~W040350

5-2 9203228521 DECAL,CAUTION B 1 W040351~
