Model Number:
TPH-260PF
POLE HEDGETRIMMER
P/N 40802
Rev 000
Date 10-25-07
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
www.tanakapowerequipment.com [email protected]
www.tanakapowerequipment.com
PARTSINFORMATION
Page 1
TPH-260PF
CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 1570168090 CAP,SPARK PLUG ASS'Y 1
1-2 01802233200 PLUG,SPARK 1
1-6 0010760090 CYLINDER SET 1 Includes gasket
1-7 99461050184 BOLT,HEX,5X18,S 4
1-9 0170735020 GASKET,CYLINDER 1
1-11 04101601200 RING,PISTON 2
1-12 0300750090 PISTON SET 1 Includes rings and circlips
1-13 03901620200 CIRCLIP,PISTON PIN 2
1-14 0370704520 PIN,PISTON 1
1-16 0460735082 CRANKSHAFT 1
1-17 99962081225 BEARING,NEEDLE,F-810 1
1-45 1910168090 WIRE,LEAD ASS'Y 1
1-46 99464040184 BOLT,HEXT 4X18WS 2
1-47 1820186A201 WASHER,SPECIAL 2
1-50 1672101290 COIL,INGITION 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 2
TPH-260PF
CRANKCASE & FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-19 33000200230 SHIM,12.2X19X.20 1
2-19 33000200240 SHIM,12.2X19X.30 1
2-31 0720304592 CRANKCASE ASSY 1 Includes bearings, seals and gasket
2-32 99966122206 SEAL,OIL,#TC12227 2
2-33 99961600115 BEARING,BALL,6001 C3 2
2-34 0900735022 GASKET,CRANKCASE 1
2-36 99461050164 BOLT,HEX,5X16,S 4
2-51 1552101281 FLYWHEEL 1
2-52 99201080011 WASHER,8 1
2-54 99101080011 NUT,8 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 3
TPH-260PF
FUEL SYSTEM • FIGURE 3
120
www.tanakapowerequipment.com
PARTSINFORMATION
Page 4
TPH-260PF
FUEL SYSTEM • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-80 4030702021 GASKET,INLET MANIFOLD 1
3-81 4040702091 INSULATOR SET 1 Includes gasket
3-82 99464050255 BOLT,HEX,5x25WS 2
3-85 4020656A200 GASKET 1
3-86 5280652N22 PLATE,CHOKE,2.0 1
3-88 4230652N80 BODY,AIR CLEANER 1
3-89 4460652N20 CLEANER,ELEMENT 1
3-90 4520304690 COVER,AIR CLEANER ASSY 1
3-91 4500702480 BOLT,CLEANER COVER 1
3-94 99011050552 SCREW,5X55 2
3-95 99210050012 WASHER,S,5 2
3-96 99200050011 WASHER,SMALL,5 2
3-98 4550304590 CARBURETOR SET 1 Includes gasket
3-99 5230652N20 LEVER,CHOKE 1
3-100 5910735F20 TANK,FUEL,EVAPO 1
3-101 9400735020 STAND 1
3-109 6590430020 COLLAR,C 3
3-110 53432710200 GROMMET,FUEL PIPE 1
3-111 70003005062 PIPE,FUEL,3X5X62 1
3-112 6750404280 FILTER,FUEL 1
3-113 68000731201 CLIP 6.3 1
3-114 2230162V900 PIPE,FUEL,ASS'Y 1
3-115 99464050255 BOLT,HEX,5x25WS 1
3-116 99463050204 BOLT,HEX 5X20 2
3-117 5950300290 CAP,TANK (BLACK/RED) 1
3-118 99075040154 SCREW,TAPPING,4X15 1
3-119 99201040011 WASHER,4 1
3-120 4100304690
A
IR CLEANER ASS'Y 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 5
TPH-260PF
CLUTCH, MUFFLER, ENGINE COVER • FIGURE 4
www.tanakapowerequipment.com
PARTSINFORMATION
Page 6
TPH-260PF
CLUTCH, MUFFLER, ENGINE COVER • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-1 0160750020 COVER,CYLINDER 1
4-4 99463050164 BOLT,HEX,5X16,PS 2
4-5 99051060653 BOLT,HEX,6x65 2
4-6 99201060011 WASHER,6 2
4-7 7060750080 MUFFLER 1
4-8 7510725020 GASKET,MUFFLER 1
4-10 7340725590 TAIL PIPE SET 1
4-11 99436040081 SCREW,4X18WS 2
4-13 7320725020 ARRESTER,SPARK 1
4-16 1330750020 SHIELD,HEAT 1
4-17 7380750020 COVER,MUFFLER 1
4-24 99464040185 BOLT,HEX,4x18WS 2
4-30 2570304520 PROTECTOR,SPARK PLUG 1
4-31 35902103200 WASHER,CLUTCH,B 2
4-32 29001620800 SHOE,CLUTCH 2
4-33 3420630B200 SPRING,CLUTCH 1
4-34 3480630A20 PLATE,CLUTCH 2
4-35 3570075T200 BOLT,STEP 2
4-36 99463050204 BOLT,HEX 5X20 3
4-38 99205080030 WASHER,8 2
4-39 99072045164 SCREW,TAPPING,4.5X16 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 7
TPH-260PF
STARTER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-0 7620304590 STARTER ASS'Y 1
5-1 7720304580 BODY,STARTER 1
5-2 7740304520 PULLEY,STARTER 1
5-3 7790304520 SPRING,RECOIL 1
5-4 7770304520 ARM,SWING 1
5-5 8390304520 SCREW,SET 1
5-6 7710304520 STAY,PULLEY 1
5-7 7830304520 ROPE,STARTER 1
5-8 7850304520 HANDLE,STARTER 1
5-9 3153334020 NUT,SPECIAL 5MM 1
5-22 7980304520 PULLEY,STARTER 1
5-24 99464040185 BOLT,HEX,4x18WS 2
www.tanakapowerequipment.com
PARTSINFORMATION
Page 8
TPH-260PF
CARBURETOR • FIGURE 6
0
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-0 4550304590 CARBURETOR SET 1 Includes gasket
6.2 5752515380 BODY,PUMP 1
6-3 4422515180 PUMP,PRIMING 1
6-4 4762515120 COVER,DIAPHRAGM 1
6-5 44725108200 BULB,PRIMING 1
6-6 ~ ~ ~ DIAPHRAGM,METERING 1 Included in Carb Kit #650.25124.90
6-7 ~ ~ ~ GASKET,DIAPHRAGM 1 (items not available individually)
6-8 ~ ~ ~ DIAPHRAGM,PUMP 1
6-9 ~ ~ ~ GASKET,PUMP 1
6-10 5992001W38 JET,MAIN LONG #38 1
6-11 55025100200 O-RING 1
6-12 48925100200 RING,STOP 1
6-13 53925120200 SWIVEL 1
6-15 51425100200 SCREW,THROTTLE SET 2
6-16 54425164200 STAY,ADJUST,CABLE 1
6-17 99101060013 NUT,6 1
6-18 61425137200 ADJUSTER,CABLE 1
6-19 4310634C200 GASKET,CLEANER 1
6-20 5482515120 SCREW,SET 4
6-21 5492516520 WASHER,THRUST 1
6-201 57825007200 SCREEN,INLET 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 9
TPH-260PF

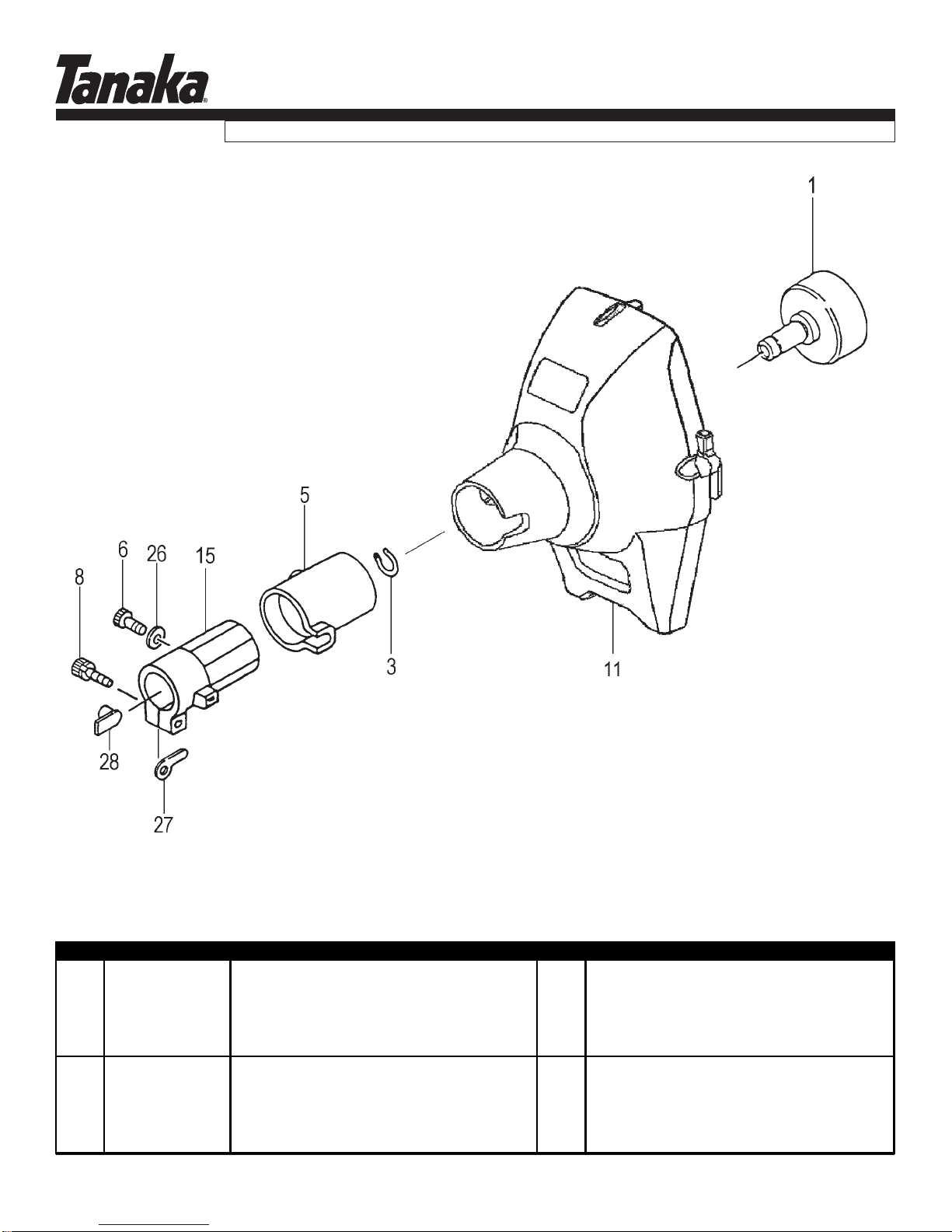

FAN CASE • FIGURE 7
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-1 2890307080 DRUM,CLUTCH 1
7-3 99350012002 RING,STOP,C-12 EX 1
7-5 5990098021 CUSHION,RUBBER 1
7-6 99051050163 BOLT,HEX,5X16 1
7-8 99461050254 BOLT,HEX HOLE,5X25S 1
7-11 1120304580 CASE,FAN 1
7-15 3600099620 PIPE HOLDER 1
7-26 99201050061 WASHER,5 1
7-27 3243735020 WASHER,GEAR CASE 1
7-28 3610099020 FITTING,METAL 1
