TANDBERG 8000 MXP Istruzioni per il montaggio

11304801 Page 1

Installation Sheet

TANDBERG 8000 MXP

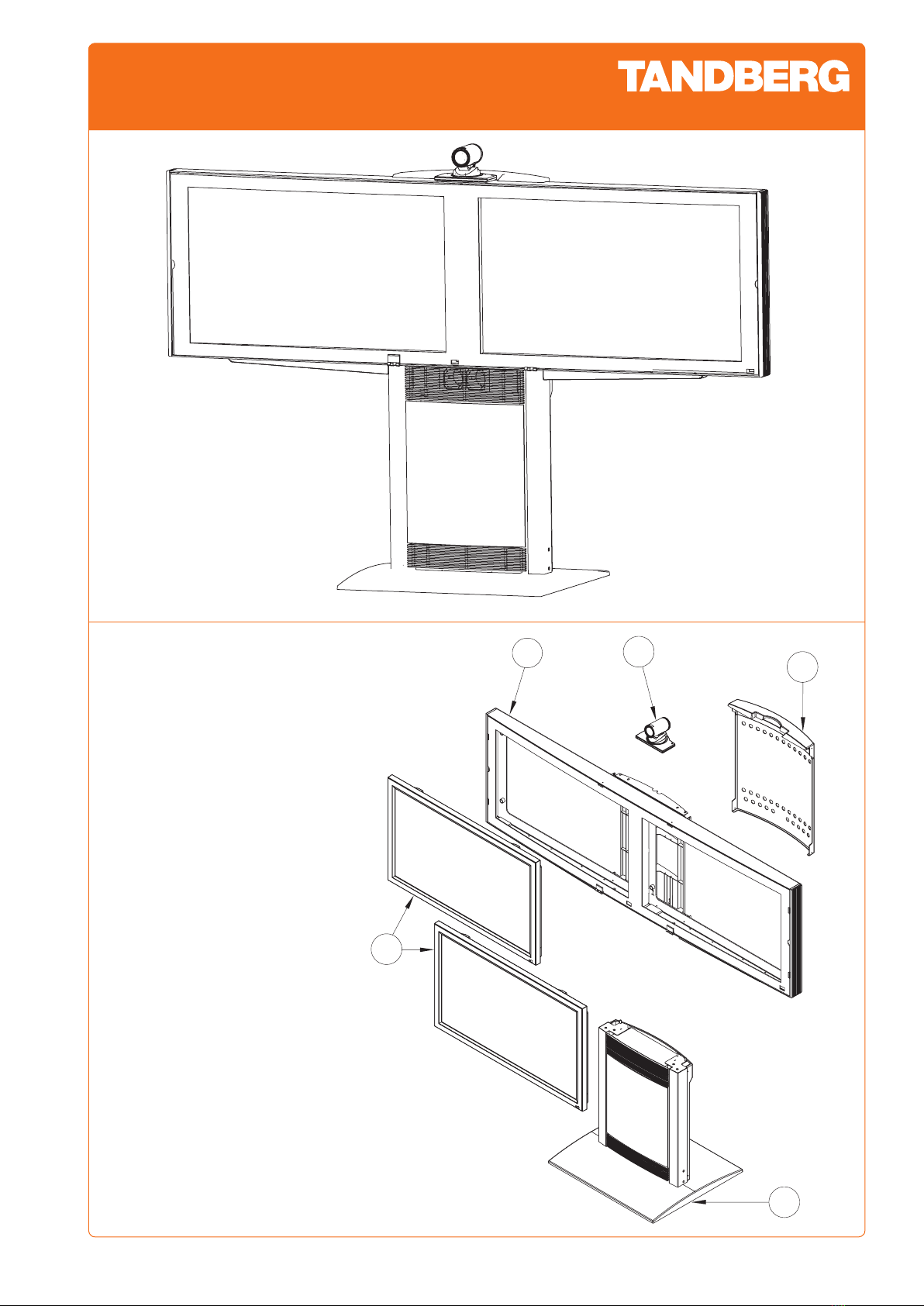

The TANDBERG 8000 MXP is shipped in three boxes:

Box 11. : Base (1), Rear Cover ABS (2), TANDBERG

Precision HD Camera (5), Accessories box

Box 22. : The Dual Monitor Frame (3)

Box 33. : The Plasma Monitors (4)

11304801 Page 2

Installation Sheet

TANDBERG 8000 MXP

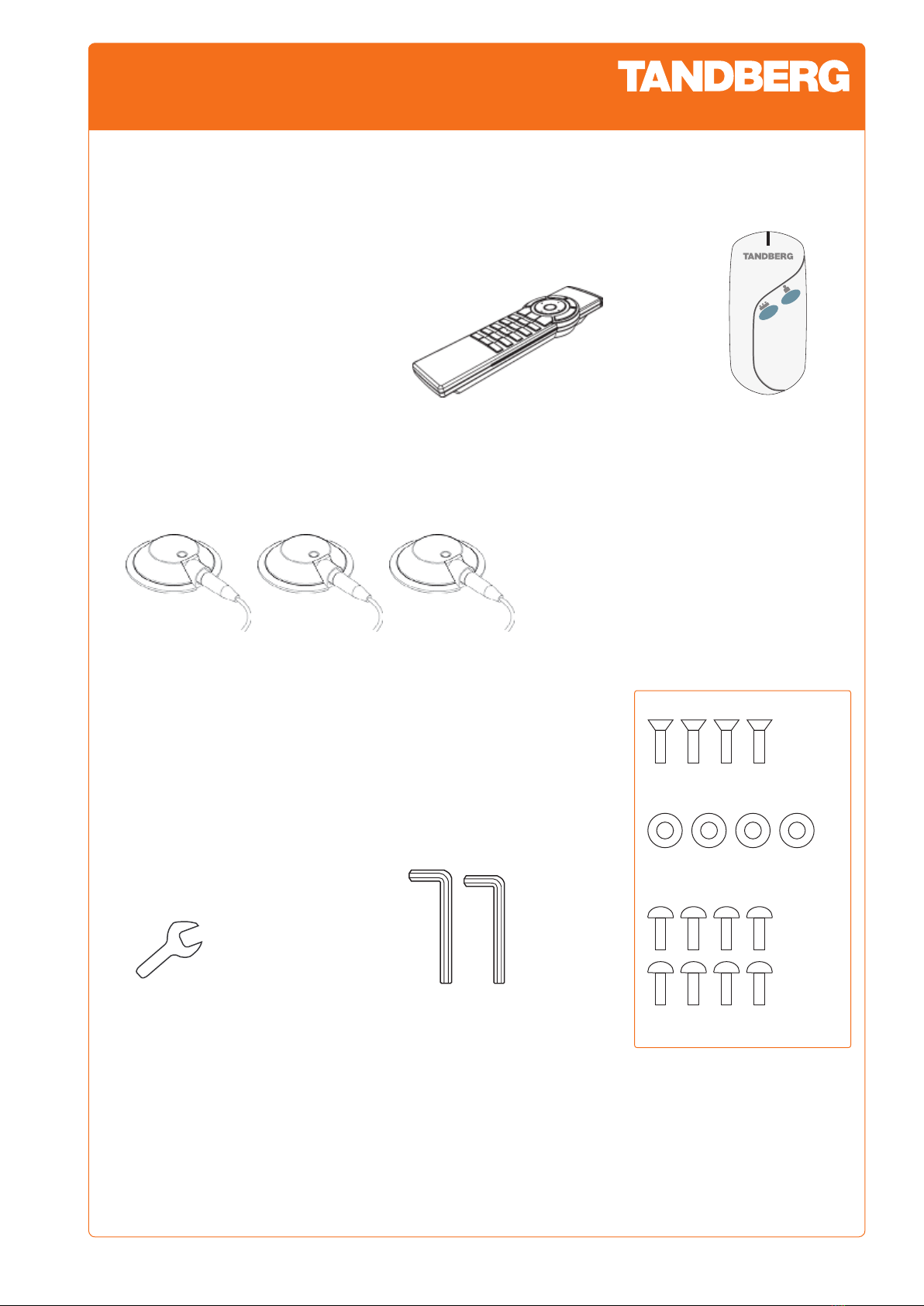

Accessories

4 x Type M4x16

4 x Type 4.3x10.5 Lock Washer

2 x Allen keys (Unbrako keys)

1 x 5mm, 1 x 2,5mm

Cables:

7 x Power Cables•

1 x LAN Cable•

1 x ISDN Bundle Cable•

2 x DVI Cables•

TANDBERG Remote

Control

TANDBERG

Tracker

3 x Microphones

8 x M8x35

Wrench

13 mm

User Manuals CD

TANDBERG MXP

User Documentation

11304801 Page 3

Installation Sheet

TANDBERG 8000 MXP

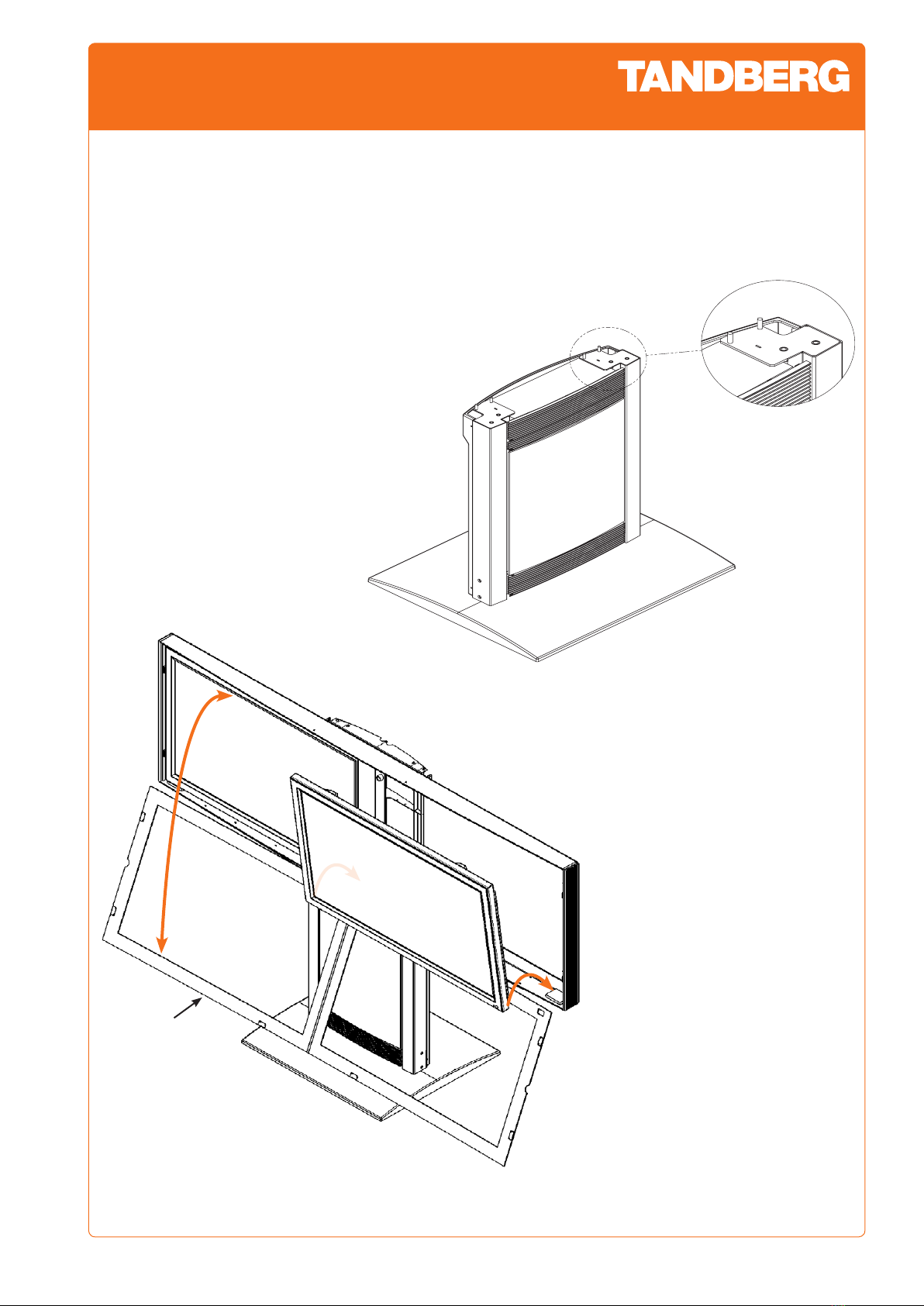

1) Dual Monitor Frame

Before mounting the monitor frame:

Remove the 4 nuts from the bolts protruding1.

from the top of the base, using the wrench

found in the accessories box.

Remove 4 bolts by using an Allen key (unbrako2.

key) found in the accessories box.

Carefully lift the dual monitor frame out of the

box:

Place the dual monitor frame on top of the1.

base.

Use the 4 nuts and the 4 bolts (which was2.

removed from the base) to fasten the dual

monitor frame in place.

Installation of TANDBERG 8000 MXP

To install the monitors we recommend that there are 3 people present.

NOTE! Due to the weight of the system, the base should be placed in its permanent location at once.

Open the front screen, fastened by1.

magnets.

Locate the holes on the monitor2.

frame for mounting the monitors.

Carefully place the first monitor3.

inside the dual monitor frame.

Enter bottom first.

Secure the monitor using the four4.

M8x35 screws by using an Allen

key (unbrako key) found in the

accessories box.

Repeat step 2, 3 and 4 for the5.

second monitor

Remove the protective plastic film6.

from the plasma monitor front.

Close the front screen. Make sure7.

the magnets engage.

2) Plasma Monitors

The front

screen

11304801 Page 4

Installation Sheet

TANDBERG 8000 MXP

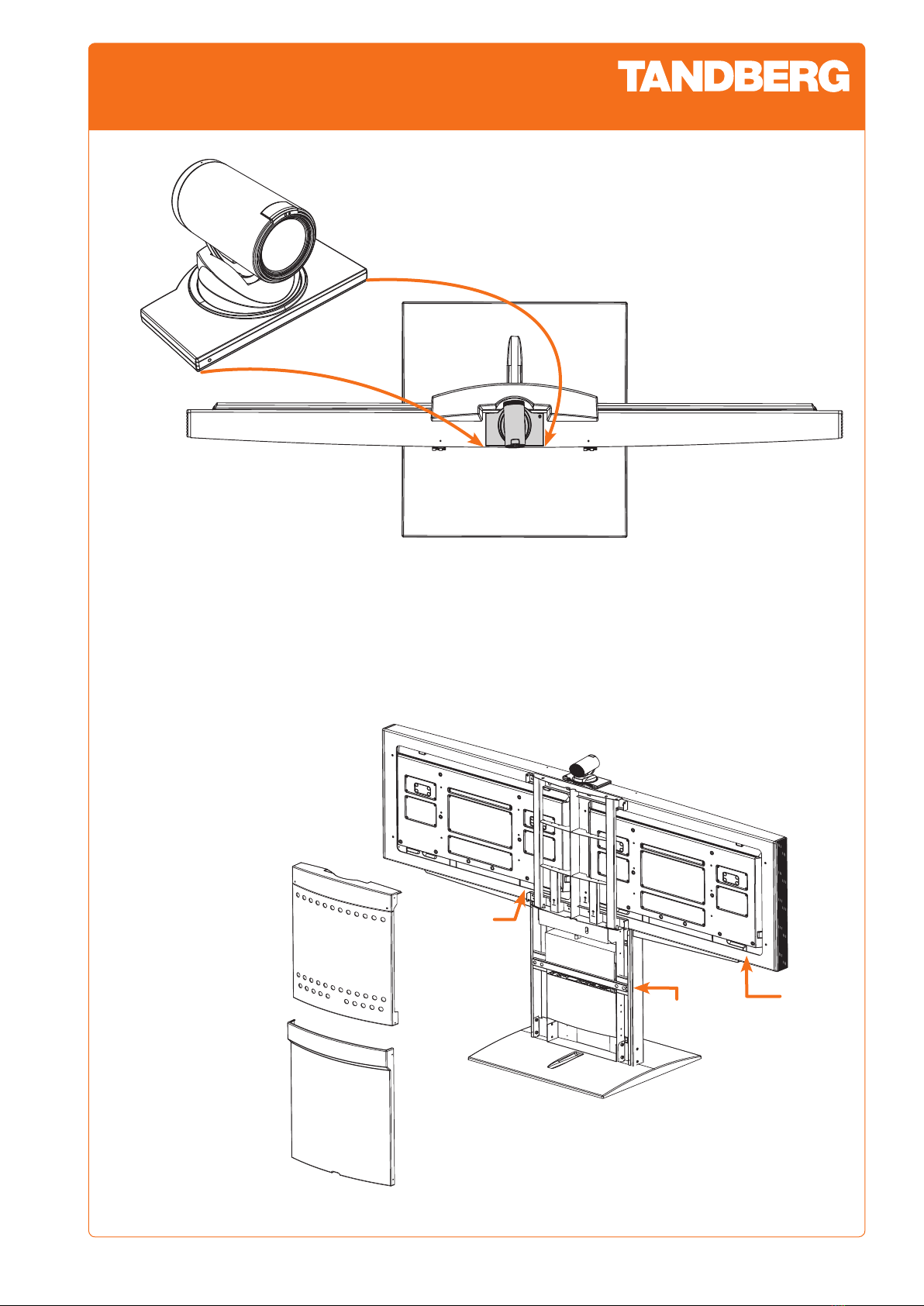

3) TANDBERG Precision HD Camera

Place the camera centrally on top of the Monitor Frame.1.

Make sure it is placed in parallel to the edge of the front of2.

the Monitor in order to allow the IR sensor to pick up the

signals from the remote control.

4) Connecting Cables

Please connect the following cables to the monitors:

Use the Allen key and remove the Rear Base Cover from the base.1.

Connect 1.5m DVI-DVI cable marked2. DIGITAL/RGB IN, Main Monitor to the Input 2 on the right hand monitor (when

viewed from the rear).

Connect 1.5m DVI-DVI cable marked3. DIGITAL/RGB IN, Dual Monitor to the Input 2 on the left hand monitor.

Connect power to4. AC IN on both monitors.

Please connect also the cables for microphones, camera and network (ISDN/LAN) cables (for details see the5.

Administrator Guide > Interfaces & Sockets > Codec 6000 MXP, which is found on the User Manuals CD).

5) Rear Panels

Put on the Rear Base cover and the

Rear Frame cover and ensure that all

cables are stored away correctly.

Screws and lock washers are found

in the accessories box.

6) Turn on the Video System

Turn the monitors on by pressing the On/Off power switch,1.

placed at the bottom, in the back of each monitor.

Turn the Codec on by pressing the On/Off power switch on2.

the codec. The Unit Codec is found in the base.

Rear Frame

cover

Rear Base

cover

Power

On/Off

Power

On/Off

Codec

On/Off

11304801 Page 5

Installation Sheet

TANDBERG 8000 MXP

Your TANDBERG 8000 MXP videoconferencing system is shipped with two (or three) high quality microphones in order

to ensure superb audio quality. The number of microphones shipped with the system will depend on the system type.

All microphone cables are connected to the microphone inputs on your system: Mic1, Mic2 and Mic3.

1. Connect the cable

Connect the microphones to the microphones cables:

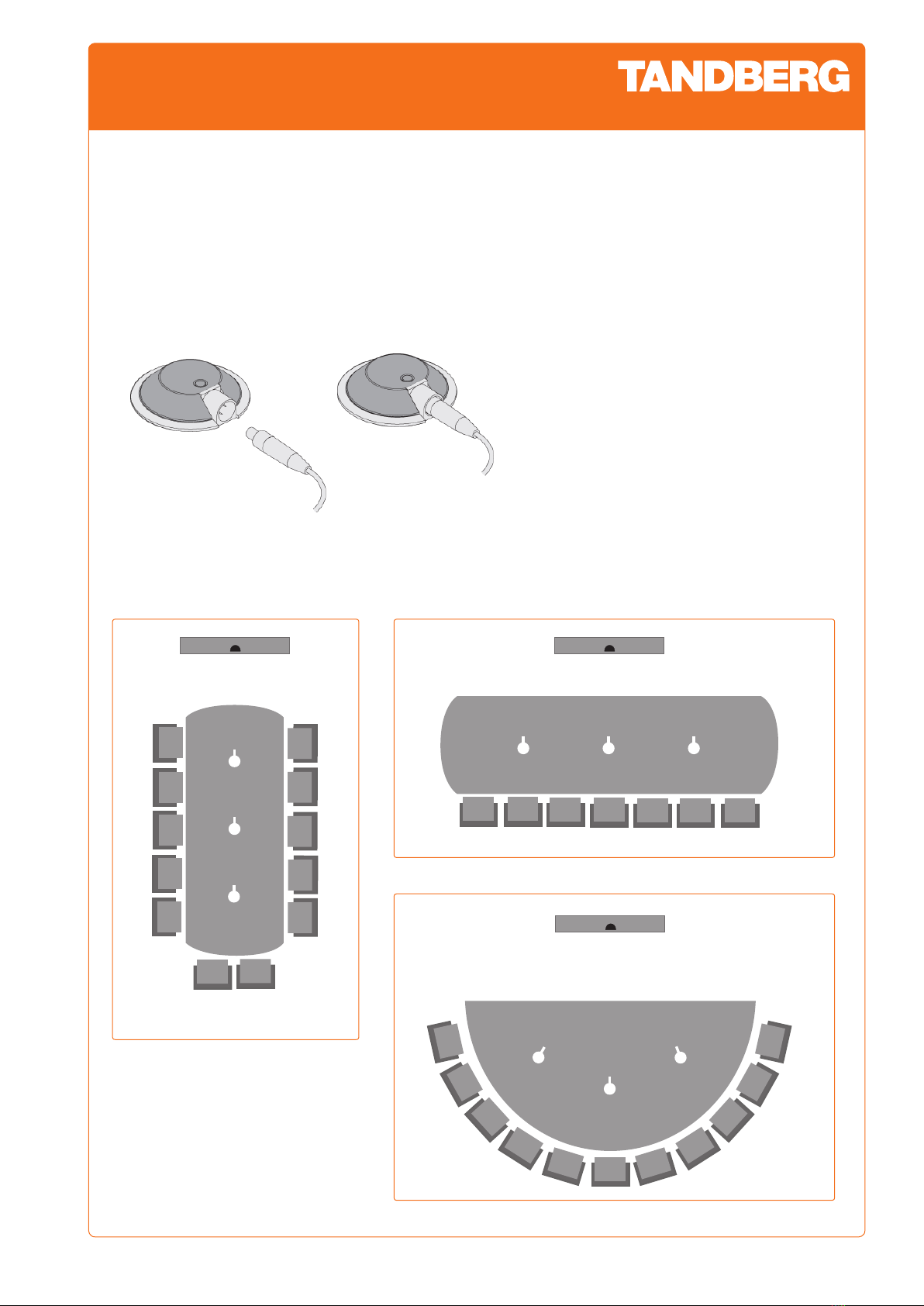

7) How to Place the Microphones

2. How to place the microphones

Place the microphones on your meeting room table as shown in the illustrations below. Make sure the microphone

cables points in the direction of the videoconference system.

The placement of two microphones,

instead of three, should be done in the

same way as shown in the illustrations.

11304801 Page 6

Installation Sheet

TANDBERG 8000 MXP

2. Language

Open General menu. Select Language and press save.

3b. ISDN Conﬁguration

Open Network - ISDN/External/Leased E1/T1 and

select ISDN-BRI Settings or ISDN-PRI Settings. Make

the ISDN conﬁguration and press save.

1. Open the Control Panel

Choose Control Panel from the main menu and press

the OK button on the remote control.

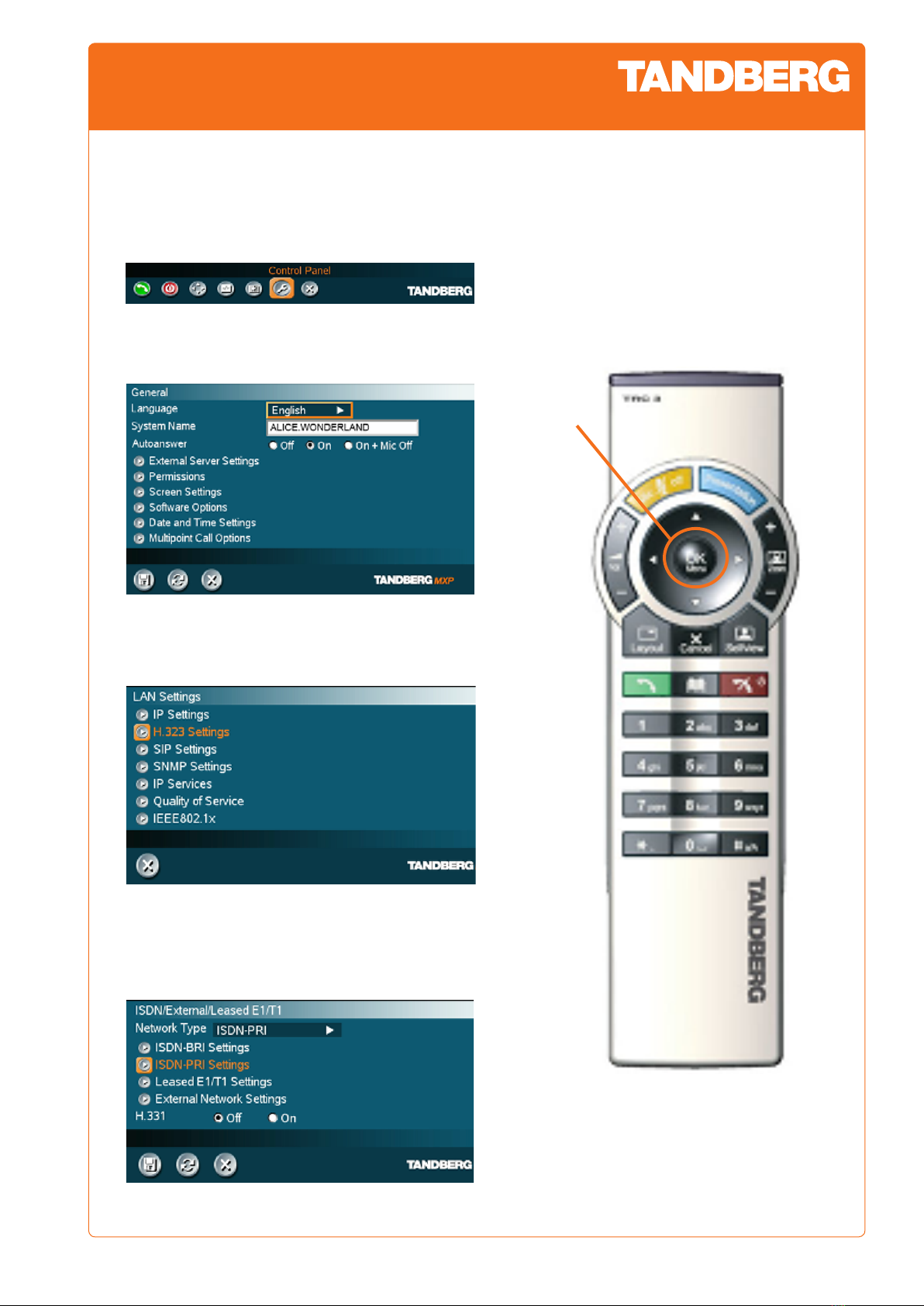

8) Video System - Quick Setup

3a. Network Conﬁguration

Open Network > LAN Settings. Conﬁgure IP Settings

and H.323 Settings and press save.

Please read the Administrator Guide found on the user manuals CD for further details.

TIP

If the menu is not already present, press the

OK/Menu key on the remote control to open the

menu. Navigate in the menus with arrow keys

and OK button.

OK/Menu

button

NOTE

The TANDBERG Remote Control is available

in two versions; the TRC3 and TRC4. The

illustration above shows the TRC3.

The IR sensors for the remote control are placed at the lower

right of each monitor. Use the TANDBERG Remote Control to

access the video system menus.
