T&D RTR-57U Manuale utente

User's Manual

Thank you for purchasing our product.

Carefully read this instruction manual

before using this unit.

2005. 09 16004455040



ii ii

■Notices about this User's Manual

In order to properly use this product, please carefully read this manual

before using. T&D Corporation accepts no responsibility for any

malfunction of and / or trouble with this product or with your computer

that is caused by the improper handling of this product and will deem

such trouble or malfunction as falling outside the conditions for free repair

outlined in the attached warranty.

●All rights of this User' s Manual belong to T&D Corporation. It is

prohibited to use, duplicate and / or arrange a part or whole of this User'

s Manual without the permission of T&D Corporation.

●Microsoft® and Windows® are registered trademarks of Microsoft

Corporation USA and are binding in the USA and all other countries.

Company names and product names are trademarks or registered

trademarks of each company.

●Specifications, design and other contents outlined in this manual are

subject to change without notice.

●On screen messages in this manual may vary slightly from the actual

messages.

●Please notify the shop where you purchased this product or T&D

Corporation of any mistakes, errors or unclear explanations in this

manual. T&D Corporation accepts no responsibility for any damage or

loss of income caused by the use of our product.

●This product has been designed for private or industrial use only. It is not

for use in situations where strict safety precautions are necessary such

as in connection with medical equipment, whether directly or indirectly.

●We are not responsible for any malfunction or trouble caused by the use

of our product or by any problem caused by the use of measurement

results of our unit. Please be fully aware of this before using our product.

●Some of our products, which come under the category of strategic goods

in foreign trade law, need the permission of the Japanese government to

be exported outside of Japan.

The Warranty that comes with this Manual can not under any

cicumstance be reissued, so please keep it in a safe place.

The Manual itself can be downloaded from our Home Page:

http://www.tandd.com

Safety Precautions and Instructions

◆To ensure safety be sure to obey all of the

following warnings.

The following items should be strictly obeyed for the safe usage of this unit,

and for protecting yourself and other people from bodily harm and/or damage

to property. To ensure the proper use of our product, please read the following

carefully and fully understand the contents.

◆Explanation of Symbols

【Explanation of Warning Symbols】

DANGER

These entries are actions that absolutely under no

circumstance should be taken. The taking of such an action

may cause serious personal physical damage or death.

CAUTION These entries are actions that if taken may lead to physical

injury or damage to persons or things.

【Explanation of Picture Symbols】

Denotes an important warning or caution. Near the symbol will

appear another symbol giving details.

(EX: stands for CAUTION AGAINST ELECTRIC SHOCK)

Denotes a forbidden action. Inside or near the symbol will appear

another symbol giving details.

(EX: stands for DO NOT TAKE APART)

Denotes an action that you must take. Near the symbol will appear

another symbol giving details.

(EX: stands for PULL POWER PLUG OUT FROM OUTLET)

iiiiii

DANGERS

Be sure to follow the warnings and notices about use from

your PC maker when installing and using this unit.

Do not take apart, repair or modify the main unit. Doing so

may cause ﬁre or electrocution.

If water or a foreign body enters in this unit, turn the power

off and remove the batteries. Continued use may cause ﬁre

or electrocution.

Do not use this unit in wet or humid places, such as a

bathroom.

Store RTR-57U main units, batteries and communication

cables out of the reach of children. It is dangerous to touch

or swallow batteries.

Connecting a communication cable that is connected to a

PC or a data logger to the telephone cable may cause ﬁre or

damage.

If any smoke or strange smells are emitted from the unit,

immediately turn the power OFF and remove the batteries.

Continued use may cause ﬁre or electrocution.

Do not drop the unit, or expose the unit to a strong impact. If

that happens to the unit, immediately turn the power OFF

and remove the batteries. Continued use may cause ﬁre or

electrocution.

CAUTIONS

This unit is not water-resistant. If the unit gets dirty, wipe it

with a clean cloth and a mild detergent.

Do not put your ﬁngers or foreign matter into the

communication port.

Battery life depends on the kind of the batteries,

measurement environment, communication frequency,

ambient temperature, and battery quality.

Do not use batteries other than speciﬁed. Doing so may

cause ﬁre or damage.

Do not use an AC adaptor other than speciﬁed. Doing so may

lead to ﬁre or damage.

Battery terminals may provide insufﬁcient contact due to age

or vibration. This may lead to data loss.

If the unit will not be used for period of time, for safety

reasons please remove the battery. If left in the unit, it may

leak and lead to malfunctioning.

Condensation may occur if the unit is moved from one

environment to another where the difference in temperature

is great. Use the unit in an environment where the ambient

temperature is from 0 to 50℃ （32 to 144 ゜F） and the

humidity is 90％RH (no condensation) or less.

CAUTIONS

Do not expose the unit to harmful gases or chemicals. It may

cause corrosion and/or other danger to the unit and to people

handling the unit.

To prevent damage to the unit from static electricity, remove

static electricity from your body by touching metal around you

(door knob, window frame) before touching the unit.

Static electricity may cause not only damage to the unit, but

may cause breaks in or a loss of data.

Do not use the unit in places such as listed below. It may

cause electrocution, ﬁre or have adverse effects on the unit

or your PC.

●In places exposed to direct sun light.

The inside temperature of the unit will rise and may cause ﬁre, damage or

deformation.

●In areas exposed to strong magnetic ﬁelds.

It may cause damage.

●In places exposed to water leakage.

It may cause damage or electrocution.

●In areas exposed to static electricity.

It may cause damage.

●In areas exposed to vibration.

It may cause an injury, damage, and/or insufﬁcient contact.

●In places which are not ﬂat.

It may lead to the unit being dropped or falling and cause injury or damage.

●In places exposed to ﬁre or heat.

It may cause damage or a change in shape.

●In places exposed to excessive smoke, dirt and dust.

It may cause damage.

Wireless Regulations

Radio, EMC and Safety Regulations

This device complies with part 15 of the Federal Communications

Commission (FCC) rules and with RSS-210 of the Industry Canada

(IC). Operation is subject to the following conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received,

including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

viivii

viii

Table of Contents

Introduction

Notices about this User's Manual ..................................................... i

About Data Collector RTR-57U

.........................................................1

Contents of Package

..............................................................................4

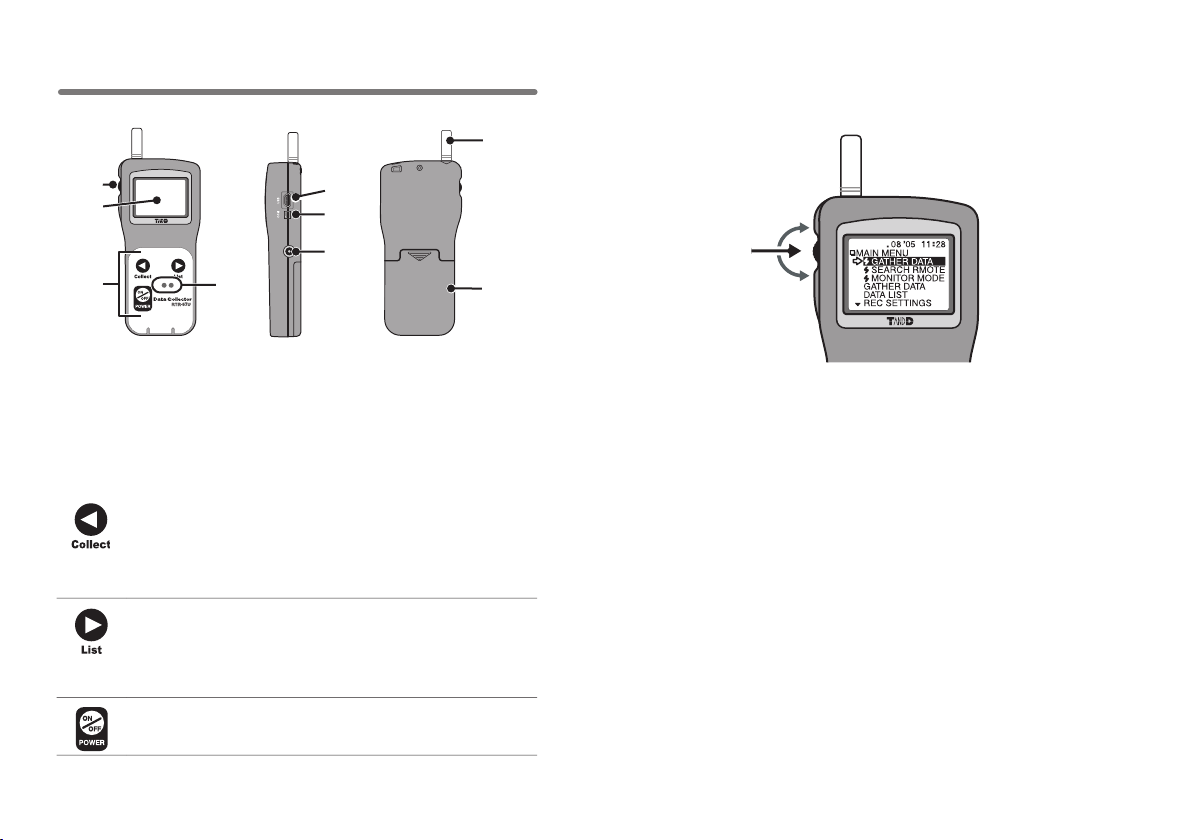

Part Names and Functions

..................................................................5

Getting Ready

Installing the Batteries

..........................................................................9

Switching the Power ON

.......................................................................9

Setting the Date and Time

..................................................................10

Communicating with the Computer

................................................11

Installing the USB Device Driver

　・For Windows XP ........................................................................................14

　・For Windows 2000 .....................................................................................15

　・For Windows Me ........................................................................................18

　・For Windows 98 .........................................................................................19

Basic Functions

Communicating with the Data Logger ...........................................22

Wireless Communication

　・Register the Data Logger Unit to be used as a Remote Unit ....................25

　・Recording Conditions Settings ..................................................................26

　・Downloading Recorded Data ....................................................................30

Non-Wireless Communication

　・How to Connect for Optical or Optional Communication Cable .................33

　・Recording Conditions Settings ..................................................................34

　・Downloading Recorded Data ....................................................................37

Graph Display

...........................................................................................39

Event List Display ....................................................................................41

Other Functions

Checking Upper and Lower Limits ..................................................43

Remote Unit Conditions Display ......................................................45

Searching for Remote Units ...............................................................47

Monitoring ...................................................................................................49

Viewing / Deleting Saved Data

　・Viewing a Data List ....................................................................................52

　・Displaying Recorded Data in Graph or Event List .....................................53

　・Deleting Selected Data ..............................................................................54

　・Deleting All Data ........................................................................................55

Radio Wave Monitor ...............................................................................56

Other Functions: Operational Settings　　

　・Adjusting Contrast / Using the Backlight/

Muting the Operations Buzzer ...................................................................57

　・Checking Memory / Changing Unit of Temperature ...................................58

Others

Menus at a Glance　

............................................................................59

If Installation Fails

...................................................................................63

Speciﬁcations for RTR-57U Data Collector

................................64

Optional Accessories

............................................................................65

Warranty

................................................................................................ on back

1 2

About Data Collector RTR-57U

◆Outline

Our revolutionary Wireless RTR-5 series is a system wherein the various

kinds of data measured and recorded by our data logger units (RTR-51/

RTR-52:Temperature data, RTR-53:Temperature and Humidity data and

RVR-52A:Voltage, Pulse, Event and Soil Moisture data) can be transmitted

to the RTR-57U Data Collector via short wave radio communication. The

Data Collector can then be connected to your computer to enable easy

downloading and total data management. The RTR-57U Data Collector

can also be used to start recording and collect, check, and edit data on

site for any of the units in the TR-5 Series (TR-51A/52) and/or the TR-7

Series (TR-71U/72U) making it unnecessary to collect the units and take

them to your computer to carry out these functions.

◆Basic Functions

●Wireless Data Communication Function

Our Thermo Recorder RTR-5 Series utilizes the RTR-57U to collect recorded

data from the RTR-51 / RTR-52 / RTR-53 and RVR-52A units via our exclusive

short-wave wireless technology. The RTR-57U also allows you to wirelessly

control recording settings and start recording, as well as other functions of the

data loggers. Communication is possible to a distance of up to 330 ft [100m] if

unobstructed and direct.

Note

If collecting data via wireless communication, it is necessary to ﬁrst set up the

RTR-5 Series Units as Remote Units in your computer.

●Register up to 3,840 RTR-5 Series Units on 1 RTR-57U

RTR-57U is designed to manage the RTR-5 Series Units in groups. 1 RTR-57U

Unit can be set up to manage up to 60 groups, with each group containing up to

64 RTR-5 Series Units. If being set up via computer each RTR-57U can also be

set to handle 15 groups with each group containing 250 RTR-5 Series Units.

●Monitoring Function

With RTR-57U, you can wirelessly monitor current temperature readings of one

group of RTR-5 Series Units, with the readings being sequentially displayed on the

unit.

Note

If monitoring is carried out on a regular basis the battery life of the RTR-5 Series

Units will be shortened. For example, if the monitoring interval is set at 1 minute

the battery life will be about 4 months.

●Easy Data Collection from a Variety of Unit Types

Data downloading can be carried out with any RTR-5 Series Unit via wireless

communication or by simply placing it face down on the communication pad area.

Data from other types of units can be downloaded via the provided communication

cable.

●Data Capacity: 260,000 Readings

The RTR-57U has a large enough capacity to collect data from 16 RTR-5 units at

full capacity. If not at full capacity, the RTR-57U can collect and manage data of up

to 250 data downloading sessions.

●Graph Display

The RTR-57U gives you a high quality graph display of collected data whether it be

temperature, humidity, voltage or pulse. By using the handy operation dial or the

buttons on the front of the main unit you can easily scroll left and right across the

graph display; giving you the data you want in an easy to check format.

●Event List Display

The event data recorded on the RVR-52A can be downloaded and instantly

displayed in an easy to read list. By using the handy operation dial or the buttons

on the front of the main unit to scroll up and down the list you can easily check the

event data.

●Radio Wave Monitor

Check the condition of radio wave transmissions.

●Handy Operation Dial

By simply moving the dial up and down you can scan the menu and make a

selection by simply pressing in on the dial.

●Monitor Temperature while Downloading

By making upper and lower limit settings on the RTR-57U you can monitor the

recorded data as it is collected for irregularities and the results will be displayed.

If any RTR-5 Series Unit has already been set with its own upper and/or lower

limit, those values will take precedence over the values set in the RTR-57U.

●Manage Recording Settings without a Computer

Besides controlling the collection of data, the RTR-57U can manage various

recording settings such as: Recording Mode, Recording Interval, Programmed

Recording Settings and Immediate Record. This enables the user to easily control

various recording settings for a variety of models on-site without the need for a

computer.

●Battery Life Warning Display

When the battery power goes low, a battery life warning will be displayed. If the

battery is not changed the unit will automatically go into sleep mode.

33 4

●Trustworthy Backup Function

If, after the battery warning display appears, the battery power goes even lower

the unit will automatically go into sleep mode. Although, in sleep mode, the unit

cannot be operated and power cannot be turned on, all data will be safely stored

without loss.

Note

If after going into sleep mode, the battery is not changed for about 1 month (for

Ni-Cd (Nickel-Cadmium) batteries 1 day), or if the battery is left out of the main

unit for more than 2 minutes, all data will be lost.

●Over 100 Hours on 2 Alkaline Batteries

The RTR-57U takes advantage of our exclusive circuitry design to bring over 100

operating hours worth of power on only 2 AAA alkaline batteries. Energy efficiency

is further enhanced with our Auto Power Off Function.

Note

Battery Life varies according to type of battery, measuring environment,

transmission frequency, and ambient temperature. This estimate of battery life

was based on normal use under normal conditions using a new batteries. This is

in no way or manner a guarantee of battery life.

●Auto Power Off Function

To save battery energy the main unit will automatically be turned off when not in

use for 3 minutes.

●Backlit Display for Viewing in Dark Places

The RTR-57U comes equipped with a backlit display for easy viewing even in hard

to see places. The light can be switched ON/OFF in the main menu. If set to be

ON, it will light up when operation begins and automatically turn off when

operation stops for a few seconds, saving battery energy.

Note

If an outside power source is being used, the back light function will normally be

ON.

Contents of Package

The following items are included in the package.

Collect List

Data Collector

RTR-57U ×1

Software

(T&D Recorder for Windows)

CD-ROM ×1

USB Communication Cable

(US-15C) 1.5m ×1

AAA Alkaline Batteries

×2

Main Unit User's Manual

and Warranty ×1

Software User's Manual

×1

5 6

Part Names and Functions

①Operation Dial

②LCD Display

③Operation Buttons

④Optical Communication Port

⑤USB cable connection jack

⑥Serial Communication cable

connection jack

⑦AC adaptor connection jack

⑧Antenna

⑨Battery Compartment

①

②

③

⑤

⑥

④

⑧

⑨

⑦

◆Explanation of the Button Functions

・When downloading via wireless communication

the [Select Group] display will appear.

・Allows you to swift-scroll across data when

viewing a graph or an event list.

・Allows you to swiftly make changes to the

upper and lower limit value settings.

・The downloaded data list will be displayed.

・Allows you to swift-scroll across data when

viewing a graph or an event list.

・Allows you to swiftly make changes to the

upper and lower limit value settings.

・Switch Power ON/OFF.

◆How to Use the Operation Dial



Press in

Move the dial up

Move the dial down

〔Moving the dial up and down〕

・By moving the dial up or down the arrow will move to allow you to choose

the desired item. The selected part will be displayed in an easy-to-see

inversed shade.

・When setting a numerical value, by moving the dial up the value will

become larger and by moving the dial down the value will become

smaller.

〔Pressing in on the dial〕

・Switching the Power On (See p.9)

・You cannot switch the power OFF with the operation dial. Press in on the

POWER button.

・By pressing in on the dial, you can make a desired menu selection or

complete and activate a setting.

・Keeping the dial pressed in (1.5 seconds) will activate different functions

depending on the display being viewed.

・If you keep it pressed in while viewing the graph display, you can change the

display channel.

・If you keep it pressed in while viewing a menu, a setting display, or the event

list display, you will be returned back to the main menu display.

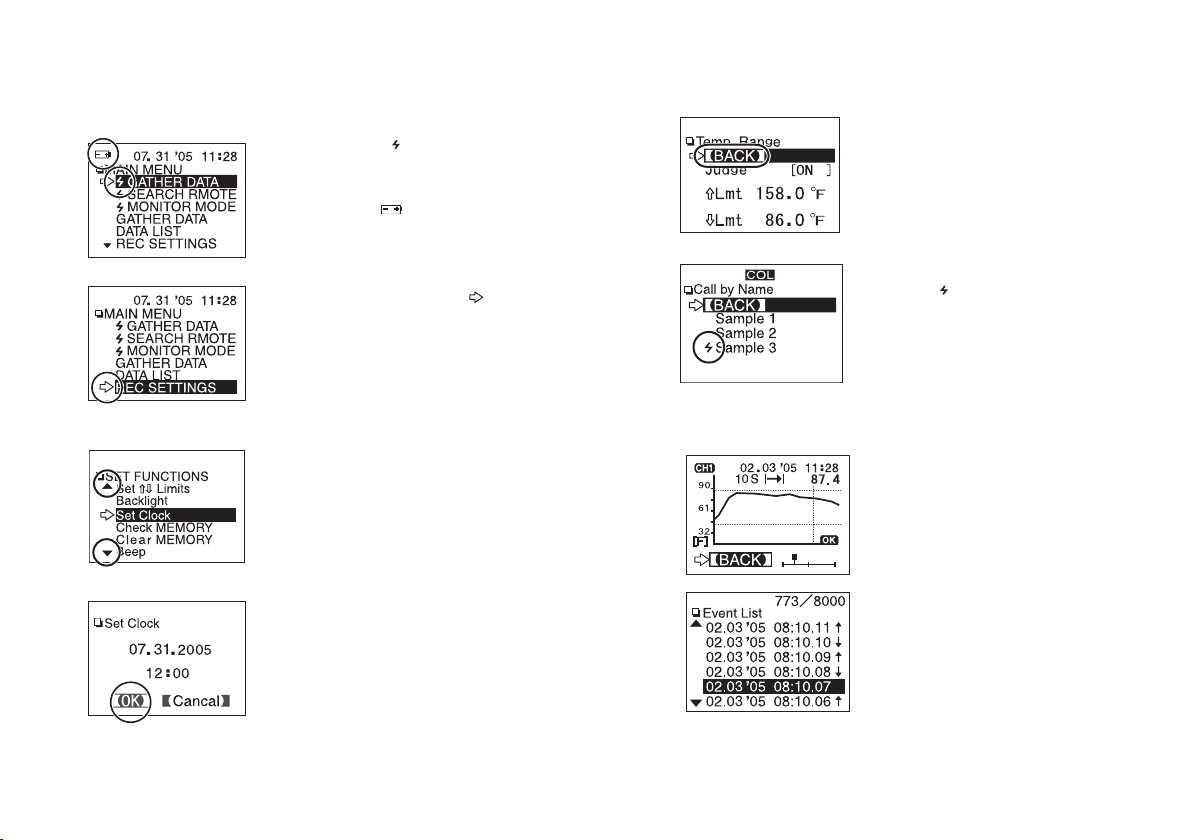

◆LCD Display

・Items marked with （） indicate menus

for Wireless Communication.

・When battery life goes low, a battery

life warning mark ( ) will be

displayed to inform you it is time to

replace the battery.（See p.9）

・The item marked with an arrow ( )

denotes it has been selected. If you move

the operation dial up and down, the arrow

will move accordingly and by pressing in

the dial the item selected will be activated.

・A（▲▼）indicates that there

are more menu items above ( ▲)

or below the ( ▼) to view.

・After making a setting, adjust the

dial to select 【OK】 and press to

complete the setting procedure.

・If there is no【OK】in the setting

display, but a【BACK】 is displayed,

adjust the arrow to

【BACK】 and

press it to complete the setting and

take you back to the menu display.

・When carrying out a Remote Unit

search, a （）mark will appear next

to Group Names in which Remote

Units that can carry out wireless

communication are registered, as well

as, next to any Remote Unit name that

can carry out wireless communication.

◆Recorded Data Displays

Graph Display

Temperature, Humidity, Voltage and Pulse

Data that has been downloaded to an

RTR-57U unit can be displayed in Graph

form. See p.39 for details about the display.

Event List Display

Event Data that has been recorded by

RVR-52A and downloaded to RTR-

57U can be viewed in a List Display.

See p.41 for details about the display.

9 10

Getting Ready

◆Installing the Batteries.

Two AAA type Alkaline, Ni-Cd, or Ni-MH(1.2V) batteries may be used, but be

sure not to mix types of batteries and to insert them in the correct direction to

align + and － .

Note

・The RTR-57U unit has no battery

recharging ability.

・If using an outside power source,

batteries are not necessary.

【About the Battery Life Warning Mark】

When battery life goes low, a battery life warning mark ( ) will be displayed

to inform you it is time to replace the battery.

If battery life goes lower, in order to save data, the main unit automatically

goes into sleep mode and cannot be turned on or operated as usual. If all

battery power disappears, all data will be lost, so be sure to change the battery

as soon as possible. Even if the battery is removed from the unit, the data will

be stored without loss for about 5 days. (If the battery had been in the unit for

more than 24 hours before removal.)

◆Switching the Power ON

Switch the power ON by pressing the POWER button or the Operation Dial. To

switch the power OFF, press the [POWER] button. You cannot switch the power

OFF with the Operation Dial.

〔Auto Power Off Function〕

If the main unit is not in use for 3 minutes, the power will be automatically

switched off in order to save battery power. If you wish to continue to use,

switch the power on again.

Note

・If using the monitoring function, the Auto Power Off function will not go into effect.

・During communication, even by pressing the [POWER] button, it is impossible to switch

the power OFF.

◆Setting the Date and Time

CAUTION

・After purchasing this product, please be sure to use the attached software

to set the clock and date.

・The difference between your local time and GMT will automatically be

calculated and written, after which the correct time will be displayed.

・If the date and time of the RTR-57U main unit are not accurate, the starting time

of a programmed start and the recorded time of downloaded data will be different

from the actual one, so please set the date and time accurately.

・When changing the battery, the time of the main unit may become incorrect;

please check the time after every change.



1. In the Main Menu, open [SET

FUNCTIONS] and then [Set Clock].

2. Setting the desired values.

①By moving the operation dial up and down, the

selection item of the display changes in the

order of year, month, day, hour, and minute. By

pressing the dial, the value for that item will

flash.

②Set to the desired value by moving the

operation dial up and down and press the dial

to set that value. Move to the next item and

follow the same procedure.(Date Format:

MM.DD.YYYY)

3. When settings are completed, adjust to

[OK] and press the dial to complete the

setting procedure.
