120 Watt Universal AC/DC

Notebook Power Adapter

USER’S GUIDE

Making Your Mobile Life Easier.®

Visit our Web site at: www.targus.com

400-0129-001A

120 WATT UNIVERSAL

AC/DC NOTEBOOK POWER

ADAPTER

Introduction

Thank you for purchasing the Targus 120 Watt Universal

AC/DC Notebook Power Adapter. Unlike older adapters, this

adapter’s leading-edge technology powers and charges not

only the latest, high wattage notebook computers, but also

legacy computers. It’s compatible with the following

connections:

•Any 100-120 volt or 200-240 volt AC wall outlet

•12 volt, negative-grounded, DC cigarette lighter

•Airline in-seat power system

NOTE: The compatibility between the adapter and an airline

in-seat power system depends upon airline specifications.

Supplied with the adapter are ChargeSource™-compatible

PowerTips. PowerTips allow you to connect the adapter to

your notebook computer. You can also purchase additional

PowerTips to power and charge other portable devices, such as

handhelds, mobile phones, digital cameras, printers and DVD

players.

NOTE: The type of PowerTips supplied in this package is

determined by the country from which you purchased the

adapter.

120 Watt Universal AC/DC Notebook Power Adapter

To view the compatibility list for the PowerTips supplied in

this package, refer to the chart on the back of the packaging

box.

For a complete list of compatible devices and/or to purchase

additional tips, go to:

www.targus.com/accessories_power.asp

Package Contents

In addition to this user’s guide, the package contains:

• 120 Watt Universal AC/DC Notebook Power Adapter

• ChargeSource-compatible PowerTips

• AC wall socket input cable

• Auto/Air®input cable

• Output cable

Before You Begin

It’s normal for the adapter to become warm to the touch while

you are using it. Avoid placing the adapter in direct sunlight or

next to heat-sensitive materials.

To avoid possible damage when using the adapter with your

notebook computer, make sure that the computer’s batteries

either meet or exceed the original manufacturer’s

specifications.

PowerTips

PowerTips are interchangeable attachments that allow you to

power and charge different models of notebook computers and

other portable devices, using the same adapter.

120 Watt Universal AC/DC Notebook Power Adapter

To use the PowerTips:

1 Using the compatibility chart, located on the back of the

adapter’s packaging box, select the correct PowerTip for

your model notebook computer.

WARNING: Never use a PowerTip that is not compatible with

your device. Doing so may damage the device or cause it to

fail temporarily.

2 Connect the PowerTip to the adapter output cable by

aligning the PowerTip pins to the cable’s receptor and

gently pressing to make a firm connection.

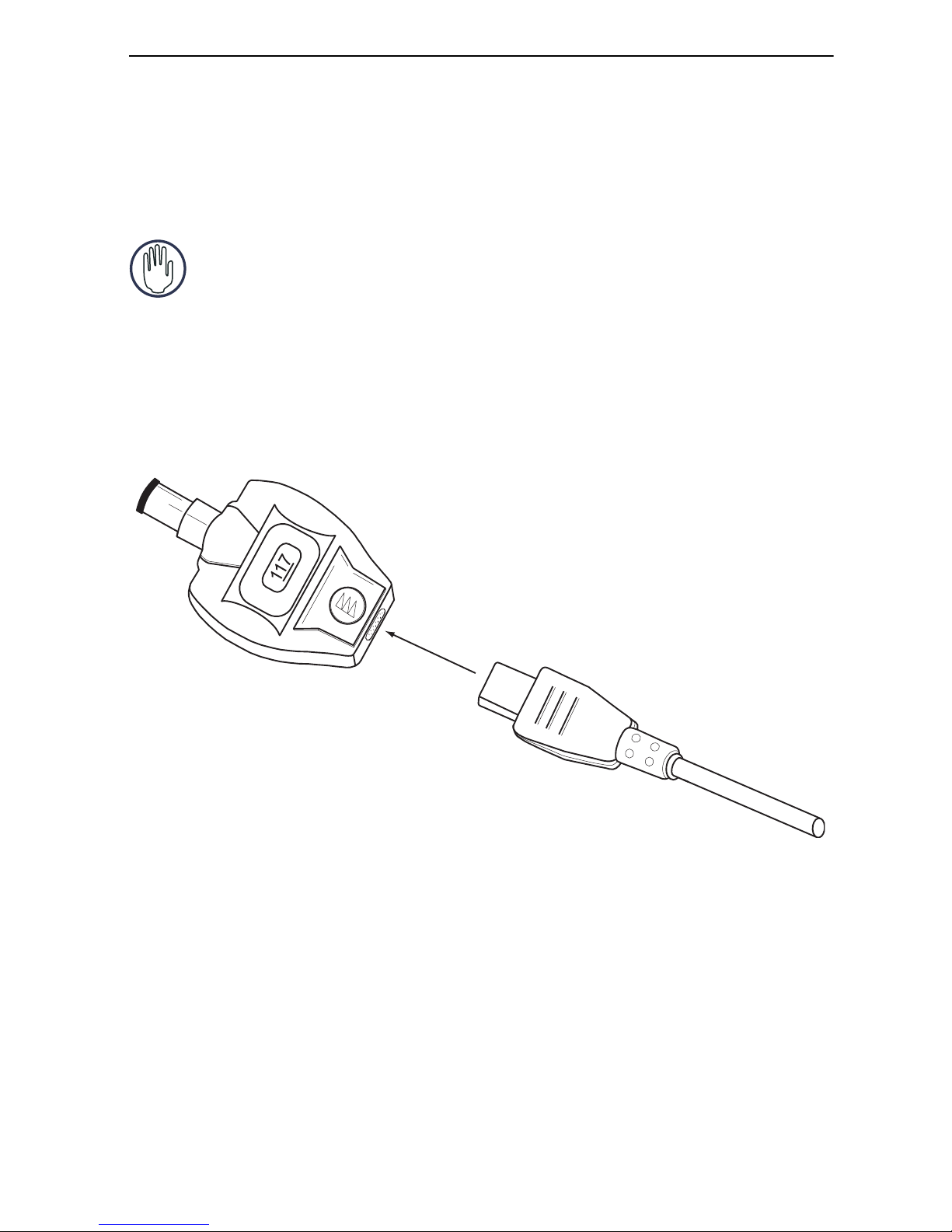

Connecting a PowerTip

3 Connect the PowerTip to your device’s power connector.

You are now ready to use the adapter.

PowerTip

Adapter output cable

120 Watt Universal AC/DC Notebook Power Adapter

Using the Adapter

To use the adapter with your device, after connecting the

appropriate PowerTip, follow the AC wall socket, In-Auto or

In-Air connection instructions.

AC Wall Socket Connection

Use the AC wall socket connection anywhere a 100-120 volt or

200-240 volt AC power source is available.

1 Connect the PowerTip to the adapter output cable and your

notebook computer, if you haven’t done so already.

2 Connect the AC wall socket input cable to the adapter.

3 Plug the AC connector into a wall outlet or power strip.

When the adapter has power, its status light glows green.

Your device’s battery is now charging.

You can now turn on and use your device.

In-Auto Connection

Use the In-Auto connection in any vehicle with a 12 V DC

cigarette lighter socket, such as a car, truck or boat or an

airplane equipped with this style of in-seat power system.

CAUTION: To prevent power interruption and any detrimental

effects on your device and/or its software, avoid starting your

vehicle’s engine while the adapter is connected to the device.

1 Connect the PowerTip to the adapter output cable and your

notebook computer, if you haven’t done so already.

2 Remove the vehicle’s cigarette lighter from its socket.

120 Watt Universal AC/DC Notebook Power Adapter

WARNING: The cigarette lighter may be hot enough to burn

your skin or any flammable material. Allow the lighter to cool

completely before storing it.

3 Connect the Auto/Air input cable to the adapter.

4 Insert the adapter’s In-Auto connector into the cigarette

lighter socket.

5 If power to the cigarette lighter socket is not already on,

start your vehicle’s engine.

When the adapter has power, its status light glows green.

Your device’s battery is now charging.

You can now turn on and use your device.

In-Air Connection

Use the In-Air connection when traveling with an airline that

provides an in-seat power system.

NOTES: Some airlines, such as American, provide a 12 V DC

cigarette socket instead of a special in-air connection. In this

case, use the In-Auto connection method. See “In-Auto

Connection” on page 5.

The compatibility between the adapter and an airline in-seat

power system depends upon both the airline and the

manufacturer’s power specifications for your device.

1 Connect the PowerTip to the adapter output cable and your

notebook computer, if you haven’t done so already.

2 Remove the In-Auto connector to expose the In-Air

connector. To do this, press and hold the tab at the base of

the connectors and slide the In-Auto connector off.

120 Watt Universal AC/DC Notebook Power Adapter

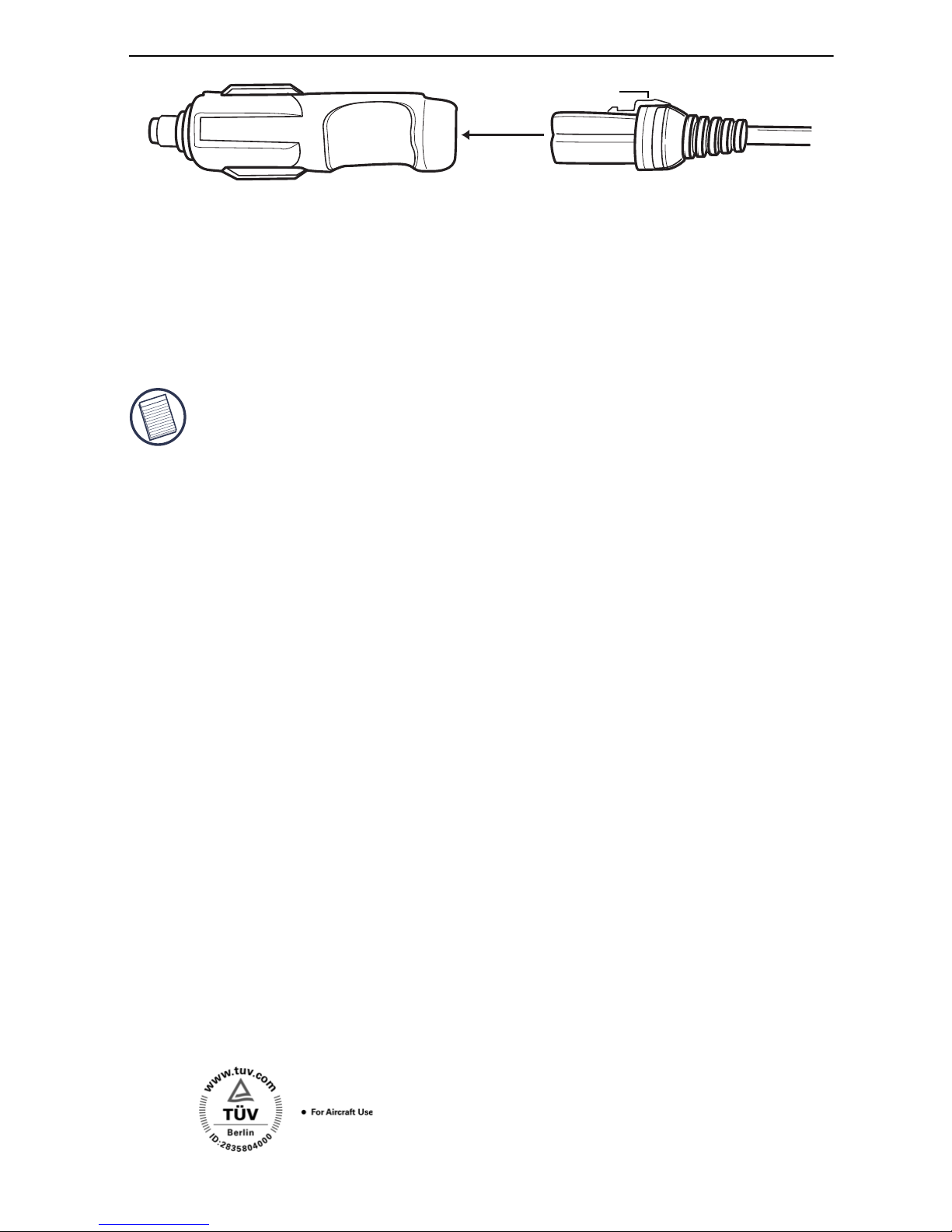

Removing the In-Auto connector

3 Connect the Auto/Air input cable to the adapter.

4 Insert the adapter’s In-Air connector into the in-seat power

connector.

NOTE: The in-seat power connector is usually in the arm of

your seat, next to the headphone jack, or under the seat. If

you need help in locating the connector, ask a flight attendant.

When the adapter has power, its status light glows green.

Your device’s battery is now charging.

You can now turn on and use your device.

Safety Features

• Over current protection

• Thermal protection

• Short circuit protection

Certifications

• FCC/CISPR22B compliant • VCCI

• RTCA DO-160D • TUV/GS

• www.tuv.com ID:2835804000

For Aircraft Use

Tab

In-Auto connector In-Air connector

120 Watt Universal AC/DC Notebook Power Adapter

Specifications

Troubleshooting

The adapter’s status light is not on - what do I do?

First, make sure that the AC wall socket cable or DC Auto/Air

input cable is firmly connected to a power source, such as a

wall outlet, power supply connector or cigarette lighter socket.

If the problem still exists, try the following for your connection

type.

AC wall socket connection

• Check that the wall outlet or power strip has power.

Dimensions

(L x W x H)

Power Adapter:

5.6 x 3.1 x 0.66 inches

(14.22 x 13.28 x 3.94 cm)

Weight (overall) 11.4 ounces (323 g)

AC wall socket input cable 4.75 inches (12 cm)

DC Auto/Air input cable 18 inches (0.46 m)

DC power output cable 10 feet (3.05 m)

Input Voltage 100-120/200-240 volts AC

12 to 16 volts DC

Output Voltage 0 to 24 volts DC (configurable)

Output current 6 Amps maximum (configurable)

Output power up to 120 watts (maximum)

120 Watt Universal AC/DC Notebook Power Adapter

In-Auto connection

• Start the vehicle’s engine, if it’s off.

• Check and, if necessary, replace the vehicle’s cigarette

lighter fuse. Refer to your owners manual for specific

instructions.

In-Air connection

• Ask a flight attendant whether the pilot has turned off the

power to the airplane seats.

If the status light remains off, contact our Technical Support

department for further assistance.

Technical Support

For technical questions, please visit:

Internet: http://www.targus.com/support.asp

Australia

Internet: www.targus.com.au

Email: infoaust@targus.com

Monday through Friday, 8:30 a.m. (08:30) to 5:30 p.m. (17:30)

Eastern time: 1-800-641-645

Canada

Monday through Friday, 9:00 a.m. (09:00) to 5:00 p.m. (17:00)

Eastern time: 888-827-4877

120 Watt Universal AC/DC Notebook Power Adapter

Europe

Belgium +32 0 02-717-2451

Denmark +45 0 35-25-8751

France +33 0 1-64-53-9151

Germany +49 0 21-16-579-1151

Italy +39 0 24-827-1151

Netherlands +31 0 53-484-9470

Spain +34 0 91-745-6221

Sweden +46 0 8-751-4058

Switzerland +41 0 1-212-0007

United Kingdom +44 0 20-7744-0330

Eastern Europe & others +31 0 53-484-9479

Product Registration

For more efficient customer service and to activate the product’s

warranty, Targus recommends that you register your Targus accessory

shortly after purchasing it.

To register your Targus accessory, go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, phone number,

and company information (if applicable).

Warranty

Targus warrants this product to be free from defects in materials and

workmanship for two years. If your Targus accessory is found to be

defective within that time, we will promptly repair or replace it. This

warranty does not cover accidental damage, wear and tear, or

consequential or incidental loss. Under no conditions is Targus liable for

loss of, or damage to a computer; nor loss of, or damage to, programs,

records, or data; nor any consequential or incidental damages, even if
