USER GUIDE

Universal Notebook

Docking Station

with Video

Visit our website at www.targus.com

Features and specifications are subject to change without notice.

ACP50US / 410-0003-001C

Table of Contents

Introduction ..........................................3

System Requirements ..........................5

Installing the Device and Drivers ..........5

Connecting New Devices .....................8

Video Menu Options ...........................12

Global Suspend Mode ........................13

Targus Always On ..............................14

Using USB Devices That Require More

Power .................................................14

Product Limitations .............................14

Troubleshooting .................................15

Technical Support ..............................17

Product Registration ...........................18

Warranty .............................................18

Regulatory Compliance ......................18

TARGUS UNIVERSAL

NOTEBOOK DOCKING

STATION WITH VIDEO

Introduction

Congratulations on your purchase of the Targus

Universal Notebook Docking Station with Video. This

portable expansion module allows you to connect

through a single USB connection up to 4 USB devices,

monitor, network (Ethernet/LAN) connection, speakers,

microphone and a serial device.

The docking station also offers Targus Always On

technology, Targus Power Port providing twice the USB

spec for high power devices, and USB ports that are

widely spaced for larger adapters. Targus Always On

provides power to the USB ports even when the

notebook is shut-down, disconnected from the docking

station or in hibernate/stand-by mode. This allows USB

devices that charge via the USB port to keep charging

under any circumstance.

Fe at u re s

Heat dissipation by natural convection:

Place the back edge of your laptop on the rubber pads of

the Docking Station. Most laptops dissipate heat through

the bottom and the more air that’s allowed to flow under

Targus Universal Notebook Docking Station with Video

the bottom, the better chance that heat will dissipate by

natural convection.

Comfort

The raised platform provides a more comfortable position

for hands and increased airflow for better cooling.

The Docking Station provides the

following ports:

• 15-pin VGA (supports up to 1600 x 1200 at 16 bit color)

• Two 3.5 mm Audio: (1) stereo out and (1) microphone

• RS232 serial

• RJ-45 Ethernet 10/100

• Two USB 2.0 (White)

• Two USB Power Ports (Black) - providing up to 1Amp

Package Contents

In addition to this user guide, the package contains:

• Targus Universal Notebook Docking Station with Video

• High-speed USB 2.0 upstream cable

• Driver software CD

• AC power adapter (required)

Targus Universal Notebook Docking Station with Video

System Requirements

Hardware

• PC with an Intel®Pentium®processor or equivalent

• CD-ROM drive

• USB version 2.0 port

• AC power source (AC adapter required)

NOTE: WHEN CONNECTED TO AUSB VERSION 1.1 PORT ON YOUR

COMPUTER, THE DOCKING STATION’SPERFORMANCE LEVEL WILL BE LESS

THAN OPTIMAL AND THE VIDEO PORT WILL NOT FUNCTION PROPERLY. FOR

BEST RESULTS, CONNECT IT TO AUSB VERSION 2.0 PORT.

Operating System

• Windows®2000 Service Pack 2 or greater

• Windows® XP Service Pack 1 or greater

• Windows Vista®

NOTE: TODOWNLOAD THE LATEST SERVICE PACKS, PLEASE VISIT YOUR

COMPUTER MANUFACTURER’SWEBSITE OR MICROSOFT’SDOWNLOAD CENTER:

http://support.microsoft.com

Installing the Device and

Drivers

To use the Targus Docking Station, you must first install

the driver onto your computer. Connect the docking

Targus Universal Notebook Docking Station with Video

station to your computer and Windows plug-and-play will

install the hardware drivers for each port.

WARNING: YOU MUST INSTALL THE DOCKING STATION SOFTWARE BEFORE

CONNECTING IT TO YOUR COMPUTER. OTHERWISE, THE DOCKING STATION

WILL NOT WORK PROPERLY.

Installing the Docking Station Driver

Installing the docking station driver enables your

operating system to recognize the docking station and its

ports once it’s connected.

1 Turn on your computer.

2 Insert the driver software CD into your computer’s CD-

ROM drive.

If setup does not begin automatically, click Start, Run,

and enter D:\Setup.exe (where D: is the path of your CD-

ROM drive) and then click OK.

3 Follow any on-screen instructions to complete the

installation.

4Click Finish and restart your computer when

prompted.

Connecting the Docking Station to

Your Computer

After installing the docking station software, you are

ready to connect the docking station to your computer. To

do this:

1 Connect the supplied AC power adapter to the AC

power jack on the docking station.

Targus Universal Notebook Docking Station with Video

2 Connect one end of the USB cable to the docking

station and the other end into an available USB 2.0

port on your computer.

WARNING: THE DOCKING STATION WILL NOT FUNCTION PROPERLY WITHOUT

THE AC ADAPTER PLUGGED INTO AN AC OUTLET.

DONOT CONNECT ANY DEVICES TO THE DOCKING STATION UNTIL THE

INSTALLATION IS COMPLETED.

Installing the Default Device Drivers

Once you connect the docking station to your computer,

the default drivers begin installing for each of the ports.

Some hardware devices may prompt you to install the

drivers.

To install the drivers:

1 Select Install the software automatically

(Recommended) and click Next.

The Found New Hardware Wizard program begins

installing the hardware drivers.

The Completing the Found New Hardware Wizard

screen appears.

2ClickFinish and repeat as needed for each device.

3 Restart your computer.

LED Status Indicator Lights

Once all device drivers are installed, the USB LED status

indicator lights on the back of the docking station glow

and you can connect devices to the docking station.

Targus Universal Notebook Docking Station with Video

• Green Tx light illuminates when connected to a

network and the yellow Rx light flashes when data is

transmitting to or from the network.

NOTE: THE DOCKING STATION SUPPORTS HOT SWAPPING OF THE NETWORK

CABLE.

• USB lights will glow when the docking station is

connected to your computer.

•Always On LED glows green when button is depressed.

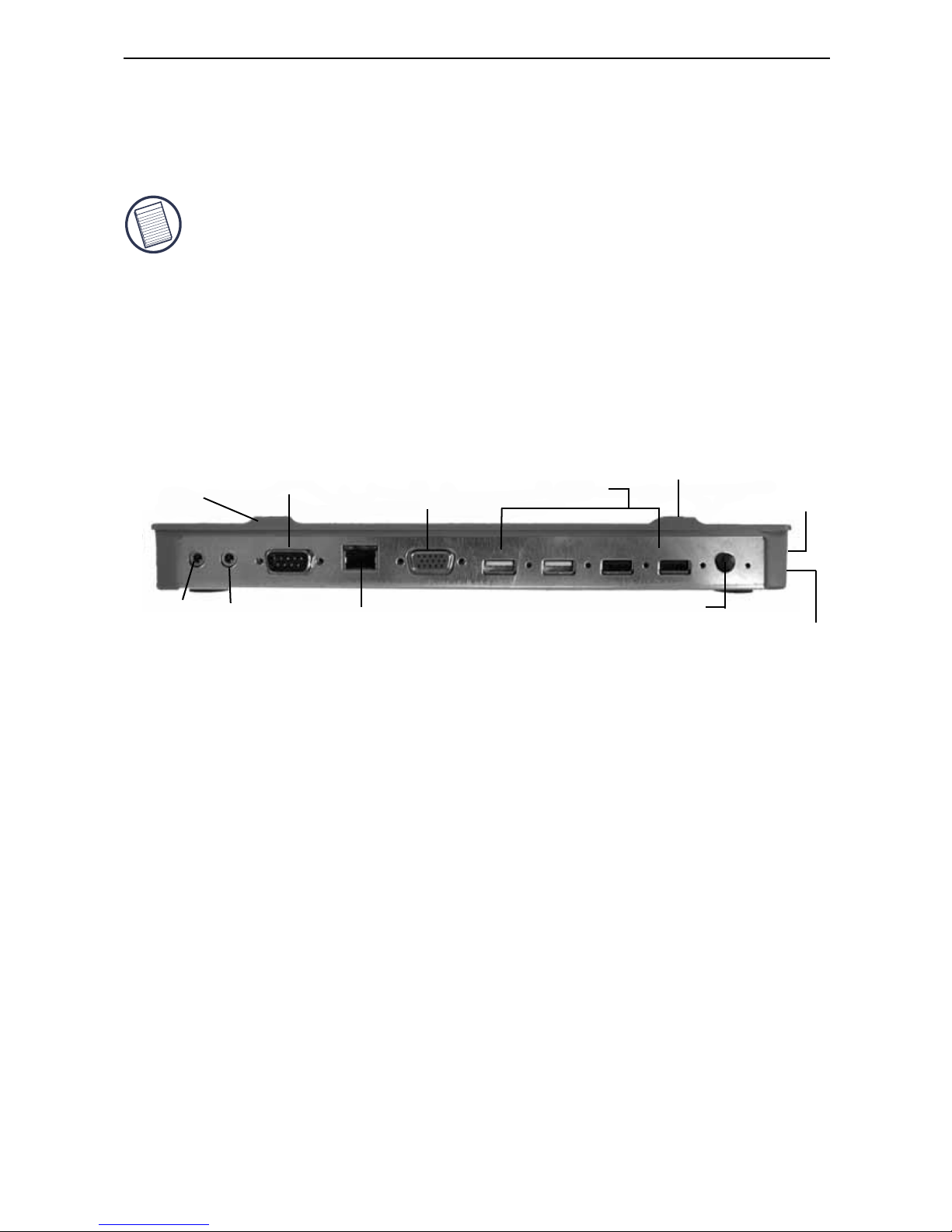

Docking Station Ports

Connecting New Devices

To avoid possible damage when connecting a new

device, do not force the cable connector into the port on

the docking station. If the cable connector does not

attach smoothly, turn the connector over and try attaching

it again.

Connecting a Serial Mouse

To connect a serial mouse, attach the cable connector to

the serial port on the docking station.

USB Ports

Serial

Audio Audio

In Out

VGA

Always On

AC Adapter

Laptop

USB to PC

Network

Connection

Laptop Support Pad

Support

Pad

Targus Universal Notebook Docking Station with Video

Connecting and Configuring a Serial

Modem

To connect a serial modem:

1 Attach the cable connector to the serial port on the

docking station.

2 Install the modem software driver according to the

instructions that come with the device.

3 When prompted to select the port, choose the Serial

USB (COMx), where xis the COM port number

assigned by your operating system.

Connecting a PDA

1 Attach the cable connector to the serial port on the

docking station.

2 Verify that the COM port setting, in either your

HotSync®or ActiveSync®software, matches the

setting on the docking station.

To verify the COM port setting on the docking station,

refer to “Verifying Devices are Installed” on page 16.

To verify the COM port setting on your PDA, refer to

the documentation that came with it.

Connecting to a Local Area Network

To connect an ethernet cable with RJ-45 connect, attach

the cable connector to the ethernet/network port on the

docking station. Additional procedures to connect to an

actual network depend on the type of network you are

using. Contact your network administrator for detailed

instructions.

Targus Universal Notebook Docking Station with Video

Connecting a USB Device

To connect a USB device, plug it into a USB port on the

docking station and follow the additional instructions

provided with the device.

All four USB ports meet USB hi-speed requirements by

providing 480Mbps through-put and 500mA of power.

However, the two black USB ports have two unique

features. See “Targus Always On” on page 14 for more

details.

The white USB ports are high-speed ports that provide

standard 500mA of power. The black USB power ports

are high-speed ports that provide up to 1Amp.

Connecting and Configuring an

Audio Device

1 Plug your headphones or speakers into the green

3.5mm Audio Out port on the docking station.

2 To connect a microphone, plug it into the mono Audio

In port.

3 To enable your headphones or speakers:

a For Windows 2000, click Start, Settings, Control

Panel, and then open the Sounds and Multime-

dia folder. Select the Audio tab. Under Sound

Playback, change Preferred Device to USB

Audio from the drop down list.

› Click Apply, then click OK.

b For Windows XP, go to the Control Panel and

choose Sound and Audio. Select the Audio tab.
