Wireless 5-Button Scroller

Optical Mini Mouse

USER’S GUIDE

Making Your Mobile Life Easier.

Visit our Web site at: www.targus.com

400-0086-001A

Wireless 5-Button Scroller Optical

Mini Mouse

Introduction

Congratulations on your purchase of the Targus Wireless 5-Button

Scroller Optical Mini Mouse. This ergonomically designed mouse

uses a radio frequency (RF) link that enables you to use the mouse

anywhere within 4.5 feet of its receiver. No line-of-sight between

the mouse and its receiver is required.

The optical mouse also provides a scrolling wheel and three

user-programmable buttons for multimedia use.

In addition to this user’s guide, this package contains:

•Wireless 5-Button Scroller Optical Mini Mouse

•Receiver

•1AA NiMH rechargeablebattery

•Three-inch USB extension cable

•Charger base

•AC power adapter

•Device driver software CD-ROM

System Requirements

To use the optical mouse, your computer must meet the following

hardware requirements and run one of the operating systems listed

below.

Hardware Operating System

• PC with a Pentium®processor or

equivalent and a hard disk drive

• Windows®95/98/Me/2000/

XP and Windows NT®4.0

• USB version 1.1 interface

Connecting the Mouse Receiver

To connect the mouse receiver:

1 Turn off your computer.

2 Plug the standard USB end of the cable into an available USB

port on your computer.

You are now ready to install the device drivers for your operating

system.

Installing the Device Drivers

NOTE: You must install the supplied device drivers to use the

fourth and fifth buttons. Otherwise, the mouse will function as

a standard, three-button mouse.

To install the supplied device driver:

1 Turn on your computer.

2 Insert the driver software CD into your computer’s CD-ROM

drive.

3ClickStart, Run, then enterD:\Setup.exe (where D: is thepath

of your CD-ROM drive) and then click OK.

The Welcome screen appears.

4ClickNext.

5SelectTypical or Custom installation and then click Next.

6ClickYes.

7ClickFinish to complete the driver installation and restart your

computer.

Once your computer restarts, the mouse icon appears in the

system tray.

You are now ready to installthe batteryin the mouse,setthe

radio frequency channel, and establish a communications link

between the mouse and its receiver. See “Establishing a

Communications Link” on page 6.

Using the RF Mouse

Installing the Battery

1 Remove the battery cover from the bottom of the mouse by

pressing the battery cover tab and siding it off.

2 Insert the supplied battery, making sure that the positive (+)

and negative (-) end of the battery match the polarity indicators

inside the battery housing.

3 Slide the battery cover back into position until it “clicks”

firmly into place.

The optical sensor, located on the bottom of the mouse, glows

red.

WARNINGS: When replacing the battery, if you are using the

mouse with the charger base, you must use heavy-duty NiMH

rechargeablebatteries toavoid possibledamage tothe mouse

and charger.

If you are using the mouse without the charger base, you may

use alkaline or other heavy-duty NiMH batteries.

Setting the Radio Frequency Channel

Before you establish a link between the optical mouse and its

receiver, you must set the radio frequency channel. To do this,

slide the channel switch to A or B on both the mouse and the

receiver. For the mouse, the switch is located inside the battery

compartment. For the receiver, the switch is located directly

opposite the USB connector.

NOTE: The optical mouse and its receiver must be set to the

same channel to function properly.

Establishing a Communications Link

The optical mouse has 256 identification codes that allow the

mouse and its receiver to operate without interference from other

radio frequency devices.

To set the identification code and establish a radio link between

the mouse and the receiver:

1 Press and release the link button, located on the bottom of the

optical mouse.

2 Press and release the link button on the receiver.

The receiver’s status light flashes while it scans the

identification codes for the mouse. Once a code is selected, the

status light stops flashing.

3 Press and release the screen scroller (middle) button.

You are now ready to use the optical mouse.

NOTE: You must reestablish the communications link every

time you change the batteries.

Personalizing the Mouse Features

You can assign functions to the third, fourth and fifth mouse

buttons and control cursor movement by personalizing the mouse

features from the Mouse Properties screen. To do this:

1ClickStart, Settings and Control Panel.

2 Double-click the Mouse icon.

The Mouse Properties screen appears.

This screen has six tabs with options for selecting and controlling

mouse features.

Buttons Tab

The Button configuration feature allows you to assign the primary

mouse button for right- or left-handed use.

The Files and Folders option allows you to assign the number of

clicks that are required to open an item.

The Double-click speed option adjusts how fast you have to click

the mouse button to register a double-click.

Pointers Tab

This tab allows you to choose how the mouse pointer looks on the

screen.

Motion Tab

The Speed option adjusts the speed at which the pointer moves

across the screen.

The Acceleration option adjusts the acceleration rate for the

pointer.

The Snap to default feature allows you to assign the pointer to

jump to default buttons in dialog boxes.

Hardware Tab

Selecting the Hardware tab displays general information about the

Wireless 5-Button Scroller Optical Mini Mouse.

Wheel Tab

The Scrolling Mode option allows you to choose between the

Intelli Mouse Compatible Mode and the Enhanced Scroll Mode.

•Intelli Mouse Compatible Mode – enabling this mode

simulates Microsoft®IntelliMouse® and supports features used

with Microsoft®applications, such as zoom, scrolling and

Auto-scrolling.

• Enhanced Scroll Mode – this mode supports all applications

that use scroll bars, with zoom, Auto-panning and scrolling

functions.

The Scrolling Settings option allows you to adjust how many lines

of text will scroll and the direction of the scroll movement.

Button Assignment Tab

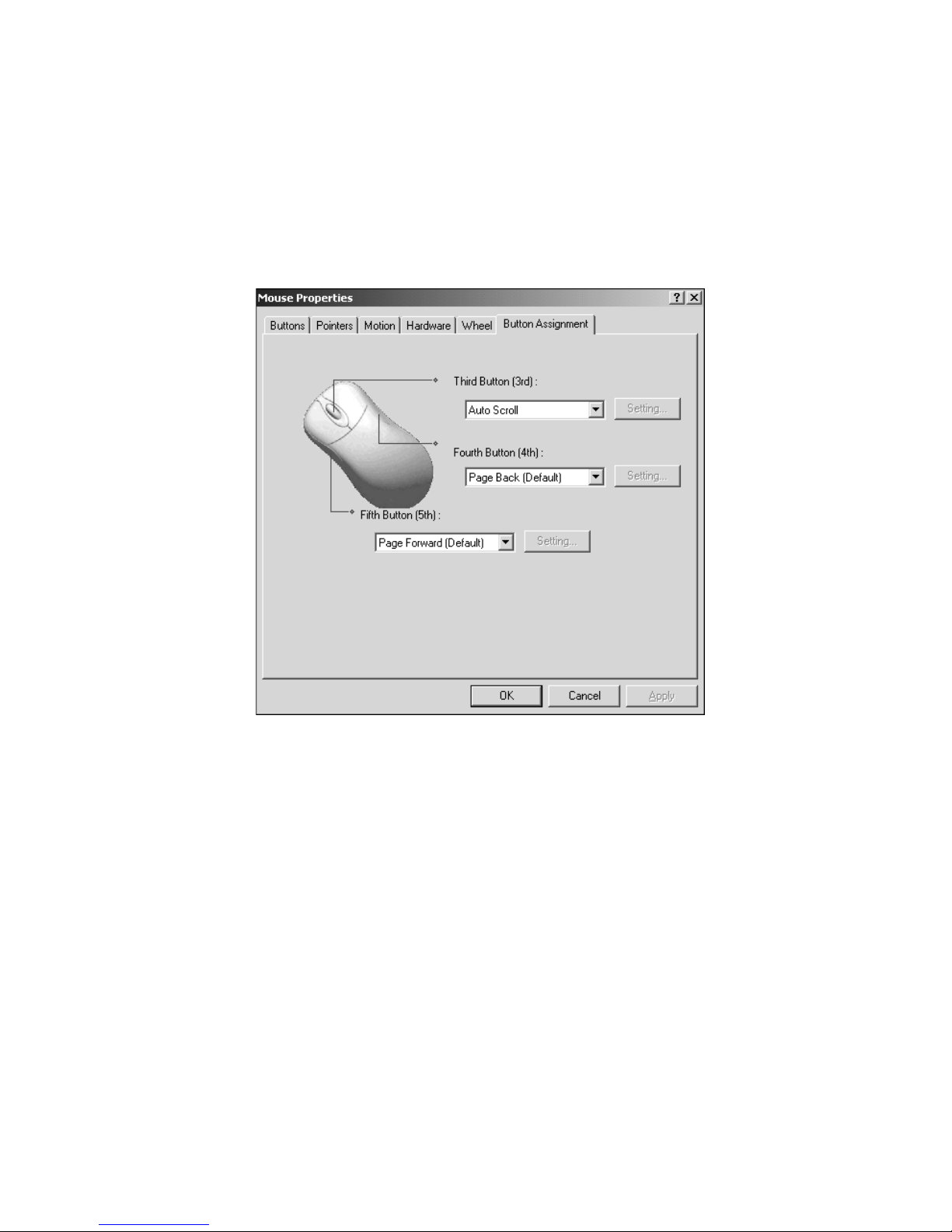

Mouse Properties screen - Button Assignment tab

The Button Assignment feature allows you to assign

frequently-used mouse and keyboard functions, such as Auto

Scroll, Page Back and Page Forward, to the third, fourth and fifth

mouse buttons. To do this:

1 Click the drop-down arrow next to the button number you want

to assign.

The functions list appears.

2 Select the function you want to associate with the selected

button.

3ClickApply.

Repeat for each button you want to assign a function to.

Operating Hints

For optimal performance and RF reception:

• Place the receiver at least 8 inches (20 cm) away from all

electrical devices, such as your monitor, speakers or external

storage devices.

• Avoid using the optical mouse on a metal surface. Metals, such

as iron, aluminum or copper, shield the radio frequency

transmission and may slow down the mouse’s response time or

cause the mouse to fail temporarily.

• The optical mouse will enter a suspend mode at the same time

your computer does. To wake the mouse, press and release the

screen scroller (middle) button.

• If your computer has a metal case that contains aluminum or

magnesium, use the optical mouse to the side. The display

panel may interfere with the radio frequency signal if you use

the mouse directly in front of the computer.

• Never use the optical mouse on a glass or mirrored surface as

these surfaces will cause the mouse to fail temporarily.

• To maximize battery life, use the optical mouse on a white, or

light colored surface. Dark surfaces cause the mouse’s light

emitter diode (LED) light to glow brighter, which causes the

battery to discharge more rapidly.

Comfortable Usage

Research suggests that physical discomfort and injury to nerves,

tendons, and muscles may be related to repetitive motion, an

improperly set up work area, incorrect body posture, and poor

work habits.

To reduce the risk of injury, follow these precautions:

• Stand, stretch, and move around several times every hour.

• Switch hands while performing tasks. Use shortcut keys to

avoid repetitive or awkward mouse movements.

• Relax your shoulders and keep your elbows at your sides.

Adjust the keyboard’s position so that you don’t have to stretch

to reach it.

• Adjust your position so that you don’t have to bend your wrists

to type; avoid placing your wrists on a sharp edge.

If you feel discomfort or numbness in your hands, wrists, arms,

shoulders, neck, or back while typing, consult a qualified medical

professional.

Specifications

Mouse Carrier Frequency

27 MHz

Dimensions

Mouse: 4.8 x 2.64 x 1.6 inches

(122 x 67 x 40 mm)

Receiver: 2.48 x 0.86 x 0.66 inches

(63 x 22 x 17 mm)

NOTE: Receiver dimensions do not include the extended USB

connector.

Weight

Mouse: 4.1 ounces (without battery)

(116 grams)

Receiver: .98 ounces

(28 grams)
