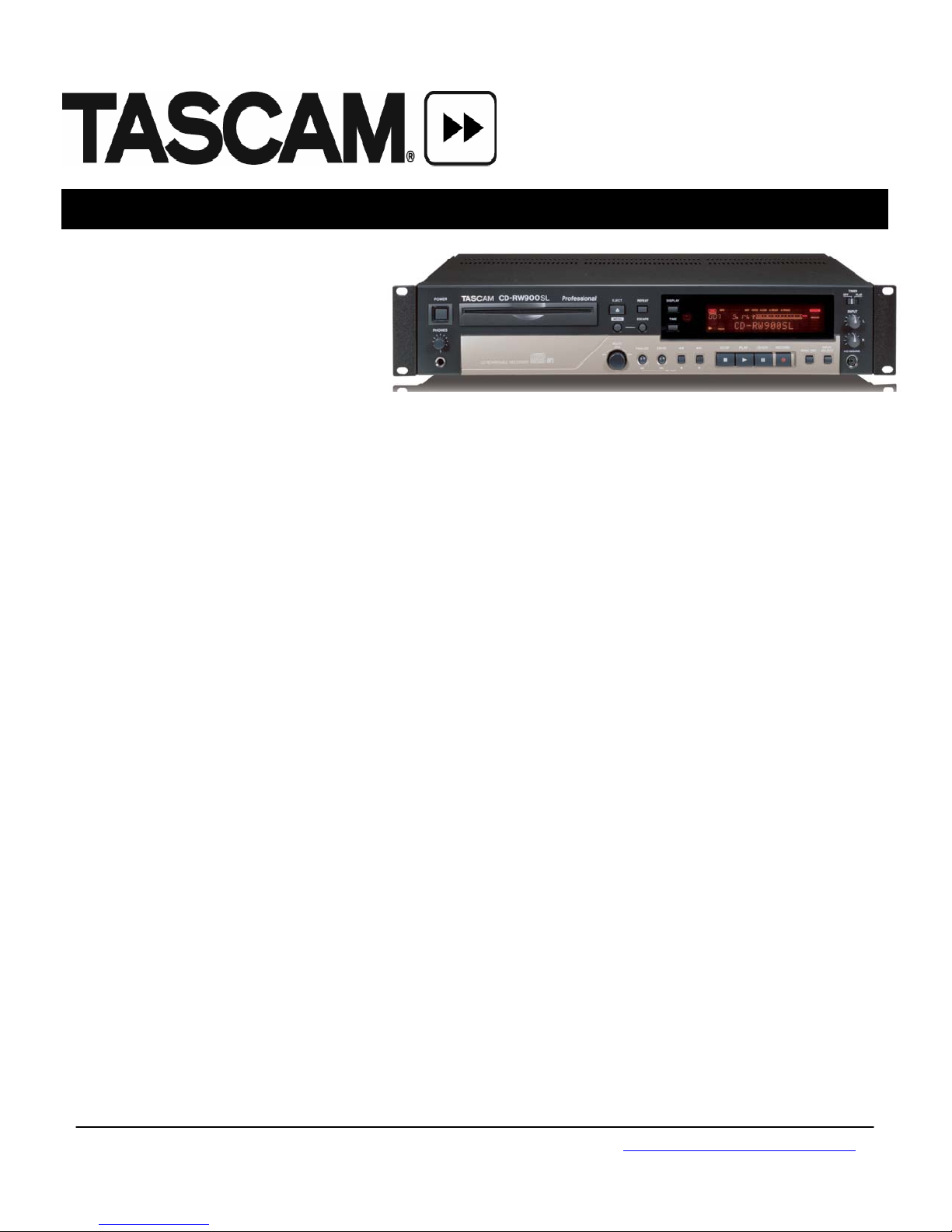

Tascam CD-RW900SL Guida

CD-RW900SL

Technical Documentation

PRODUCT OVERVIEW

One of the most popular CD recorders on

the market, the CD-RW900SL, features a

robust slot-loading transport, 24 bit A/D

& D/A converters, MP3 playback, key

control, sample rate conversion, and

selectable CD disc reading speed.

The CD-RW900SL provides dedicated analog front panel input control, rear panel unbalanced (RCA) I/O, and

S/DIFF digital I/O (optical and coaxial). Recently added features include Auto Cue and Auto Ready from the

menu, selectable I/R remote Enable/Disable, and MP3 Action Setting (prevents accidental termination of

continuous MP3 playback).

The features the user has come to expect from TASCAM are also included; Pitch Control on playback (0.1 to

1.0% in 0.1 steps), Auto or Manual track division, Sync Record Start, Power on Play, Elapsed, Remain, Total

and Total remain Time display, and CD-Text read and write.

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com

All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

CD-RW900SL

Slot Loading Transport

24 bit A/D and D/A converters

Sample Rate Conversion

MP3 file Playback

MP3 Action setting

Key Control (change the key w/o changing the

speed)

Pitch Control

Auto Cue from menu

Auto Ready from menu

S/PDIF coaxial and optical digital I/O

RCA Unbalanced analog I/O

+/_ 16% pitch control on playback

Power on Play

Sync Record Start

Auto or Manual Track Division

All, single, or A-B repeat play

Elapsed, remain, total, and total remain time

display

Continuous, single, random, or program (up to 99

songs) play

Erase or Un-Finalize for CD-RW discs

Selectable disc reading speed

Dedicated L/R input level control

Digital Attenuator

CD-TEXT read and write

PS/2 Keyboard input for CD-TEXT input and

remote control

Wireless (I/R) remote control unit (included)

Selectable Infra-red remote Enable/Disable

PANELS

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com

All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

CD-RW900SL

Specifications

Recordable discs CD-R, CD-R-DA, CD-RW, CD-RW-DA

Resolution 16 bit linear

Sampling frequency 44.1 kHz

Frequency converter input 32KHz to 48KHZ

Frequency response 20 Hz~20 KHz ±0.8 dB (playback) ±1.0 dB (recording)

S/N 95 dB (playback) 90 dB (recording)

Dynamic range 95 dB (playback) 90 dB (recording)

Distortion 0.006 % (playback) 0.008 % (recording)

Channel separation 90 dB (playback) 80 dB (recording)

Wow and flutter < 0.001 % (Unmeasurable)

Analog inputs Unbalanced RCA pin Level -10 dBV ±2 dB (Full Scale -16 dB)

Minimum input level -19 dBV (adjustable level at Full Scale -16

dB) Input impedance 22 KØ ±10% (unbalanced)

Analog outputs Unbalanced RCA pin Level -10 dBV ±2 dB (Full Scale -16 dB)

Maximum output level +6 dBV ±2 dB Output impedance 600 Ø

±10% (unbalanced)

Phones ¼ “stereo phone jack”

20mW + 20mW (into 32 ohms)

Digital input Coaxial RCA pin jack (IEC-60958 Consumer use) Optical

TOSLINK (IEC-60958 Consumer use)

Digital output Coaxial RCA pin jack (IEC-60958 Consumer use) Optical

TOSLINK (IEC-60958 Consumer use)

Keyboard Mini DIN 6 pin

Power U.S.A./Canada 120 VAC, 60Hz

U.K./Europe 230 VAC, 50Hz

Australia 240 VAC, 50Hz

Power consumption 16 W (U.S.A./Canada)

18 W (U.K./Europe/Australia)

Dimensions (d x w x h) 307.6 x 482.6 x 94

(mm) 12.1 x 19.0 x 3.7 (in)

Weight 4.5 kg (10 lb)

SPECIFICATIONS

CD-RW900SL

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com

All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
