CD-RW901SL

Technical Documentation

PRODUCT OVERVIEW

The CD-RW901SL has dedicated input level controls and its digital inputs are equipped with Automatic

Sample Rate Conversion for compatibility with nearly any signal. Pitch Control (16% +/-) on playback is a

standard feature along with Key Control, MP3 Audio Playback, and Power-on-Play. The front panel PS/2

keyboard input offers the ability to name tracks and provide the user one-key access to frequently accessed

menu functions.

The latest upgrade to the CD-RW901SL added continuous recording between two CD-RW901SLs, Index

Search and New Time Skip functions on skip mode, Selectable Disc Reading Speed, and MP3 Action Setting

(prevents accidental termination of continuous MP3 playback) to an already impressive list of features.

Building upon many of the features of the

CD-RW900SL; the CD-RW901SL adds RS-

232, XLR balanced I/O, a wired remote,

AES/EBU digital I/O, and a timed track

increment (selectable from 1 to 10 minutes)

for adding CD track ID markers during

recording.

Slot Loading Transport

24 bit D/A and A/D converters

Sample Rate Conversion (32KHz to 48KHz)

XLR balanced and RCA unbalanced analog I/O

with dedicated input controls

AES/EBU and S/PDIF digital I/O

RS-232C serial control port and Parallel control

port

Timed track increment feature can automatically

add a CD track ID every 1 to 10 minutes

±16% pitch control in 0.1% steps (CD audio

discs only)

MP3 Audio Playback with MP3 Action Setting

RS-232 and Parallel Control

Index Search and Time Skip function on skip

mode

Continuous Recording between two CD-R901SLs

CD Text and MP3 ID3 tag display

Key Control (CD audio discs only): Change the pitch

without changing the playback speed.

Digital fade in/fade out recording features

Supports CD-TEXT

PS/2 keyboard input

Auto track increment by level with trim function

Un-finalize or Erase for CD-RW

All, single, program, random play and repeat play

modes

Power on play

Selectable Copy ID

Wired remote control (Included)

Index mark and index search

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com

All features, pricing, and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

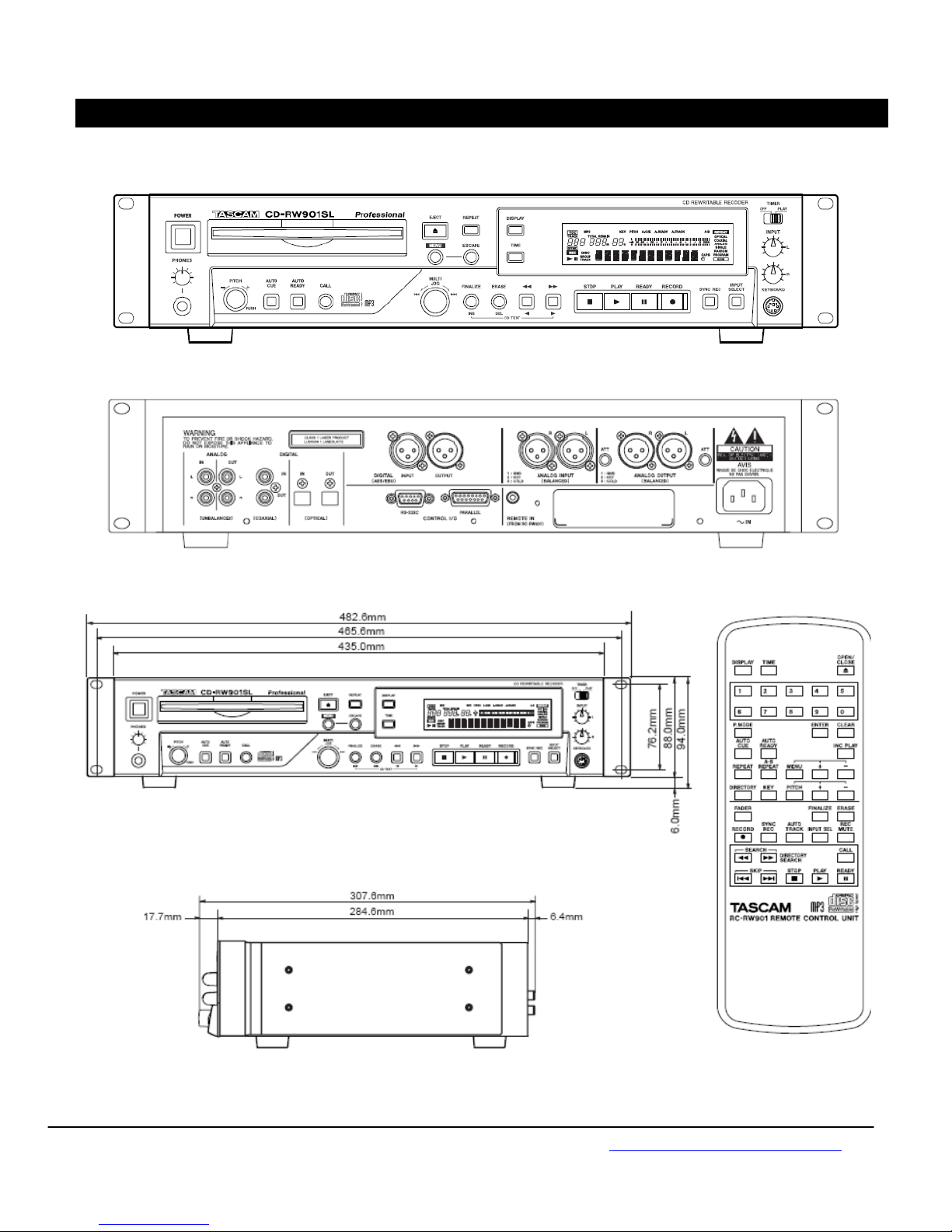

RS-232

TASCAM CD-RW901SL

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com

All features, pricing, and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

ANELS

TASCAM CD-RW901SL

Specifications

Recordable discs CD-R, CD-R-DA, CD-RW, CD-RW-DA (High speed CD-RW is

supported)

Quantization bit depth 16 bit

Sampling frequency 44.1 kHz

Frequency response 20 Hz~20 KHz ±0.8 dB (playback) ±1.0 dB (recording)

S/N 95 dB (playback) 90 dB (recording)

Dynamic range 95 dB (playback) 90 dB (recording)

Distortion 0.006 % (playback) 0.008 % (recording)

Channel separation 90 dB (playback) 80 dB (recording)

Wow and flutter < 0.001 % (unmeasurable)

Analog inputs Balanced XLR-3-31 Level +4 dBu (Full Scale -16 dB) Minimum input level

-5 dBu (adjustable level at Full Scale -16 dB) Input impedance 14

KØ ±5 % (balanced)

Unbalanced RCA pin Level-10 dBV ±2 dB (Full Scale -16 dB) Minimum input level

-19 dBV (adjustable level at Full Scale -16 dB) Input impedance 22

KØ ±10% (unbalanced)

Analog outputs Balanced XLR-3-32 Level +4 dBu (Full Scale -16 dB) Maximum output

level +20 dBu ±2 dB Output impedance 75 Ø ±5 % (balanced)

Unbalanced RCA pin Leve -10 dBV ±2 dB (Full Scale -16 dB) Maximum output

level +6 dBV ±2 dB Output impedance 600 Ø ±10% (unbalanced)

Phones output Stereo (6.3 ø) 20 mW 32 Ø

Digital input Coaxial RCA pin jack (IEC-60958 Consumer use) Optical

TOSLINK (IEC-60958 Consumer use) AES/EBU XLR-3-31 (IEC-

60958 Professional use)

Digital output Coaxial RCA pin jack (IEC-60958 Consumer use) Optical

TOSLINK (IEC-60958 Consumer use) AES/EBU XLR-3-32 (IEC-

60958 Professional use)

CONTROL I/O PARALLEL D-SUB 15 pin

RS-232C D-SUB 9 Pin REMOTE IN jack (for RC-RW901SL

only)

Keyboard Mini DIN 6 pin

Power U.S.A./Canada 120 VAC, 60Hz

U.K./Europe 230 VAC, 50Hz

Australia 240 VAC, 50Hz

Power consumption 17 W (U.S.A./Canada)

19 W (U.K./Europe/Australia)

Dimensions (d x w x h) 308.7 x 482.6 x 94

(mm) / 12.2 x 19.0 x 3.7 (in)

Weight 4.7 kg (10.4 lb)

SPECIFICATIONS

TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com

All features, pricing, and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
