TASCAM DM-3200 Quick Reference – Page 5

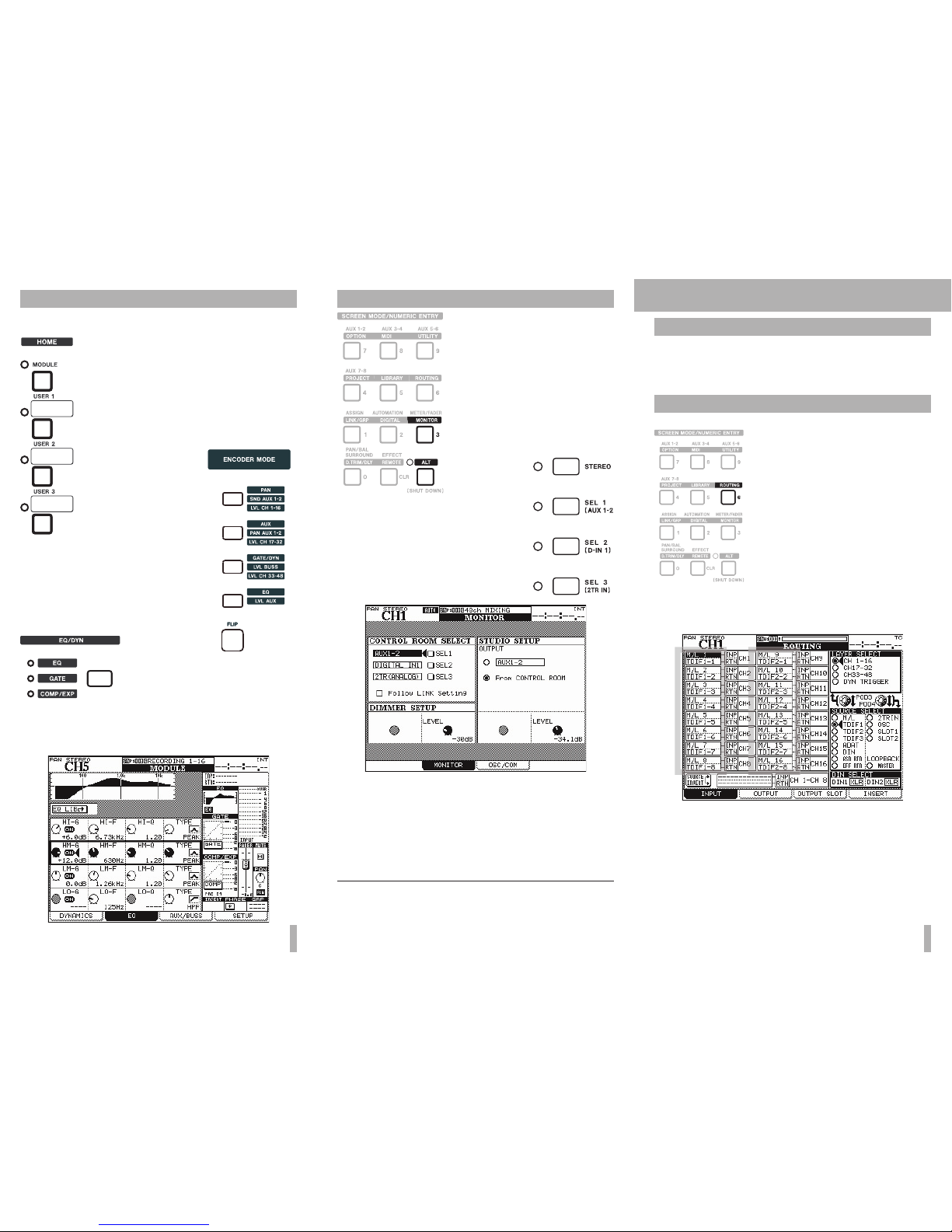

Making EQ settings
The channel modules from 1 through 32 have full 4-band
parametric EQ.
You can see the numerical values of the set-
tings, as well as a frequency response curve,
when you press the MODULE key, followed by
the POD 2 key under the display.
Use a channelʼs SEL key to select the channel
you want to edit.
Press the EQ encoder mode key (this is the
fourth key down in the
ENCODER group.
The encoders above the
channel modules act as
EQ controls, allowing
the control of gain, fre-
quency, Q (width) and
the type of filter for each of the four EQ
bands.
As you adjust these controls, the indica-
tors around the encoders light to give an
indication of the current setting, and the
display also shows the current EQ re-
sponse curve.
Use the EQ/DYN
key to the left of
the card slot to turn EQ for the module
on (EQ indicator is lit) and off (EQ in-
dicator is unlit).
Use the cursor keys to highlight the individual band switches,
and the ENTER key to turn individual EQ bands on and off.
✒ See section 3, “Modules” of the Ownerʼs Manual.
Setting up and using monitoring
The control room outputs are +4 dBu
balanced XLR outputs, and the stu-
dio outputs are –10 dBV unbalanced
RCA jacks. The studio feed can
be separately to that of the control
room.
There are four keys allowing selec-
tion of the control room feed. The
first is hard-wired to the STEREO
buss, but the others may be selected
using the MONITOR screen.
Press the MONI-
TOR key (with the
ALT indicator lit)
to make the MONITOR screen appear (if it
does not, press the POD 2 switch).
Use the cursor keys and the wheel to select
the sources for the three assignable monitor
selection keys (from individual or paired
aux sends or busses, the digital inputs, the
analog 2-track input or the oscillator).
The studio outputs can be set to mirror the control room (From
CONTROL ROOM) or use pairs of busses, or aux sends, digital in-
puts or the analog 2-track inputs. Adjust the levels with the
CONTROL ROOM controls (the talkback microphone is also there).
The MONO, DIM, TO SLATE and TO STUDIO keys below the selection
keys are “smart” keys (push and release to latch, push and
hold as non-latching) and control talkback routing, etc.
TEAC CORPORATION 3-7-3 Nakacho Musashino-shi Tokyo 180-8550 JAPAN
+81-422-52-5082 www.tascam.com
TEAC AMERICA, INC 7733 Telegraph Road Montebello CA 90640 USA
+1-323-726-0303 www.tascam.com
Printed in China
TASCAM DM-3200 Quick Reference – Page 1
» DM-3200 Quick Reference
Introduction
Use this guide as a quick reference to a few of the more com-
monly used functions of the DM-3200.
For full details of the functions described here and the full
description of all functions, consult the Ownerʼs Manual.
Routing inputs
To route the MIC/LINE inputs, digital inputs, effect returns, etc.
to channel modules, press the ROUTING
key:
When youʼve done this, use the POD 3
encoder (under the screen) to choose the
destination channels (or dynamic trig-
gers).
Use the POD 4 encoder to choose the
source: mic/line inputs, TDIF and ADAT
digital inputs, assignable returns, and ef-
fect returns, etc. as well as any installed
option cards.
Use the cursor keys to navigate around the input slots (high-
lighted in the screen below), to the left of the destination.
Note that channels 1 through 32 have two switchable inputs:
input and return, similar to traditional analog recording mix-
ing consoles.
These can be “fl ipped” using the on-screen SOURCE INVERT but-
ton at the bottom right of the display.
✒ See section 4, “Routing and Assignment” of the Ownerʼs
Manual.
D00865800A
TASCAM DM-3200 Quick Reference – Page 2
How to use CF cards and projects
The DM-3200 stores library settings, automation data, etc. to-
gether in projects, which are stored on a CF card, allowing
the mix data for recording sessions to be transported easily
between different locations.
Use any CF card (Type I or Type
II). A card of at least 32MB capac-
ity, such as the one supplied with the
DM-3200, is recommended.
The CF card must be formatted be-
fore use with the DM-3200 (note
that the supplied card is already
formatted):
Press the LIBRARY key, and then
press the POD 1 key, and turn the
POD 1 encoder below the display so
that the UTILITY option in the pop-up
menu is highlighted.
Press ENTER for the UTIL-
ITY screen.
Use the cursor keys to
move the cursor to the on-
scren CF UTIL button. Press
ENTER.
Use the cursor keys to move the cursor to the on-screen FORMAT
button, and press ENTER.
A popup message appears. Press ENTER to continue.
Another popup message appears, warning you that all data
will be erased. Press ENTER to format the card.
While the card is being formatted, a message briefly appears.
Do not remove the card or turn off power while formatting
is going on. The word Completed appears on the display when
formatting is complete on the display.
TASCAM DM-3200 Quick Reference – Page 3
Making a new project
When the card is formatted, move the cursor to the on-screen
MANAGE PROJECTS button, and press ENTER.
Note here is already an “invisible” project in the DM-3200
memory which has not been saved.
Press the POD 1 switch (NEW PROJECT):
Use the cursor keys and wheel to set the sampling frequency
and surround mode. Use ENTER to confirm these entries as
you make them.
Move the cursor to the on-screen NEW PROJECT CREATE button
and press ENTER. The screen changes to show the project
naming utility:
Use the cursor keys to move around the NAME and MEMO fields.
Use the wheel to select a character from the list, and the
ENTER key to enter the selected character at the cursor.
Use the special INSERT and DELETE labels as if they are characters
(highlight and ENTER).
If there are projects already on the card, use the POD 4 en-
coder to select a project . The dNAME and dMEMO labels copy
over the selected project name and note as templates.
When the name and note are complete, press the POD 2
switch (CREATE) to create the new project.
✒ See Section 2, “Basic operational concepts” of the Own-
erʼs Manual.
TASCAM DM-3200 Quick Reference – Page 4
Important note about the CF card
The DM-3200 does not automatically write to the CF card
every time a change is made to the project. This is to avoid
unnecessary stressing of the card, which can cause premature
failure of the card.
Accordingly, when shutting down the DM-3200, to write the
data currently in memory to the current project, press and
hold the SHIFT and CTRL keys, and press the ALT key.
+
The display shows a popup, asking if you are sure you want to
turn off the DM-3200. Press ENTER to continue.
You then see a message showing that it is safe to turn off the
DM-3200 (or you can reboot it using the ALT + STOP + PLAY
keys).
You can also write the current data to the currently loaded
project on the CF card at any time, from the MANAGE PROJECT
screen (ALT + PROJECT key, followed by MANAGE PRJ. (POD
switch 2).
The current project is marked with an inverted C by its name.
Note that if the DM-3200 is started without the current data
having been saved to card, a popup message reminds you of
the fact. You then have the choice of loading the last project
with or without the unsaved data.
Changing projects, etc.
Use the POD 4 encoder to scroll through the list of projects
on a card. When a project is selected in the list at the right of
the screen, use the on-screen buttons under the list to load
(LOAD), protect (PROTECT), rename (RENAME) or delete (DELETE) the
highlighted project.
✒ See Section 2, “Basic operational concepts” of the Ownerʼs
Manual.
