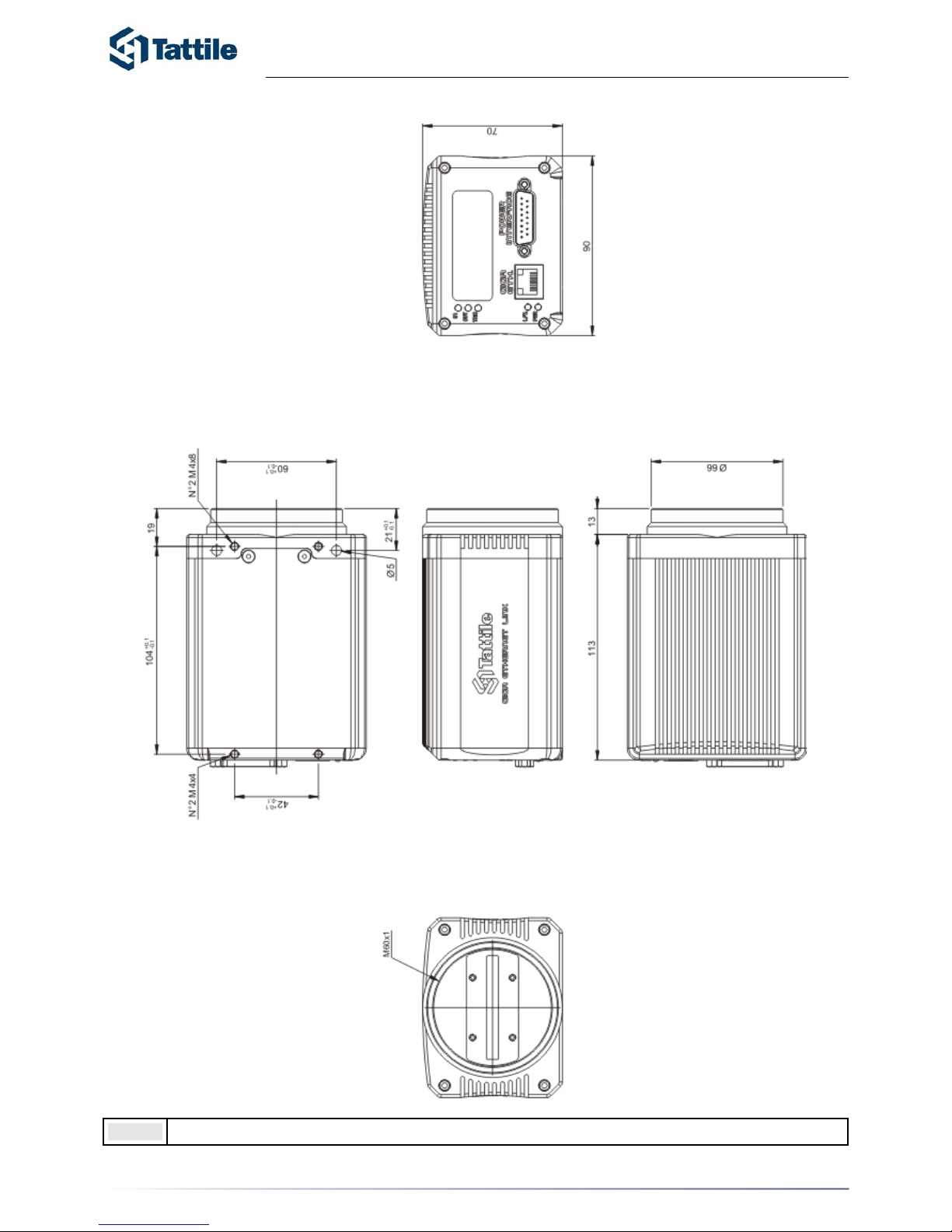

TAG-2 CAMERA
CCD General Characteristics
CCD Specifications
7
Parameters Value
Total Number of Pixels 3x4134 chroma
1x8292 luma
Number of Effective Pixels 3x4128 chroma
1x8276 luma
Number of Active Pixels 3x4080 chroma
1x8160 luma
Pixel Size 10 µm (H) x 10 µm (V)
chroma 5 µm (H) x 5 µm (V) luma
Pixel Pitch 10 µm chroma
5 µm luma
Inter-Array Spacing G to R R to B 90 µm (9 lines effective)
B to L 122.5 µm (12.25 lines effective)
Chip Size 50.5 mm (H) x 1.1 mm (V)
Saturation Signal 132000 electrons chroma
100000 electrons luma
Quantum Efficiency (B) 62%(B)
Quantum Efficiency (G) 62%(G)
Quantum Efficiency (R) 80%(R)
Quantum Efficiency (L) 85%(L)
Output Sensitivity Chroma -14 µV/electron
Luma -11 µV/electron
Responsivity (B) 17(B) V/µJ/cm2
Responsivity (G) 20(G) V/µJ/cm2
Responsivity (R) 32(R) V/µJ/cm2
Responsivity (L) 27(L) V/µJ/cm2
Total Read Noise 120 electrons
Dark Current Chroma 0.007 pA/pixel
Luma 0.0008 pA/pixel
Dark Current Doubling Temperature 9ºC
Dynamic Range @ 30 MHz Data Rate 60 dB (chroma)
60 dB (luma)
Photoresponse Non-uniformity 5% Peak-Peak
Charge Transfer Efficiency 0.99999/Transfer
Maximum Data Rate 30 Mhz/Channel
Exposure Control
Gain 0:1023
Offset 0:255
Power Supply 24 V
Consumption 5W
>31µs
