Taurus TF-PC2101 Manuale utente
OWNER S MANUAL’

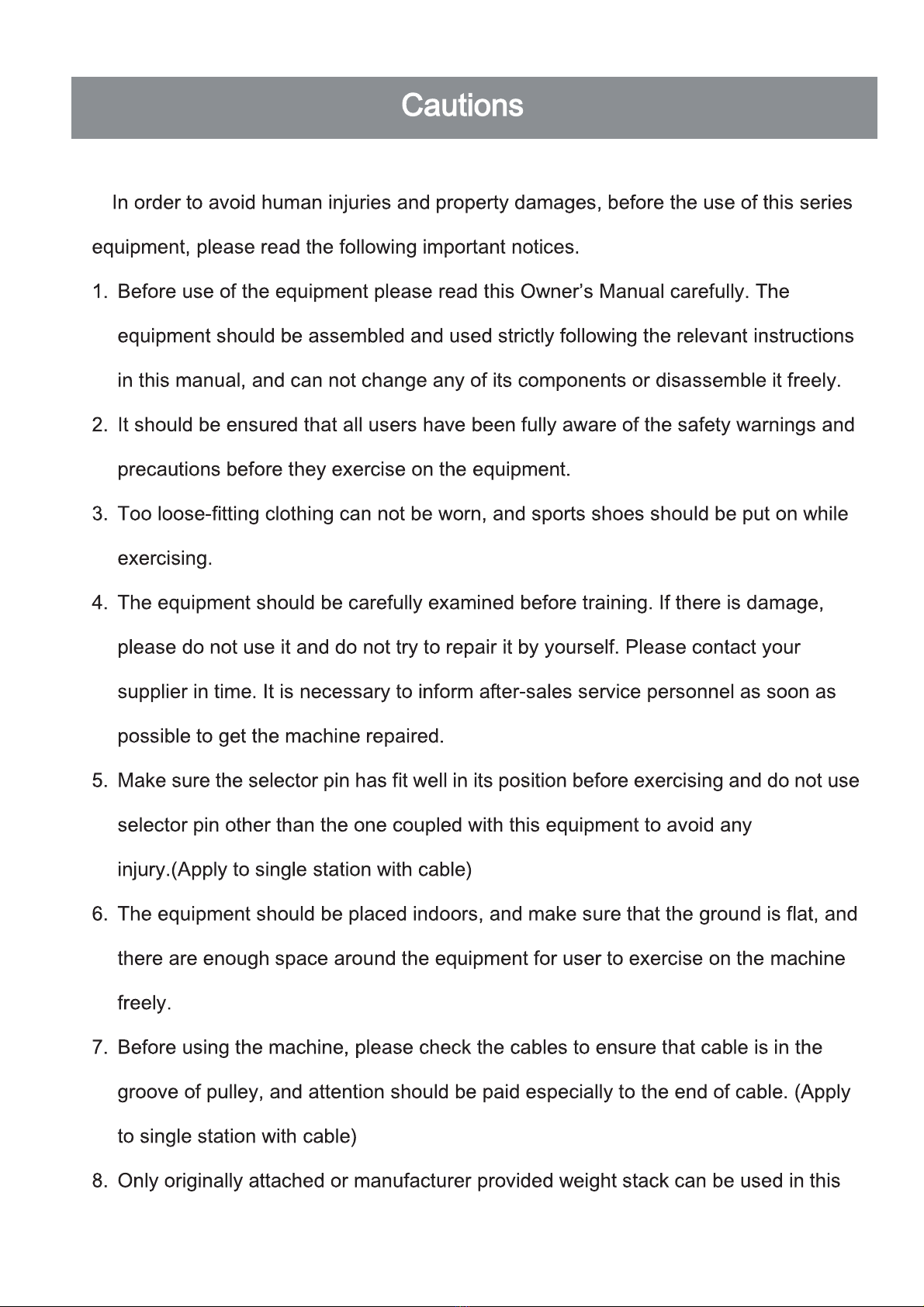

CAUTION
Please read all instructions in this manual before
use the equipment and keep the manual well.

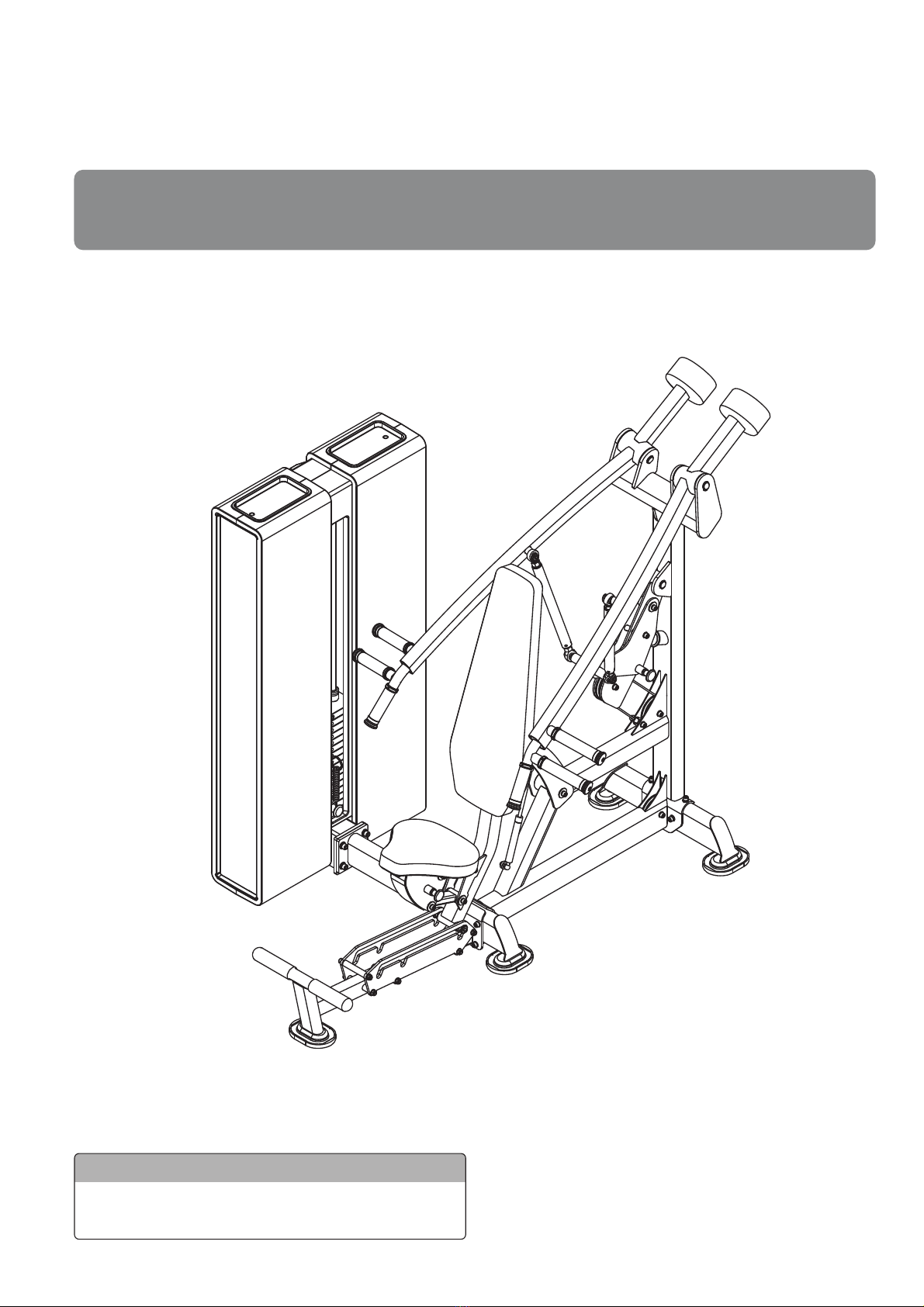

CHEST PRESS / SHOULDER PRESS
1
2

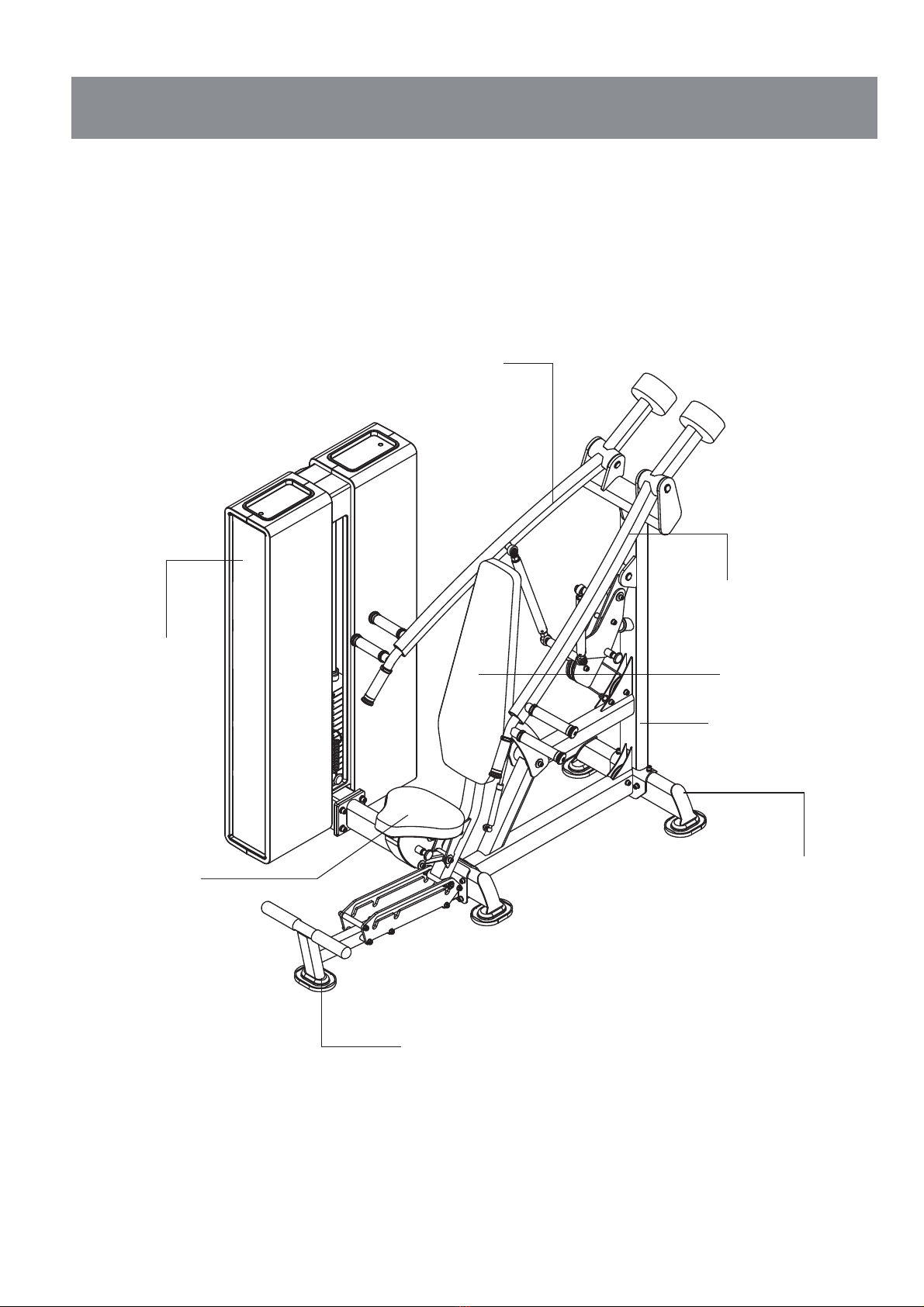

Equipment Schematic
3
right arm frame
left arm frame
back pad
Door Frame
set pad
Front floor frame
Rear floor frame
Weight stack
tower frame
4
5
Assembly step 1
6

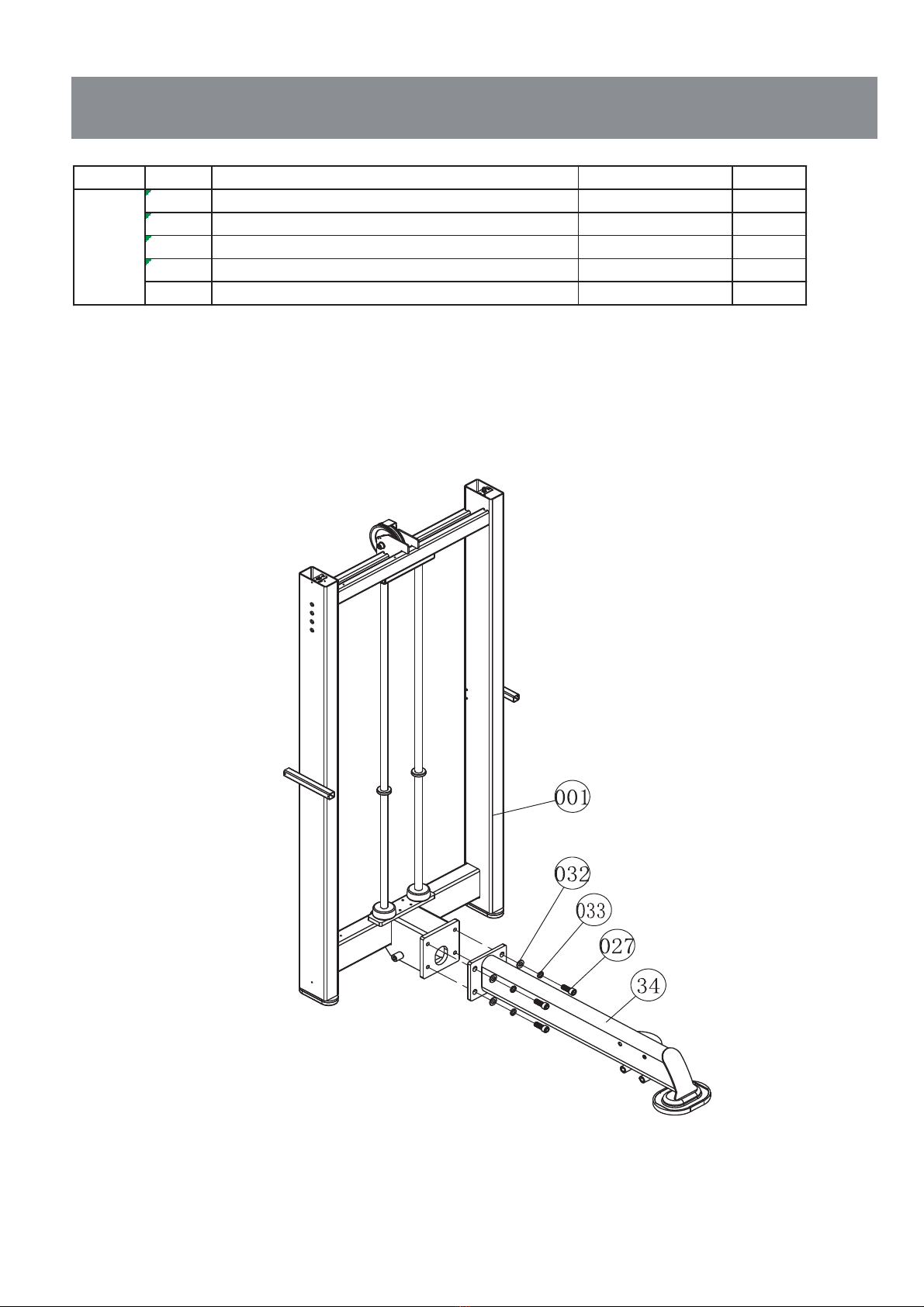

Steps No. Description Specifications Qty
001 Frame 1
027 Hexagon socket countersunk head screws M12*30 4
032 Flat washer Φ24*Φ13*2.5 4
033-1
Spring washer M12 4
34-2
Transverse connecting frame 1
1
-1
-2
Assembly step 2
7

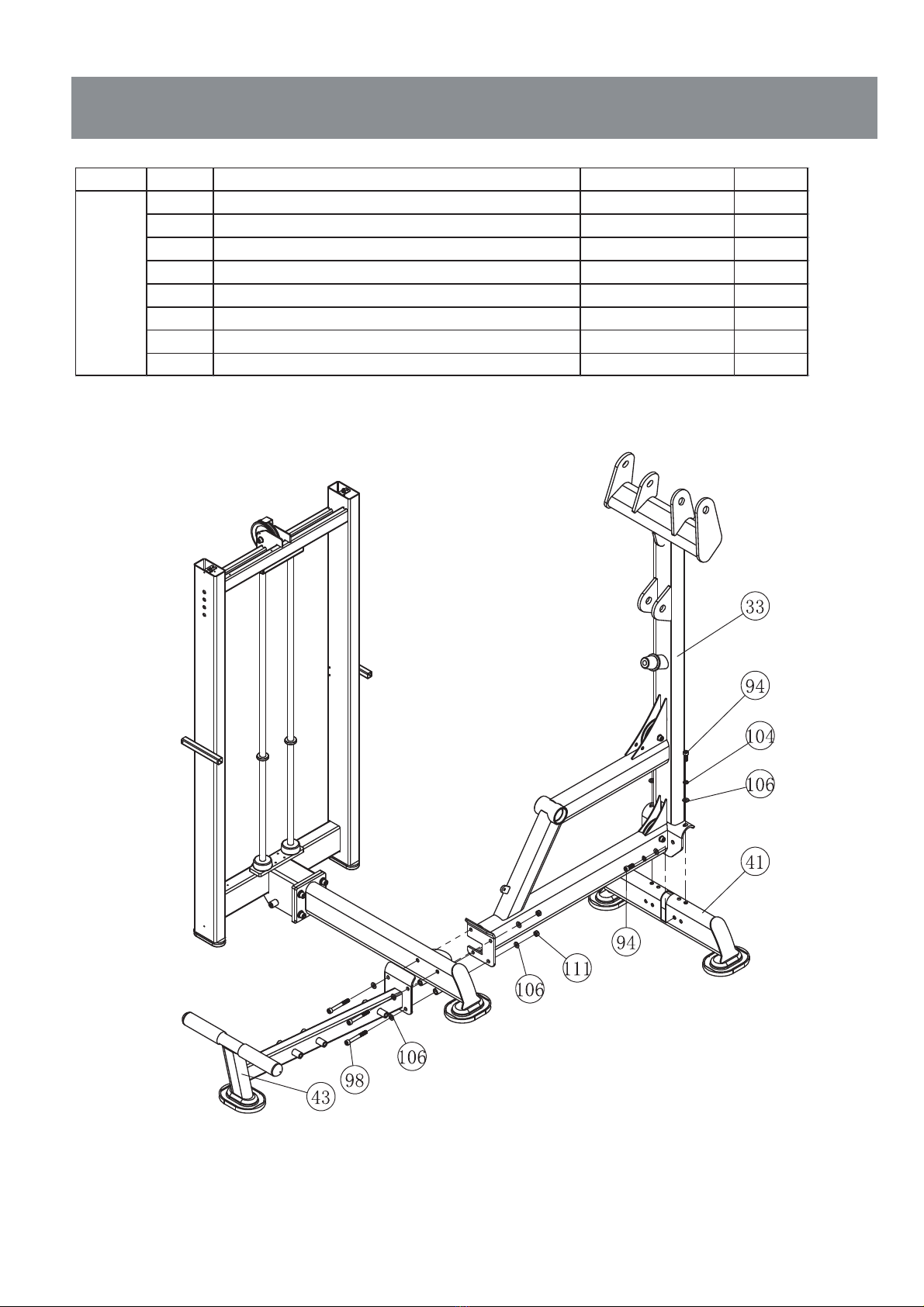

Steps No. Description Specifications Qty
33-2
Weight stack tower frame 1
41 Rear floor frame 1
43 Front floor frame 1
94 socket cap screw M10*25 4
98 socket cap screw M10*80 4
104 spring washer M10 4
106 Flat washer Φ20*Φ10.5*2 8
111 nut M10 4
2
-2
Assembly step 3
8
Steps No. Description Specifications Qty
33-2
Weight stack tower frame 1
38 Rotary frame 1
44 Connecting rod frame 2
58 Short spindle 1
67 Washer 2
83 circlip for shaft d0=25 2
90 Head socket with hexagon screw M8*20 2
3
-2
