GPS Tracker Model WA-100
WA-100 is a BDS/GPS/ combined tracking device for motorcycle,vehicle and e-bike.It supports
the function about cut the oil and electricity,helps the owner of vehicle protects their vehicles
well. We provide free platform for the buyers, they can check the situation via our platform in
mobile phone and computer.
Functions:
-- Real time tracking
-- SOS alarm
-- Cutting the oil and electricity
-- Track playback
-- Mileage statistics
-- Remote control
-- Vibration alarm
Installation instructions:
1. Install the SIM card
Open the SIM card holder according to the direction reminder write on holder, then insert the
SIM card and press it once.
2
2.Install tracker into vehicle
It’s recommended to install the host by the professional body appointed by the dealer and
meanwhile please keep the following matters in mind:
2.1 To avoid damage by thieves, please install the host in a concealed place;
2.2 Please don’t install it near emitters such as parking sensor, and other vehicle-mounted
communication equipment;
2.3 Please keep it away from high temperature and high humidity;
2.4 To prevent influencing the vibration detection effect, please fix it with a strapping tape
or double-sided adhesive tape;
2.5 Please be sure the right side up and without any metal objects above.

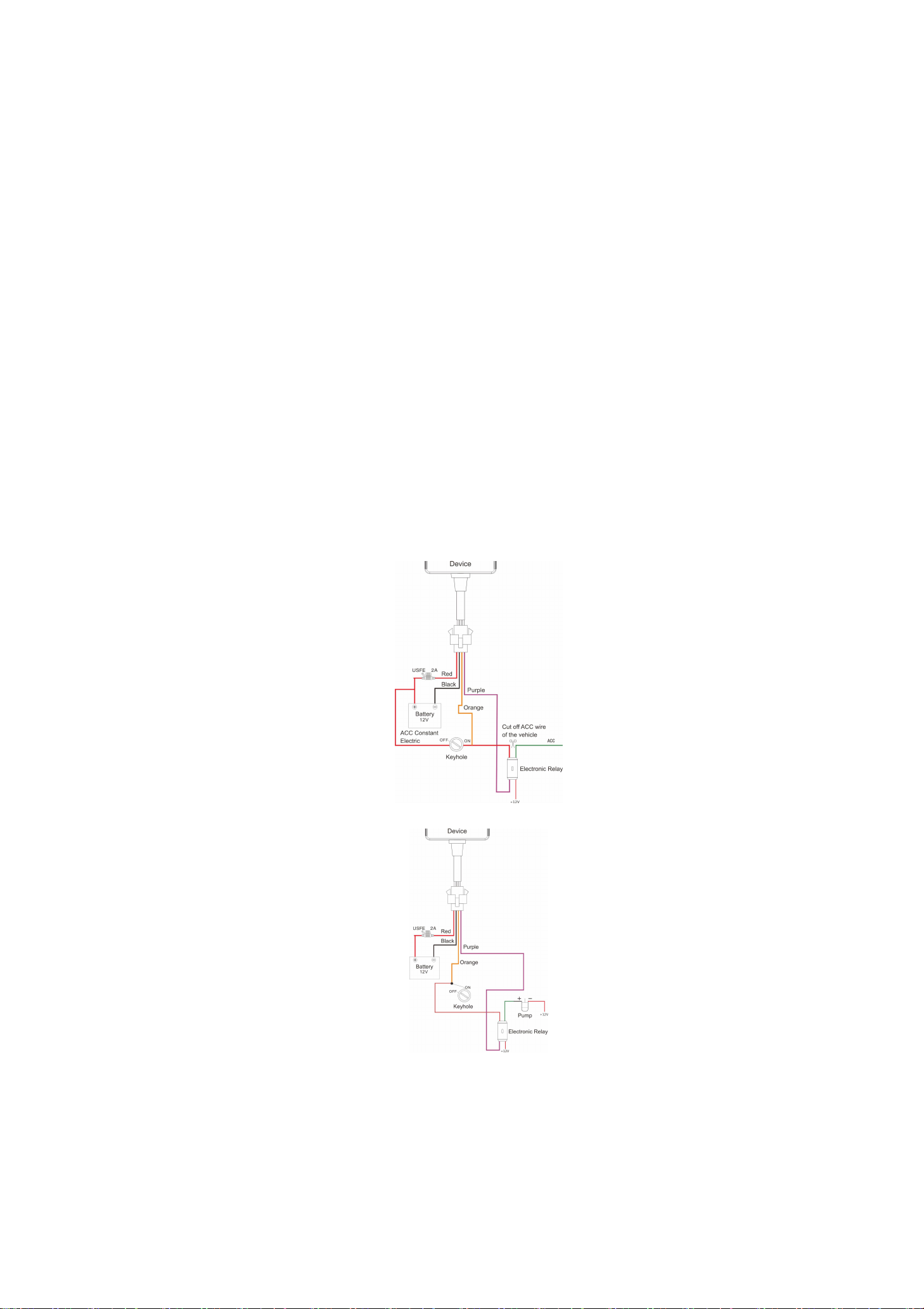

3.Install Power Cable ( Wiring)
3.1 To control the ACC connection(Use relay)
3.2 To control the pump connection (Use relay)
Specifications:
3
Sensitivity
<-160 dBm
TTFF
Cold Start 45s, Hot Start
2s
Fix Accuracy
10m
Speed Accuracy
0.3m/s
Band
GSM 850/900/1800/1900M
Ｈｚ
Dimension
77mm×32mm×13mm
Operating
voltage
9V～85V（For car and
motorcycle）
Maximum
operating
current
< 300mA（12V）
Operating
current in
normal mode
< 15mA（12V）
Working
temperature
-20 ℃ ～ +70 ℃
Humidity
20% ~ 95%
Accessories:
WA-100 Tracker
Cable
User manual
Magic sticker
