TC Electronic D22 Manuale utente

D22

DIGITAL BROADCAST DELAY

USER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Unplug this apparatus during lightning storms or when

unused for long periods of time.

13 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally,

or has been dropped.

• This equipment should be installed near the socket

outlet and disconnection of the device should be easily

accessible.

• Do not install in a confined space.

• Do not open the unit - risk of electric shock inside.

Caution:

You are cautioned that any change or modifications not

expressly approved in this manual could void your authority

to operate this equipment.

Service

• There are no user-serviceable parts inside.

• All service must be performed by qualified personnel.

WARNING

• To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

• This apparatus must be earthed.

• Use a three wire grounding type line cord like the one

supplied with the product.

• Be advised that different operating voltages require the

use of different types of line cord and attachment plugs.

• Check the voltage in your area and use the

correct type. See table below:

Voltage Line plug according to

standard.

110-125V UL817 and CSA C22.2 no 42.

220-230V CEE 7 page VII, SR section

107-2-D1/IEC 83 page C4.

240V BS 1363 of 1984.

Specification for 13A fused

plugs and switched and

unswitched socket outlets.

The lightning flash with an arrowhead symbol

within an equilateral triangle, is intended to alert

the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure

that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the product.

NOTE

Certificate Of Conformity

TC Electronic A/S, Sindalsvej 34, 8240 Risskov, Denmark,

hereby declares on own responsibility that following

product:

D22 - Digital Broadcast Delay

That is covered by this certificate and marked with CE-label

conforms with following standards:

EN 60065 Safety requirements for mains

(IEC 60065) operated electronic and related

apparatus for household and similar

general use

EN 55103-1 Product family standard for audio,

video, audio-visual and entertainment

lighting control apparatus for

professional use.

Part 1: Emission.

EN 55103-2 Product family standard for audio,

video, audio-visual and entertainment

lighting control apparatus for

professional use.

Part 2: Immunity.

With reference to regulations in following directives:

73/23/EEC, 89/336/EEC

Issued in Risskov, December 2002

Anders Fauerskov

Managing Director

EMC / EMI.

This equipment has been tested and found to comply with

the limits for a Class B Digital device, pursuant to part 15 of

the FCC rules.

These limits are designed to provide reasonable protection

against harmful interference in residential installations. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on. The user

is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV

technician for help.

For the customers in Canada:

This Class B digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

TABLE OF CONTENTS

INTRODUCTION

Important Safety Instructions &

Certificate of conformity . . . . . . . . . . . a-b

Table of Contents . . . . . . . . . . . . . . . . . 3

Introduction . . . . . . . . . . . . . . . . . . . . . . 5

Front Panel . . . . . . . . . . . . . . . . . . . . . . 6

Rear Panel . . . . . . . . . . . . . . . . . . . . . . 8

Signal Flow Diagram . . . . . . . . . . . . . . . 9

Setups. . . . . . . . . . . . . . . . . . . . . . . . . 10

BASIC OPERATION

The Controls . . . . . . . . . . . . . . . . . . . . 12

Recall . . . . . . . . . . . . . . . . . . . . . . . . . 14

Store . . . . . . . . . . . . . . . . . . . . . . . . . . 16

I/O - Setup . . . . . . . . . . . . . . . . . . . . . 17

Utility . . . . . . . . . . . . . . . . . . . . . . . . . . 20

APPENDIX

Troubleshooting . . . . . . . . . . . . . . . . . . 21

Technical Specifications . . . . . . . . . . . 22

Self Test . . . . . . . . . . . . . . . . . . . . . . . 23

Glossary . . . . . . . . . . . . . . . . . . . . . . . 24

Soldering Instructions . . . . . . . . . . . . . 25

Frequently Asked Questions . . . . . . . . 27

Optional Master fader . . . . . . . . . . . . . 28

TC Electronic, Sindalsvej 34, DK-8240 Risskov - [email protected] Rev 3.2 - SW - V 2.50

Prod. No. 606090015

Congratulations on your purchase of the TC Electronic D22 broadcast delay.

Researching the broadcast scene, TC Electronic found demands for a “state of the art” broadcast delay dedicated to sync audio to motion

pictures. With TC’s experience on Digital Delay we found it natural to comply with a product in this category.

Therefore TC now proudly presents the D22 broadcast delay unit with Seamless Update, adding no clicks, pitch changes or noise,

as one of the main features.

Main Features

- Seamless Delay update:

No clicks, pitch changes or noise.

- 5200ms* Delay pr. Channel (two channels).

- 24 bit A/D-D/A converters.

- Digital I/O's: AES/EBU, S/PDIF,

Wordclock BNC 75ohm.

- Sample Rates: Internal 44.1, 48kHz,

External 32, 44.1 and 48kHz.

- Total recall via programmable setups/presets.

- Tap Delay time - Instant or Preview.

INTRODUCTION

- Delay time in: Frames, Fields, Milliseconds, Meters

or Feet.

- Separate Dial and Nudge keys for Delay time adjustment.

- Independent resolution for Dial wheel and Nudge keys.

- Built in Digital Output fader (remote controllable).

- Remote capabilities: RS-485 (Input only) for Recall Setup,

Delay time adjustment.

- GPI (General Purpose Impulse) for External control of digital

fader, Tap Delay time and Bypass.

- User Interface Lock mode for "Set & Forget" purposes.

- Sample Rate Converter.

* The extension allowing a Delay time of 5200ms is installed from serial number 2000912 and up.

Max Delay time is now 5200 ms at all sampling frequencies (32K or 44.1K or 48K)(D22 cannot run 96K!)

Max number of Delay frames is now 157 frames (@30fps).

Please contact you local dealer or TC Electronic for information on upgrade procedure if you own a unit with a serial no below 2000912.

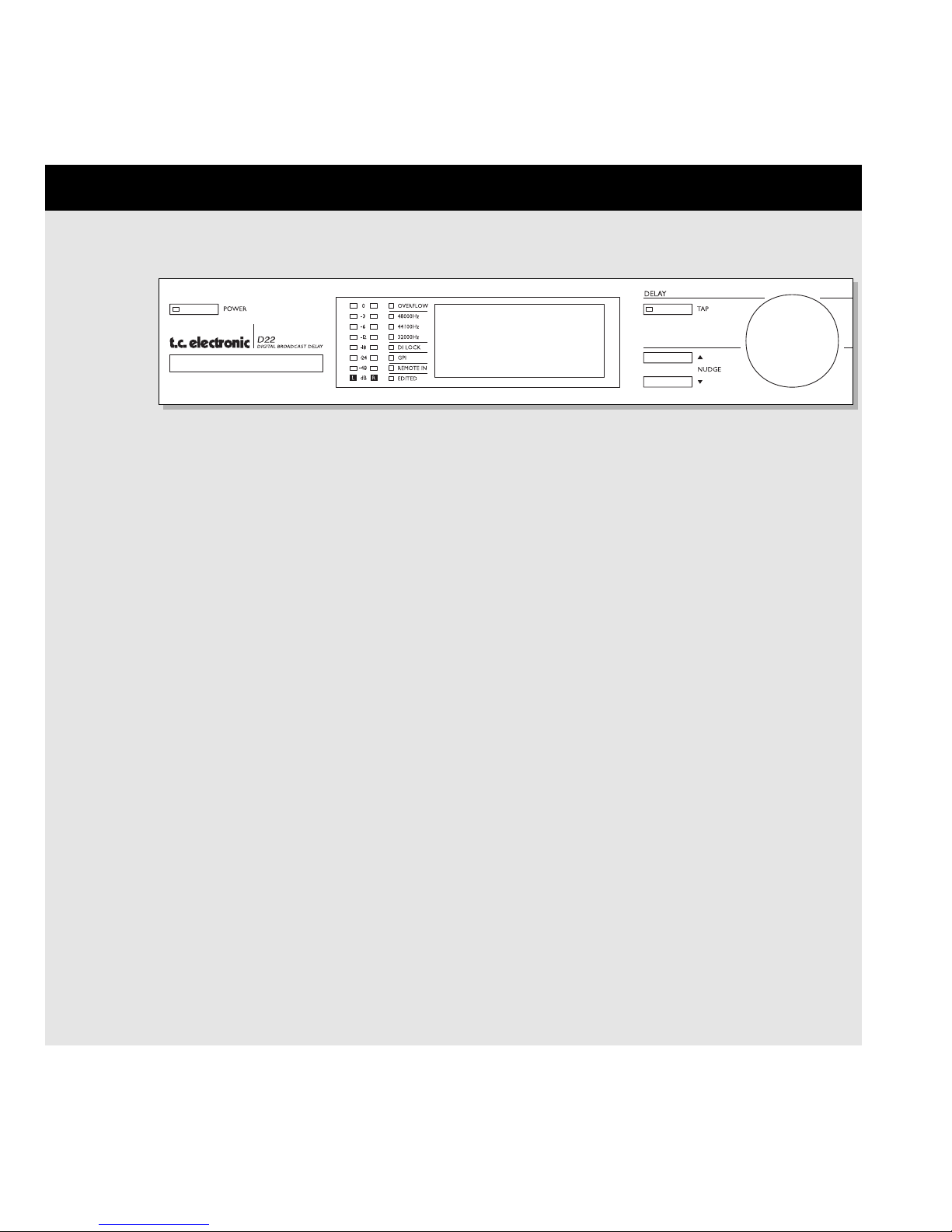

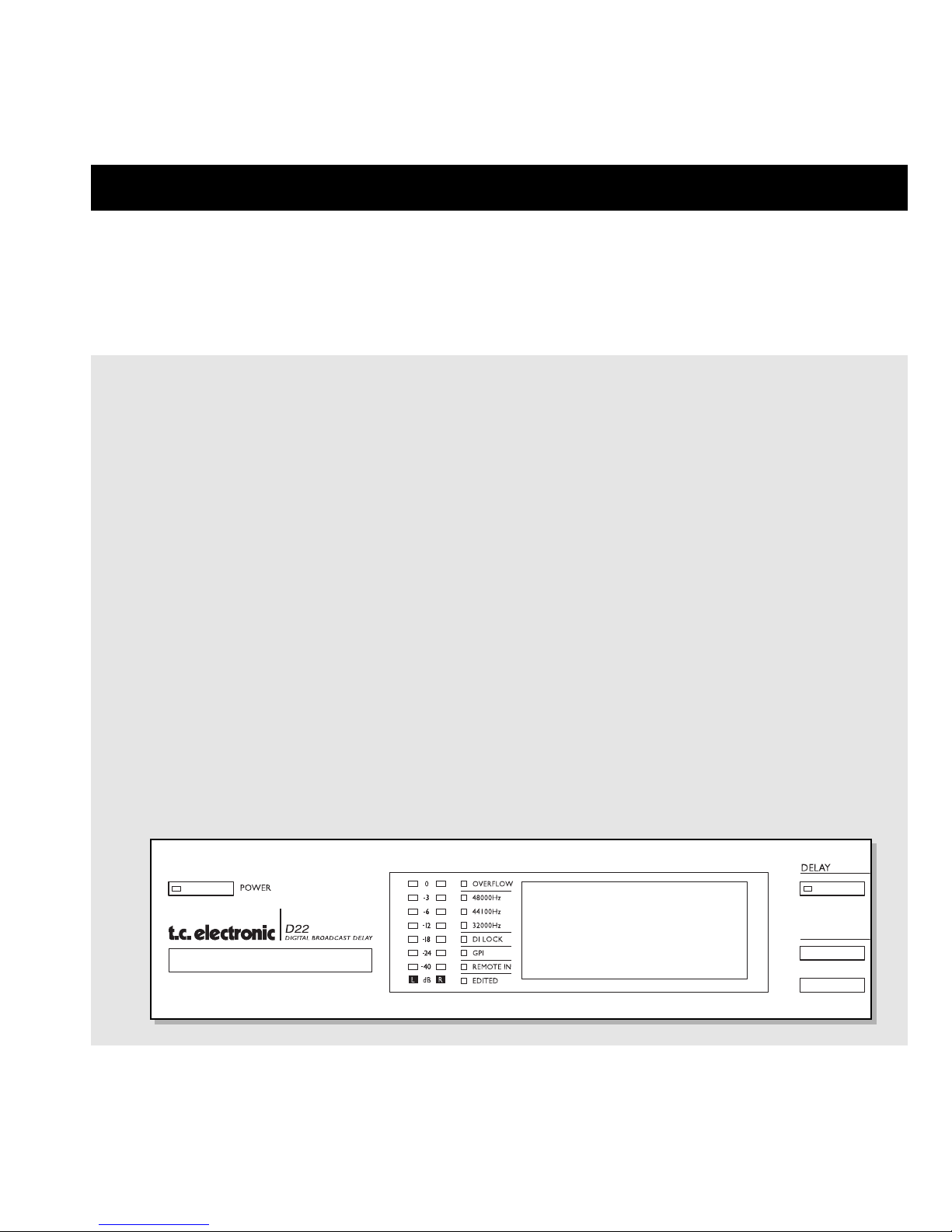

FRONT PANEL

POWER &

MEMORY CARD

Electronic POWER switch

»Easy touch«

Turn on the unit with a single

light touch. To turn off the unit

you must press and hold

down the POWER key

approx. 3 seconds until the

display reads “D22”.

PCMCIA MEMORY CARD

Copy presets to/from a

standard memory card.

CARD TYPES

S-RAM Type 1 PCMCIA

cards, with a minimum of

64KB and a maximum of

2MB memory.

LED INDICATORS

LEVEL

Shows the Input or

Output level for left and

right channels.

Select Input or Output

metering in Utility.

OVERFLOW

Indicates excessive

Input level or internal

DSP owerflow.

SAMPLE RATE

Indicates at which external

Sample Rate the unit is

locked to when set to

Sync In or Wordclock.

Flashing LEDs indicates

“no lock”.

DI LOCK

Digital Lock Indicator.

GPI

Incoming pulse detection.

REMOTE IN

Indicates incoming

Serial Remote Data.

EDITED

Indicates that the current

preset has been edited.

TAP KEY

Tap the desired Delay time.

Instant (destructive) or Preview

(non-destructive) mode can be

selected in the Utility menu.

Key LED red:

Indicates Instant mode is used

Key LED green:

Indicates Preview mode is selected.

NUDGE KEYS

Increases or decreases the

Delay time in increments specified in

the Utility menu.

ADJUST WHEEL - DELAY SECTION

Increases or decreases the Delay time

in increments specified in the Utility

menu.

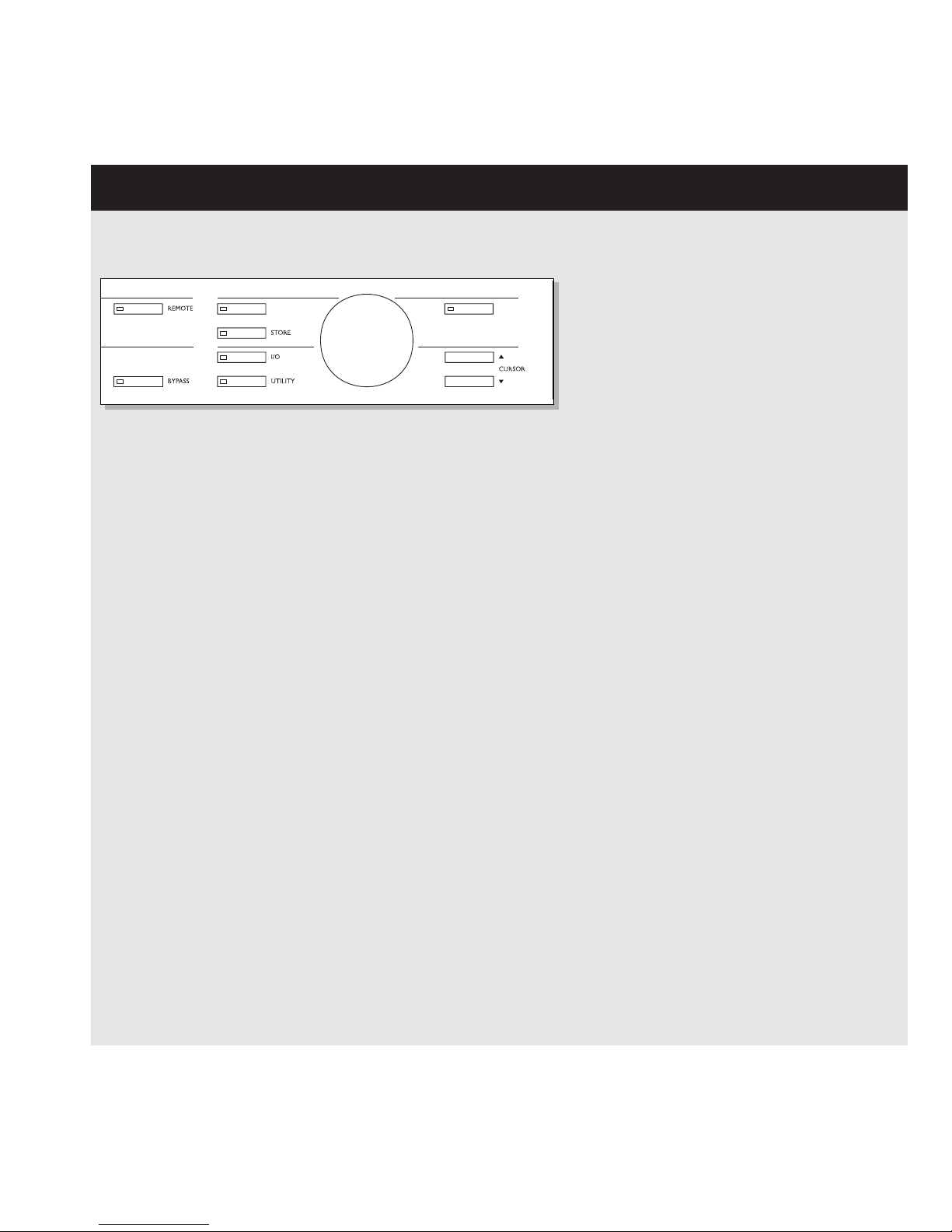

FRONT PANEL

Confirms operations.

CURSOR

Used to change the position of the

cursor in the display.

ADJUST WHEEL - CONTROL SECTION

Changes parameter values.

RECALL

Recalls/loads RAM or ROM presets.

Preview the presets using the

CONTROL ADJUST wheel and press

OK to confirm/enter your choice.

STORE

For storing and naming presets.

I/O

Input/Output settings.

UTILITY

Setup global parameters here.

- Display - Viewing angle

- Time resolution

- Control Resolution

- Tap Delay

- RS485 CTRL

- External Input

- Meter - Input/Output.

REMOTE ENABLE

Use a RS-485 remote for:

- Recalling presets

- Delay time adjustments.

Use a momentary pedal for:

- Tap Delay time via pulse.

Signal is given at every tap.

Use an alternating pedal for

Bypass.

Use a TC Master Fader as a

digital Master Output fader.

BYPASS

Bypasses the unit.

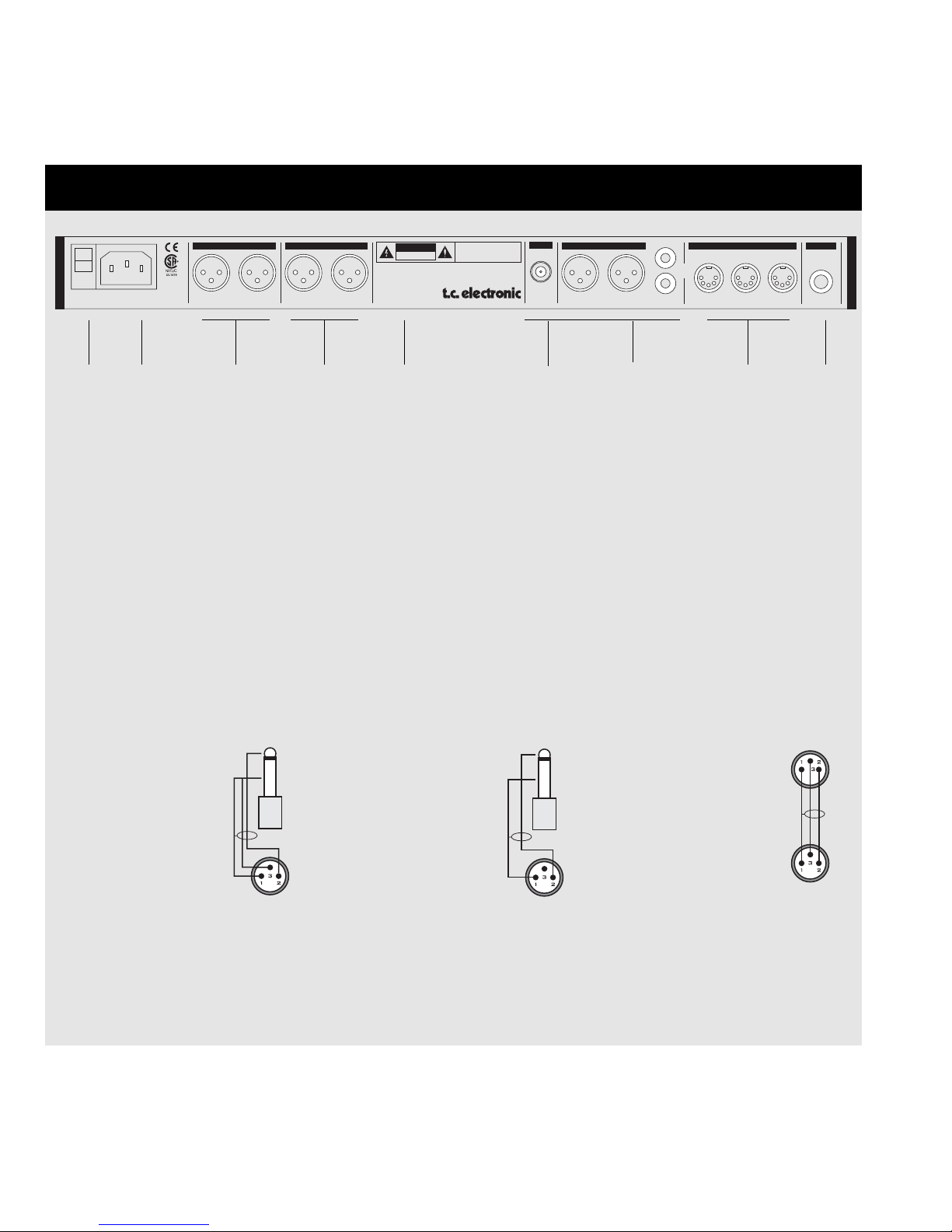

REAR PANEL

PIN2+/PIN3- PIN2+/PIN3-

LEFTLEFT

RIGHTRIGHT

S/PDIF

BALANCED OUTPUTS

BALANCED INPUTS DIGITAL AUDIO

AES/EBU

RS485 GPI

SYNC

SERIAL NO.

TYPE: V002-B

MADE IN DENMARK

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE

AVI S:

RISQUE DE CHOC ELECTRIQUE-NE PAS

THIS CLASS B DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE

CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS AND

COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.

OUVRIR.

100-240V 50-60Hz 20W~AC

NRTL/C

UL1419

EN 60065

PROFESSIONAL

AUDIO

EQUIPMENT

Main

Power

Switch

Power

Input

Balanced

XLR

Analog

Inputs

Balanced

XLR

Analog

Outputs

Serial

no.

Digital

In/Out

AES/EBU

S/PDIF

Wordclock

BNC

RS 485

1, 2, 3

External

Control

Input

(GPI)

Pin 2 is »hot« on all XLR’s (IEC and AES standards).

Unbalanced Input:

If you are connecting unbalanced equipment to the D22, pins 1 and 3 must be tied together in the cable

ends away from the D22. (see fig. 1)

Unbalanced Output:

If the D22’s Outputs are connected to unbalanced equipment pin 3 should not be connected. (see fig 2).

If you are using cable types, where pins 1 and 3 are connected (fig. 1), the maximum analog Output will

be reduced by 6dB from 26dBu to 20dBu.

Sleeve - Pin 1 (Ground)

Tip - Pin 2 (Hot)

Sleeve - Pin 3 (Cold)

Jack (unbalanced) - XLR - Input

Fig. 1

Sleeve - Pin 1 (Ground)

Tip - Pin 2 (Hot)

Jack (unbalanced) - XLR - Output

Fig. 2

Pin 1 (Ground)

Pin 2 (Hot)

Pin 3 (Cold)

Balanced XLR - XLR

Fig. 3

Altri manuali per D22

Indice

Altri manuali TC Electronic Apparecchiature di registrazione

TC Electronic

TC Electronic INTONATOR Manuale utente

TC Electronic

TC Electronic D22 Istruzioni per l'installazione e il funzionamento

TC Electronic

TC Electronic UpCon Manuale utente

TC Electronic

TC Electronic D-TWO Manuale utente

TC Electronic

TC Electronic Desktop Konnekt 6 Manuale utente

TC Electronic

TC Electronic M2000 Manuale utente

TC Electronic

TC Electronic Konnekt 24D Manuale utente

TC Electronic

TC Electronic NR-I Nova Reverb Manuale utente

TC Electronic

TC Electronic M3000 Manuale utente

TC Electronic

TC Electronic Rusty Fuzz Manuale utente

TC Electronic

TC Electronic FirewarX Manuale utente

TC Electronic

TC Electronic D-TWO Manuale utente

TC Electronic

TC Electronic Konnekt Live Manuale utente

TC Electronic

TC Electronic G-Major Manuale utente

TC Electronic

TC Electronic HALL OF FAME Manuale utente

TC Electronic

TC Electronic M-ONE Manuale utente

TC Electronic

TC Electronic G-Natural Manuale utente

TC Electronic

TC Electronic HALL OF FAME 2 MINI Manuale utente

TC Electronic

TC Electronic G-MAJOR 2 Manuale utente

TC Electronic

TC Electronic DB6 Manuale utente

TC Electronic

TC Electronic Nova Dynamics NDY-1 Manuale utente

TC Electronic

TC Electronic Finalizer Epress Manuale operativo

TC Electronic

TC Electronic NOVA System Manuale utente

TC Electronic

TC Electronic NOVA System Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
