TCL L40FHDF12TA Manuale utente
1
LCD TV
User’s Guide
For use with model: L40FHDF12TA /
Need Assistance?
Please visit our website at www.tclusa.com
or call 1-877-300-8837.
L40FHDM12
2
Important Information
This symbol indicates that this product contains mercury. Special disposal of this product for environmental
reasons may be required under the laws applicable to your jurisdiction. For disposal or recycling information,
please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
Refer to the identication/rating label located on the back panel of your product for its proper operating voltage.
FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
species that the cable ground should be connected to the grounding system of the building as close to the point of
cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the
Important Safety Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very
low-power standby mode but will not completely turn the power off. In order to completely shut the power off, you will
need to disconnect the power cord from the outlet. Therefore, you should ensure that the TV is installed in a manner
that allows you to disconnect the power cord when desired.
Product Registration
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________ Serial No._____________________________________
Purchase Date __________________ Dealer/Address/Phone___________________________
WARNING The batteries shall not be exposed to excessive heat such as sunshine, re or the like.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the product.
This symbol indicates that this product incorporates
double insulation between hazardous main voltage
and user accessible parts. When servicing, use only
identical replacement parts.
WARNING
To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on the component.
The TV is unstable if it is not properly attached to
the base or mounted to the wall. Please follow the
base or wall mounting instructions provided in the
User’s Guide to ensure your safety.
WARNING
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
3
Important Safety Instructions
1. Read and follow all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
6. Do not negate the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug
does not t your outlet, consult an electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the
point where it exits from the component.
8. Do not use this component near water.
9. Only use the attachments/accessories specied by the manufacturer.
10. Clean only with dry cloth.
11. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the component. When the TV is placed on a cart, use caution when moving the cart to avoid injury
from tip-over.
12. Unplug this component during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Service is required when the component is
damaged in any way, such as power supply cord or plug damage, liquid spilled on or objects falling
onto the component, rain or moisture exposure, abnormal operation, or if the component has been
dropped.
14. If an outside antenna or cable system is connected to the product, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges and built-up
static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 (Section
54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size
of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See following example:

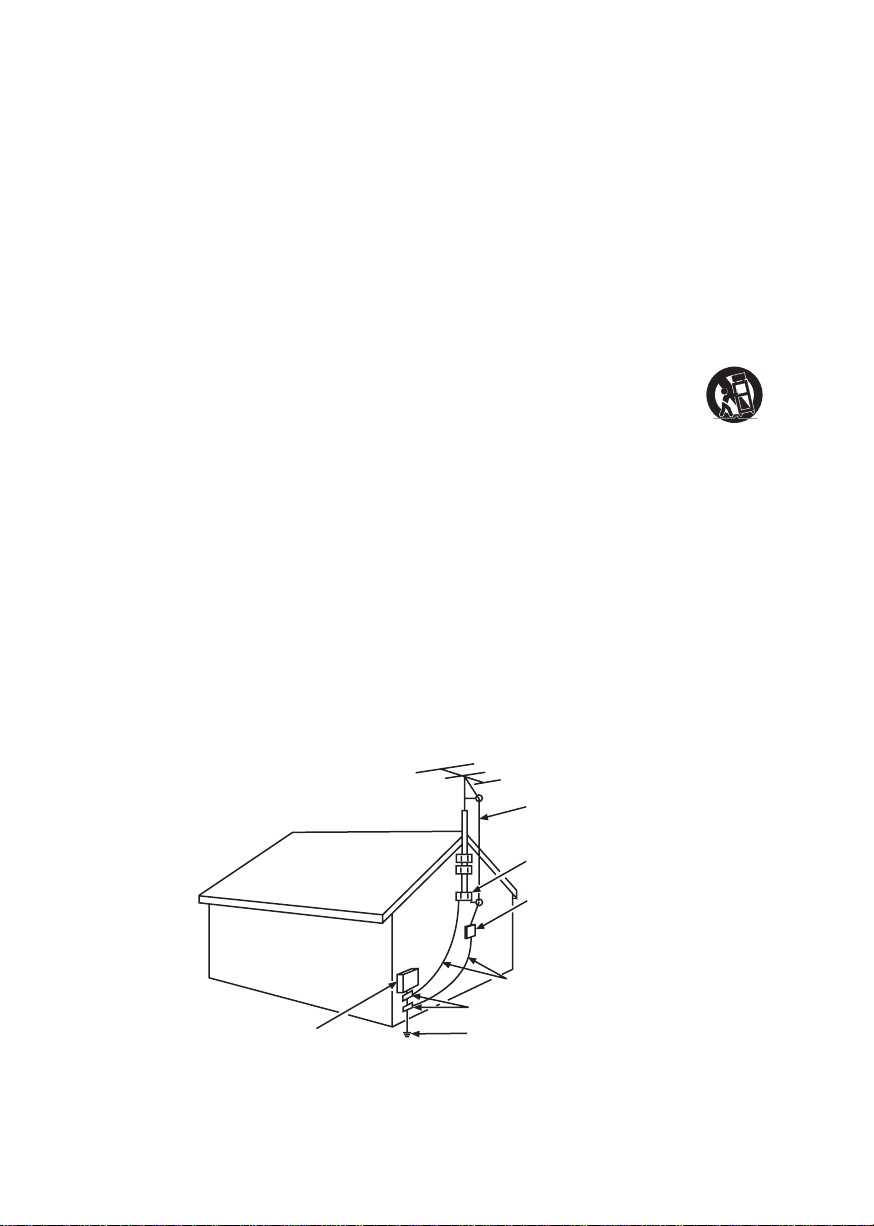

ANTENNA LEAD IN WIRE
GROUND CLAMP
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PARTH)
ELECTRIC SERVICE
EQUIPMENT
ANTENNA DISCHARGE
UNIT(NEC SECTION 810-20)
4
Important Information ..............................2
Important Safety Instructions...................3
Chapter 1 - Connections and Setup
Before Initial Setup .................................5
Protect Against Power Surges.............5
Safety Information ..............................5
Avoid Audio Interference ....................5
Avoid Direct Light ................................5
Check Supplied Parts..........................5
Attaching Your TV to the Table Stand.........6
Mounting Your TV to the Wall ..................7
Explanation of Jacks and Buttons on TV
....8
Rear Panel ...........................................8
Side Input Jacks...................................9
Side Panel Buttons...............................9
Obtain the Signal.....................................10
What You Need ....................................10
What You Need to Know......................10
Choose Your Connections.......................11
Composite Video Connection ..............12
Component Video Connection.............12
HDMI Connection.................................13
HDMI/DVI Connection..........................13
PC Connection.....................................14
Plug in the TV..........................................14
Put Batteries in the Remote.....................14
Turn on the TV.........................................14
Using the Remote Control to Complete the
Initial Setup..............................................14
Complete the Initial Setup .......................15
Set the Menu Language.......................15
Set the TV Location Mode ...................15
Set the Time Zone................................15
Auto Channel Scan..............................16
Skip Scan.............................................16
Chapter 2 - Understanding the Basics
Turning the TV On and Off ......................17
Selecting the Video Input Source ............17
Selecting a Channel ................................17
Adjusting/Muting the Volume...................17
Screen Formats.......................................18
Channel Banner.......................................18
Chapter 3 - Using the Remote Control
Remote Control Buttons..........................19
Chapter 4 - Using the TV Menu
Using the Menu System ..........................20
Picture Menu ...........................................20
Picture Settings....................................20
Expert Settings.....................................20
Advanced Settings...............................21
PC Settings..........................................21
Reset Picture Settings .........................21
Sound Menu............................................22
Setup Menu.............................................23
Signal Type..........................................23
Channel Scan ......................................23
Channel Skip........................................24
Channel Edit ........................................24
Input Skip.............................................25
Input Labels .........................................25
Closed Caption ....................................26
Time Setup...........................................27
Reset All...............................................28
Parental Controls and V-Chip..................28
Create/Change V-Chip Password........28
Reset V-Chip Password.......................28
Channel Block......................................29
Button Block.........................................29
V-Chip Rating Enable...........................29
V-Chip Rating Screen ..........................30
US V-Chip TV Ratings .........................30
Blocking Specic Content Themes ......30
US V-Chip Movie Rating Limit..............31
Blocking Canada V-Chip Ratings.........31
Open V-Chip ........................................32
Blocking Unrated/Exempt Programs....32
Reset Downloadable Data ...................32
Input Block ...........................................32
Language Menu.......................................32
USB Menu...............................................33
USB Connection......................................33
Chapter 5 - Other Information
Frequently Asked Questions (FAQs) .......34
Troubleshooting.......................................35
Care and Cleaning...................................37
V-Chip Rating Explanations.....................38
US V-Chip Rating System....................38
Canadian English V-Chip Rating System ...38
Canadian French V-Chip Rating System....39
Television Specications..........................39
Limited Warranty .....................................40
Table of Contents
5
QUICK START GUIDE
Before Initial Setup
Protect Against Power Surges
•Connect all components before you plug any power cords into the wall outlet or power strip.
• NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety
Instructions.
Safety Information
• Protect components from overheating.
• Don’t block ventilation holes on any of the components. Arrange the components so that air can
circulate freely.
• Don’t stack components.
• If you place the component in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplier, place it on the top shelf so the heated air from it won’t
harm other components.
Avoid Audio Interference
• Position cables properly; insert each cable rmly into the designated jack.
• If you place components above the TV, route all cables down one side of the back of the TV instead
of straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables.
• Keep twin lead cables away from audio/video cables.
Avoid Direct Light
Don’t place the TV where sunlight or room lighting is directed toward the screen. Use soft or indirect
lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
Chapter 1 - Connections and Setup
REMOTE CONTROL
PART # RC300
VOLCH
RC3000N01
INPUT
GUIDE
MENU
CLEAR
GO BACK
INFO
MUTE
FA V
MEDIA
MTS
TV
PIC
ZOOM
+
ZOOM
-
Replacing your remote
If you need to replace your
remote, call 1-877-300-8837.
A shipping and handling fee,
and the appropriate sales
tax, will be charged upon
ordering. Have your Visa or
MasterCard ready.
Graphics contained within this publication are presentation only.
2 AAA BATTERIES CABLE MANAGEMENT
STRAP
USER’S GUIDE 4 ST-SCREWS
LCD TV
User’ s Guide
Foruse with model: L40FHDF12T A /
NeedAssistance?
Pleasevisit our website at www.tclusa.com
orcall 1-877-300-8837.
L40FHDM12
6
Attaching Your TV to the Table Stand
Your TV comes without the table stand attached so that you can choose to mount your TV either to
its table stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t
attach the table stand, remove the hinge cover and hinge. Follow the Mounting Your TV to the Wall
instructions on page 7.
First, remove the TV bag and place it on a large, at surface such as a table or countertop.
Remove the TV from the carton and place it face down on the TV bag. Be sure that the TV is
face down to avoid scratching the screen.
Then follow the step below:
Note: for models L40FHDF12TA / L40FHDM12.
7
Mounting Your TV to the Wall
The VESA number is the horizontal and vertical measurement of the mounting holes. For example,
400x400 refers to the fact that the mounting measurements are 400mm horizontally and 400mm
vertically.
Notes: Follow the directions included with the wall mount to mount the TV to the wall.
Caution: Your wall mount must be able to bear a minimum of ve times the TV’s net weight to avoid causing damage.
To mount your TV to the wall, purchase a VESA wall mount.
Models L40FHDF12TA / L40FHDM12 Purchase a VESA 400 x 400, M6 screw
8
ANTENNA/CABLE IN
Lets you connect a coaxial cable to receive the signal from your antenna, cable, or cable box.
AUDIO (R/L) OUT Use an RCA audio cable to connect your TV to a compatible audio receiver. (not
availble in USB mode)
AUDIO/VIDEO (AV1) INPUT
Lets you connect a component that has composite video jacks, such as a VCR or DVD player.
• L AUDIO Provides left audio connection when using the VIDEO INPUT jack. The left audio
connectors are usually white. For mono audio sources, be sure to use the L AUDIO INPUT.
• R AUDIO Provides right audio connection when using the VIDEO INPUT jack. The right audio
connector is usually red.
COMPONENT IN Lets you connect a component that has component video jacks, such as a DVD
player.
• CMPTYPbPr(ComponentVideo) Provides good picture quality because the video is separated
into three signals. Use three video-grade or component video cables for the connection.
• CMPT L AUDIO Provides left audio connection when using the CMPT VIDEO inputs. The left audio
connector is usually white. For mono audio sources, be sure to use the left AUDIO input.
• CMPT R AUDIO Provides right AUDIO connection when using the CMPT VIDEO inputs. The right
audioconnector is usually red.
SPDIF - DIGITAL AUDIO OUT (optical) Use a digital optical cable to connect your TV to a compatible
audio receiver.
HDMI IN 3 Lets you connect a component, such as a digital cable box, with an HDMI output for the
best picture quality.
HDMI/DVI IN 1 (High-Denition Multimedia Interface/Digital Visual Interface) Provides an
uncompressed digital connection that carries both video and audio data by way of an integrated
mini-plug cable. Since HDMI technology is based on Digital Visual Interface (DVI), the jack on the back
of your TV is also compatible with DVI components.
PC IN VGA Connect your computer or other component with a VGA output to this jack using a 15-
pin,D-sub cable.
DVI/PC AUDIO IN (used for DVI/PC only) Provides audio connection when using HDMI/DVI INPUT 1
jack for DVI or when using PC IN.
Note: If using a DVI component, remember to connect the audio cable because the DVI cable carries
only the picture signal, not the sound.
Rear Panel
Explanation of Jacks and Buttons on TV
This section describes the jacks on the back panel of your TV/DVD. There are several ways to connect
components.
9
Side Input Jacks
HEADPHONES ( ) Allow you to connect headphones to
listen to the sound coming from the TV.
USB ( )
Allows you to connect a compatible mass storage device
using a USB jack.
HDMI IN 2
Lets you connect a component, such as a digital cable box,
with an HDMI output for the best picture quality.
AUDIO/VIDEO IN 2 (AV2)
Lets you connect a component that has composite video
jacks, such as a VCR or DVD player.
• L AUDIO Provides left audio connection when using the
VIDEO IN 2 jack. The left audio connectors are usually
white. For mono audio sources, be sure to use the left
AUDIO IN.
• R AUDIO Provides right audio connection when using the
VIDEO IN 2 jack. The right audio connector is usually
red.
Side Panel Buttons
If you cannot locate your remote, you can use the side panel
buttons on your TV to operate many TV features.
CH+/-
Press CH+/- to select channels stored in the channel list or to
move up ( ) or down ( ) through the menu items.
VOL+/-
Press VOL +/- to increase or decrease the volume or to
move right ( ) or left ( ) through the menu items.
MENU
Press the MENU button to bring up the TV’s Main menu.
INPUT
Press the INPUT button to select the signal source.
POWER ( )
Press the POWER button to turn the TV on and off.
INPUT
MENU
CH
CH
VOL
VOL
VIDEO
R
AUDIO
L
AUDIO/VIDEO IN 2 (AV2)
HDMI IN 2
Side Input Jacks Side Panel Buttons
10
OutdoororindoorAntenna
CableBox,
(WallOutlet)
RF Coaxial
Wire
(75ohm)
Or
Or
ANT/CABLE IN
Connect the RF coaxial cable on your home outlet to the ANTENNA/
CABLE IN jack of this unit.
Once all connections are complete, turn on the unit and begin the initial setup process, scanning for
channels in your area.
Obtain the Signal
The rst step in connecting your TV is obtaining the signal. The back panel of your TV allows you to
receive analog and/or digital channels by using the ANTENNA/CABLE INPUT.
Before you connect your TV, you have to determine whether you will be using an antenna or a cable
service to obtain the signal.
What You Need
Antenna (Rabbit Ears) Or Outdoor Antenna with Coaxial Cable
Plug the antenna or coaxial cable from the wall outlet into the ANTENNA/CABLE INPUT on the back
of the TV. You are ready to receive off-air local digital and analog channels.
Cable Service
Plug the coaxial cable from the wall outlet into the ANTENNA/CABLE INPUT on the back of the TV.
You are ready to receive your cable channels.
Set-Top Box
If you have a set-top box, you may need to call your cable company or satellite service provider. They
may recommend special cables to allow you to view digital channels.
What You Need to Know
• Visit www.antennaweb.org for help in deciding what type of antenna to use in order to receive the
local digital channels available to you. Enter your location, and the program will list local analog
and digital stations available using your antenna.
• When you watch TV, the Channel Banner displays the type of channel currently viewed.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali TCL TV LCD
TCL
TCL LCD32E9A-MS91LA Manuale utente
TCL
TCL L22E75BK Manuale utente
TCL
TCL L19E75A Manuale utente
TCL
TCL L40FHDM11 Manuale utente
TCL
TCL L26E9AD Manuale utente
TCL
TCL S-Series Istruzioni per l'installazione
TCL
TCL L26HDF12TA Manuale utente
TCL
TCL E3800 Series Manuale utente
TCL
TCL 21M62US Manuale utente
TCL
TCL U65S9906 Manuale utente
