TCL Q6510 Manuale utente
Quick Start Guide
Q6510
5.1 Channel Sound Bar with Dolby Audio
™
, DTS
®
Virtual:X
™
,
Wireless Subwoofer and Surround Sound Speakers
1
Register Your Product Register yourTCL Sound Bar to receive
the latest news on product releases,
promotional offers, and more!*
Enjoy exclusive benefits with registration:
Text a photo of the
camera icon to 71403
Or register online at register.tcl.com
Need help? Visit photoregister.com/help
or text HELP to 71403
TEXT TO REGISTER
Expedited support and service Insider tips on your soundbar
Exclusive offers and promotions Verification of ownership
*Only Available to U.S. Customers
TCLSBQS
Power cord
x 2
(Cable length: 4 ft. 11")
Subwoofer Surround Speakers
HDMI cable
(Cable length: 4 ft. 11")
Remote control AAA battery x 2
Wall anchor x 2Wall mounting screw x 4
QSG
Quick Start Guide
Safety
instructions
Safety leaflet
Warranty
card
Warranty card
2
What's in the box
Sound Bar
Wall mount template
Wall mount bracket x 2
Make sure you read all the safety information
before you use this product.
Warning:
To avoid the danger of suffocation, keep
plastic packaging away from pets, babies,
and children. Do not use packaging bags
in cribs, beds, carriages, or playpens.
User Manual can be found at www.tcl.com/us
on the specific product page in the
“Download” section.
3a
Overview
Sound Bar
AC~IN OPTICAL USB HDMI (ARC) AUX
Volume buttons:
Press to increase or
decrease the volume level.
Source button:
Short press: Switch input sources
(HDMI-ARC/Optical/AUX/USB/Bluetooth)
Long press: Enter subwoofer pairing
(If subwoofer disconnected)
Power button:
Short Press: Power On/Sleep
Long Press: Power Off
Bluetooth button:
Short Press: Switch the audio input between
Bluetooth and the previous input
Long press: Bluetooth Pairing
LED light is visible between the cloth and the top case.
Indicates current input source with different color.
Input Source LED Indicator:
HDMI-ARC: Magenta
Optical: Yellow
AUX: Green
USB: Cyan
Bluetooth: Blue
AUX input connector
AC~IN OPTICAL USB HDMI (ARC) AUX
ON / OFF SURROUNDS AC~IN
L R
3b
Overview
3c
Overview
Power on/off/pairing indicator
of the subwoofer
ON / OFF
AC~IN
AC input power connector
Connect to wired
surround speakers
SURROUNDS
L R
Connect to subwoofer

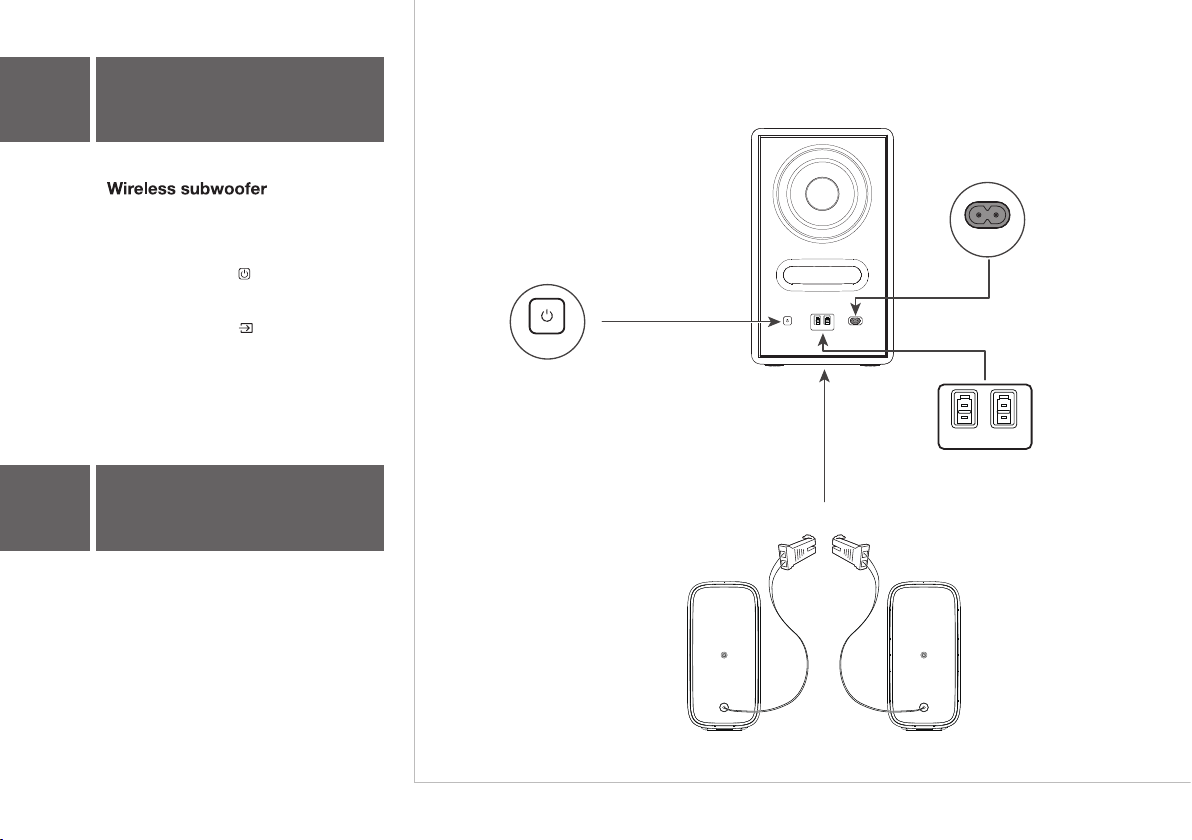

Surround Sound Speakers
1. Connect each surround sound speaker
into one of the surround ports on the back
of the subwoofer.
The subwoofer is now connected to the
sound bar.
Press and hold the button on the
subwoofer for 2 seconds until an amber light
begins flashing above the pair button.
1.
2.
3.
Press and hold the button on the sound
bar for 5 seconds until a green LED indicator
flashes on the sound bar. After a short while,
the subwoofer LED will turn solid.
The subwoofer will pair automatically with sound
bar upon first use. In case of a problem, take the
following steps to manually pair:
No light - OFF;
Flashing every 4 seconds - waiting for pairing;
Quick flashing (long press) - entering pairing mode;
Solid light – ON.
The LED display on the Sound Bar gives you
information about the LED Behavior on Sound Bar.
LED light is visible between the cloth and the
top case.
The LED display will show the
available menu options and/or
confirm the selection made.
4
Sound Bar LED Display
Bluetooth
White LED lights breathing
Bluetooth pairing:
Blue LED light moves from left to right and repeats until
successful connection
Length of LED lights show current Volume level
Sonic1/Sonic2/Sonic3: LED light turn on from the side and
move to the center
Default: LED light turn off from the center to the sides
BassBoost, Dialogue Enhance, Surround Enhance,
Night, DTS Virtual:X, Default Light Color
On: LED light turns on from the side and moves to the center
Off: LED light turns on from the center and moves to the sides
Default Light Color (Default light setting)
Light1: White (Default)
Light2: Sunset
Light3: Ocean
Level 0: center light on;
Level 1 to 5: center to the right light on;
Level -1 to-5: center to the left light on
LED lights breathing
Remote Control Based on Default Light color selectedRemote Control status
HDMI-ARC: Magenta light on for 3 seconds
Optical: Yellow light on for 3 seconds
Aux: Green light on for 3 seconds
USB: Cyan light on for 3 seconds
Bluetooth: Blue light on for 3 seconds
Power
Bluetooth
Bass Treble
HDMI Optical
Voice Music
Movie Game Sports
Standard
AI Sonic
(Un) Mute Vol + Vol -
LED lights run from left to right
Next
Previous
( )
( )
LED lights run from right to left
Aux BluetoothUSB
BassBoost DialEnhan SurrEnhan
Light
DTSNight
> 2"
TV
TV
3
2
5
6
24.8"
4
Wall mount your Sound Bar
1
5b
Required tools:
Place the supplied wall mount template on the
wall. Make sure the wall mount template is at
least 2 inches below the center of the TV.
Use the tape to stick the wall mount template
firmly on the wall.
Mark on the wall using each marking on the
template through the mounting holes.
Take away the wall mount template.
Drill a screw holeat each marking on the wall.
Use a level to make sure the wall mount template
is positioned accurately
5a
Place your Sound Bar
and Subwoofer
Sound Bar on the table
Top View
The ideal place to position the Sound Bar is
centered underneath your TV.
Note: Do not place your sound bar in a location
exposed to direct sunlight, heat, fire, or moisture.
Note: It’s recommended to keep the distance
within 9.8 feet between the Surround Sound
Speakers and the sound bar.
Subwoofer beside
Surround speaker on the left Surround speaker on the right
Required tools:
Insert the wall anchors in the holes on
the wall.
Insert the supplied screws with the wall
brackets into the hole of the wall anchors.
Fix and tighten the wall bracket screws on the
wall.(keep space between the screw cap and
the brackets)
5c
Wall mount your Sound Bar
Pick up the sound bar and attach it to the
wall screws, similar to how you would hang a
picture. Make sure everything is tight.
7 8 9
10
10
Note:
Do not place your sound bar in a location
exposed to direct sunlight, heat, fire, or moisture.
Only suitable for mounting at heights: < 6 ft. 6.7 in.
Required tools:
Attach the wall mount screw to the back of
the surround speaker.
Secure the wall mount bracket to the wall.
(Bracket screw is not included)
Slide the speaker onto the wall bracket.
Ensure the wall mount screw is secured within
the bracket grooves.
5d
Wall-mount Your
Surround Speakers Included screw
M4 x 12
Be sure your screws are attached to wood
studs, dry wall anchors (for drywall), or
concrete anchors (for brick/concrette walls).
Wall mounting hardware is not included.
If you are unfamiliar with power tools or the
layout of electrical wiring in the walls of your
home, consult a professional installer.
1
2
3
Note: Only suitable for mounting at heights: < 6 ft. 6.7 in. This picture shows how to wall mount surround speakers.
Wall-mount bracket showed in the picture is not provided.
