CE series ELECTROSTATIC OIL MIST

COLLECTOR (Original Instructions)

Operation and

Maintenance Manual

CHEN SHIN (TCSM) MC CO., LTD

TEL:+886-4-7331657

FAX:+886-4-7330116

EMAIL: [email protected]m ; chenshin.h@gmail.com

Office Add.: No. 66, Aly. 208, Bianxing Ln., Xuetian Rd.,

Wuri Dist.,Taichung City 414011 , Taiwan ，R.O.C.

Factory Add.: No. 30, Aly. 63, Ln. 446, Sec. 2, Zhangmei Rd.,

Hemei Township, Changhua County 508007 , Taiwan ，R.O.C.

Product type:

Serial

Number:

Manufacture

Date:

Electrostatic Oil Mist Collector CE Series

Contents

Page

1. General instructions……………………………2

1.1 Electrostatic oil mist collector operation theory and method 2

1.2 Transportation instructions………………… 3

1.3 Disposal instructions……………………… 3

2. CE series technical data…………………… 4

3. CE series spare parts……………………… 5

4. Circuit diagram………………………………… 9

5. Installation and operation instructions …13

5.1 Installation instructions……………… 13

5.2 Operation instructions………………… 14

5.2.1Interface……………………………… 14

5.2.2 Before starting up……………………… 15

5.2.3 Starting up……………………………… 15

6. Maintenance and inspection ……………… 16

6.1 Inspection and maintenance plan…… 16

6.2 Troubleshooting ………………………… 17

6.3 Electrode plate cleaning……………… 18

6.3.1 Manual cleaning……………………… 18

6.3.2 Ultrasonic cleaning………………… 19

6.3.3 Disposal instructions……………… 20

7.Warranty…………………………………………… 21

8.EC declaration of conformity………………… 22

Electrostatic Oil Mist Collector CE Series

1. General instructions

This manual gives user important safety instructions for machine and user.

Please follow manual instructions to prevent machine damage or operator

harming.

1.1 Electrostatic oil mist collector operation

theory and method

TCSM electrostatic oil mist collector is applied for lathe and

milling machine filtration and reuse of coolant. This model uses several

parts. (As shown in Figure 1)

1. The dispersion zone:

The conflict plate forces the oil drop disperse into smaller oil mist.

2. The blocking zone:

Block large oil mist by front filter to improve the efficiency of the

electric field filter.

3. Electric field filter:

Electrode plate got positive plate and negative plate.

After oil mist through positive plate, oil mist is captured with

negative plate.

4. Odour absorption:

To reduce odour emission, TCSM could supply different optional spare

parts depending on each field application to improve filter efficiency.

Figure 1

4.: Obour absorb:

Reduce obour emission.

3. Electric field filter:

Capturing oil mist by

electric field.

Oil mist is ionized and

captured in this zone.

2.Blocking zone:

Block large oil mist

by front filter to

proceed first filter

process.

1. Dispersion zone:

Disperse large oil

drop into oil mist.

Electrostatic Oil Mist Collector CE Series

1.2 Transportation instructions

1.2.1 Packing: CE series

are packed with Wooden Box

1.2.2 Transportation:

Depending on <Table 1> Collector

weight, use appropriate vehicle

to move Collector(like Stacker)，

Person who using the vehicle must

have relevant knowledge and

qualification to carry it

1.3 Disposal instructions

When the various parts of the equipment cannot be used, please

scrap them in accordance with the local environmental

regulations.

Electrostatic Oil Mist Collector CE Series

2. CE series technical data

Type

Unit

CE-900

CE-1000

CE-1800

CE-2200

Air flow

volume

m3/h

900

1000

1800

2200

Power

0.45

0.875

1.275

Noise

dB(A)

Motor

frequency

Motor

rotating

speed

r/min

2500

2860

1430

2860

Net

weight

115

Physical

dimension

720L*630W*590H

930L*630W*590H

1525L*620W*615H

Dimension

Table 1 CE series technical data

Electrostatic Oil Mist Collector CE Series

3. CE series spare parts

3.1 CE-900

Electrostatic Oil Mist Collector CE Series

3.2 CE-1000

Electrostatic Oil Mist Collector CE Series

3.3 CE-1800

Electrostatic Oil Mist Collector CE Series

3.4 CE-2200

Electrostatic Oil Mist Collector CE Series

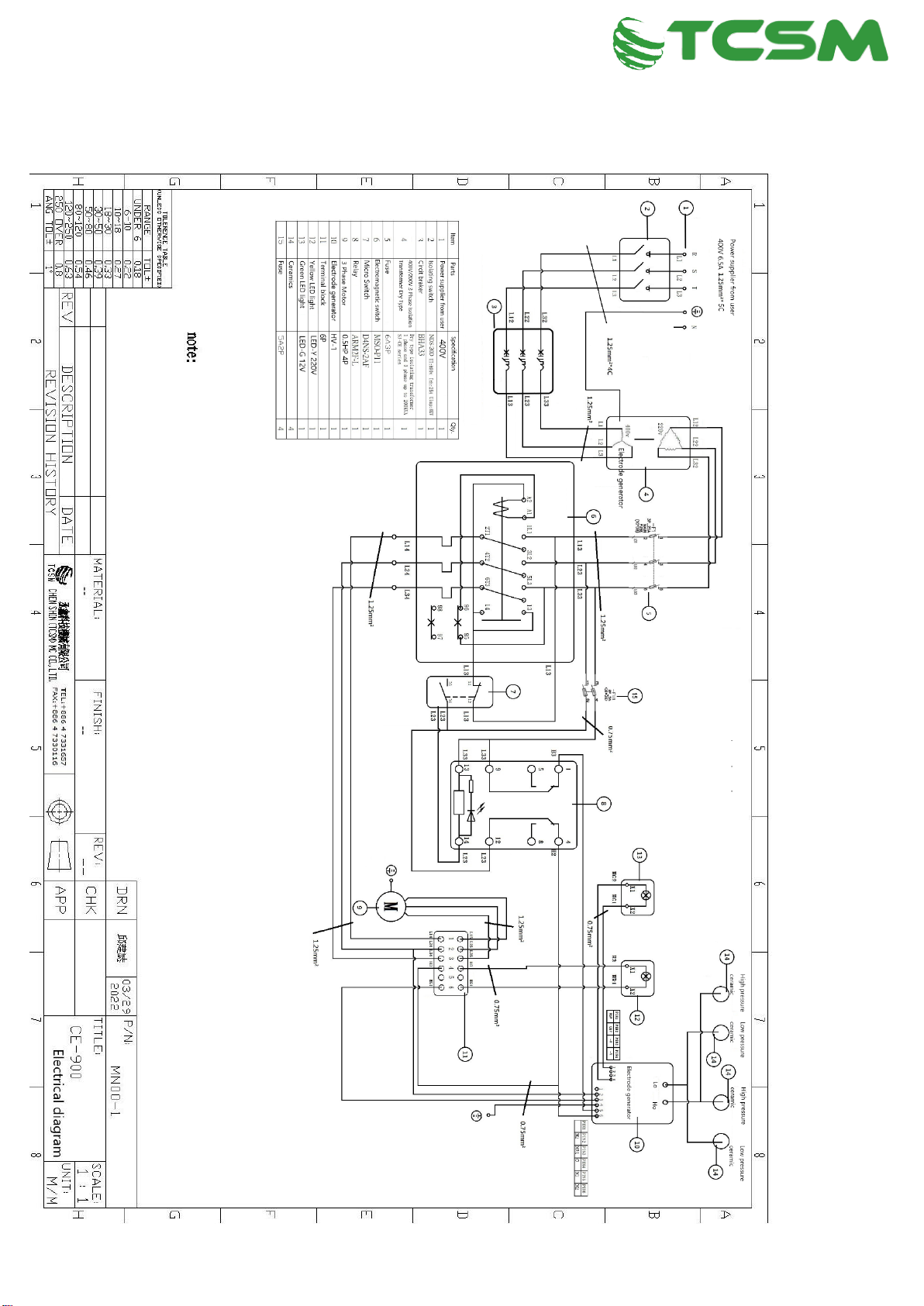

4. Circuit Diagram

4.1 CE-900
