●All specifications are subject to change without notice.
002-01 / 20081008/ etl_rsal
Compact Multipurpose Type Compatible with High-Voltage Pulse
■FEATURES
●Amorphous core is used as the common mode coil core for the RSEL series, which helps prevent devise errors.
●Wire type and lug terminal type are available with the same shape.
●Optional low-leakage characteristic type is also available.
●Compliant with RoHS directives.
■SAFETY STANDARDS
UL1283 File No. E62388
CSA C22.2 No.8 File No. 208777
EN60939 Licence Ref. No. SE/07115-1
■PRODUCT IDENTIFICATION
■CIRCUIT DIAGRAMS
RSAL‒2＊＊＊□□
L ：Low-leakage current characteristic type
W：Wire type (AWG20)
A ：Lug terminal type (Faston #110)
Rated current
Number indicating the rated voltage
Series name
R S A L- 2 ＊＊＊ W
R S A L- 2 ＊＊＊ A
R S A L- 2 ＊＊＊ W L
R S A L- 2 ＊＊＊ A L

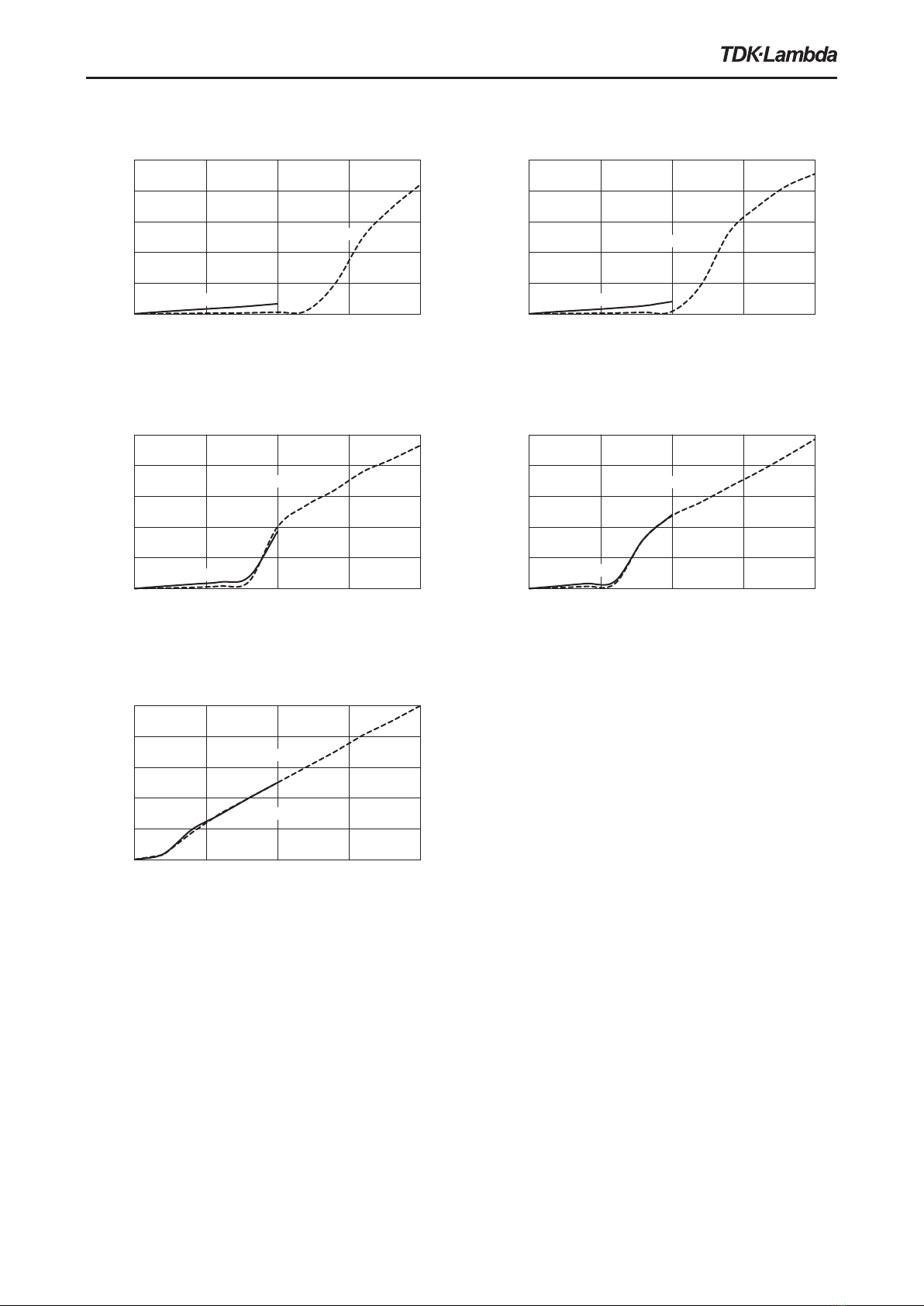

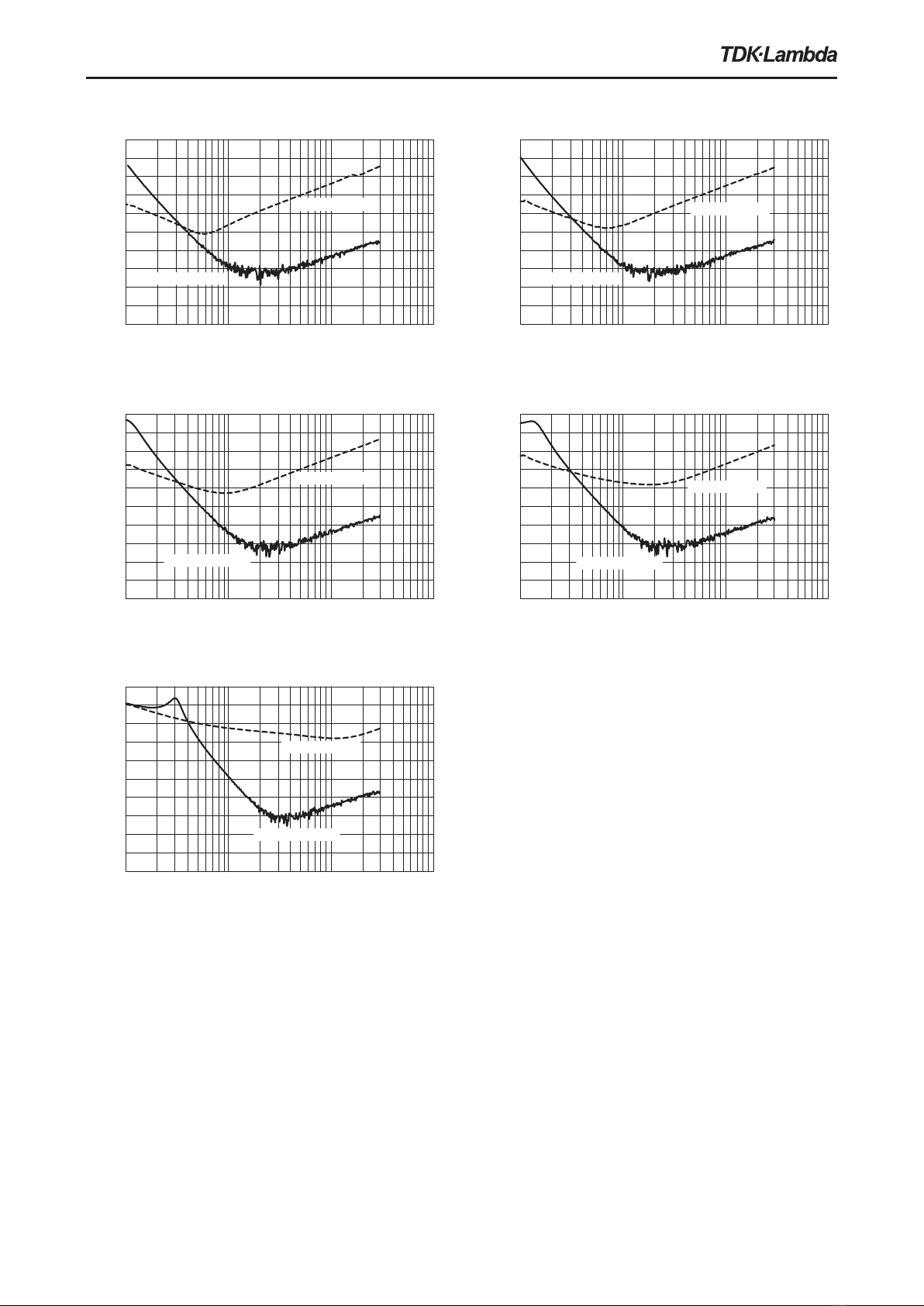

RSAL SERIES
●
Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based
flame retardants, PBB and PBDE, have not been used, except for exempted applications.
●Faston® is a registered trademark of Tyco Electronics AMP Corp. Incorporated.
