TDK DP-Series Manuale utente
A
ANTENNAS

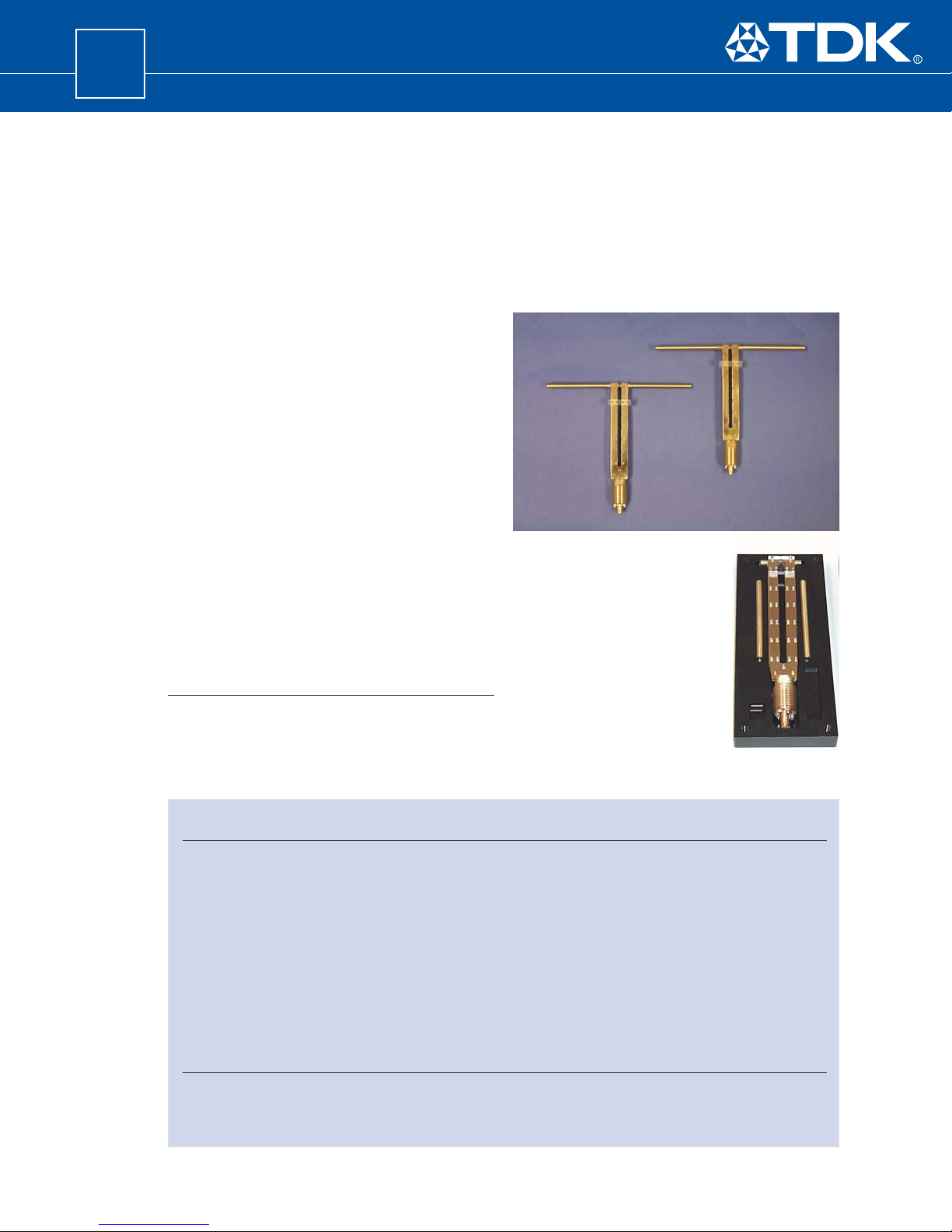

DP-Series Precision Dipole Antennas
Product Overview
TDK RF Solutions’ Precision Dipole Antennas are
half-wave, fixed length precision dipoles designed
to generate traceable calibrated fields or to
measure electric fields at their respective fre-
quency. The DP-series antennas offer low gain and
essentially perfect cross-polarization rejection, and
are typically used as a reference or standard gain
antenna, or as a polarization standard.
Dipole Test Sets
The DP-Series Dipole Antennas
are designed with operating frequencies matched
the operating frequencies of common mobile radio
devices, and are available in sets that correspond
to communication systems used in Europe, North
America, and Asia, including GSM, TDMA, PCS,
Bluetooth, and others. Custom frequencies are
available.
TDK RF Solutions’ Dipole
Antennas are specifically
designed as calibration
reference sources for
transmitting and receiving
the optimum field strength
within each antenna’s
respective frequency range.
1101 Cypress Creek Road Cedar Park, Texas 78613, USA 1-512-258-9478 FAX 1-512-258-0740
Data Sheet
Applications
Calibration
Communications testing
Antenna pattern measurements
Communications Applications
Communication System Frequency Range Model
GSM - NMT 453 MHz – 458 MHz DP-450
GSM - 900 880 MHz – 925 MHz DP-900
GSM - 1800 1710 MHz – 1785 MHz DP-1800
GSM 1900/TDMS PCS/CDMA PCS 1850 MHz – 1910 MHz DP-1900
TDMA (NADC)/AMPS 824 MHz – 849 MHz DP-800
W-CDMA 1920 MHz – 1980 MHz DP-2000
Korean CDMA 1715 MHz – 1780 MHz DP-1700
A
ANTENNAS
To learn more about TDK RF Solutions’ wide range of innovative products and services visit www.tdkrfsolutions.com
©Copyright 2004 TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice. DSDPS113004
DP-Series Precision Dipole Antennas
Mechanical Specifications
Dimensions: Dependent on operating
frequency; approx. one-
half wavelength
Weight: Varies by model
Construction: Available in aluminum,
stainless steel or brass
RF Connector: SMA (female)
Electrical Specifications
Gain: See data graph
Impedance 50 Ω
Ordering Information
Product: Dipole Antenna
Model Number: DP-Series
Warranty: 1 year limited
To place an order or to learn more about the
TDK RF Solutions products that best meet your
needs, contact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: 1-512-258-9478
Fax: 1-512-258-0740
E-mail: [email protected]
World Wide Web: www.tdkrfsolutions.com
Communications Applications, continued
ISM (Bluetooth) 2400 – 2483.5 MHz DP2400
Japan - Low Band 898 MHz – 901 MHz DP-900-J1
915 MHz – 940 MHz DP-900-J2
940 MHz – 960 MHz DP-900-J3
Japan - High Band 1429 MHz – 1453 MHz DP-1400
www.tdkrfsolutions.com
TOTALIRF EXPERTISETM
STS
SYSTEMS TEST SERVICES
P
PRODUCTS
SW
SOFTWARE
C
CHAMBERS
Representative Data
