TDK TSL Series TSL1112 Manuale utente

(1/2)

003-02 / 20080702 / e532_tsl1112.fm

• All specifications are subject to change without notice.

Radial Lead Inductors(Coils)

For Power Line

TSL Series TSL1112

FEATURES

• The TSL series feature low DC resistance and high current han-

dling capacities, making them ideal for power supply line appli-

cations.

• These parts are manufactured to a high degree of dimensional

accuracy using non-flammable material (UL94V-0).

• Available in tape packaging to support automated mounting

machines.

• It is a product conforming to RoHS directive.

APPLICATIONS

Televisions, VCRs, personal computers, and other electronic

equipment.

SPECIFICATIONS

PRODUCT IDENTIFICATION

(1)Series name

(2)Dimensions

(3)Packaging style

(4)Inductance value

(5)Inductance tolerance

(6)Rated current

(7)Lead-free compatible product

PACKAGING STYLE AND QUANTITIES

Conformity to RoHS Directive

Operating temperature range –40 to +85°C

[Including self-temperature rise]

Storage temperature range –40 to +85°C[Unit of products]

Terminal tensile strength 9.8N min.

Flow soldering condition 260°C /10 seconds

TSL 1112 RA- 3R3 M 5R9 - PF

(1) (2) (3) (4) (5) (6) (7)

1112 ø11.2×12.2mm (lead pitch 5mm)

RA Taping(Ammo-pack)

SBulk

3R3 3.3µH

100 10µH

J±5%

K±10%

M±20%

5R9 5.9A

R56 0.56A

PF Lead-free compatible product

Packaging style Quantity

Ta p i n g

(Ammo-pack) 500 pieces/box

Bulk 400 pieces/8tray

• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific

bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.

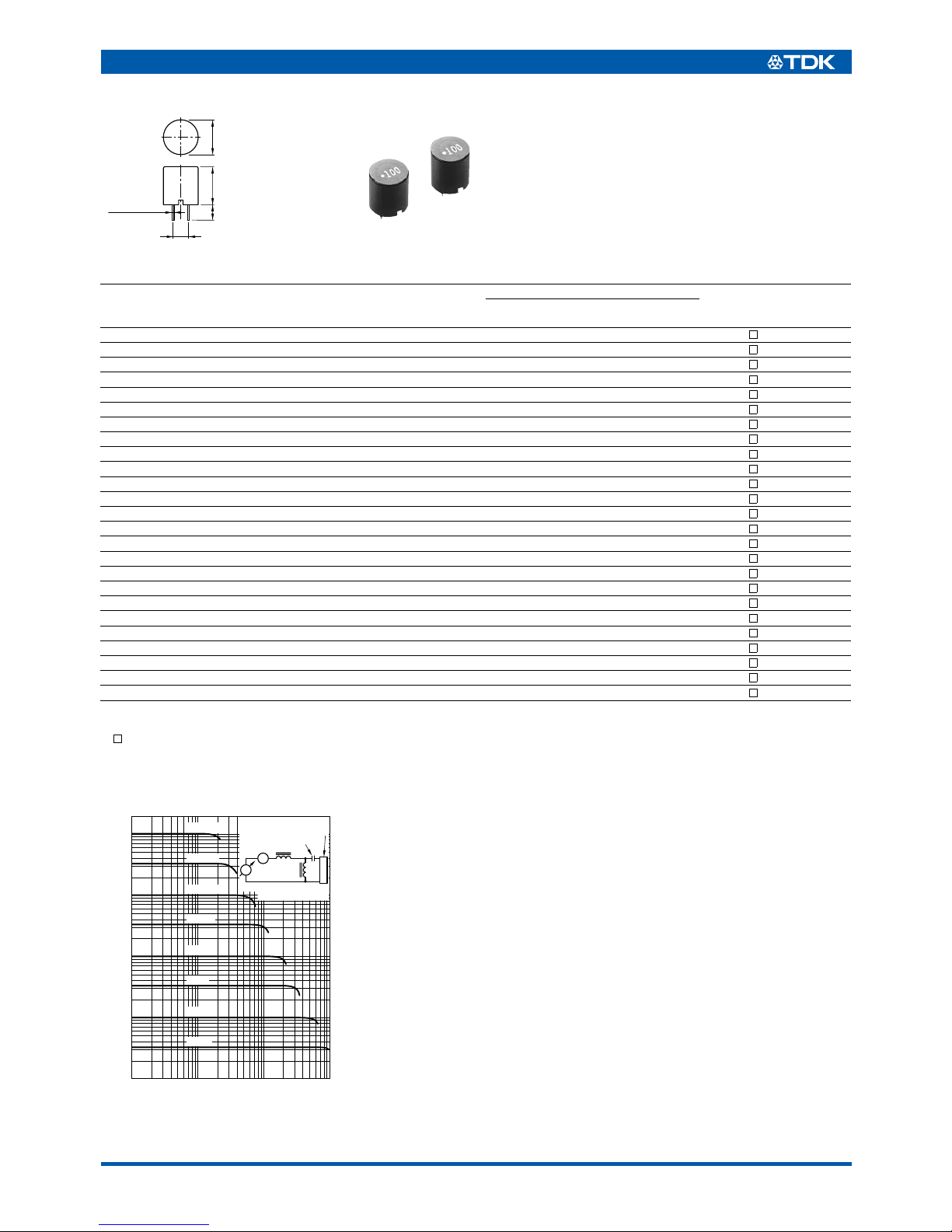

(2/2)

003-02 / 20080702 / e532_tsl1112.fm

• All specifications are subject to change without notice.

SHAPES AND DIMENSIONS

ELECTRICAL CHARACTERISTICS

∗1Rated current: Value obtained when current flows and the temperature has risen to 25°C or when DC current flows and the initial value of inductance has

fallen by 10%, whichever is smaller.

∗2: Please specify packaging style, S(Bulk) or RA(Taping).

TYPICAL ELECTRICAL CHARACTERISTICS

INDUCTANCE CHANGE vs. DC SUPERPOSITION

CHARACTERISTICS

Inductance

(µH)

Inductance

tolerance

min.

Test

frequency

L/Q (Hz)

Self-resonant

frequency

(MHz)min.

resistance

(Ω)max.

Rated current (A)∗1max.

Part No.

Based on inductance

change

Based on

temperature rise

1.0 ±20% 15 1k/7.96M 144 0.058 14 7.7 TSL1112 ∗2-1R0M7R7-PF

2.2 ±20% 15 1k/7.96M 70 0.073 10 6.7 TSL1112 -2R2M6R7-PF

3.3 ±20% 10 1k/7.96M 36 0.01 8.8 5.9 TSL1112 -3R3M5R9-PF

4.7 ±20% 10 1k/7.96M 28 0.015 7.2 4.8 TSL1112 -4R7M4R8-PF

6.8 ±20% 10 1k/7.96M 18 0.016 6.1 4.6 TSL1112 -6R8M4R6-PF

10 ±20% 20 1k/2.52M 16 0.025 5 3.7 TSL1112 -100M3R7-PF

15 ±20% 20 1k/2.52M 12 0.029 4.2 3.4 TSL1112 -150M3R4-PF

22 ±10% 20 1k/2.52M 9.5 0.04 3.4 2.9 TSL1112 -220K2R9-PF

33 ±10% 30 1k/2.52M 7 0.062 2.8 2.3 TSL1112 -330K2R3-PF

47 ±10% 30 1k/2.52M 5.8 0.075 2.3 2.1 TSL1112 -470K2R1-PF

68 ±10% 20 1k/2.52M 4.7 0.13 1.9 1.6 TSL1112 -680K1R6-PF

100 ±10% 20 1k/796k 3.8 0.16 1.6 1.4 TSL1112 -101K1R4-PF

150 ±10% 20 1k/796k 3.1 0.26 1.3 1.1 TSL1112 -151K1R1-PF

220 ±10% 20 1k/796k 2.5 0.33 1.1 1 TSL1112 -221K1R0-PF

330 ±10% 20 1k/796k 2 0.52 0.88 0.82 TSL1112 -331KR82-PF

470 ±10% 10 1k/796k 1.6 0.66 0.75 0.72 TSL1112 -471KR72-PF

680 ±10% 10 1k/796k 1.3 1.1 0.61 0.56 TSL1112 -681KR56-PF

1000 ±5% 20 1k/252k 1.1 1.4 0.51 0.5 TSL1112 -102JR50-PF

1500 ±5% 30 1k/252k 0.82 2.4 0.43 0.38 TSL1112 -152JR38-PF

2200 ±5% 20 1k/252k 0.76 3.2 0.35 0.33 TSL1112 -222JR33-PF

3300 ±5% 30 1k/252k 0.64 4.9 0.28 0.26 TSL1112 -332JR26-PF

4700 ±5% 30 1k/252k 0.54 7.6 0.24 0.21 TSL1112 -472JR21-PF

6800 ±5% 30 1k/252k 0.45 9.8 0.2 0.18 TSL1112 -682JR18-PF

10000 ±5% 30 1k/79.6k 0.38 18 0.17 0.14 TSL1112 -103JR14-PF

15000 ±5% 50 1k/79.6k 0.29 24 0.13 0.12 TSL1112 -153JR12-PF

12.2±0.35±1

5+1, –0.5

ø0.65±0.05

Weight: 3.3g

Dimensions in mm

ø11.2±0.3

DC current(A)

0.01 0.1 0.30.03 3110

100

1000

300

10000

3000

Inductance(µH)

1000µH

330µH

33µH

10µH

3.3µH

100µH

10000µH

3300µHA

L=0.1H

C=20000µF

Test circuit

Universal bridge

Specimen

YHP model-4255A

or equivalent
