TE Connectivity HV-CP Manuale utente

Customer Manual

1 of 54

*Trademark

TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.

PRODUCT INFORMATION 1-800-522-6752

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at www.te.com.

409-35011

12 JUN 20 REV C

SAFETY PRECAUTIONS —AVOID INJURY —READ THIS FIRST!......................................2

1. INTRODUCTION ..................................................................................................................4

2. SAFETY................................................................................................................................4

Standards.......................................................................................................................5

Ear and Eye Protection ..................................................................................................5

Safety Covers/Guards....................................................................................................5

Power Connections ........................................................................................................6

Safety Interlocks.............................................................................................................9

Emergency Stop (E-STOP) Switch ..............................................................................11

3. DESCRIPTION ...................................................................................................................12

Machine Overview........................................................................................................12

Specifications ...............................................................................................................12

Requirements...............................................................................................................13

Major Components.......................................................................................................14

Tooling .........................................................................................................................22

4. OPERATION ......................................................................................................................23

Overview ......................................................................................................................23

User Interface (UI)........................................................................................................23

Initial Startup ................................................................................................................24

Processing ...................................................................................................................26

5. MAINTENANCE .................................................................................................................39

Daily .............................................................................................................................39

Monthly.........................................................................................................................40

As-Needed ...................................................................................................................40

Preventive ....................................................................................................................44

6. TROUBLESHOOTING .......................................................................................................44

7. REPAIR AND REPLACEMENT .........................................................................................45

8. RECEIVING INSPECTION AND INSTALLATION .............................................................46

Receiving Inspection ....................................................................................................46

Installation ....................................................................................................................51

9. DECOMMISSIONING.........................................................................................................54

10. REVISION SUMMARY .......................................................................................................54

Semi-Automatic High Voltage Cable

Preparation Machine (PN 2335400-1)

ORIGINAL INSTRUCTIONS

409-35011

Rev C

2 of 54

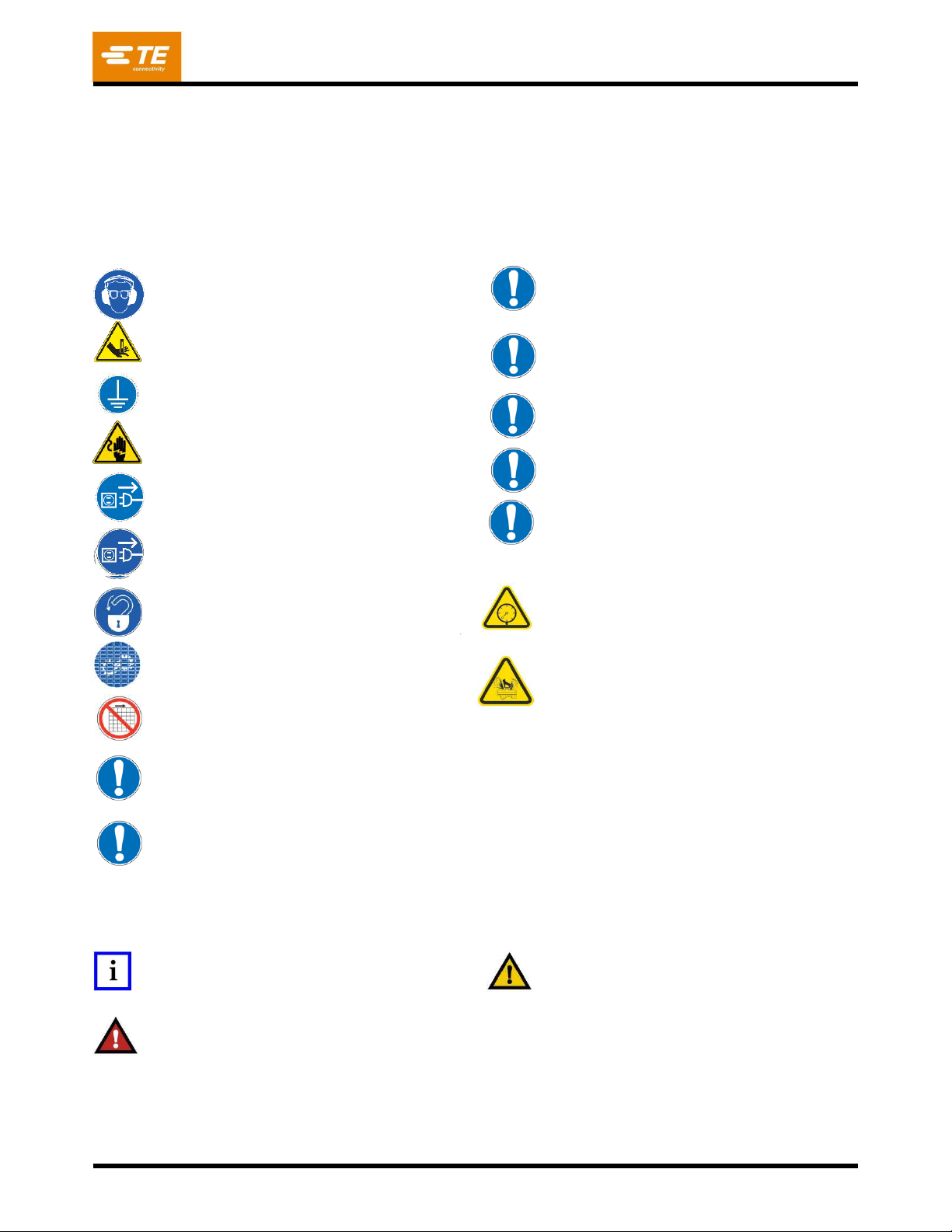

SAFETY PRECAUTIONS —AVOID INJURY —READ THIS FIRST!

Safeguards are designed into this application equipment to protect operators and maintenance personnel from

most hazards during equipment operation. However, certain safety precautions must be taken by the operator

and repair personnel to avoid personal injury, as well as damage to the equipment. For best results, application

equipment must be operated in a dry, dust-free environment. Do not operate equipment in a gaseous or

hazardous environment.

Carefully observe the following safety precautions before and during operation of the equipment:

Always wear approved eye and ear protection while

operating equipment.

Moving parts can crush and cut. Always keep guard(s)

in place during normal operation.

Always ensure customer-provided power supply is

grounded to avoid electrical shock.

Electrical shock hazard.

Always turn off the main power switch and disconnect

the power source when performing repair or

maintenance on the equipment.

Lock out electrical power when performing repair or

maintenance on the equipment

Lock out air supply when performing maintenance or

repair on this equipment.

Ensure that guards are in place and secure to

equipment.

Do not operate the equipment without guards in place.

Always disconnect air supply and then exhaust system

air pressure before performing maintenance or repair

on the equipment.

Use caution when working with this equipment.

Never insert hands into installed equipment.

Never wear loose clothing or jewelry that may catch in

moving parts of the equipment.

Never alter, modify, or misuse the equipment.

Never use the machine for other than what it is

designed.

Never look directly into the internal machine light.

Bright light can damage the eye.

Never enter the electrical enclosure immediately after

turning OFF the machine power switch and

disconnecting the electrical power source. High voltage

electrical energy may be present in the electrical

enclosure. Read the warning label on the electrical

enclosure door before entering the system.

Pressure Release.

Caution –System may be pressurized.

IMPORTANT SAFETY INFORMATION

NOTE

Keep all decals clean and legible and replace them

when necessary.

DANGER

FIRE HAZARD

Do not use solvents or flammable liquids to clean the

machine. Solvents or flammable liquids could ignite and

cause serious injury or property damage.

CAUTION

Do not perform any service or maintenance other than

as described in this manual. Injury or damage to the

machine may result. Failure to observe these

precautions may result in injury or property damage.

409-35011

Rev C

3 of 54

TOOLING ASSISTANCE CENTER

CALL TOLL FREE 1-800-722-1111 (CONTINENTAL UNITED STATES AND PUERTO RICO ONLY)

The Tooling Assistance Center offers a means of providing technical assistance when required. In addition,

Field Service Specialists are available to provide assistance in the adjustment or repair of the application

equipment when problems arise which your maintenance personnel are unable to correct.

INFORMATION REQUIRED WHEN CONTACTING THE SUPPORT CENTER

When calling the Tooling Assistance Center regarding service to equipment, it is suggested that a person

familiar with the device be present with a copy of the manual (and drawings) to receive instructions. Many

difficulties can be avoided in this manner.

When calling the Tooling Assistance Center, be ready with the following information:

1. Customer name

2. Customer address

3. Person to contact (name, title,

telephone number, and extension)

4. Person calling

5. Equipment number (and serial number

if applicable)

6. Product part number (and serial number

if applicable)

7. Urgency of request

8. Nature of problem

9. Description of inoperative component(s)

10. Additional information/comments that

may be helpful

409-35011

Rev C

4 of 54

Figure 1

1. INTRODUCTION

This manual contains the safety, installation, setup, operation, and maintenance procedures for the TE

Connectivity High Voltage Cable Preparation (HV-CP) machine; PN 2335400-1, shown in figure 1. Throughout

this manual the left, right, and front side of the machine are defined as shown in figure 1.

The HV-CP is a semi-automatic, programmable, stand-alone machine designed to strip the cable jacket, braid,

and dielectric foil from round, multi-layer cables in preparation for the application of crimped terminals.

The machine can process cables with conductor cross-sectional areas ranging from 10mm2to 120mm2,

(8.8mm to 23mm outside diameter).

The machine and tooling have been designed to allow the processing of many cable types and sizes.

2. SAFETY

When reading this manual, pay particular attention to DANGER, CAUTION, and NOTE statements.

DANGER

Denotes an imminent hazard that may result in moderate or severe injury.

CAUTION

Denotes a condition that may result in product or equipment damage.

NOTE

Highlights special or important information.

Right Side

Left Side

Front

409-35011

Rev C

5 of 54

Standards

The HV-CP machine:

Is designed to comply with the European Machinery Directive 2006/42/EU.

Is designed to comply with the European EMC Directive 2014/30/EU.

Ear and Eye Protection

Sound Level

The following applies to the sound level produced by the HV-CP machine:

The sound pressure levels at the operator position are at the infeed < 69.3 dBA, uncertainty K is

6.3 dBA. The sound power level is 74.0 dBA, uncertainty K, 7.4 dBA.

NOTE

Operating conditions and procedures during sound testing are in accordance with EN 1218-4:2004 + A2:2009. Sound

pressure level at the operator position have been measured in accordance with EN ISO 11202:2010. The sound power level

has been determined in accordance with EN ISO 3746:2010. Uncertainty has been determined in accordance with EN ISO

4871:2009.

Protection

Eye and ear protection must be worn at all times when operating or servicing this machine.

Figure 2

Safety Covers/Guards

DANGER: Operating the machine with missing or removed components may result in moderate or

severe injury, including death.

All safety guards and doors must be in place and securely closed before operating the machine.

Figure 3

409-35011

Rev C

6 of 54

Power Connections

Main Electrical Power Disconnect

The main electrical power disconnect switch is located on the left side of the machine. The switch may be

locked in the “OFF” position,Lock Out/Tag Out (LOTO), to provide a safe condition for maintenance or

repair by inserting a padlock (not included) into the locking locations (see Figure 4).

DANGER: Never enter the electrical enclosure immediately after turning OFF the machine power switch and disconnecting

the electrical power source. High voltage electrical energy may be present in the electrical enclosure. Read the warning label

on the electrical enclosure door before entering the system.

Figure 4

Lock Out/Tag Out

Main Switch in

OFF position

409-35011

Rev C

7 of 54

Pneumatic Connections

1. Pneumatic Power Disconnect

A manually operated main air disconnect valve is located on the left side of the machine, below the

main electrical power switch. The main air valve will exhaust all residual air from the machine when

turned from the Supply (SUP) position to the Exhaust (EXH) position. The valve may be locked in the

EXH position (Lock Out/Tag Out) for maintenance or repair, by inserting a padlock (not included) into

the locking locations (see Figure 5)..

Figure 5

Lock Out/Tag Out

Main Switch in

EXH position

Main Air

Disconnect Valve

SUP position

409-35011

Rev C

8 of 54

2. Airlock Valve

If the incoming air supply volume is inadequate, the cable grip force could be reduced during the

vacuum cycle. The airlock valve is designed to improve the performance of the machine by

maintaining the grip pressure at all times (see Figure 6). It also allows the cable grip to be released, if

the guard door is opened and the red button on top of the airlock valve is depressed.

Figure 6

Airlock Valve

Pressure

Release Button

(Red Button)

409-35011

Rev C

9 of 54

Safety Interlocks

The machine has two safety interlocks; one located under the sliding Top Guard at the front-left corner of the

chassis (see Figure 7) and one located at the top-left inside corner of the Scrap Door (see Figure 8).

Sliding door Interlock

The interlock located under the sliding Top Guard (see Figure 7) is monitored by a dedicated safety relay.

When the Top Guard is opened, the four servo-motor axes will be disabled thru an STO (Safe Torque Off)

function (where the drives are still energized but their motor outputs are disabled) and the machine air

supply will be turned “OFF” and residual air pressure will be exhausted. Together, this effectively stops all

machine motion. When the Top Guard is closed, if the Emergency Stop relay is energized, the Interlock

safety relay will automatically re-enable the STO outputs and reapply air pressure.

CAUTION

The machine air supply to the valve controlling the scrap vacuum remains energized when the interlock is interrupted.

Disconnect and “Lock Out/Tag Out” the main air supply when performing maintenance or repair.

Figure 7

Top Guard Interlock Closed

Top Guard Interlock Open

409-35011

Rev C

10 of 54

Scrap door Interlock

Interrupting the scrap door interlock (see Figure 8) does not cause the disabling of the servos or the

dropping of air pressure but disables air to the vacuum system.

CAUTION

it is not advisable to open and/or empty the scrap bin while a cable prep cycle is in process.

NOTE

Resetting an interlock will not automatically re-start the machine.

Figure 8

Scrap Door Safety Interlock Open

Indice

Altri manuali TE Connectivity Cavi e connettori

TE Connectivity

TE Connectivity SolderSleeve CWT Series Guida di riferimento

TE Connectivity

TE Connectivity 025/250 Manuale utente

TE Connectivity

TE Connectivity AMPOWER 68361-1 Manuale utente

TE Connectivity

TE Connectivity AMPACT 83452 Series Manuale utente

TE Connectivity

TE Connectivity D5000-S Manuale utente

TE Connectivity

TE Connectivity M12 Guida utente

TE Connectivity

TE Connectivity CEELOK FAS-T Manuale utente

TE Connectivity

TE Connectivity D-150-Z Series Guida di riferimento

TE Connectivity

TE Connectivity RAYCHEM D-436 Series Guida di riferimento

TE Connectivity

TE Connectivity HVP800 2PHI 90 Manuale utente

TE Connectivity

TE Connectivity D369 Series Manuale utente

TE Connectivity

TE Connectivity Miniature AMP-IN Guida utente

TE Connectivity

TE Connectivity EP-II Manuale utente

TE Connectivity

TE Connectivity DYNAMIC 5000 Series Manuale utente

TE Connectivity

TE Connectivity MATE-N-LOK 2 794216-1 Manuale utente

TE Connectivity

TE Connectivity LJSU-4X Series Manuale utente

TE Connectivity

TE Connectivity AMP NETCONNECT 1499119-1 Manuale utente

TE Connectivity

TE Connectivity VAL-U-LOK 3-1586040-6 Manuale utente

TE Connectivity

TE Connectivity HVA630-5p Manuale utente

TE Connectivity

TE Connectivity RF COAXIAL Manuale utente

TE Connectivity

TE Connectivity Type N Manuale utente

TE Connectivity

TE Connectivity GS-IPC-500U Manuale utente

TE Connectivity

TE Connectivity RD-316 Manuale utente

TE Connectivity

TE Connectivity 55PC1122-16-9/96-9 Manuale utente

Manuali Cavi e connettori popolari di altre marche

Philips

Philips SWA6310 Manuale utente

StarTech.com

StarTech.com CRJ4550PK Manuale utente

Nohau

Nohau EMUL-IP2K-PC Manuale utente

Foxun

Foxun SX-SP144E-HD4K2K Manuale utente

Philips

Philips SWA3305W Manuale utente

opticis

opticis Stretch DVIM1-1P0x Manuale utente

Volkswagen

Volkswagen VAS 6558A Manuale utente

NEXIBO

NEXIBO N-13 Manuale utente

CYP

CYP PU-1H3HBTL Manuale utente

Allen-Bradley

Allen-Bradley 1784-u2dhp Manuale utente

Global Caché

Global Caché Flex Link Blaster Manuale utente

Hauppauge

Hauppauge USB-Live2 Manuale utente

Fenix

Fenix MPSV 15 Manuale utente

BEGA

BEGA 71 085 Manuale utente

Tesla

Tesla HPWC Manuale utente

GAMERON

GAMERON LUXURY TV CABLE Manuale utente

molex

molex Milli-Grid Dual row 87568 Series Manuale utente

Burndy

Burndy Continental Industries thermOweld CRE-7 Manuale utente
