TE Connectivity PRO-CRIMPER III Manuale utente

1 of 6

*Trademark

TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.

TOOLING ASSISTANCE CENTER

1-800-722-1111

PRODUCT INFORMATION

1-800-522-6752

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at www.te.com.

Instruction Sheet

408-4219

05 FEB 15 Rev C

Figure 1

1. INTRODUCTION

PRO-CRIMPER III Hand Crimping Tool Assembly 318452-1 consists of Die Assembly 318452-2 and

PRO-CRIMPER III Hand Crimping Tool Frame 354940-1. The hand tool assembly is used to crimp

COAXICON* 50-Ohm RF Series BNC Commercial Plug Connector 6-227079-8 onto Belden 89907

RG/U cable.

For connector assembly and cable stripping procedures, refer to Instruction Sheet 408-2798. For additional

information on the hand tool frame, refer to Instruction Sheet 408-9930.

Read these instructions thoroughly before using the hand tool assembly.

NOTE

Dimensions on this sheet are in millimeters [with inches in brackets]. Figures and illustrations are for reference only and are

not drawn to scale.

Reasons for reissue are provided in Section 9, REVISION SUMMARY.

2. DESCRIPTION (Figures 1 and 2)

The hand tool assembly features a tool frame with a stationary jaw and handle, a moving jaw, a moving handle,

and an adjustable ratchet that ensures full connector crimping.

The tool frame holds a die assembly with two crimping chambers. The die assembly features a wire anvil, an

insulation anvil, a wire indenter, and an insulation indenter. Die retaining pins and die retaining screws are used

to position and secure the dies in the tool frame.

Belden is a trademark.

PROPER USE GUIDELINES

Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low

volume applications. A wide selection of powered application equipment for extended-use, production operations is available.

PRO-CRIMPER* III Hand Crimping

Tool Assembly 318452-1 with

Die Assembly 318452-2

The PRO-CRIMPER III Hand Crimping Tool is a “Commercial” grade tool

and is designed primarily for field installation, repair, maintenance work, or

prototyping in industrial, commercial, or institutional applications. Product

crimped with this tool will meet the crimp height requirement for hand tools

in the appropriate 114 series specification, but may not comply with other

feature parameters of the specification. TE Connectivity offers a variety of

tools to satisfy your performance requirements. For additional information,

contact the Tooling Assistance Center at 1-800-722-1111.

PRO-CRIMPER III

Hand Crimping Tool

Assembly Frame

354940-1 (408-9930)

Stationary Jaw

Back of Tool

(Wire Side)

Die Assembly

318452-2

Moving Jaw

Ratchet Adjustment

Wheel

Stationary

Handle

Moving

Handle

ORIGINAL INSTRUCTIONS

408-4219

Rev C

2 of 6

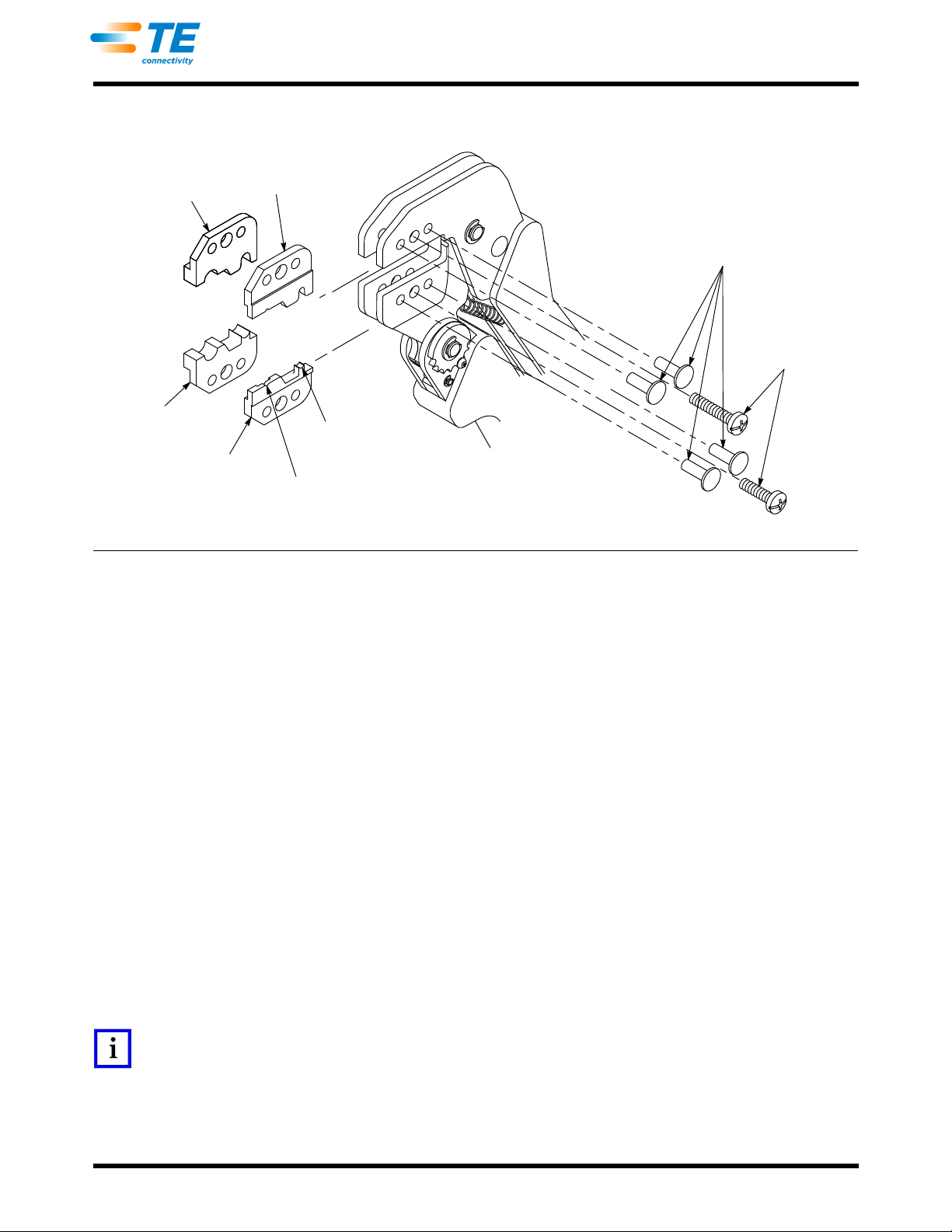

Figure 2

3. INSTALLATION AND REMOVAL OF DIE ASSEMBLY (Figure 2)

1. Open the tool handles and remove the two die retaining screws from the tool jaws.

2. Place the wire anvil and insulation anvil so that their chamfered sides and their marked surfaces face

outward, when mounted in the moving jaw of the tool frame.

3. Insert the two die retaining pins.

4. Insert the short die retaining screw through the jaw and through both anvil dies, and tighten the screw

just enough to hold the dies in place. Do not tighten the screw completely at this time.

5. Place the wire indenter and insulation indenter so that their chamfered sides and their marked

surfaces face outward, when mounted in the stationary jaw of the tool frame.

6. Insert the two die retaining pins.

7. Insert the long die retaining screw through the jaw and through both indenter dies, and tighten the

screw just enough to hold the dies in place. Do not tighten the screw completely at this time.

8. Carefully close the tool handles, making sure that the anvils and indenters align properly. Continue

closing the tool handles until the ratchet in the tool frame has engaged sufficiently to hold the anvils

and indenters in place, then tighten both die retaining screws.

9. To remove, close the tool handles until the ratchet releases, remove the two die retaining screws and

the four die retaining pins, and slide the anvils and indenters out of the tool jaws.

4. CRIMPING PROCEDURE

NOTE

This tool is provided with a crimp adjustment feature. Initially, the crimp height should be verified as specified in Figures 5

and 6. Refer to Section 5, Inspection, and Section 6, Crimp height Adjustment, to verify crimp before using the tool to crimp

desired connectors and wire sizes.

Slide the ferrule onto the cable and strip the cable according to the dimensions provided in the instructions

packaged with the connector. Take care not to nick or cut wire strands. Proceed as follows:

Wire Indenter

Insulation

Indenter

Die Retaining

Pins

Die Retaining

Screws

Wire Anvil

Insulation

Anvil

Ferrule Crimping

Chamber

Center Contact

Crimping Chamber

408-4219

Rev C

3 of 6

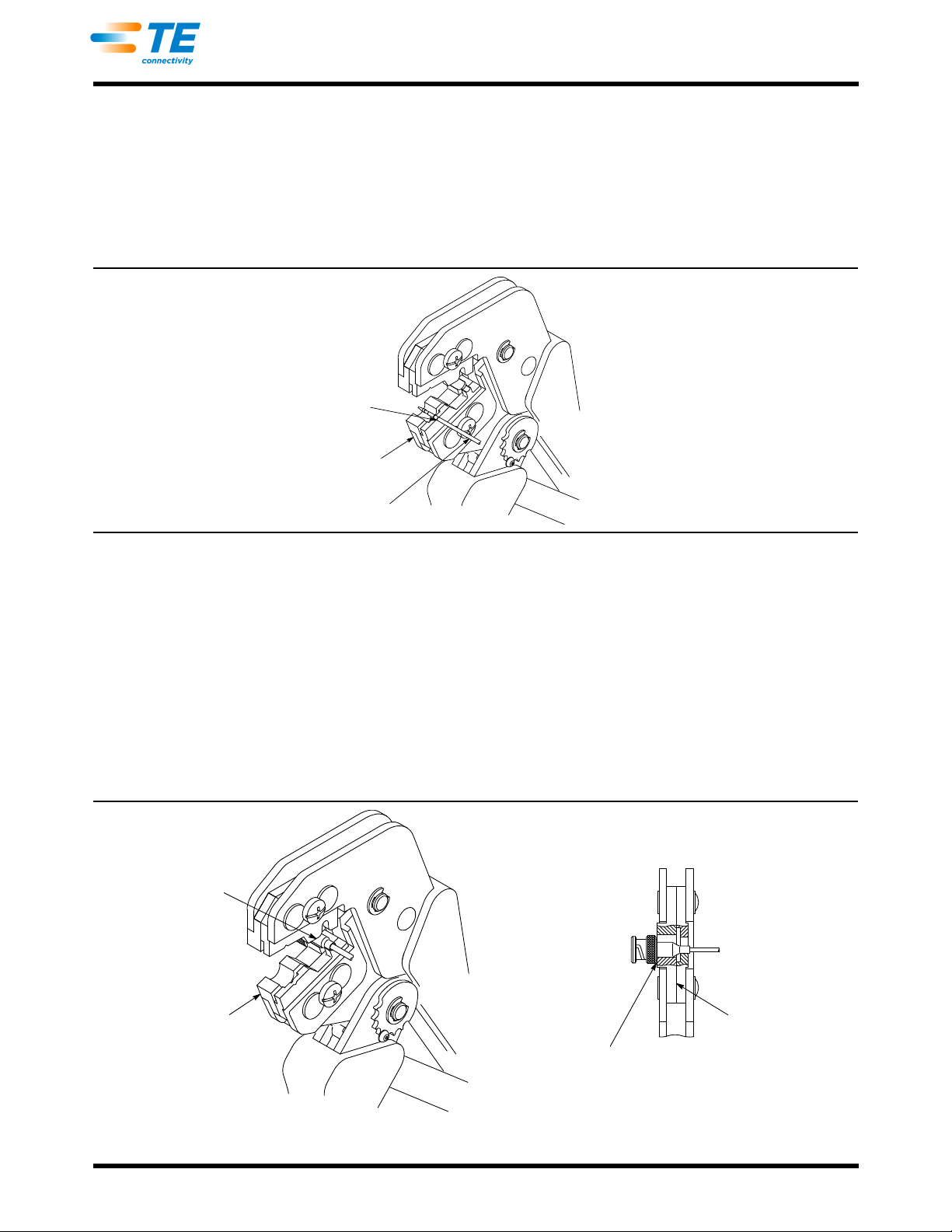

4.1. Center Contact (Figure 3)

1. Slide center contact onto stripped conductor. Insert center contact assembly into the partially closed

center contact crimping chamber on the anvil die. Make sure the center contact flange is against the

edge of the die as shown in Figure 3.

2. While holding the cable in place, crimp the center contact by closing the tool handles until the ratchet

releases.

3. Allow the handles to open fully, and remove the crimped center contact from the die assembly.

Figure 3

4.2. Ferrule (Figure 4)

1. Flare the cable braid and insert the crimped center contact into the connector body until the cable

dielectric is against the dielectric inside the connector body. The flared braid will then fit over the

support sleeve of the connector body.

2. Slide the ferrule forward over the braid until the ferrule is against the connector body.

3. Place the ferrule in the crimping chamber on the anvil die so that the shoulder of the connector body is

against the edge of the die. Refer to Figure 4.

4. Holding the assembly in place, close the tool handles until the ratchet releases.

5. Allow the handles to open fully, and remove the crimped assembly from the die assembly.

Figure 4

Center Contact Flange

Against Edge of Die

Anvil Die

Stripped Cable

Center Contact Crimp

Ferrule

Anvil Die

Connector Shoulder

Against Edge of Die

Anvil Die

Ferrule Crimp

Cross-Sectional

View

408-4219

Rev C

4 of 6

5. INSPECTION

5.1. Visual Inspection

The crimping dies should be inspected on a regular basis to ensure that they have not become worn or

damaged. Inspect the crimping chambers for flattened, chipped, worn, or broken areas. If damage or abnormal

wear is evident, the dies must be replaced. See Section 8, DIE REPLACEMENT.

5.2. Periodic Inspection

Center Contact Crimp Height Inspection

This inspection requires the use of a micrometer with a modified anvil as shown in Figure 5.

NOTE

Crimp height inspection is performed through the use of a micrometer with a modified anvil, commonly referred to as a crimp

height comparator. TE does not market crimp height comparators. Refer to Instruction Sheet 408-7424 for detailed information

on obtaining and using a crimp height comparator.

Proceed as follows to check the crimp height of the center contact:

1. Select the center contact for the connector.

2. Refer to Section 4, CRIMPING PROCEDURE, and crimp the center contact accordingly.

3. Using a crimp height comparator, measure the crimp height as shown in Figure 5. If the crimp height

conforms to that shown, the die assembly is considered dimensionally correct. If not, return the dies to

TE for evaluation and repair (refer to Section 8, DIE REPLACEMENT).

Figure 5

Gaging the Ferrule Crimping Chamber

This inspection requires the use of a plug gage conforming to the dimensions in Figure 6. TE does not

manufacture or market these gages. To gage the ferrule crimping chamber, proceed as follows:

1. Close the jaws until the dies have bottomed, then HOLD the frame handles in this position. Do NOT

force the dies beyond initial contact.

2. Align the GO element with the ferrule crimping chamber. Push the element straight into the crimping

chamber without using force. The GO element must pass completely through the crimping chamber.

3. Align the NO-GO element and try to insert it straight into the same crimping chamber. The NO-GO

element may start entry, but must not pass completely through.

4. Repeat Steps 2 and 3 for the insulation ferrule section of the crimping chamber.

NOTE

Insert the gage element for the insulation ferrule section into the back of the crimping chamber. The GO element for this

section will not pass completely through the crimping chamber.

Position Point

on Center of

Wire Barrel

Modified Anvil

1.206-1.333

[.0475-.0525]

Measuring Center Contact Crimp Height

408-4219

Rev C

5 of 6

CRIMP

SECTION

GAGE ELEMENT DIMENSIONS

RADIUS (Max) “R”

WIDTH (Max) “W”

NO-GO

Ferrule

5.182-5.189 [.2040-.2043]

5.433-5.436 [.2139-.2140]

2.51 [.099]

5.03 [.198]

Insulation Guide

4.343-4.351[.1710-.1713]

4.798-4.801 [.1889-.1890]

2.10 [.083]

4.22 [.166]

Figure 6

If the crimping chamber conforms to the gage inspection, the dies are considered dimensionally correct, and

should be lubricated with a THIN coat of any good SAE 20 motor oil. If not, the dies must be replaced before

returning the die assembly to service (see Section 8, DIE REPLACEMENT).

For additional information regarding the use of a plug gage, refer to Instruction Sheet 408-7424.

6. RATCHET (CRIMP HEIGHT) ADJUSTMENT (Figure 7)

The frame assembly ratchet mechanism features an adjustment wheel with numbered settings. If the crimp

height is not acceptable, adjust the ratchet as follows:

1. Remove the lockscrew from the ratchet adjustment wheel.

2. With a screwdriver, adjust the ratchet wheel from the opposite side of the frame.

3. Observe the ratchet adjustment wheel. If a tighter crimp is required, rotate the adjustment wheel

COUNTERCLOCKWISE to a higher-numbered setting. If a looser crimp is required, rotate the

adjustment wheel CLOCKWISE to a lower-numbered setting.

4. Replace the lockscrew.

5. Make a sample crimp and measure the crimp height. If the crimp height is acceptable, secure the

lockscrew. If the dimension is unacceptable, remove lockscrew and continue to adjust the ratchet, and

again measure a sample crimp.

Figure 7

7. MAINTENANCE

Ensure that the tool and dies are clean by wiping them with a clean, soft cloth. Remove any debris with a clean,

soft brush. Do not use objects that could damage the tool. When not in use, keep handles closed to prevent

objects from becoming lodged in the crimping dies, and store in a clean, dry area.

Suggested Plug Gage for

Ferrule Crimping Chamber

NO-GO DIM.

Screwdriver

Ratchet Adjustment

Wheel

Lockscrew (Typ)

408-4219

Rev C

6 of 6

8. DIE REPLACEMENT

Customer-replaceable parts are shown in Figure 8. Spare parts or the die assembly should be stocked and

controlled to prevent lost time when die replacement is necessary.

In addition a PRO-CRIMPER III Hand Crimping Tool Repair Kit 679221-1 is available. The repair kit includes a

replacement nut and a variety of pins, rings, screws, and springs.

Order replaceable parts through your TE Representative, or call 1-800-526-5142, or send a facsimile of your

purchase order to 1-717-986-7605, or write to:

CUSTOMER SERVICE (038-035)

TYCO ELECTRONICS CORPORATION

PO BOX 3608

HARRISBURG PA 17105-3608

9. REVISION SUMMARY

Since the previous release of this instruction sheet, the following changes were made:

Updated document to corporate requirements

Deleted duplicate Section 6 and renumbered

Changed dimensions in Figure 8

CUSTOMER-REPLACEABLE PARTS

ITEM

PART NUMBER

DESCRIPTION

QTY PER ASSEMBLY

318432-2

INDENTER, Wire

318430-2

ANVIL, Wire

318431-3

INDENTER, Insulation

318429-3

ANVIL, Insulation

679231-1

PIN, Die Retaining

Figure 8

1.27 ±0.06

[.050 ±.0025]

4.57 ±0.23

[.180 ±.009]

5.31 ±0.13

[.209 ±.005]

47.62

[1.88]

11.63

[.458]

Weight: 227 g [8 oz.]

Altri manuali per PRO-CRIMPER III

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TE Connectivity Utensili per crimpatura

TE Connectivity

TE Connectivity PRO-CRIMPER III Manuale utente

TE Connectivity

TE Connectivity 2368740-1 Manuale utente

TE Connectivity

TE Connectivity ERGOCRIMP 0-1579001-3 Manuale utente

TE Connectivity

TE Connectivity 58425 Series Manuale utente

TE Connectivity

TE Connectivity 58075-1 Manuale utente

TE Connectivity

TE Connectivity 58046-1 Manuale utente

TE Connectivity

TE Connectivity SDE Manuale utente

TE Connectivity

TE Connectivity 2217480 Series Guida di riferimento

TE Connectivity

TE Connectivity AMPOWER 68361-1 Manuale utente

TE Connectivity

TE Connectivity CERTI- CRIMP Series Manuale utente

TE Connectivity

TE Connectivity SOLISTRAND 69097 Manuale utente

TE Connectivity

TE Connectivity PRO-CRIMPER III Manuale utente

TE Connectivity

TE Connectivity 220189 Series Manuale utente

TE Connectivity

TE Connectivity 90281-1 Manuale utente

TE Connectivity

TE Connectivity SDE-SA PN 2063534-1 Manuale utente

TE Connectivity

TE Connectivity IDC Hand tool RAST 2.5 Manuale utente

TE Connectivity

TE Connectivity SDE-SA Manuale utente

TE Connectivity

TE Connectivity 2392570-1 Manuale utente

TE Connectivity

TE Connectivity 2378724-1 Manuale utente

TE Connectivity

TE Connectivity SDE-SA Manuale utente

TE Connectivity

TE Connectivity AT-65 Manuale utente

TE Connectivity

TE Connectivity Positive Lock A Manuale utente

TE Connectivity

TE Connectivity SDE-SA Manuale utente

TE Connectivity

TE Connectivity MR-1 Manuale utente

Manuali Utensili per crimpatura popolari di altre marche

Panduit

Panduit CT-1000 Guida per l'amministratore

JST

JST CS 10 Manuale utente

molex

molex 63811-5100 Manuale utente

Danfoss

Danfoss ET4200 Manuale utente

Tyco Electronics

Tyco Electronics PRO-CRIMPER III Manuale utente

molex

molex 63825-3000 Manuale utente

Tyco Electronics

Tyco Electronics 69156-1 Manuale utente

CRH

CRH CRL CBLHCT1 Manuale utente

Emerson

Emerson Klauke ES 105CFM Manuale utente

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Manuale di istruzioni

Danfoss

Danfoss ET4350 Manuale utente

Milwaukee

Milwaukee M18 Manuale utente

HOGERT

HOGERT HT1P169 Manuale utente

Textron

Textron ESG105L Manuale utente

Tyco Electronics

Tyco Electronics 90035-3 Manuale utente

Emerson

Emerson Klauke ES 20RMCCFB Manuale utente

Continental Refrigerator

Continental Refrigerator PC150HD Manuale utente

Tyco Electronics

Tyco Electronics CERTI-CRIMP 90418-1 Manuale utente
