Teac P-55 AutoPrinter Manuale utente

P-55

DISC LABEL PRINTER

INSTRUCTION MANUAL

REV : N

*This manual applies to [Model P-55-110/111/120/121]

SECTION 1: Table of Contents

SECTION 1: Table of Contents.................................................................................................................2

SECTION 2: IMPORTANT SAFETY INSTRUCTIONS .............................................................................3

SECTION 3: IMPORTANT SAFETY INSTRUCTIONS .............................................................................4

SECTION 4: Introduction..........................................................................................................................5

1P-55 Features................................................................................................................................5

2PC Requirements ..........................................................................................................................6

3Features of PHOTO Ribbon and COLOR Ribbon..........................................................................6

SECTION 5: Unpacking and Inspection ...................................................................................................7

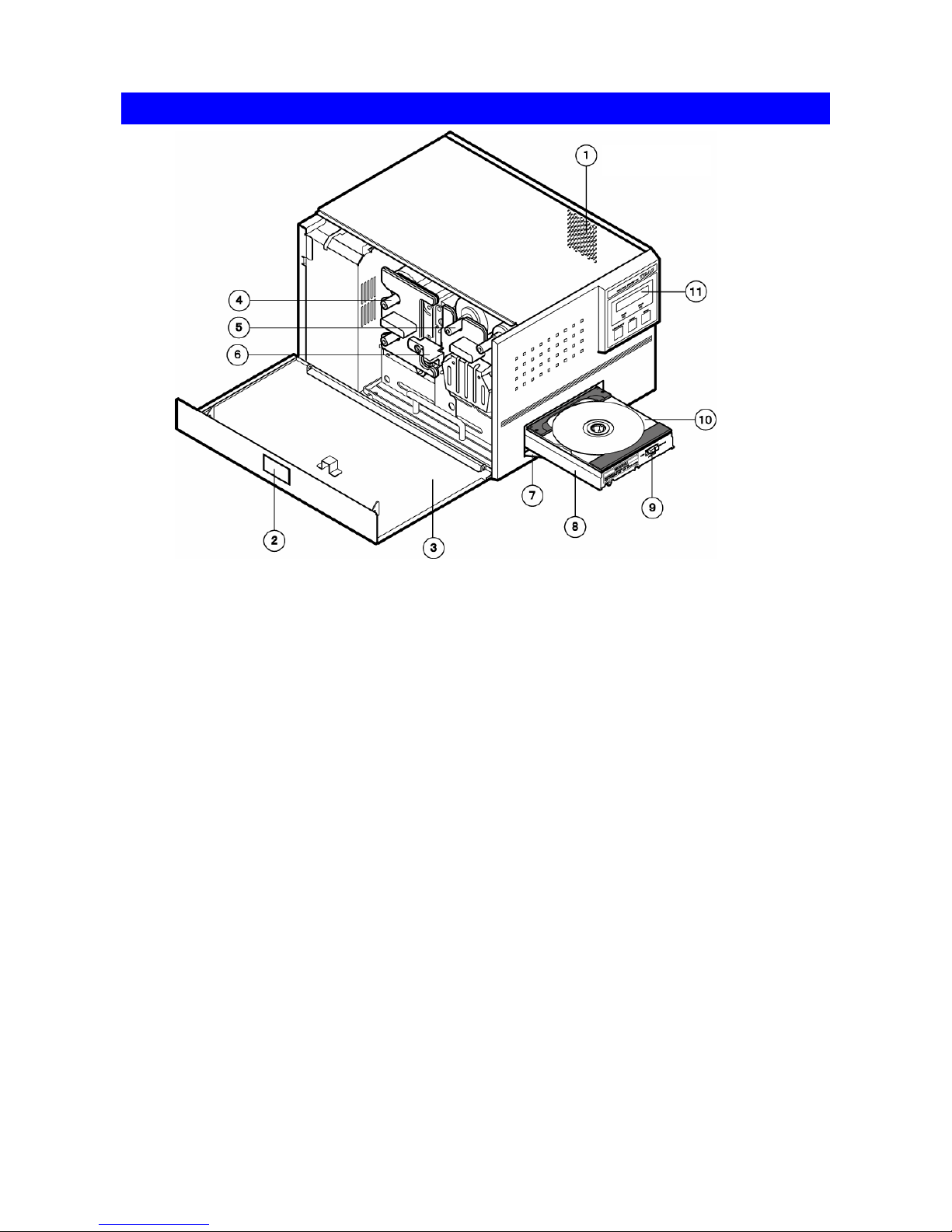

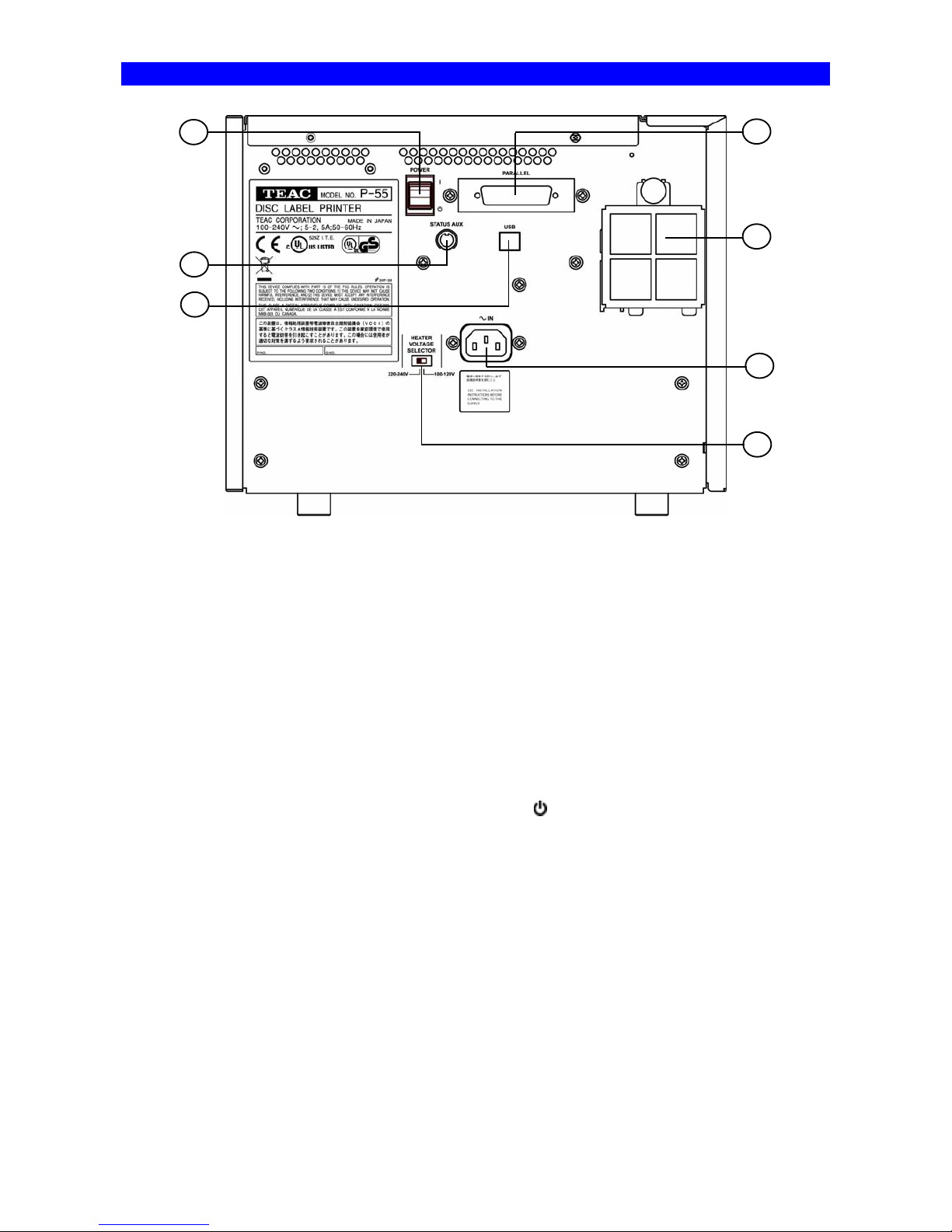

SECTION 6: Identifying Parts...................................................................................................................8

SECTION 7: Choosing Adequate Location.............................................................................................10

SECTION 8: Installing and Removing Shipping Protection Materials.....................................................11

SECTION 9: Setting Parallel Interface Mode on PC...............................................................................12

SECTION 10: Installing Disc Label Editor ..............................................................................................13

SECTION 11: Connections.....................................................................................................................15

Connecting PC to P-55 ................................................................................................................15

SECTION 12: Control Panel Features....................................................................................................16

1Choosing between USB Port and Parallel Port............................................................................17

2Indicating Operation State ...........................................................................................................18

SECTION 13: Installing Printer Driver ....................................................................................................19

SECTION 14: Error Messages Explained...............................................................................................21

SECTION 15: Loading Ribbons..............................................................................................................25

1Opening Side Door ......................................................................................................................25

2Loading Ink Ribbon......................................................................................................................26

3Loading Transfer Ribbon .............................................................................................................28

4Checking Remaining Ribbon Amount ..........................................................................................31

SECTION 16: Loading Print Media.........................................................................................................32

SECTION 17: Getting Label Print Job Started........................................................................................33

1Getting Label Print Job Started....................................................................................................33

2Correcting Displacement and Hue Shift Between Colors.............................................................42

3Correcting Colors.........................................................................................................................48

4Beware ........................................................................................................................................55

SECTION 18: Removing Disc Label Editor and Printer Driver ...............................................................57

Uninstalling P-55 Related Information .........................................................................................62

SECTION 19: Maintenance ....................................................................................................................63

SECTION 20: Shipping...........................................................................................................................67

SECTION 21: Specifications...................................................................................................................68

1Printer ..........................................................................................................................................68

2General........................................................................................................................................68

3External Dimensions....................................................................................................................69

SECTION 22: Options ............................................................................................................................70

1Ink and Transfer Ribbons.............................................................................................................70

2Ribbon Cartridges........................................................................................................................70

3Authorized Media.........................................................................................................................70

4Miscellaneous..............................................................................................................................70

SECTION 23: Contact Information .........................................................................................................71

SECTION 2: IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong is

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11) Only use attachments/accessories specified by

the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

• Do not expose this apparatus to drips or

splashes.

• Do not place any objects filled with liquids, such

as vases, on the apparatus.

• Do not install this apparatus in a confined space

such as a bookcase or similar unit.

• The apparatus draws nominal non-operating

power from the AC outlet with its POWER switch

in the off position.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

This appliance has a serial number

located on the rear panel. Please record

the model number and serial number

and retain them for your records.

Modelnumber

Serialnumber

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

SECTION 3: IMPORTANT SAFETY INSTRUCTIONS

[Shut-off Timing After Printing]

If you turn off the printer within 10 seconds after a print operation is completed, the thermal head may not

be moved back in place.

With the thermal head not in place, you cannot remove the ribbon cartridges from the printer.

If you try too hard to remove them with such a condition, the printer may be damaged.

Before you turn the unit off, make sure that you keep it running more than 10 seconds after the print

operation is completed.

TO THE USER

This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses,

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

is likely to cause harmful interference in which

case the user will be required to correct the

interference at his own expense.

CAUTION

Changes or modifications to this equipment not

expressly approved by TEAC CORPORATION

for compliance could void the user’s authority to

operate this equipment.

For the consumers in Europe

WARNING

This is a Class A product. In a domestic

environment, this product may cause radio

interference in which case the user

may be required to take adequate measures.

Pour les utilisateurs en Europe

AVERTISSEMENT

Il s’agit d’un produit de Classe A. Dans un

environnement domestique, cet appareil peut

provoquer des interférences

radio, dans ce cas l’utilisateur peut être amené à

prendre des mesures appropriées.

Für Kunden in Europa

Warnung

Dies is eine Einrichtung, welche die

Funk-Entstörung nach Klasse A besitzt. Diese

Einrichtung kann im Wohnbereich

Funkstörungen versursachen ; in diesem Fall

kann vom Betrieber verlang werden,

angemessene Maßnahmen

durchzuführen und dafür aufzukommen.

For U.S.A

Industry Canada’s Compliance Statement:

This Class A digital apparatus complies with Canadian ICES-003.

Cet a

areil numéri

ue de la classe A est conforme à la norme NMB-003 du Canada.

For Canada

CAUTION

SECTION 4: Introduction

Thank you for purchasing the TEAC P-55.

The P-55 is a label printer suited to printing a high quality of label on a moderate amount of CD or DVD.

This manual provides information on installing the P-55, connecting it to your PC, loading ribbons, etc.

When necessary, please refer to your PC's manual, too.

Please read this manual in full before using your P-55 to take a maximum advantage of its capabilities.

1 P-55 Features

- Full-color, high-quality print

- Photo-quality print with full color 256 gradation levels per color offered by re-transfer printing

- 400dpi high precision and high definition image quality ensured

- Two printing methods available

With the P-55, you can print image using either PHOTO ribbon for dye-sublimation printing or COLOR

ribbon for thermo-fusible printing depending on the image type or purposes.

- If you want to reproduce subtle tonal gradations as seen in photos,

Use PHOTO ribbon, which is excellent in gradation reproductivity.

- If you want to print text on black background,

Use COLOR ribbon, which is best suited to expressing color tone differences.

The P-55 automatically identifies the type of ribbons loaded (*1) and the print setting for the ribbon is

configured.

*1 You must load a correct combination of ink and transfer ribbons into the P-55. If you load a wrong

combination of ribbons, an error message is displayed on the front panel.

- Protective coating applied during print process

The P-55's overcoating capability produces glossy prints free from blurriness and outstanding in

resistance against moisture and scratch.

Excellent weatherproofness and scratchproofness followed by high durability;

Clear coating applied over the surface of the disc printed with the P-55 prevents scratch, moisture and

UV damage, and thus keeps glossy prints free from blurriness and color fade-out with the years.

- Best also for barcode prints (using COLOR ribbon)

When printing bar codes on the label surface, your concern may be with water resistance and durability,

as well as with fine black and white precision prints. The P-55 produces delicate, high-precision black

and white prints provided with durability and resistance against water thanks to its COLOR ribbon print

and overcoating capabilities.

- Printable area from inner edge to outer circular edge

The P-55 can print on the disc surface from the outside edge of the clear inner hub to the outer edge of

a disc (*2) without losing any of the content you want to print.

*2 It is not guaranteed that the P-55 can print a disc from edge to edge. Print performance depends

on the print range that each media manufacturer recommends.

- [Optional ribbons]

COLOR (+P) ribbon is another type of COLOR ribbon available. It can be used for ink jet printable discs

and the like other than our recommended thermal printable discs: (*3) (*4).

*3 This ribbon does not support all kinds of discs.

Neither printing nor recording performance is supported if a disc that is not any of our

recommended thermal printable discs is used for the P-55. You need to check in advance on your

own on what discs the P-55 can print. (For details, contact our sales team.)

*4 To use the COLOR (+P) ribbon, the firmware on the P-55 must be ver.52.00 or later or you need

the utility software ver.2.0.0.10 or later. The COLOR (+P) ribbon is not supported if you use any

version of the firmware or software older than the above versions.

SECTION 4: Introduction

2 PC Requirements

PC: One running Windows 2000 or Windows XP

Memory: 256MB; 100MB or more space on your hard disk drive

(An appropriate space for storing image data is required)

Operating System: Windows 2000/Windows XP

USB or parallel port on PC required.

3 Features of PHOTO Ribbon and COLOR Ribbon

PHOTO ribbons work the best for high-resolution prints such as photos.

COLOR ribbons are suitable for general-purpose prints including text and illustrations.

Labels printed with the P-55 using PHOTO or COLOR ribbon are highly weatherproofed.

Keep in mind the following when storing ribbons.

1) Store ribbons as they were packed.

2) Avoid high temperature, high humidity and direct sunlight.

(allowable temperature range: 5-30°C, allowable humidity range: 20-80%)

*Operating the P-55 outside the specified temperature range may cause trouble with the system.

3) No condensation is allowed.

4) For high print quality, it is recommended ribbons be used up within 6 months of first opening

the packs.

5) Avoid dust after opening the package.

6) Do not apply any shock to the product unpacked. Applying shock to the product may

misalign the spools of ribbons, resulting in improper printing.

NOTE

SECTION 5: Unpacking and Inspection

The package contains the following items as well as the P-55 main unit. Please make certain that all the

items are present. If anything is missing or damaged, contact your local dealer.

Accessories for P-55

"Before Getting Started" x1

Utility Software CD-ROM x1

(including Operation Manual, Printer Driver and

Disc Label Editor)

Printed by P-55 (PHOTO)

Ribbon set x1

(Set of ink ribbon and transfer ribbon)

Label print sample

Printed by P-55 (COLOR)

Blank media (CD-R) 10-pack of discs x1

Printer cable x1, USB cable x1

AC power cable

(For U.S.A. and Canada)

(For Europe)

Cleaning kit x1

*Note

*Note: The cleaning kit is optional.

SECTION 6: Identifying Parts

1 Exhaust Fan (on the right side)

This is an air outlet for dropping the temperature inside the unit. Do not block this opening with foreign

objects or insert them into the unit through the opening. Failure to follow these instructions may result in

damage to the unit and injury to the operator. Place the unit in an adequate location. See SECTION

7:Choosing Adequate Location.

2 Side Door Unlocking Button

Pressing this button opens the side door. The side door is locked when the unit is turned on.

(For how to unlock the lock when the unit is turned on, see SECTION 15: Loading Ribbons.)

3 Side Door

You need to open this door when removing the cartridges to replace ink and transfer ribbons or perform

maintenance work. Keep this door closed when the unit is in operation.

4 Ink Ribbon Cartridge

This is a cartridge for ink ribbon.

(As shipped from the factory, the cartridge does not contain any ink ribbon.)

5 Transfer Ribbon Cartridge

This is a cartridge for transfer ribbon.

(As shipped from the factory, the cartridge does not contain any transfer ribbon.)

6 Lock Lever

This is for locking the ribbon cartridges in place.

7 Tray Door

The tray slides out. Do not place any objects in front of this door.

8 Tray

9 Tray Adapter Lock Switch

10 Tray Adapter

11 Control Panel

(LCD, indicators and buttons explained in SECTION 12: Control Panel Features.)

（Right side）

SECTION 6: Identifying Parts

12 STATUS AUX Connector (optional)

This connector allows connection of the P-55 to an external device for the combined use with the robotics

system.

*Please contact us before use. (See SECTION 23: Contact Information.)

13 Parallel Port Multi-connector

This provides a parallel interface between your PC's printer port and the P-55 over the supplied printer

cable.

14 Intake Fan (with filter)

This opening is for dropping the temperature inside the unit. Do not block the opening with foreign objects

or insert them into the unit through the opening. Failure to follow these instructions may result in damage

to the unit and injury to the operator. Place the unit in an adequate location.

15 Power Switch

This rocker switch turns power to the unit on and off. To turn on the unit/printer, press the “ |” end of the

switch. of the switch. To turn off the unit/printer, press the “ ” end.

(The internal cooling fan stops only in about 10-20 minutes after the unit switches into the

Standby mode.)

16 AC Power Input Socket

Plug in here the power cable. (To drop the temperature inside the unit, the fan continues to revolve for

about 10 to 20 minutes after the power is shut off to the unit. For this interval of time, do not unplug the

power cable.)

17 Heater Voltage Selector Switch

This selects the voltage to supply to the internal heater.

Selecting a wrong voltage may cause the printer to malfunction.

For U.S.A. and Canada

The Heater Voltage Selector Switch is preset to “100-120V” at the factory.

For Europe

The Heater Voltage Selector Switch is preset to “220-240V” at the factory.

18 USB 2.0 Compatible Connector (Hi-Speed support)

(*Note) USB 2.0 interface is compatible with USB 1.1.

To take advantage of the USB 2.0 high speeds, your PC needs to have USB 2.0 capability.

15 13

SECTION 7: Choosing Adequate Location

- The P-55 is a precision machine. Be careful not to drop or expose the unit to severe impact (it weighs

more than 22 kg).

- The P-55 has been shipped with some internal parts fixed in place with special materials to prevent the

unit from being damaged during transportation. Be sure to remove all shipping materials before use by

referring to SECTION 8: Installing and Removing Shipping Protection Materials.

- The Heater Voltage Selector Switch is preset at the factory according to the sales region.

Selecting a wrong voltage may cause the printer to malfunction.

For U.S.A. and Canada: The Heater Voltage Selector Switch is preset to “100-120V” at the factory.

For Europe: The Heater Voltage Selector Switch is preset to “220-240V” at the factory.

- Avoid placing objects in front of the disc tray, or they might cause damage to the tray driving

mechanism.

- Ambient temperatures should be between 15 °C and 30 °C and humidity should be between 30% and

70%.

- Inside the P-55 there are components that cause heat buildup (such as thermal print head and heat

roller). So you should be concerned with air circulation.

Do not block the lateral exhaust opening and the rear intake opening with walls or other objects

(a free space of more than 10cm/4 inches is a must). Heat trapped inside the unit might result in

injury to yourself or others as well as damage to the unit and degradation of print quality.

- Place the P-55 on a stable, horizontal surface free from mechanical vibration or shock.

- To maintain consistent print quality, avoid places where temperatures sharply change because of the

direct sunlight or nearby heating apparatuses.

- Avoid dusty places, or the print quality might deteriorate or the printer might suffer failures.

- Never install the P-55 close to windows through which rain droplets can sneak in, which might cause

malfunctioning.

Areas indicated by hazardous heat warning labels are very hot while the power is turned on or

just after the power is turned off.

The temperature of the ribbon cartridges reaches about 30 °C to 35 °C while the printer is running or

right after the power is shut off. On such conditions, the heat cover is at a temperature of about 74 °C to

80 °C. Touching the heat cover or around the cover may burn your skin or injure you.

(To cool the printer to 30 °C or below, leave it as it is for about 40 minutes after the power is shut off to

the unit.)

Keep your fingers or clothes such as sleeves away from the tray while it is opening or closing.

Failure to follow this instruction may cause your fingers or part of your body to get caught in

the tray and injured.

DO NOT turn on the P-55 without removing shipping protection materials. Failure to follow the

instruction may cause the unit to malfunction.

WARNING

CAUTION

WARNING

CAUTION

Altri manuali per P-55 AutoPrinter

Indice

Altri manuali Teac Etichettatrice

Teac

Teac P-55 AutoPrinter Manuale utente

Manuali Etichettatrice popolari di altre marche

Brother

Brother P-Touch 2420PC Manuale utente

newell

newell Dymo LabelManager 210D Manuale utente

Brother

Brother TD-4000 Manuale utente

U-Line

U-Line BROTHER H-8754 Manuale utente

Tharo Systems

Tharo Systems H-435+ Manuale utente

Brother

Brother E300 Manuale utente

Godex

Godex RT700 SERIES Manuale utente

ID Technology

ID Technology 252 Manuale utente

Labelmate

Labelmate MC-11 Manuale utente

CAB

CAB XD4M/300 Manuale utente

Avery Dennison

Avery Dennison Pathfinder 6057 Manuale di servizio

Brother

Brother P-touch PT-9700PC Manuale utente

TSC

TSC PEX1000 Series Manuale utente

Adkins

Adkins Label Master Manuale utente

Epson

Epson LabelWorks LW-400 Manuale utente

Primera

Primera 510212 Manuale utente

Brady

Brady BradyPrinter S3100 Manuale utente

DuraLabel

DuraLabel LabPRO Manuale utente
