Teac SB21204BI Manuale utente

76cm 2.1CH BT Soundbar with built-in Subwoofer

SB21204BI

Call us between Monday to Friday - 8.30AM to 5PM

AEST

*Please have your purchase receipt and the product's

serial number ready

For other enquiries and support please visit

www.teac.com.au

TEAC Warranty Service Hotline

1300 553 315

USER MANUAL

IMPORTANT SAFETY INSTRUCTIONS

• Heed all warnings and follow all instrucons.

• Do not use this soundbar near water.

• Clean the unit with a dry cloth.

• Do not block any venlaon openings. Install in accordance with the

manufacturer’s instrucons.

• Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including ampliers) that produce heat.

• Use only aachments / accessories specied by the manufacturer.

• To reduce the risk of electric shock, do not remove cover (or back).

There are no user serviceable parts inside.

• Do not expose the soundbar to dripping or splashing liquids.

Do not place objects lled with liquids (such as vases) on the soundbar.

• Only use aachments/accessories speciedby the manufacturer.

• Unplug this soundbar during light storms or when unused for long periods of me.

• Refer all servicing to qualied service personnel. Servicing is required when the

soundbar has been damaged in a way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen onto the soundbar, the soundbar has

been exposed to the rain or moisture, does not operate normally or has been dropped.

• No naked ame sources, such as lit candles, should be placed on the soundbar.

• Dispose of used electrical products and baeries safely according to your local

authority and regulaons.

RECYCLING ELECTRICAL PRODUCTS

You should now recycle your waste electrical goods and

in doing so help the environment.

This symbol means an electrical product should

not be disposed of with normal household waste.

Please ensure it is taken to a suitable facility for

disposal when nished with.

RISK OF ELECTRIC SHOCKD O

NOTO PEN

CAUTION

IMPORTANT:Please reada ll instructions carefully

before usea nd keep forf uturer eference.

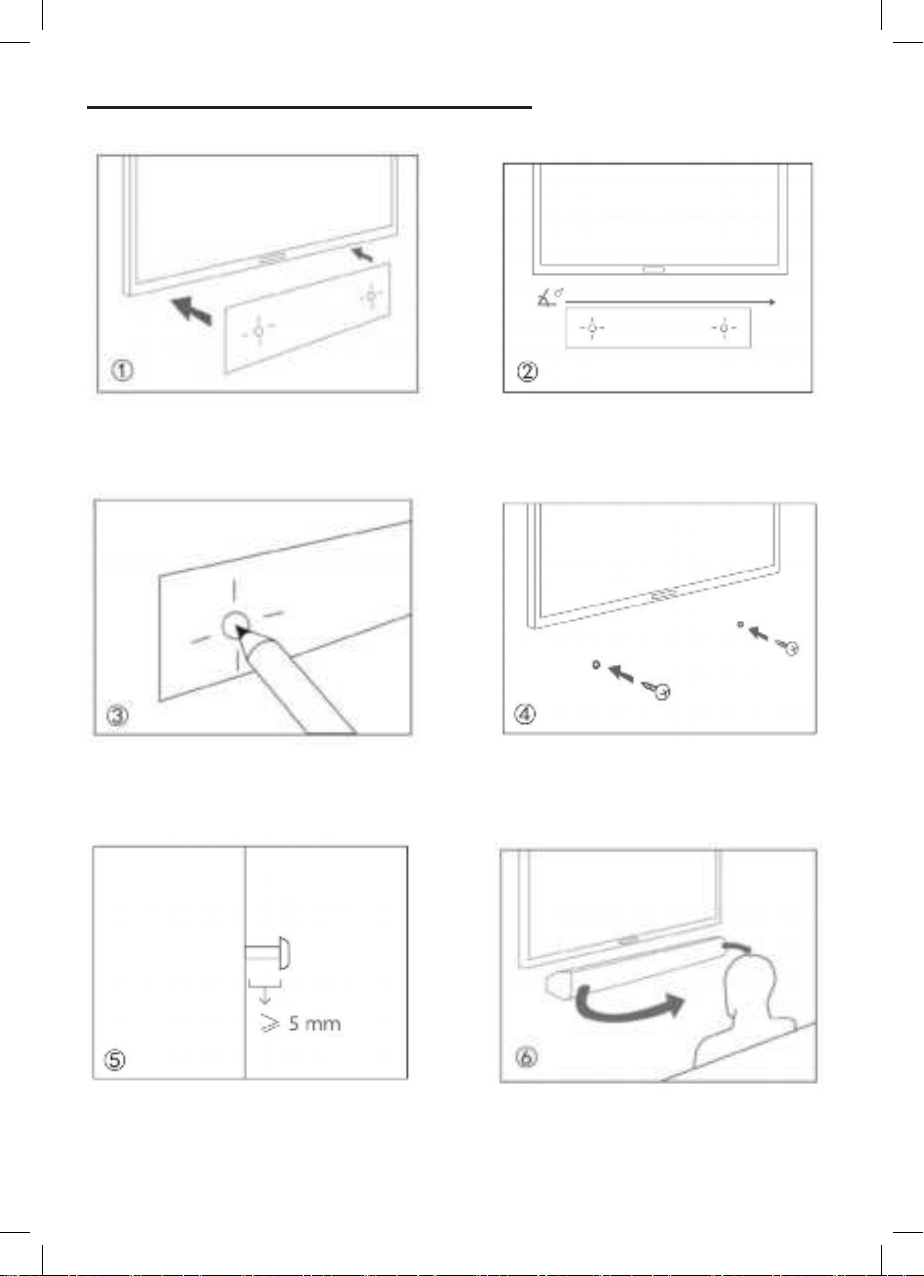

QUICK SYSTEM INSTALLATION GUIDE

Place the paper guide on the wall where

you want to hang the soundbar.

Locate the screw holes on the paper

guide and mark a point with a pencil.

It is advisable to leave no more than 5mm

between the head of the screw and the wall to

minimize the inclinaon angle of the soundbar

Make the holes with the corresponding

drill bit according to the type of wall.

For a beer sound experience, it is advisable

to place the soundbar at ear level height.

Verify with a level gauge that the inclinaon

angle of the soundbar is zero degrees.

PACKAGE CONTENTS

CONTROL AND FUNCTIONS

• SB20204BI Soundbar

• Remote Control

• Power Adaptor

• AUX In cable

• User manual

• 3.5mm to 3.5mm Line In cable

Side View/Control Buons

Back View

1. Power

2. Mode (short press)

Play/Pause (long press)

3. Volume +/Next

4. Volume - /Previous

5. Line In

6. USB Function

7. Line out

8. ARC Input

9. Optical Input

10. AUX Input

11. DC Power Input

10. FM Antenna

CONTROL AND FUNCTIONS

Remote Control

CONTROL AND FUNCTIONS

SOUNDBAR HOOK SCHEMATIC

Using the Remote Control

The remote control sensor at the front of the soundbar is sensive to the remote control’s

commands up to a maximum of 8 metres away and within a maximum arc of 30 degrees.

Please note that the operang distance may vary depending on the brightness of the room.

USING THE AUX IN CABLE

1. Use the AUX Stereo Audio Cable (included) to connect to the TV’s stereo AUX

(L/R) audio output socket.

2. Connect the audio output cable of the soundbar via the ‘AUX’ input sockets

of the unit. Then press MODE on the remote control or press the Mode

buon on the unit to scroll to the AUX IN funcon.

3. Turn on your television.

AUX stereo audio cable

Rear view of the unit

USING THE ARC INPUT

1. You will need: An audio source with ARC Audio Output and an ARC Audio cable (not included).

2. Connect the ARC Audio cable to the ARC output on the audio source and to the ARC Input on

the soundbar.

3. Press the POWER buon on the soundbar or POWER buon on the remote control to switch

on the unit.

4. Press the MODE buon on the remote control to switch to ARC mode or select the Mode

buon on main unit repeatedly to select the ARC mode.

5. Using the nave controls on your connected device, make sure the audio sengs are set to

ARC or HDMI Audio. Audio from the audio source will now be played through the speakers.

ARC Cable

Rear view of the unit

Troubleshoong

If you are not receiving a picture or encountering interference, please ensure that the AUX

cable is being connected to ‘output’ AUX port on your TV set. This will ensure that the sound is

being exported correctly. If your TV does not have ‘output’ AUX port, please use an alternave

connecon method.

USING THE MP3 LINK CONNECTION (LINE IN)

1. Plug one end of a 3.5mm to 3.5mm Line In cable (included) into the Line In port on the unit.

Before use, disconnect any cables connected to the Stereo RCA Inputs.

2. Plug the other end of the cable into the audio output/headphone output on an MP3 player or

other audio source.

3. Press the Power buon on the soundbar or POWER buon directly on the remote control

to switch on the unit. Press the Mode buon repeatedly on the soundbar or press the MODE

buon on remote control repeatedly to enter LINE in mode. Audio played through the

connected device will now be heard through the speakers.

3.5mm to 3.5mm

Line In cable

Audio device

LINE -IN

CONNECTING TO THE MAINS SUPPLY

USING THE BLUETOOTH FUNCTION

1. Ensure that the power supply voltage is in the voltage of 100V~240V. Connecng the unit to

any other power source may cause damage to the unit.

2. Unwind the mains cable to its full length.

3. Connect the mains plug to a mains socket.

4. Make sure the mains plug is fully inserted into the mains socket.

5. Connect the adapter to the unit via the DC input Socket. (DC-18V-IN)

Pairing a Bluetooth Device for the First Time

1. Press the POWER buon on the unit or the POWER buon on the remote control to switch on

the unit.

2. Select and press the MODE buon repeatedly on the remote control unl in Bluetooth mode

or press the Mode buon repeatedly on the sound bar to enter Bluetooth mode.

3. Using the nave controls on your Bluetooth device, select the “SB21204BI” in your Bluetooth

sengs to pair.

4. When successfully paired and connected, a beep will issue from the unit. Aer inial pairing,

the unit will stay paired unless unpaired manually by the user.

5. If your device becomes unpaired or is unable to connect, repeat the above steps.

Ensure all audio connecons of the unit are connected before connecng

to the mains power socket.

Unplug the power cord from the outlet when the unit is use for an

extended period of me.

PLAYING AUDIO WIRELESSLY

USING THE USB FUNCTION

USING THE FM FUNCTION

1. Follow the instrucons for pairing a Bluetooth device.

2. Use the nave controls on the connected Bluetooth Device to select a track.

3. Long Press the ‘Play/Pause’ buon to Play or Pause the track.

4. Skip Forwards/Backwards to a selected track using the remote control.

5. Audio played through the connected Bluetooth device will now be heard through the speakers.

1. Insert USB to Play Music Automacally.

2. Select and press the MODE buon repeatedly on the remote control unl in USB mode, or

press the Mode buon repeatedly on the soundbar to enter USB mode.

3. Long Press the ‘Play/Pause’ buon to Play or Pause the track.

4. Skip Forwards/Backwards to a selected track using the remote control.

5. Audio played through the connected Bluetooth device will now be heard through the speakers.

1. Select and press the MODE buon repeatedly on the remote control, or press the Mode

buon on the soundbar repeatedly to enter FM mode.

2. Ensure that the wire aerial on the back panel of the soundbar is extended.

3. When in FM mode, press and hold the ‘Play/Pause’buon on the remote or on the soundbar

to begin searching for available FM staons.

4. Aer the search is complete, the soundbar will save the staons with good signal. To scroll

through these saved staons, press the ‘Previous/Next’ buons on the remote control .

PLEASE NOTE:

If you are having trouble with receiving staons, complete another auto-scan and adjust the

aerial as necessary.
