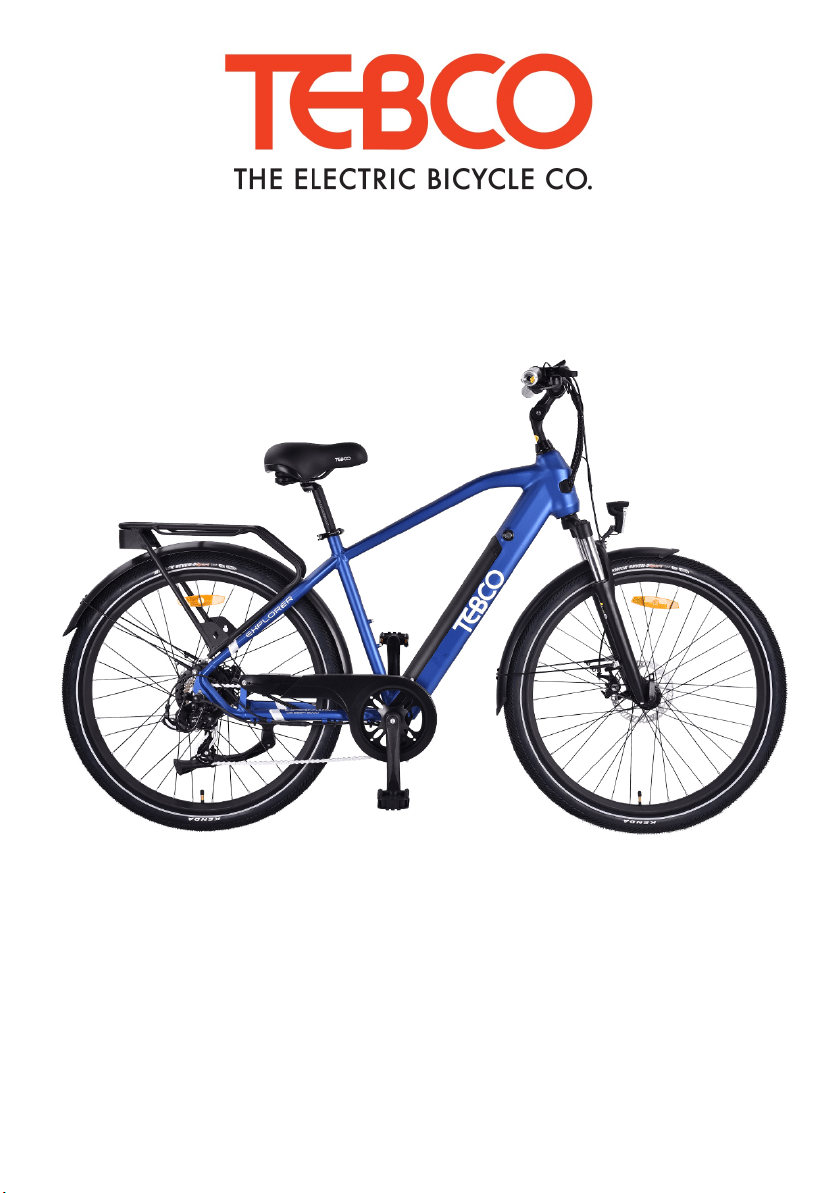

Tebco EXPLORER 2023 Manuale utente

OWNER’S MANUAL

EXPLORER

www.electricbicycle.com.au

Introduction:

Thank you for you choosing the Explorer from The Electric Bicycle Co. We have created a

stylish and serviceable bicycle for your personal transport and enjoyment. Prior to riding your

new Explorer please thoroughly read and understand this manual it is provided for YOUR

benefit. Should you not understand any part of this manual please consult your supplier.

Our company has developed this Explorer to strict quality control systems to IS09001

certification standard.

Our company’s aim is to provide customers with high quality, serviceable and affordable

personal electric transportation that will give many years of trouble free and enjoyable use,

whilst at the same time helping to sustain our fragile environment by utilizing clean, green

renewable energy.

Attention:

● Before you use this Explorer, please thoroughly read and understand this Owner’s

Manual.

● Once you understand the Owner’s Manual and know that you are familiar with the

bicycles operation you are free to ride. Please do not lend your Explorer to others

who are unfamiliar with its operation.

●NEVER RIDE YOUR EXPLORER UNLESS YOU ARE WEARING A PROPERLY

FITTED AND APPROVED BICYCLE HELMET!

● ALWAYS ENSURE THAT THE POWER IS TURNED OFF WHEN YOU MOUNT AND

DISMOUNT THE BICYCLE

● Please be familiar with and observe all local traffic rules of your city / town.

● The Explorer is designed for single rider use. At no time should you ever carry a

pillion passenger as it is illegal to do so.

● Please ride cautiously when riding in wet or slippery conditions or on uneven

surfaces.

● This Owner’s Manual is designed for use only with the Explorer supplied by The

Electric Bicycle Co.

Please enjoy your ride!

A. J. (Tony) Morgan

The Electric Bicycle Co. P/L

Preface

The Explorer has set precedents in design and performance of electric bicycles.

The aesthetically designed frame styling makes it appealing to look at whilst offering excellent

operating performance and manoeuvrability. There is no other electric bicycle in the world that

offers comparable comfort and safe riding.

Your exceptional insight has allowed you to select a fashionable product that is fun to ride

whilst also being 100% environmentally friendly. Thank you for selecting our product and

congratulations for doing your part to preserve the environment.

To ensure proper usage and extended life of your fabulous Explorer please read this Owners

Manual carefully.

Main Functions and Characteristics

1. Highly efficient rare earth brushless geared DC motor.

2. 36V 15Ah Programmable Digital controller.

3. Proportional twist grip throttle for smooth effortless acceleration and control.

4. Front and rear Disc Brakes with power cutoff switches.

5. Heavy duty side mount prop stand.

6. 10Ah 36v LITHIUM batteries offering stronger starting current and extended distance

between recharges.

7. Front suspension providing a smooth and comfortable ride.

8. State of the art easy to read LCD Trip Computer.

9. Removable battery box making it convenient to charge both in bicycle and in house.

IF EXPLORER IS NOT USED REGULARLY THEN THE

BATTERY MUST BE RE-CHARGED EVERY MONTH.

FAILURE TO RE-CHARGE BATTERY REGULARLY CAN

LEAD TO SEVERE DEGRADATION OF BATTERY.

NEGLIGENCE IN THIS MATTER MAY VOID WARRANTY.

FOR REPLACEMENT BATTERIES –

CONTACT TEBCO DIRECTLY ON 03 9584 3000

Operating Methods

Before operating:

1. Depress Power ON / OFF button to ‘Power ON’ Explorer – LCD Indicator Panel will

activate.

2. If battery status gauge does not show at least half full – recharge before you attempt to

ride. (To extend battery life - re-charge batteries every time you get home.)

3. Check both brakes to see if they are both working effectively. Check ‘Honka Hoota’

operation.

4. Check the pressure of front and rear wheels. Pressure should be Min 40psi – Max 65psi

Riding Technique

1. Position side ‘Prop Stand’ to up position adjacent to chain stay..

2. Seat yourself comfortably on seat. If seat too high or too low - adjust to suit your comfort.

3. Depress Power ON / OFF button to ‘Power ON’ Explorer – LCD Indicator Panel will

activate.

4. The ‘Explorer’ is powered by a 9 Level ‘Pedal Activation System’ – Select desired PAS

level simply by depressing + or – buttons on Left Hand Side Controller Panel and start to

pedal - power will automatically activate the motor.

5. The ‘Explorer’ is also fitted with a ‘Twist Grip Accelerator’ which is speed governed at

max 6kmh – use of this Accelerator can assist at ‘take-off’ for the rider.

6. To decelerate ‘cease pedalling’ and controller will automatically cut power to motor.

7. Slowly pull on both brake levers to ‘brake’ and slow the bicycle to a stop.

Power ‘Override Switches’

Your Explorer is equipped with 2 power ‘Override Switches’

1. These are small micro-switches situated within each brake lever.

2. By simply pulling either brake lever on slightly – power is cut to the motor.

3. These are safety switches, which can prevent your bicycle from accidentally ‘starting’

whilst you are stationary.

Battery charging:

1. The battery is the most important part of your Explorer. To ensure good performance -

proper usage and maintenance will maximise battery life.

2. Overdischarging of batteries should be avoided at all times. Batteries should always be

recharged ready for riding. If not used for a period of 30 days, batteries should be

re-charged fully.

3. After usage and when bicycle is not in use always be sure to turn Power off. If bicycle left

unattended with Power ON for 5 minutes then electric system will auto turn Power OFF.

4. If the ‘Battery Status Gauge’ drops to half way - this means that batteries need to be

immediately recharged. Continuing to ride whilst battery ‘charge’ is low can cause severe

battery damage.

5. To use battery charger, first insert the plug into charging socket on side of bicycle or

battery box. Next insert plug into 240V power supply. After the charger is connected

properly, turn on 240V AC supply. To disconnect after charging, turn off 240V AC supply,

remove plug from 240V socket then pull out plug from Bicycle or battery socket. REFER

TO BATTERY CHARGER OPERATING INSTRUCTIONS SUPPLIED WITH YOUR

CHARGER

6. When charging the battery, charger status lamp will glow RED to indicate ‘charging’.

When lamp turns GREEN ‘charging’ is complete and charger should be turned OFF.

Charging duration depends on the level of discharge of the battery. Normal charging

duration is 56 hours from flat.

7. Battery performances can be greatly influenced by many factors weight of rider, type of

terrain, prevailing climatic conditions, style of riding etc. Be observant of your battery

performance and never try to achieve more than your batteries are capable of delivering.

8. If battery needs to be taken out of the Bicycle for recharging or bicycle transport - unlock

battery lock and slide battery assembly towards you to remove from bicycle. To replace

battery pack – reverse this operation.

ALWAYS CLOSELY MONITOR BATTERY RE-CHARGIUNG PROCESS – WHEN

BATTERY RE-CHARGED THEN CHARGER SHOULD BE TURNED OFF.

Adjustment & Maintenance

1. As a general rule to ensure longevity and good performance of your Explorer, have it

regularly serviced by a qualified and experienced bicycle mechanic.

2. There is no specific maintenance required on your electrical components. Simply

re-charge your batteries after each ride to ensure longest possible life.

3. Adjustment of the height of saddle. Loosen quick release on seat tube and adjust saddle

to a suitable height. The raised height of the saddle cannot exceed the height marked with

minimum insertion mark on saddle stem.

4. Brakes and their adjustment are standard to the bicycle industry. Be sure to keep brakes

properly adjusted at all times.

5. Regular checking of spoke tension and wheel alignment can also ensure maximum

performance of your Bicycle.

Tyre Pressure:

1. It is most important for continued effective operation of your Explorer that you maintain

the correct tyre inflation.

2. Both front and rear tyres should be maintained at Min 40psi and Max 65psi inflation.

Safety Precautions

1. Always make sure key or remote device is in OFF position when you mount or dismount

your bicycle. Only turn power ON once you are safely seated on your bicycle.

2. When starting the bicycle, the twist grip throttle should be turned slowly and evenly to

ensure smooth gentle acceleration.

3. Never try to RACE your bicycle or ride at high speeds for long periods of time.

4. Never try to climb hills that are too steep and that will force the bicycle to slow below

10kms. Best performance is achieved on flat or gently rising terrain.

5. When either the left or right brake lever is engaged, a micro switch will cut power to motor.

Should either of these switches fail to work at any time please contact your supplier

immediately.

6. In wet or rainy weather, the bicycle should be ridden slowly and with much greater care.

Main technical parameter

1 Dimensions – L 1780mm x H 1100mm x W 650mm

2 Wheelbase ~ 1060mm

3 Weight 22kg

4 Carrying Capacity ~ 120kgs

5 Max Speed 26kmh

6 Maximum Range 40km Electric Power – 80km Pedal Assist Mode

7 Minimum Ground Clearance 160mm

8 Lithium Battery 1pc x 36v 10Ah

9 Motor ~ Brushless geared

10 Rated Continuous Output 200W / 250W

11 Input of Charger 240V

12 Output of Charger – 2A 36V DC

13 Charging Duration – 4 to 5 hours

Indicator Panel

Your new Explorer comes ﬁtted

with a ‘State of the Art’ LCD Trip

Computer with the following

functions:

• Trip Computer Display

• Handlebar Control

Buttons

• Backlit Display

• Smart Battery Indicator

• Power Draw Indicator

• Pedestrian Function

• Front / Rear Light Control

Power ON / OFF

To switch ON the Explorer, hold the power button for 2 (two) seconds.

To switch OFF the Explorer, hold the power button again for 2 (two) seconds.

If the bike is stationary for more than 10 minutes, it will switch oﬀ automatically.

Top Level Menu

NOTE: The menus are disabled whilst the bike is not stationary.

Home Screen

At power on, the display shows current speed and the total distance the bike has

travelled. Use the ‘i‘ button to rotate through the various display functions below:

• Current Speed (km/h)

• Average Speed (km/h)

• Maximum Speed (km/h)

• Trip Distance (km)

• Total Distance (km)

• Trip Time (hours)

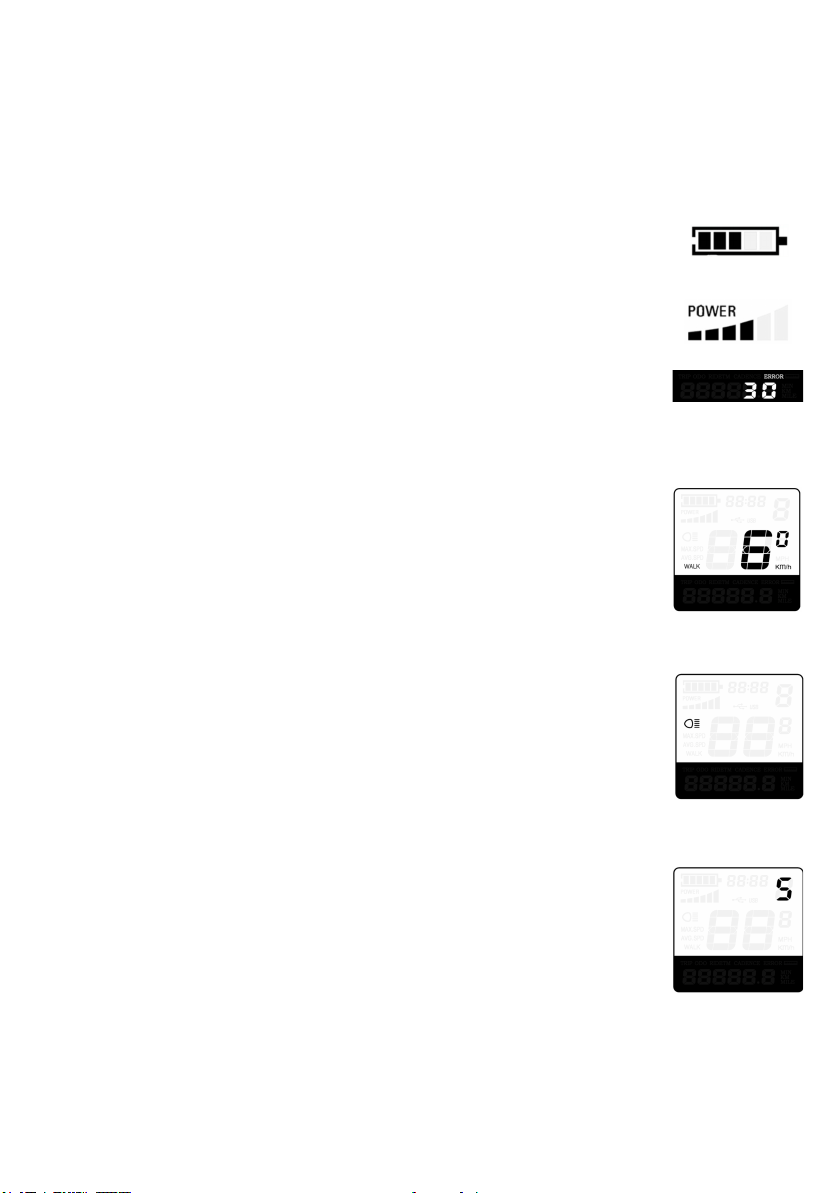

The battery charge status is displayed in the top right corner of the

display. When the battery is discharged, the battery frame will ﬂash

to indicate the battery needs to be recharged immediately.

The power draw from the battery by the electric bicycle can be read

under the battery charge status indicator in real time.

If there are any faults with the electrical system, an error code will

be displayed at the bottom of the display. Consult TEBCO or your

retailer for assistance.

Pedestrian Function

The Explorer has an in built 6 km/h pedestrian function so that

the bike can be safely wheeled under power whilst walking beside

it. To activate, hold down the ‘-‘ button for as long as you wish to

walk the bicycle.

Headlights and Taillights

To switch ON the headlight and taillight, press the ‘headlight’

button. To switch OFF the headlight and taillight, press the

‘headlight’ button again.

NOTE: The display backlight will dim when the headlight and

taillight are illuminated.

PAS Setting

The pedal assist function sets the amount of assistance from the

motor when pedaling. This is adjusted with the ‘-‘ and ‘+’ buttons.

The default level is 0 (zero) - no output power. This can be

adjusted between 0 (zero) and 9 (nine) as desired by the user.

General Settings Menu

With the bicycle switched on, the general settings menu is accessed by holding both

the ‘+’ and ‘-‘ buttons for two seconds.

To exit the menu, hold the ‘i’ button for 2 (two) seconds. Any menu will timeout after

approximately 2 (two) minutes and return to the home screen.

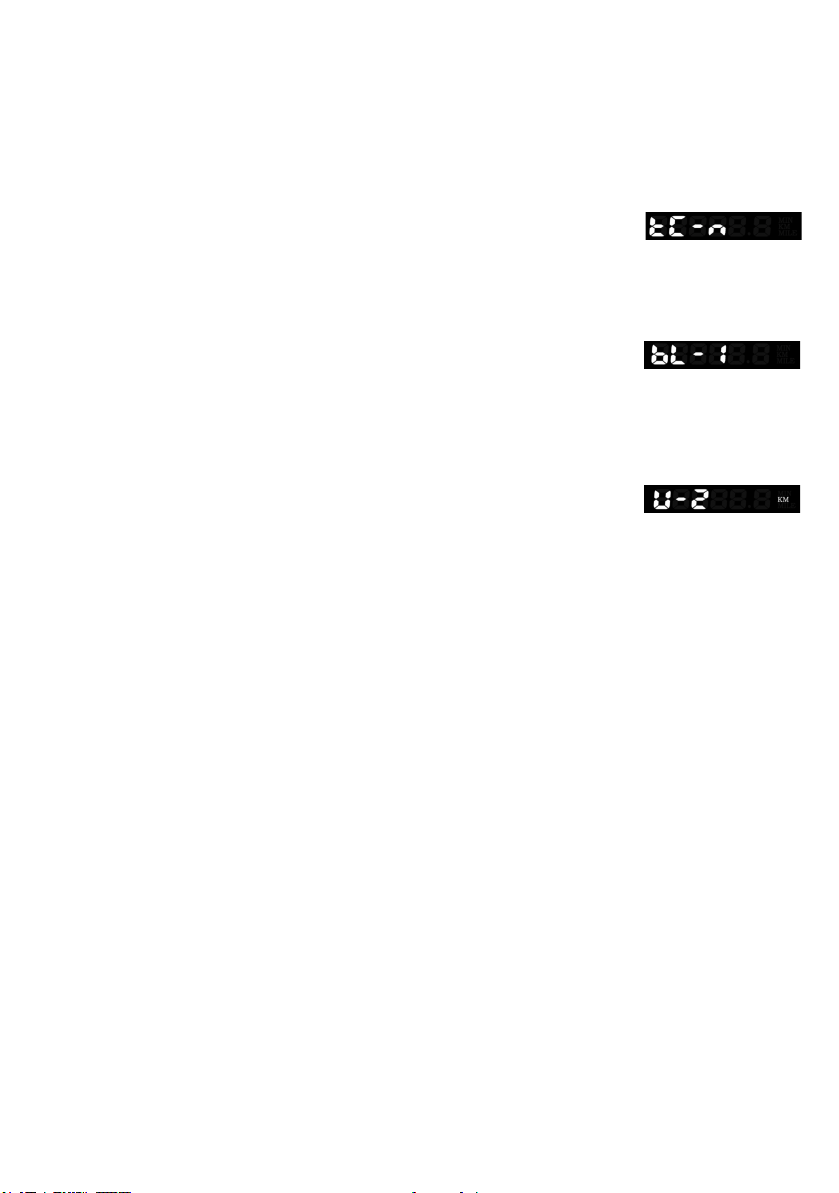

tC - Trip Distance Clearance

To clear the trip distance, press the ‘+’ or ‘-‘ buttons until Y (yes) is displayed.

Press the ‘i’ button conﬁrm and proceed to the next screen in the menu.

bL - Backlight Contrast

The backlight contrast setting can be adjusted between 1 (one) and 3 (three)

with the ‘+’ and ‘-‘ buttons. To store the setting, press the ‘i’ button and

proceed to the next screen in the menu.

U - Unit of Measurement

This allows the user to select between miles and kilometres.

The default value is 2 - kilometres. The value 1 represents miles. The units

are also shown on the display.

General Parameter Setting Menu

From the general settings menu, the general parameter settings menu can be

accessed by pressing the ‘-‘ and ‘i’ buttons for two seconds.

NOTE: This menu can only be accessed whilst already in the general settings menu.

To advance a screen in the menu, use the ‘+’ or ‘-‘ buttons whilst the black text is

ﬂashing. To advance a screen in the menu use the ‘i’ button when the white text is

ﬂashing.

To exit the menu, hold the ‘i’ button for 2 (two) seconds.

Ld - Wheel Diameter

The bicycle wheel diameter can be adjusted by pressing ‘i’

whilst ‘Ld’ is ﬂashing on screen. The wheel diameter will

begin to ﬂash, and can be adjusted with the ‘+’ and ‘-‘

buttons as desired. If the wheel diameter is already

ﬂashing, it can be adjusted immediately with the ‘+’ and ‘-‘

buttons.

LS - Speed Limit

The maximum speed of the electrical system (only) of

the bicycle can be adjusted by pressing ‘i’ whilst ‘LS’ is

ﬂashing on screen. The speed limit setting will being to

ﬂash, and can be adjusted with the ‘+’ and ‘-‘ buttons as

desired. If the speed limit setting is already ﬂashing, it can

be adjusted immediately with the ‘+’ and ‘-‘ buttons.

Indice

Altri manuali Tebco Bicicletta

Tebco

Tebco Discovery 2019 Manuale utente

Tebco

Tebco Carrier 2019 Manuale utente

Tebco

Tebco Transporter Manuale utente

Tebco

Tebco Transporter Manuale utente

Tebco

Tebco HURRICANE 2022 Manuale utente

Tebco

Tebco SUBURBAN Manuale utente

Tebco

Tebco Discovery 2019 Manuale utente

Manuali Bicicletta popolari di altre marche

RAMBO

RAMBO R1000X2M-FF-BFD Manuale utente

Vermeiren

Vermeiren SAFARI Manuale utente

Velec

Velec A2/36V Manuale utente

Coswheel

Coswheel A-ONE Manuale utente

Betzold

Betzold 97869 Manuale utente

Cervélo

Cervélo S3 2019 Manuale utente

Tenways

Tenways AGO X Manuale utente

Festo

Festo EGSC-BS-KF Manuale elenco delle parti

Gio Electric

Gio Electric H1 Volt Manuale utente

GOGOBEST

GOGOBEST GM30 Manuale utente

DAHON

DAHON CIAO - 2009 Manuale utente

Aprimatic

Aprimatic ONDA 500 Guida rapida

MV Agusta

MV Agusta Lucky Explorer GRAVEL Manuale di istruzioni

Greyp

Greyp G6 Series Manuale utente

Babboe

Babboe Carve-E Manuale utente

Huka

Huka orthros Manuale utente

Xtracycle

Xtracycle Stoker 2021 Manuale utente

APRILIA

APRILIA DORSODURO 750 ABS 2015 Manuale utente
