Techart 070.530.510.CCC Manuale utente

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument Dials

Part-no. 070.530.510.CCC for Panamera S manual transmission (km/h)

Part-no. 070.530.511.CCC for Panamera S manual transmission (miles)

Part-no. 070.530.520.CCC for Panamera S with PDK (km/h)

Part-no. 070.530.521.CCC for Panamera S with PDK (miles)

Part-no. 070.530.530.CCC for Panamera S4 with PDK (km/h)

Part-no. 070.530.531.CCC for Panamera S4 with PDK (miles)

Part-no. 070.530.540.CCC for Panamera Turbo with PDK (km/h)

Part-no. 070.530.541.CCC for Panamera Turbo with PDK (miles)

Part-no. 070.530.550.CCC for Panamera Diesel with PDK (km/h)

Part-no. 070.530.560.CCC for Panamera V6 Manual transmission (km/h)

Part-no. 070.530.561.CCC for Panamera V6 Manual transmission (miles)

Part-no. 070.530.570.CCC for Panamera V6 and 4 with PDK (km/h)

Part-no. 070.530.571.CCC for Panamera V6 and 4 with PDK (miles)

TECHART Version 02, dated June 24, 2013 Page 2 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

Contents

Contents ................................................................................................................................................................2

IImportant safety information........................................................................................................ ……..3

II Preparation...............................................................................................................................................5

III Installation................................................................................................................................................6

1 Preparing the vehicle ....................................................................................................................6

2 Component overview ..…………………………………………………………………………………7

3 Dismantle combi-instrument …………………………………………………..……………………….8

4 Disassemble combi-instrument, assemble TECHART Set of Instrumenten-Dials………………13

5 Assemble and install combi-instrument ..................................................................................... 15

6 Perform final work...................................................................................................................... 15

TECHART Version 02, dated June 24, 2013 Page 3 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

I Important safety information

All of the necessary work must be performed by qualified persons with an appropriate

level of expertise.

Vehicle lifts with an insufficient lifting capacity can collapse under the weight

of the vehicle and crush any persons standing underneath.

Compare the weight of the vehicle with the lifting capacity of your vehicle lift.

The weight of the vehicle must not exceed the lifting capacity of your vehicle

lift. The weight of the vehicle can be found in the vehicle operating manual.

Risk of injury from electric current.

Switch off the ignition and disconnect the battery when working on the vehicle

electrical/electronics systems.

Risk of fire and explosion from ignition of windshield cleaning

agents/antifreeze and their vapors.

Risk of poisoning from ingesting windshield cleaning agents/antifreeze and

breathing in their vapors.

Risk of injury due to irritation caused by windshield cleaning agents/antifreeze

coming into contact with eyes, skin and other parts of the body.

Wear protective clothing and safety glasses. Avoid naked flames, fire and

sources of ignition. Avoid contact with eyes, skin and other parts of the body.

Do not eat, drink or smoke when handling windshield cleaning

agents/antifreeze. Do not breathe in vapors and ensure adequate ventilation.

Keep windshield cleaning agents/antifreeze only store them in sealable

original containers.

TECHART Version 02, dated June 24, 2013 Page 4 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

Risk of injury from hands and arms being crushed, cut or lacerated when

working with sharp-edged and bulky objects.

Wear protective clothing and protective gloves. Keep limbs out of narrow and

inaccessible areas of the vehicle and/or avoid dangerous situations by using

special tools and suitable aids.

Risk of injury to back, muscles, joints, tendons and ligaments from lifting and

carrying heavy and/or bulky objects.

Lift and transport heavy and/or bulky objects with the help of other people

and/or with suitable aids.

Before starting the assembly procedure, carefully read the assembly instructions in full

and pay attention to the safety information and sequence of the individual operation steps.

All body parts must be prepared and painted in accordance with the attached painting

guide.

Handling with the airbag systems only by skilled and trained personnel!

- turn off the ignition and pull the key

- no power supply at the external power source / jump start

- disconnect the battery. Insulate earth strap

- after disconnecting the battery wait for at least 1 minute

- exchange parts which were damaged during dismantling

- when laying down the airbag unit make sure that the bag opening shows

towards the top

- store the airbag unit in a closure in case of a long dismantling time

- the airbag unit must not touch fat, oil, detergents, liquids or similar

substances

- do not expose the airbag unit to more than 90° Celsius

- do not remove the short-circuit spring of the plug contacts

TECHART Version 02, dated June 24, 2013 Page 5 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

II Preparation

Help and support

If you have any technical queries, please contact us immediately:

[email protected]

Check parts for completeness

Quantity Part number Part designation

1 070.530.5__.CCC TECHART Instrument Dials

(custom color)

Use the table to check whether all of the required parts are present.

Once parts have been removed from their original packaging, ensure that they are

properly handled and stored.

TECHART Version 02, dated June 24, 2013 Page 6 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

III Installation

1 Preparing the vehicle

Before starting work, check that the vehicle is free from defects. Use the PIWIS II

system tester to read out all the fault memories of the individual vehicle

components and first rectify any faults displayed.

Move the steering column adjustment completely downwards and towards the

back (maximum working space).

Switch off the ignition and disconnect the battery when working on the vehicle

electrical/electronics system.

TECHART Version 02, dated June 24, 2013 Page 7 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

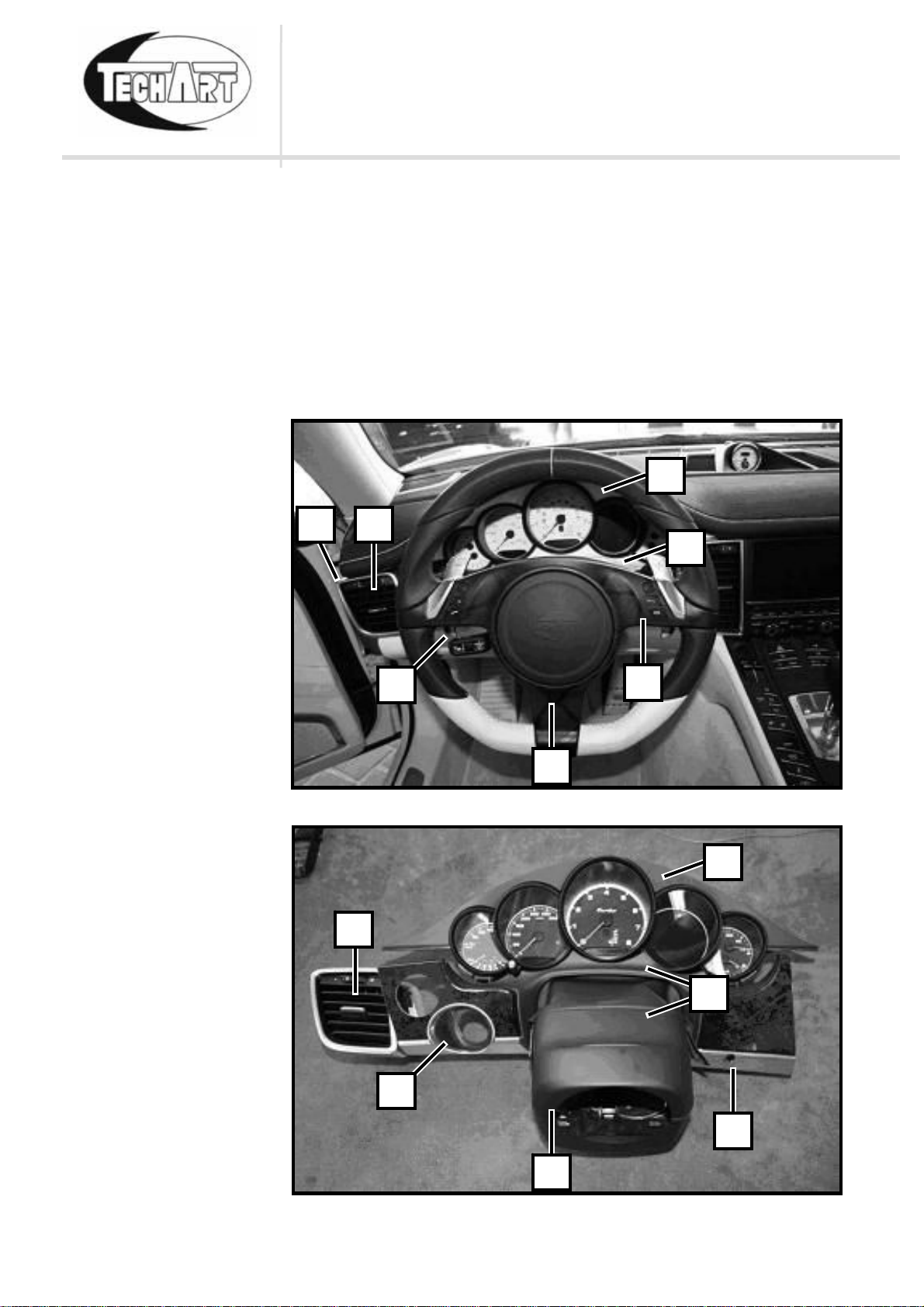

2. Component overview

A - Panel far left (fuse cover dashboard)

B - Air nozzle far left

C - Trim left (ignition lock)

D - Steering column panel bottom

E - Trim right

F - Lower panel combi-instrument in connection with the upper steering column panel

G - Upper panel combi-instrument

Fig. 01

Fig. 02

TECHART Version 02, dated June 24, 2013 Page 8 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

3. Dismantle combi-instrument

1 Release airbag retaining spring, for that press the releasing spring with a

screwdriver upwards (lead the screwdriver through the hole at the bottom center

of the steering wheel airbag housing and press the spring upwards).

2 Carefully remove the airbag from the steering wheel.

3 Release and separate both plugs

of the airbag’s reverse side,

disconnect the plug from the

ground connection and remove the

airbag unit

Fig. 03

4 Disconnect the main plug at the

steering wheel.

5 Loosen the main fixing screw of the

steering wheel, mark the steering

wheel center position and remove

the steering wheel.

Fig. 04

TECHART Version 02, dated June 24, 2013 Page 9 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

6 Loosen the 2 screws at the bottom

part of the steering column D.

Fig. 05

7 The upper part Fcan be unclipped

with a small screwdriver.

Fig. 06

8 Loosen the 2 upper screws.

9 Disconnect the plug at the switch

for the steering column adjustment.

10 Remove the lower steering column

panel D.

Fig. 07

TECHART Version 02, dated June 24, 2013 Page 10 of 16

ASSEMBLY INSTRUCTIONS

TECHART Set of Instrument

Dials

11 Unclip trim panel C, disconnect

cable plug.

Fig. 08

12 Unclip trim panel E, disconnect

cable plug.

Fig. 09

13 Loosen the 2 screws at the lower

combi-instrument-panel F.

14 Unclip the panel at the combi-

instrument and remove it together

with the upper steering column

panel F.

Fig. 10
