Installation Instructions for
Vance and Lance 13 Flush Mount
700FMVNC13, 700FMLNC13
920FMVANLANS
CAUTION RISK OF FIRE-
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
CEILING COLLECTION
GP I :ENERAL RODUCT NFORMATION
These fixtures are intended to be installed
utilizing compliant junction boxes.NEC
This product is suitable for damp locations.
This product can be dimmed with a low-voltage electronic
dimmer.
This instruction shows a typical installation.
1A
Ground the fixture in accordance with local electrical
codes.
Connect the black fixture wire to the hot power line
wire with a wire nut.
Connect the white fixture wire to the neutral power line
wire with a wire nut.
1
2
3
2
1
3
Install the fixture
Align the through holes in the fixture base with the #8-
32 screws to junction box.
Firmly tighten the #8-32 screws to hold the fixture base
in place through the next steps.
4
35
1B1B
24
5
Note: depending on the dimensions of the J-box, you
may use either the inner or outer through holes.
1
FIXTURE
BASE
#8-32
SCREW
5
FIXTURE
BASE
2
7400 Linder Ave, Skokie, 60077IL
847.410.4400
www.techlighting.com
© 2017 Tech Lighting, L.L.C. All rights reserved. The "Tech Lighting" graphic is
a registered trademark of Tech Lighting, L.L.C. Tech Lighting reserves the right
to change specifications for product improvements without notification.
A Generation Brands Company
SAVE THESE INSTRUCTIONS!
1
3A
Attach the trim accessories to the rim of the shade.
Imbedded magnets will allow the accessories to snap
into place.
TRIM ACCESSORY
Install the Trim Accessories(Lance only)
NOTE: The Lance 13 ships with three trim accessories.
The trim accessories are not included with the Vance.

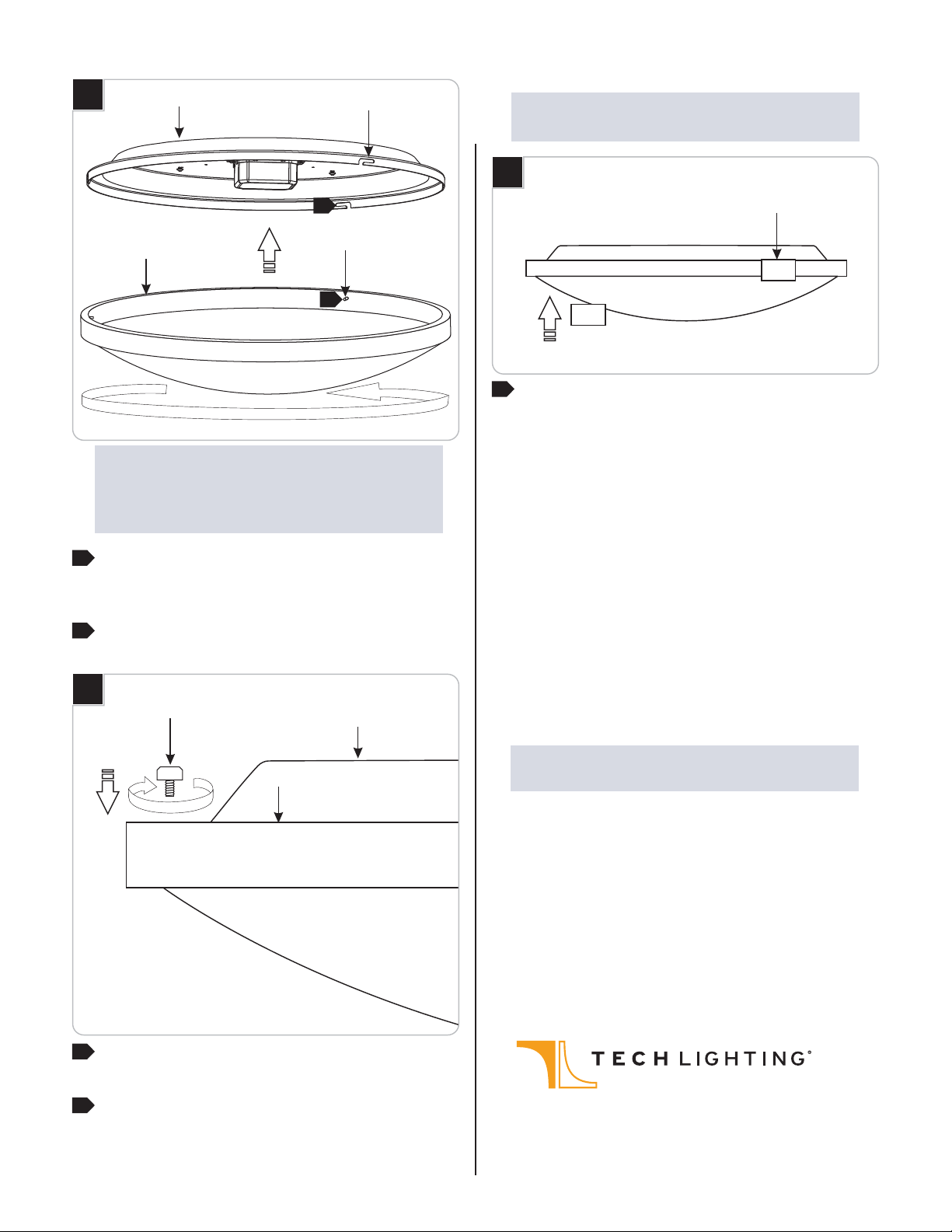

Install the Shade
2A
Align the pegs on the shade with the keyed slots on the
fixture base, push the shade up evenly, making sure it
sits flush on all sides.
Carefully rotate the shade into position.
1
SLOT
SHADE PEG
2
FIXTURE BASE
CAUTION: Improperly aligning the pegs before
rotating the shade into place may cause damage to
slots. Make sure the shade sits flush before rotating.
2B
THUMB SCREW FIXTURE BASE
Locate the small threaded hole on the top side of the
shade.
Screw the thumb screw into the shade to secure it in
place.
3
4
SHADE
1
1
