TECHNICAL DATA & SERVICE MANUAL

SCDV106C5VAC

0.8180.239.0 04/2002

COOLING MODELS (R407C)

HEAT PUMP MODELS (R407C)

SCDV106R5VAC

SCDV136C5VAC

ASPECIFICATIONS 3

1) Unit specifications 3

2) Major Component specifications 4

BOPERATING RANGE 5

CDIMENSIONAL DATA 6

DPERFORMANCE CHARTS 7

EREFRIGERANT FLOW DIAGRAM 9

FFUNCTION 10

1) Cool Mode Operation 10

2) Heat Mode Operation 11

3) Auto Mode Operation 12

4) Dry Mode Operation 13

5) Fan Mode Operation 13

6) Protection Operations in Cool and Dry Modes 14

7) Protection Operations in Heat Mode 16

8) Cold Draft Prevention (Heating) 19

9) Sleep Function 20

10) Daily Timer Function 20

11) IFEEL Function 20

12) Manual Unit Control and Led Indicators 21

13) Recovery from Power Failure 21

GELECTRICAL DATA 22

HTROUBLESHOOTING 24

IPROCEDURE FOR THE REFRIGERANT CHARGE RESTORING 31

LCHECKING ELECTRICAL COMPONENTS 33

1) Measurement of Insulation Resistance 33

2) Checking Continuity of Fuse on PCS Ass'y 34

3) Checking Motor Capacitor 34

Table of Contents

Controls / temperature control Microprocessor / I.C. Thermostat

Control unit Wireless remote control unit

Timer ON / OFF 24 hours and program

Fan speed indoor / outdoor 3 and auto / 1

Horizontal Manual

Vertical Manual

Air filter Washable, easy access

Compressor Rotary (hermetic)

Refrig./Stand. charge at shipmen g910 1220 1030

Tot. refrig. charge with 2 m extension g960 1270 1090

Tot. refrig. charge with 4 m extension 1150

Refrigerant control Capillary tube

Indoor Hi/Me/Lo dB-A

44 / 40 / 39 46 / 42 / 41 44 / 40 / 39

Outdoor Hi dB-A 54 51 51

Stand. tubing length m ~ 2.5

Tubing length with 2 m extension kit m ~ 4.5

Tubing length with 4 m extension kit m ~ 6.5

DIMENSIONS AND WEIGHTUNIT DIMENSIONS

Indoor unit Height mm 790

Width mm 580

Depth mm 245

Outdoor unit Height mm 435 490 490

Width mm 440 525 525

Depth mm 230 250 250

Net weight / indoor unit - outdoor unit kg 44 / 9.544 / 15 44 / 15

PERFORMANCES COOLING COOLING HEATING

Voltage rating V220 ÷240

Available voltage range V 198 ÷

264

Running ampere A 4.4 6.2 4.2 4.3

Power input W 980 1300 940 950

Power factor % 97 91 97 96

C.O.P. W/W 2.702.822.98 3.31

Compressor locked rotor amperes A 23 34 23

Power source

220 - 240 V ~ 50 Hz

BTU / h 9045 12525 9560 10720

W2650 3670 2800 3140

Air circulation (high/med/low) m3 / h 370/340/270 450/400/340 370/340/270

Moisture removal (high speed) l /h 1.21.51.2

UNIT MODEL

Capacity

Airflow direction

(Indoor)

Sound level

SCDV106C5 SCDV136C5 SCDV106R5

1) UNIT SPECIFICATIONS

NOTA

Rating conditions:

Cooling: outside air temp.: 35°C DB, indoor unit entering air temp.: 27 °C DB, 19 °C WB

Heating: outside air temp.: 7°C DB, 6 °C WB, indoor unit entering air temp.: 20 °C DB

Data subject to change without notice.

ASPECIFICATIONS

FEATURES

ELECTRICAL RATINGS

2) MAJOR COMPONENT SPECIFICATIONS

a) INDOOR UNIT

MODEL SCDV106C5

CONTROLLER P.C.B.

Controls Microprocessor

Control circuit fuse 250 VAC - 3.15 A

FAN & FAN MOTO

Cross flow

Number / Diameter / Lenght mm 1 / ø 100 / L 410

Nominal output W 27

GRY-WHT: 545 ÷ 630

WHT-VLT: 92 ÷ 105

VLT-YEL: 62 ÷ 71

GRY-BRN: 78 ÷ 90

Safety device Internal type

Open °C 150 ± 10

Close °C Automatic

µF 1.0 1.5 1.0

VAC 440 440 440

THERMISTOR (COIL SENSOR) TH1 NTC SENSOR

Resistance (at 25 °C) kΩ10 ± 5%

THERMISTOR (ROOM SENSOR) TH2 NTC SENSOR

Resistance (at 25 °C) kΩ10 ± 5%

COMPRESSOR (Rotary hermetic) 80228245B 80235245B 80228245B

Nominal output W 950 1290 950

Compressor oil cc 500 550 500

C-R: 3.01 ± 7% C-R: 1.92 ± 7% C-R: 3.01 ± 7%

C-S: 7.02 ± 7% C-S: 5.29 ± 7% C-S: 7.02 ± 7%

SAFETY DEVICES

Overload relay (OLR) MST20ALU-9201 MST20ALU-9201

Open °C 135 ± 5 // 135 ± 5

Close °C 69 ± 11 // 69 ± 11

Trip in Trip in

6 ÷ 16 s at 19 A 6 ÷ 16 s at 19 A

Overload relay (OLR1) CS-7C115

Open °C // 115 ± 4

Close °C // 95 ± 10

Overload relay (OLR2) MST56ALU-9202

Open °C // 150 ± 5

Close °C // 69 ± 11

Trip in

6 ÷ 16 s at 22.5 A

Run capacitor (C3)

Capacity µF 22.5 25 22.5

Voltage VAC 450 450 450

CONDENSATE PUMP (PC) PC 95643

Rating 230 V ~ 50 Hz

Nominal output W 12 ± 10 %

Coil resistance (at 20 °C) Ω122 ± 10 %

PUMP RELAY (RP) FINDER 60.62

Coil rating 230 V ~ 50 Hz

Coil resistance (at 20 °C) kΩ7.25 ± 10 %

Contact rating 10 A - 250 V

FLOAT MICROSWITCH (MS) CROUZET F83161.3

Contact rating 10 (4) A - 250 VAC

Up Open

Down Close

SOLENOID VALVE (4 WAY VALVE

)

Coil rating // // 230 V ~ 50 Hz - 6 W

Coil resistance (at 20 °C) Ω// // 1440 ± 5 %

HEAT EXCHANGE COI

Coil Aluminium plate fin / Copper tube

Rows 2

Fin pitch mm 1.8

Face area m20.185

Ω

Coil resistance (at 25 °C) Ω

Setting

Run capacitor (C1)

Operating temperature

Float

Operating amperes (at 25 °C)

Coil resistance (at 20 °C)

Operating temperature

SCDV136C5

SCDV106R5

b) OUTDOOR UNIT (LITTLE BAG)

MODEL

FAN & FAN MOTO

Propeller Propeller Propeller

Number / Diameter mm 1 / ø 320 1 / ø 380 1 / ø 380

No of pole / rpm (220 V, high) 4 / 1205 6 / 860 6 / 860

Nominal output W 58 70 70

BLU-BRN: 249 ÷ 287 BLU-BRN: 218 ÷ 251 BLU-BRN: 218 ÷ 251

BLU-BLK: 270 ÷ 311 BLU-BLK: 230 ÷ 265 BLU-BLK: 230 ÷ 265

Safety device Internal type

Open °C 150 ± 10

Close °C Automatic

µF 2.0 2.5 2.5

VAC 450 450 450

THERMISTOR (COIL SENSOR) TH3 NTC SENSOR

Resistance (at 25 °C) kΩ10 ± 1%

HEAT EXCHANGE COI

Coil Aluminium plate fin / Copper tube

Rows 2 2 2

Fin pitch mm 1.6 1.6 1.6

Face area m20.227 0.290 0.290

Setting

Run capacitor (C2)

Coil resistance (at 25 °C) Ω

BOPERATING RANGE

COOLING MODELS

Temperature Indoor air intake temperature Outdoor air intake temperature

Maximun 32 °C DB / 23 °C WB 46 °C DB

Minimum 19 °C DB / 14 °C WB 19 °C DB

HEAT PUMP MODELS

Temperature Indoor air intake temperature Outdoor air intake temperature

Maximun 32 °C DB / 23 °C WB 46 °C DB

Minimum 19 °C DB / 14 °C WB 19 °C DB

Maximun 27 °C DB / 19 °C WB 24 °C DB / 18 °C WB

Minimum - DB / - WB -8 °C DB / -9 °C WB

Cooling

Heating

SCDV106C5

SCDV136C5 SCDV106R5

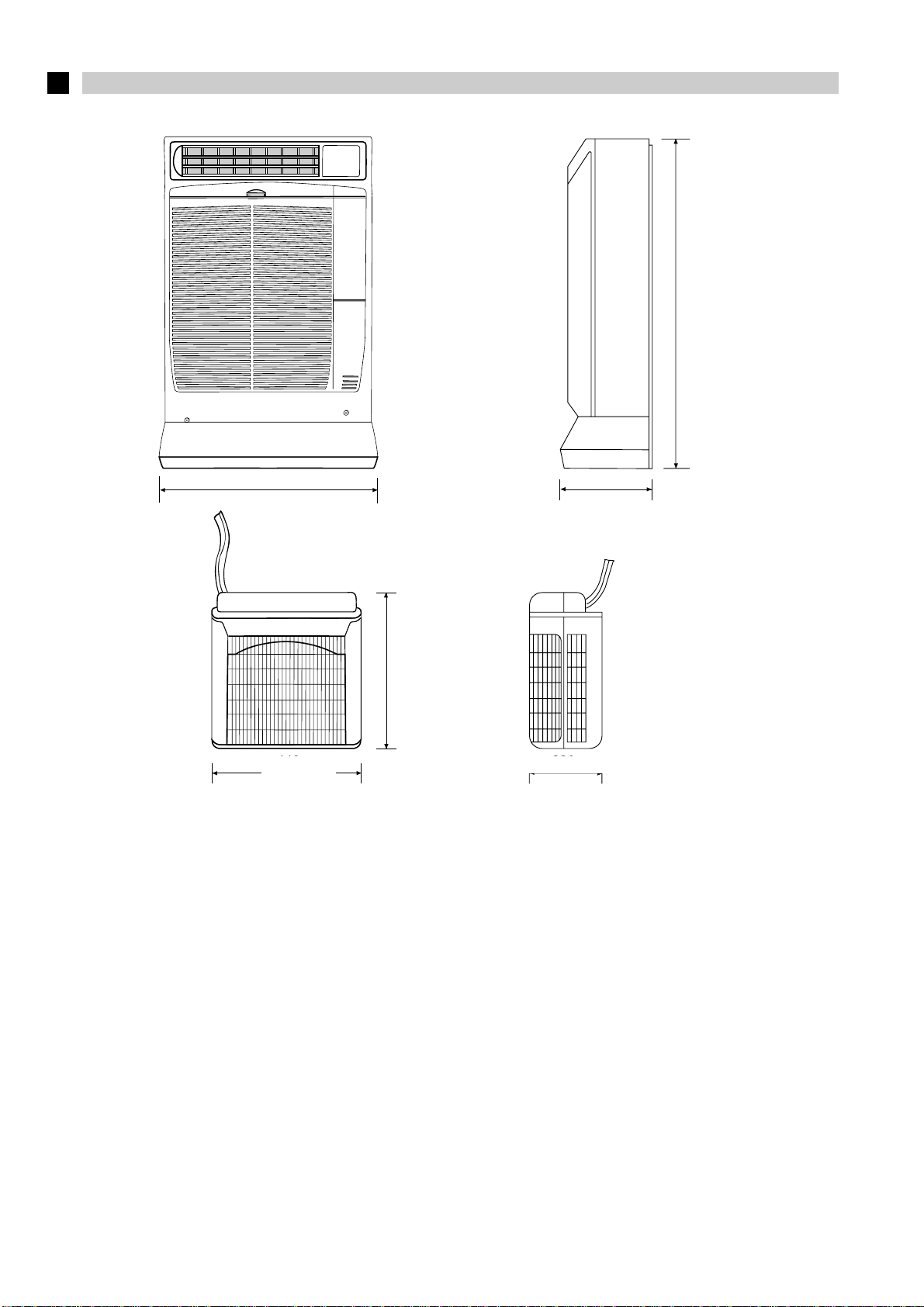

CDIMENSIONAL DATA

Indoor unit

Outdoor unit

580

835

245

230

440

425

DIMENSIONS: mm

* HEAT PUMP MODEL AND SCDV136C5

790

580

440 (* 490) 230 (* 250)

435 (* 490)

245

5.2

5.0

4.8

4.6

4.4

4.2

4.0

3.8

3.6

3.4

3.2

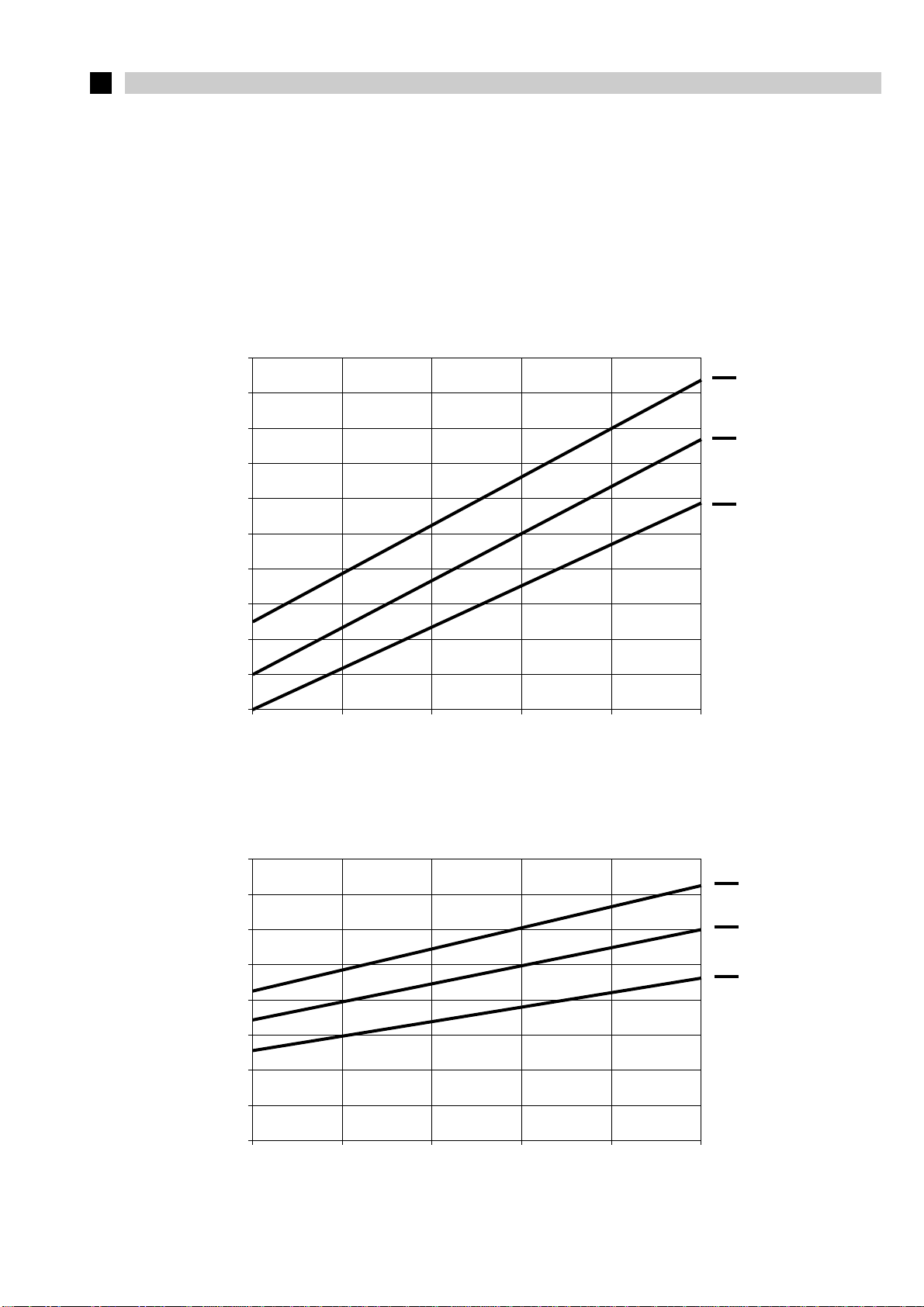

DPERFORMANCE CHARTS

OPERATING CURRENT - A

30 35 40 45

7.0

6.5

6.0

5.5

5.0

4.5

4.0

3.5

3.0

OPERATING CURRENT - A

OUTDOOR INLET AIR D.B. TEMP. (°C)

20 25 30 35 40 45

OUTDOOR INLET AIR D.B. TEMP. (°C)

SCDV136C5

SCDV106C5

Operating characteristics versus outdoor ambient temperature and indoor temperature.

Conditions: Power source 230 V - 1 - 50Hz - Single phase

Indoor air velocity High

Refrigerant Amount charged at shipment

Tubing length 2,5 m

Cooling characteristics

Indoor relative humidity 46%

INDOOR INLET AIR D.B. TEMP. (°C) INDOOR INLET AIR D.B. TEMP. (°C)

…

5.5

5.0

4.5

4.0

3.5

3.0-10 -5 0 5 10 15 20 25

……

…

5.2

5.0

4.8

4.6

4.4

4.2

4.0

3.8

3.6

3.4

3.2

3.0

OPERATING CURRENT - A

OUTDOOR INLET AIR D.B. TEMP. (°C)

INDOOR INLET AIR D.B. TEMP. (°C)

OPERATING CURRENT - A

OUTDOOR INLET AIR D.B. TEMP. (°C)

INDOOR INLET AIR D.B. TEMP. (°C)

20 25 30 35 40 45

Operating characteristics versus outdoor ambient temperature and indoor temperature.

Conditions: Power source 230 V - 1 - 50Hz

Indoor air velocity High

Refrigerant Amount charged at shipment

Tubing length 2,5 m

Cooling characteristics

Indoor relative humidity 46%

HEAT PUMP MODELS

Heating

Outdoor relative humidity 85%

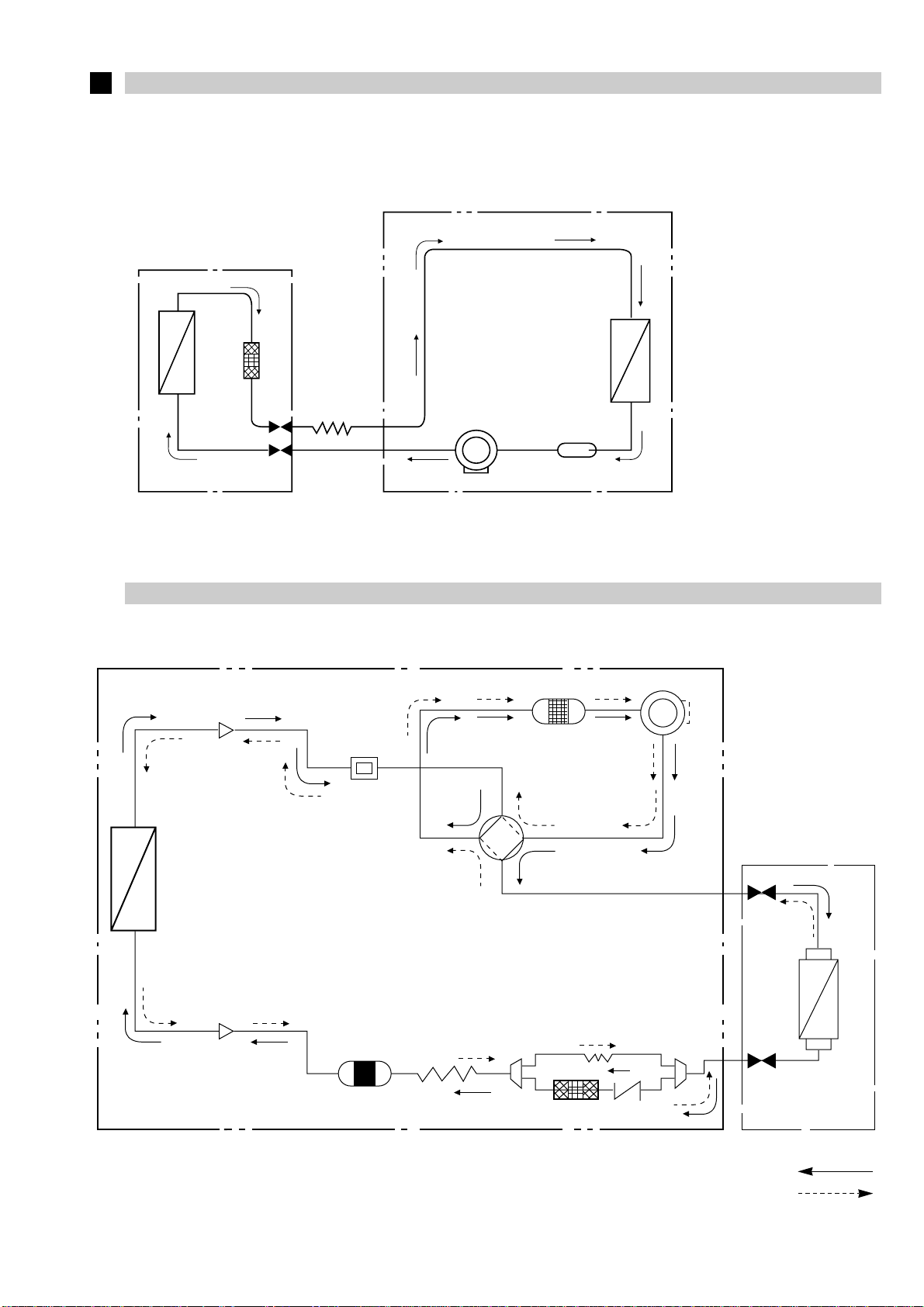

E REFRIGERANT FLOW DIAGRAM COOLING MODELS

QUICK

CONNECTOR

CAPILLARY

TUBE Compressor Accumulator

Mechanical filter

Heat exchanger

Outdoor unit Indoor unit

REFRIGERANT FLOW DIAGRAM HEAT PUMP MODELS

Heat exchanger

Muffler

Stainer

4-way valve

Accumulator

Compressor

Heat exchanger

Drier

Capillary tube

Check

valve

( )

Indoor unit

Outdoor unit

Quick connector

Cooling cycle

Heating cycle

FFUNCTION

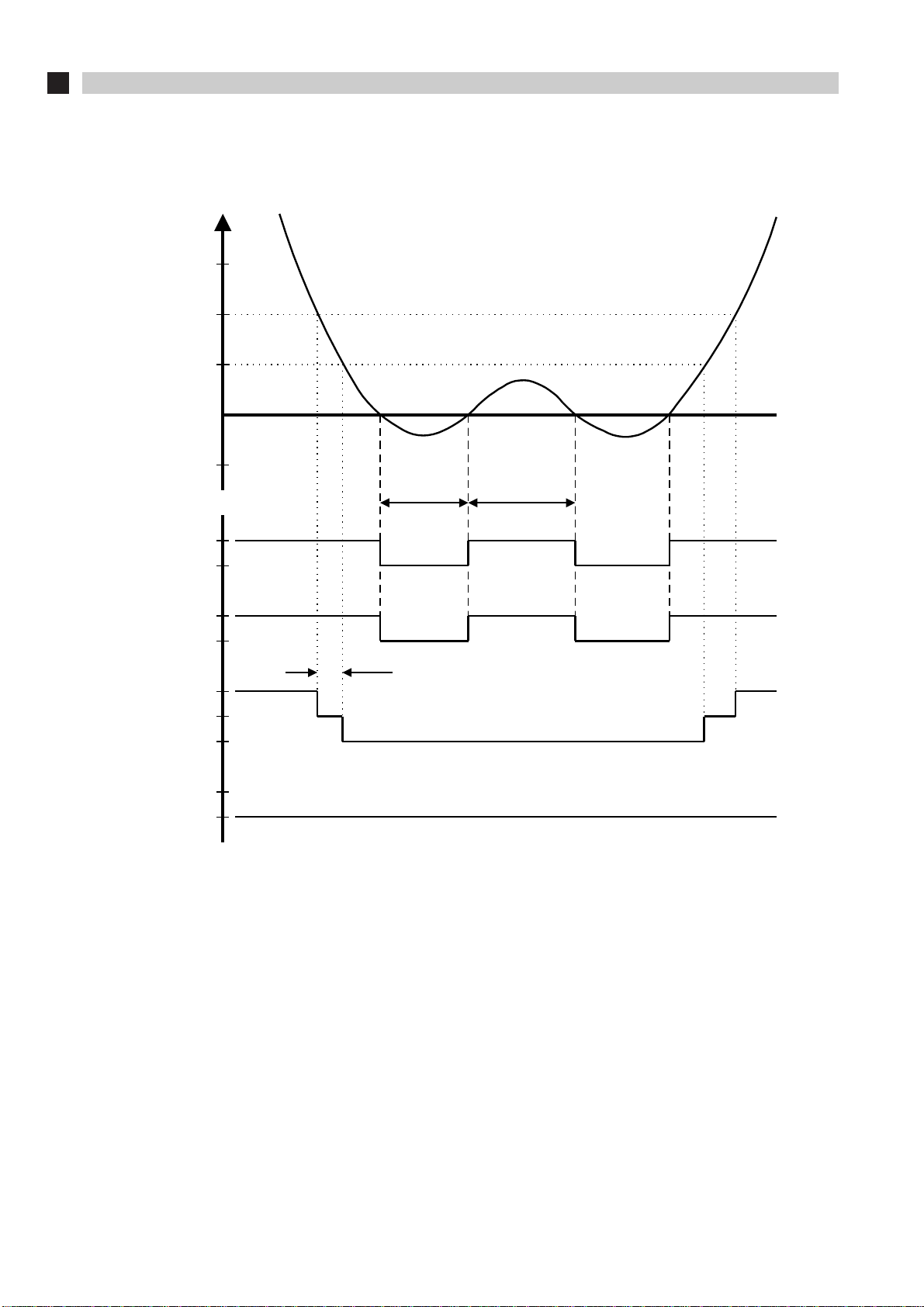

1 Cool Mode Operation

(RT - SPT) [

-1

OFF

COMP

OFAN

IFAN

over 3 min over 5 min

over 30 sec

In Cool Mode, the operation of the Compressor (COMP), Outdoor Fan (OFAN) and Indoor Fan (IFAN)

are determined by the difference between the Room Temperature (RT) and the Set Point Temperature

(SPT) as in the graph above.

Notes:

1. In this graph, the IFAN is operating in the “Auto Fan Speed” setting. If the user has selected the low,

medium or high fan speed, the IFAN will run constantly at that speed only.

2. In addition to the value of (RT-SPT), the operations of the relays are also controlled by protection

delays. For example, (a) the minimum On/Off time of the COMP is 5 min and 3 min respectively, and

(b) the IFAN can change speed only after it has operated at the same speed for 30 sec.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Technibel Climatisation Condizionatore d'aria

Technibel Climatisation

Technibel Climatisation MRAF99R5I Series Manuale utente

Technibel Climatisation

Technibel Climatisation MRAF99R5IAA Manuale

Technibel Climatisation

Technibel Climatisation REVE 245CH2O Manuale utente

Technibel Climatisation

Technibel Climatisation DSAFM75R5IA Manuale utente

Technibel Climatisation

Technibel Climatisation KPAF128C5TAA Manuale

Technibel Climatisation

Technibel Climatisation CAFM255R5IA Manuale utente

Technibel Climatisation

Technibel Climatisation SCDV106C5VA Manuale utente

Technibel Climatisation

Technibel Climatisation CAV182C5TA Series Manuale

Technibel Climatisation

Technibel Climatisation CAF94 Manuale utente

Technibel Climatisation

Technibel Climatisation GRF98L5TAA Manuale

Technibel Climatisation

Technibel Climatisation MCAV 180 C5 VA Manuale utente

Technibel Climatisation

Technibel Climatisation KA96C5 Manuale utente

Technibel Climatisation

Technibel Climatisation MCA 20C Manuale utente

Technibel Climatisation

Technibel Climatisation MCAF94R5IAA Manuale utente

Technibel Climatisation

Technibel Climatisation GR201R Manuale

Technibel Climatisation

Technibel Climatisation CAF97R5IAA Manuale

Technibel Climatisation

Technibel Climatisation MCAV92C5TA Series Manuale utente

Technibel Climatisation

Technibel Climatisation MCA271R Manuale utente

Technibel Climatisation

Technibel Climatisation GRFMI 708 R7I Manuale utente

Technibel Climatisation

Technibel Climatisation MCAF92R5TA Manuale utente

Technibel Climatisation

Technibel Climatisation MCAF188R5I Manuale utente

Technibel Climatisation

Technibel Climatisation KPSW 2 Manuale utente

Technibel Climatisation

Technibel Climatisation KPAV122C5TA Series Manuale utente

Technibel Climatisation

Technibel Climatisation CAVM93R5TA Series Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
