Technics SDS948 - HOME ENT. SYSTEM Manuale utente

ISTEP1

Stack the components as shown below. 1

,Tuner

Amplifier

Graphic equalizer

Casse_e deck

CD changer

Before connecting each unit, check and identify the supplied

accessories comparing to the illustrations at the top of each

step (steps 2--5).

RQC_,A0522

H1096G0

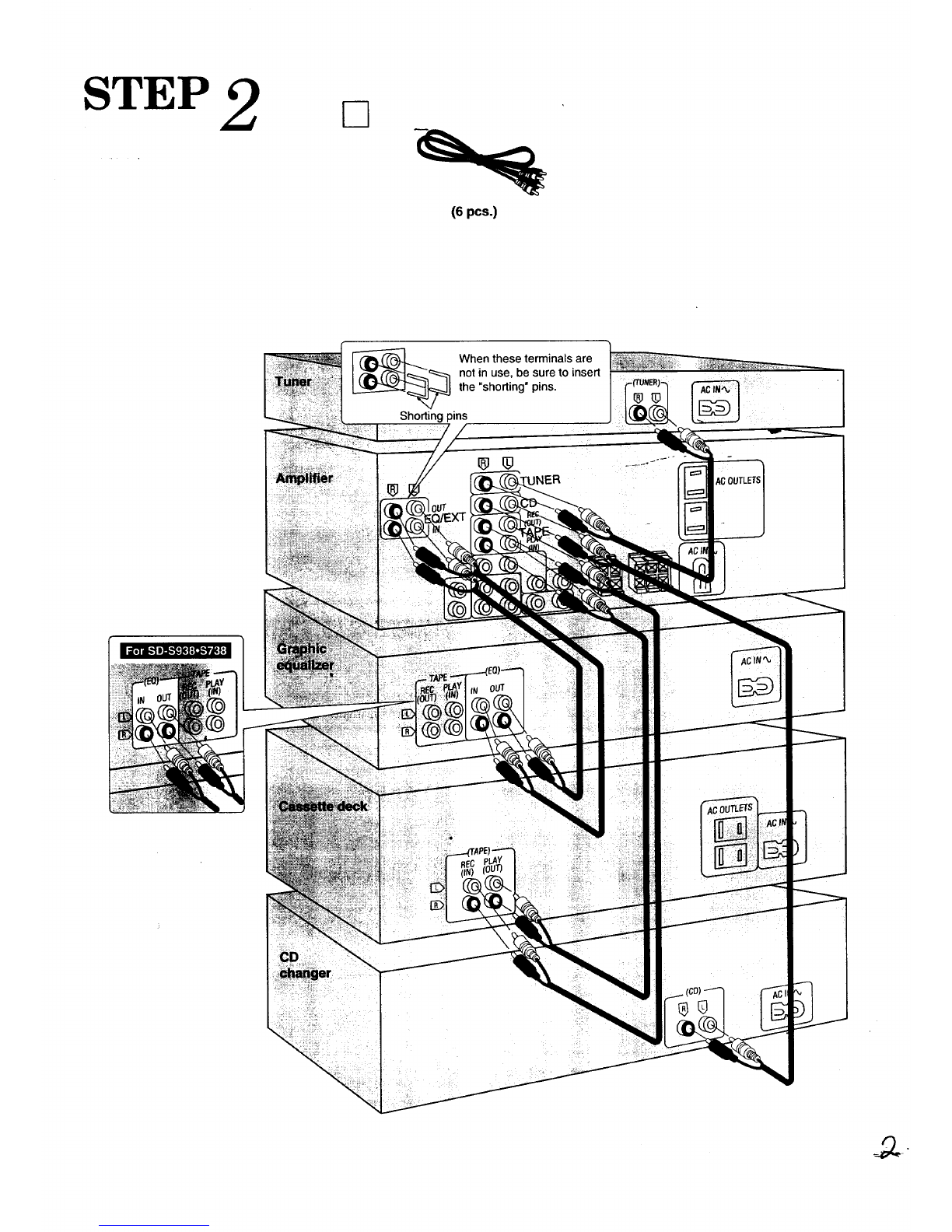

STEP 25

(6 pcs.)

When these terminals are

not in use, be sure to insert

the "shorting" pins.

Shorting pins

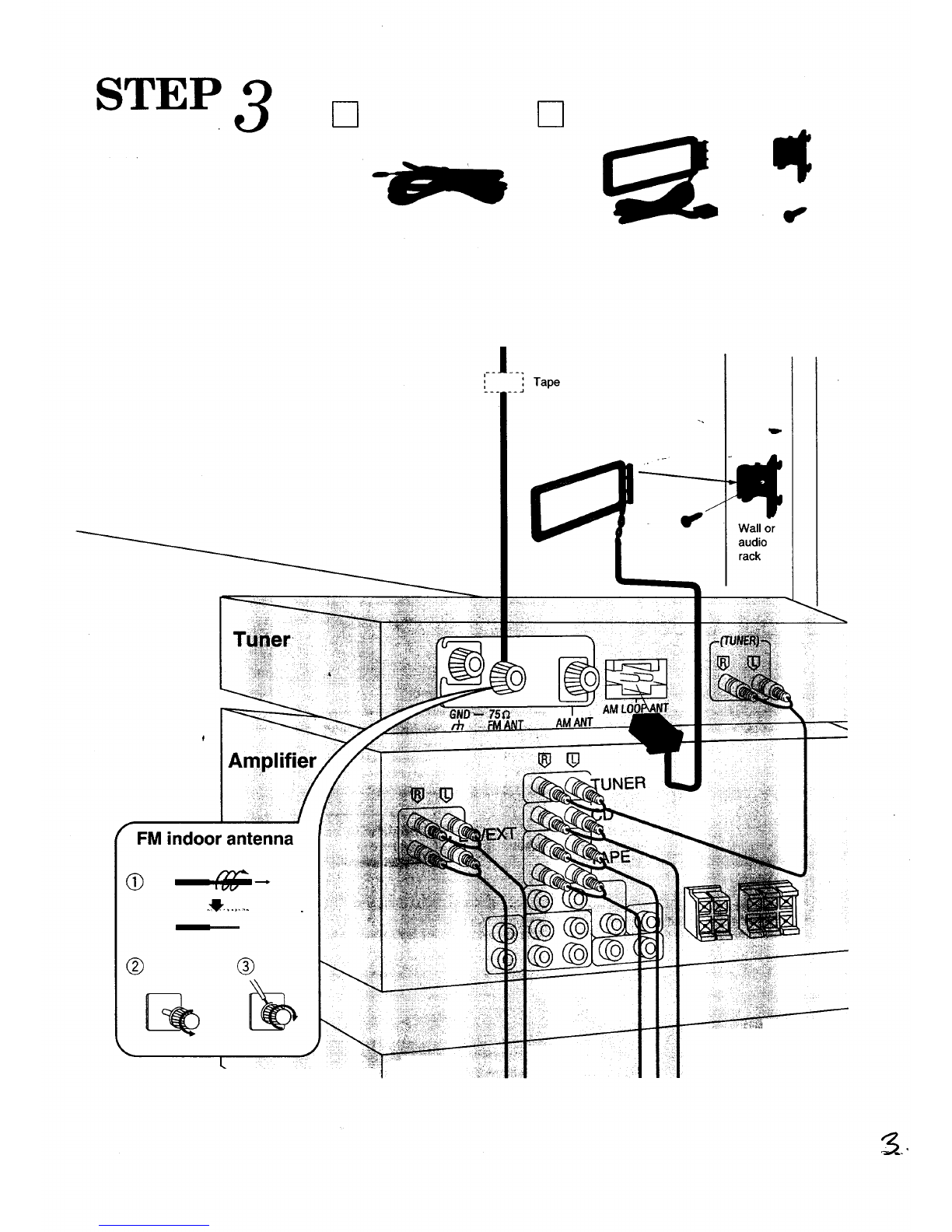

STEP 3D %

: : Tape

..... J

Wall or

audio

rack

Amplifier

® ®

STEP 4

Included with the

front speakers (2 pcs.) Included with the

center speaker (1 pc.)

Included with the

surround speak#rs

(2 pcs.)

How to place speakers

The Dolby Pro-Logic effect is best enjoyed when you

are seated as shown in figure below.

Front speaker !1 Center speaker Front speaker

(Left) __ (Right)_

r__-- Best listening

I I p°siti°n

Surround speaker I ] Surround speaker

(Left) [] I,, vJ (Right) []

Front speakers

SURROUND CENTER FRONT

ACIN'_,

(left)

[]

I Amplifier

(right) [] (left) []

Surround speakers

[] Center speaker

J[_PJ_ When connecting the speaker cables, be sure to only connect I

positive (Jr-) wires to positive (Jr) terminals, and negative (--) wires Ito negative (--) terminals.

Do not connect the surround speakers to the

front speaker terminals. The surround speakers

may be damaged if connected to the front

terminals due to the output power difference

between the front and surround terminals.

(_ For amplifier For speaker

STEP 5D

Long thick (2 pcs.)

Short thin (3 pcs.)

Short thin ]

Short thin I

Connect this cord after

all other cables and

are connected.

Household AC outlets

(AC 120 V/60 Hz)

ILong thick l

Check the installationby tuningin the radiofirst

The explanationbelowisan exampleof operationinthecasewherethefrontspeakersare beingusedfor

checkng..Ifthecenterspeakerand/orsurroundspeakersare beingusedtoenjoythe DolbyPro Logicsystemor

SFC function, refertopages38-41 oftheoperatinginstructions.

....

Press POWER.

Press SI_EAKERS.

"SPEAKERS"willilluminate,

Ifthe "TAPE MONITOR"

indicatorisilluminated,

pressthisbuttontoturn

the indicatoroff.

Press BAND

to select "FM" or "AIVI". Turn

VOLUME to

adjust the

volume level.

Press TUNER.

Press DOWN or

UP to tune to the

desired broadcast.

Ifeitherbuttonispressed

andhelddown,the

broadcaststationscan be

tunedautomatically.

• If no sound is heard from speakers, please recheck all connections from step 2 to 5.

• When the unitis not used, turnthepower off.

When left unused for long period of time the unitshould be unplugged from the household AC outlet.

Other _I_-]

accessories

For the method of inserting the batteries, please refer to "Concerning the remote control"

in the Operating Instructions.
