Multi Hip

User manual

Identiﬁcation of the manufacturer

and equipment

Description of the equipment

Technical data

Accessories

Assembling the number holder

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling the

equipment

Adjusting the equipment

Assembling the equipment

Routine maintenance

Replacing the padded

components

Replacing the cable

Adjusting cable tension

Technical Service

Codes for original spare parts

Storage

Disposing of the equipment

Using the equipment

Selection etic_ser tracciato.eps

Multi Hip

Contents Identiﬁcation of the manufacturer and equipment

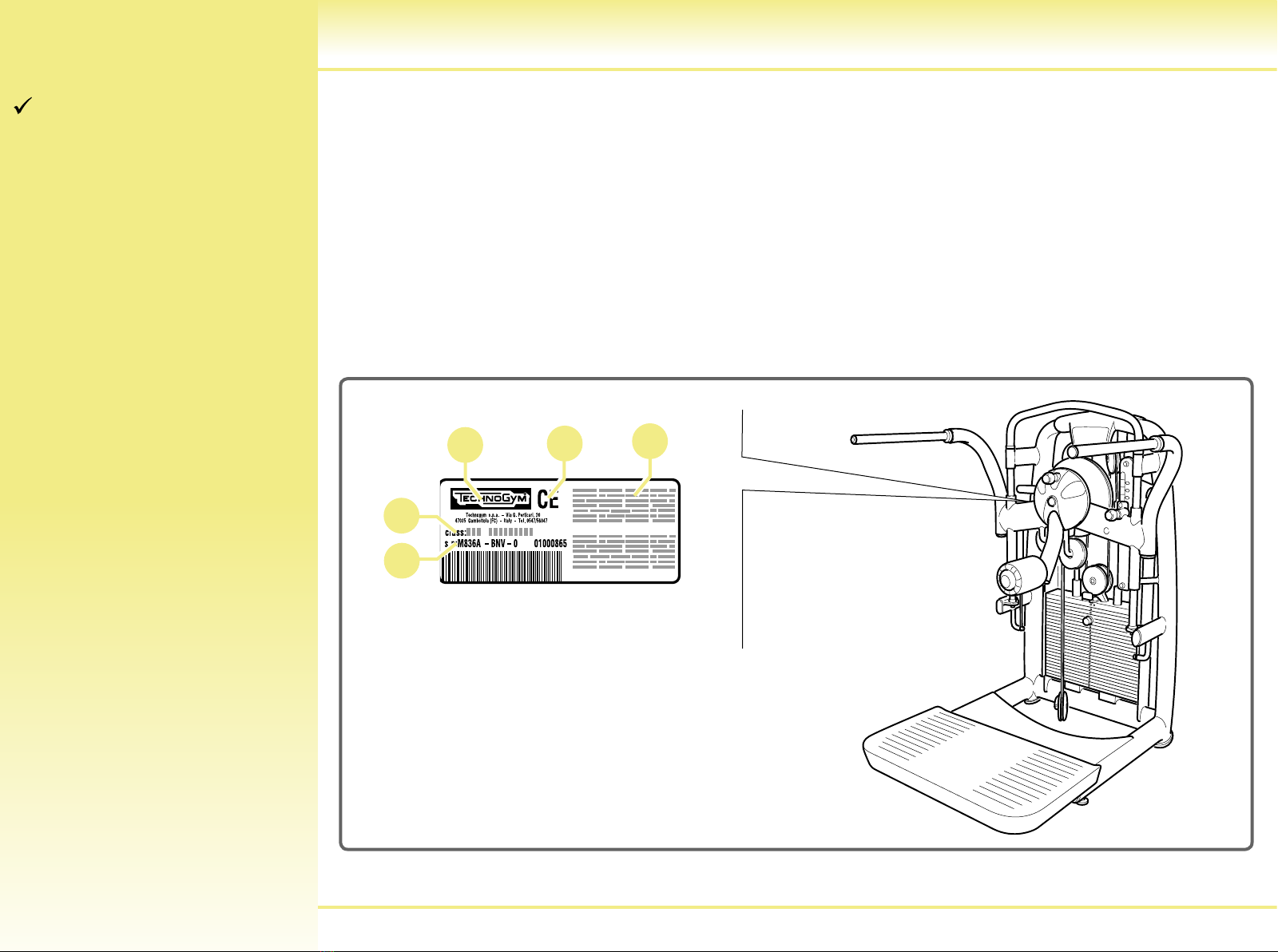

The identiﬁcation plate of the equipment and manufacturer, afﬁxed behind the central frame,
