Technogym Skillrun Unity 5000 Assembly Directions

USE This Assembly Version when unit is 4 Pieces

line:

SKILL

equipmenT

code:

djj

rev:

6.0

daTe: 11-05-2022

documenT

code: TSG-00051-en

Technogym Skillrun

Assembly Manual (4 Pieces)

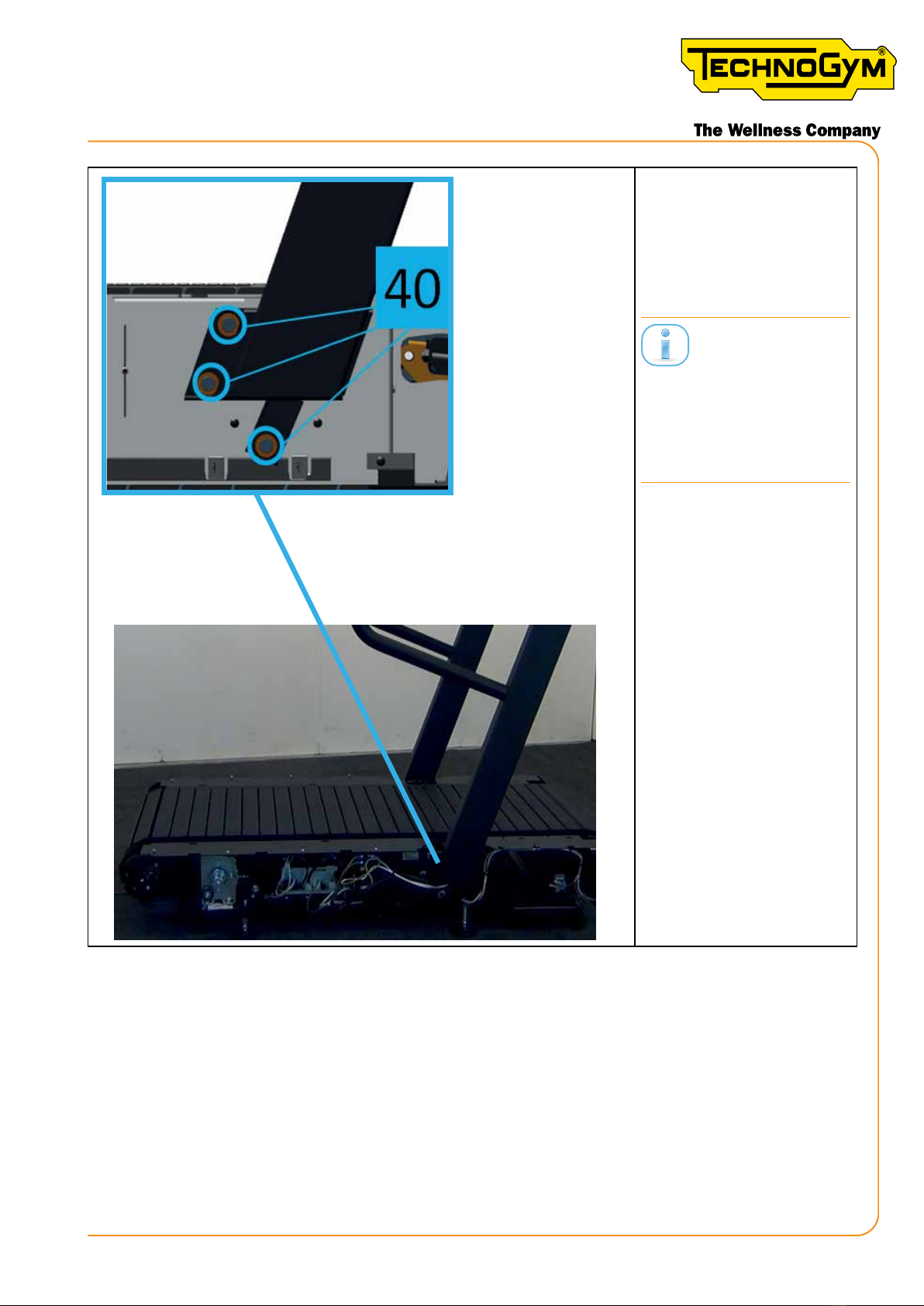

10. Remove the 3 screws

(40), both on the right

and on the left side of the

equipment.(TOOL:8mm

Allenwrench)

The image is provid-

ed only as an exam-

ple. In this specic

case, the tread belt is

not installed in the

equipment.

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed Pag. 2

11.Removethescrew(41)

both on the left and on the

right side of the equip-

ment.(TOOL:8mmAllen

wrench)

The image is provid-

ed only as an exam-

ple. In this specic

case, the tread belt is

not installed in the

equipment.

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed

Pag. 3

8.10 DISASSEMBLING THE GUARDS - BOTTOM OF THE EQUIPMENT

8.10.1 DISASSEMBLING THE REAR SIDE GUARD

1. Remove the interlocked

guard (1), pulling it to-

wards the outside of the

equipment.

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed

Pag. 4

12. Remove the upright

unit with the incorporated

display from the equip-

ment, and place it on the

ground.

Protecttheoor.

2. Remove the screw (U).

(TOOL: medium Phillips

screwdriver)

3. Remove the interlocked

guard (2), pulling it to-

wards the outside of the

equipment.

4. Remove the screw (V).

(TOOL: medium Phillips

screwdriver)

5. Push the guard (3)

slightly towards the rear

side of the equipment. Re-

move the guard (3).

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed Pag. 5

8.10.2 DISASSEMBLING THE FRONT SIDE GUARD

1. Remove the inter-

locked guard (2), pulling

it towards the outside of

the equipment.

2. Remove the screw

(X). (TOOL: medium

Phillips screwdriver)

3. Push the guard (4)

slightly towards the

front side of the equip-

ment. Remove the guard

(4).

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed

Pag. 6

8.10.3 DISASSEMBLING THE FRONT GUARD

1. Remove the front side guard lateral, right and left, as described in paragraph “8.10.2 Disas-

sembling the front side guard”.

2. Remove the screw

(6). (TOOL: medium

Phillips screwdriver)

3. Remove the 2 front

screws (7) and (8).

(TOOL: medium Phil-

lips screwdriver)

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed Pag. 7

4. Remove the screw

(9). (TOOL: medium

Phillips screwdriver)

5. The front guard can now be removed.

The front guard could be as that shown in the paragraph “6.17.1 new front guard to arrange the

excess portion of cable - ASSEMBLY PROCEDURE”

8.11 DISASSEMBLING THE FOOTREST GUARD

8.11.1 DISASSEMBLING THE REAR SIDE FOOTREST GUARD

1. Remove the rear side guard as described in paragraph “8.10.1 Disassembling the rear side

guard”.

2. Loosen the 4

taptite screws (W).

(TOOL: medium

Phillips screwdriv-

er).

During reas-

sembly, tighten the

taptite screws (W)

with a tightening

torque of 3 Nm - 2.2

lbf-ft.

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed

Pag. 8

3. Push the foot-

rest guard towards

the rear part of the

equipment, to re-

lease the screws

from the eyelets.

4. Remove the foot-

rest guard (X).

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed Pag. 9

8.11.2 DISASSEMBLING THE FRONT SIDE FOOTREST GUARD

1. Remove the front side guard as described in paragraph “8.10.2 Disassembling the front side

guard”

2. Remove the 3 taptite

screws (Y). (TOOL: medi-

um Phillips screwdriver)

During reassembly,

tighten the taptite screws

(Y) with a tightening

torque of 3 Nm - 2.2 lbf-ft.

3. Remove the footrest

guard (5).

SKILLRUN

Technical Service Guide - Rev. 6.0

Uncontrolled copy if printed

Pag. 10
