WS 6710 Instruction manual

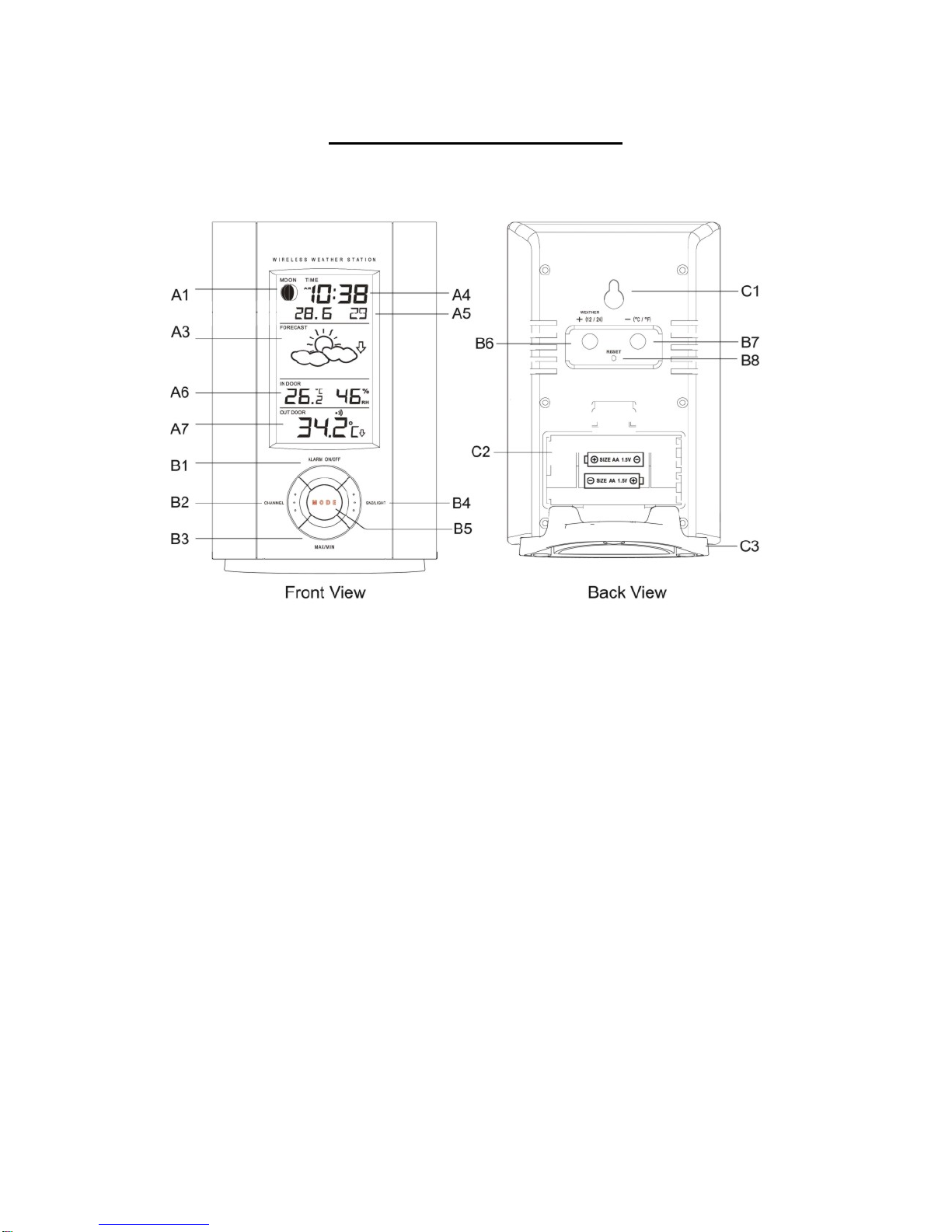

Main Unit Appearance

Part A- LCD

A1: Moon Phase A3: Weather Forecast

A4: Time Display A5: Second,Week,Alarm mode Icon display

A6: Indoor Temperature. A7: Outdoor Temperature

Part B- Buttons

B1: “AL ON/OFF” button B2: “CHANNEL” button

B3: “MAX/MIN “ button B4: ”SNOOZE/LIGHT” button

B5:“MODE”,”SETTING”button B6:“+(12/24)”,“WEARTHER”button.

B7: “- (°C/°F)” button B8: “RESET” button

Part C- Structure

C1:WallMountHole C2:BatteryCompartment

C3: Stand

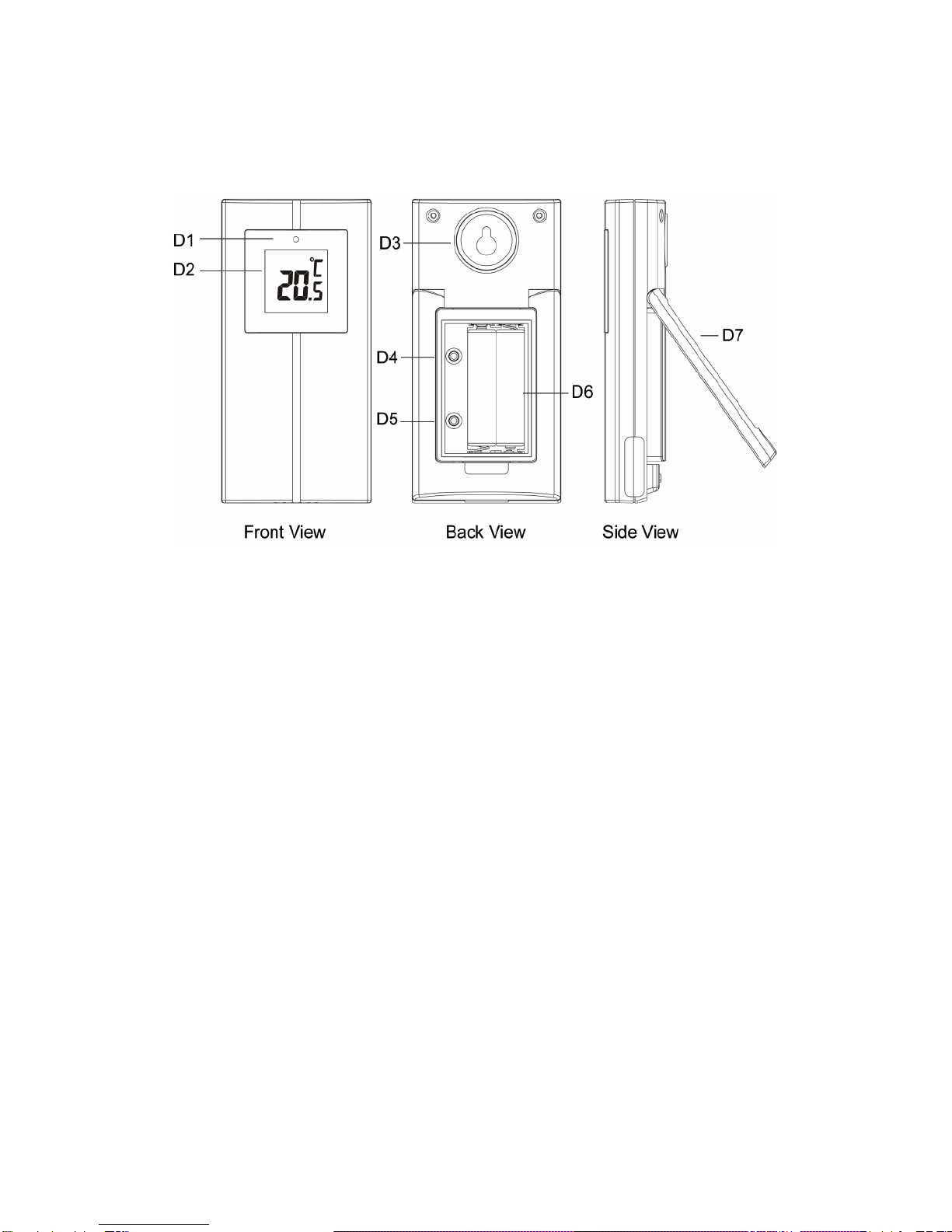

Thermo Sensor Unit Appearance.

D1: Transmission Indication LED D2: Outdoor Temperature

D3:WallMountHole D4: °C/°F” button

D5:“TX”button D6:BatteryCompartment

D7: Stand

Set Up:

yInsert batteries.

yUse a pin to press the RESET (B8) button

Weather Forecast Function:

zAfter Batteries inserted, or holding “WEATHER” button (B6) for 3 seconds, weather icon Flash (A3).

Enter the current weather pressing “- “ (B7) buttons. Press “ + “ (B6) button to confirm the setting.

The weather forecast may not be accurate if the current weather entered is not correct.

zThe current weather status should be entered again if the altitude of the Main Unit is changed.

( Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the

weather forecast). The weather station will start the first forecast at 6 hours later after the current

weather status is entered.

zTotally 5 different weather status symbols in the weather forecast. They are forecasting the weather

in future.

“ ” means Sunny .

“ ” means Slightly Cloudy.

“” means Cloudy.

“” means Rainy

“” means heavy rain.

zIf there is any inconsistency of weather forecast between Local Weather Station and this unit, the

Local Weather Station's forecast should prevail. We will not held responsible for any trouble that

may come up due to wrong forecasting from this unit.

zThe trend pointer displayed on the LCD (A3) indicates the trend of the Barometric pressure.

“ ” indicates the barometric pressure trend is increasing.

“” indicates the barometric pressure trend is steady.

“” indicates the barometric pressure trend is decreasing.

Outdoor Thermo Sensor Unit Registration Procedure:

zThe main unit automatically starts receiving transmission from Outdoor Thermo Sensor for outdoor

temperature after batteries are inserted.

zThe thermo sensor will automatically transmit temperature to the main unit after batteries inserted.

Batteries compartment (D6) of thermo sensor is locating behind the back cover, unscrews to open.

zPress “ TX “ button (D5) on the thermo sensor unit to transmit temperature to the main unit

manually. The main unit gives a “beep” sound if it received the temperature.

Display outdoor temperature :

zHold “ CHANNEL” button (B2) for 3 seconds to cancel unused channel manually. It will

automatically register a new channel again if a new channel is received.

If there is no temperature displayed in existing channel ( “ - - . –“ is displayed on the LCD ), hold

“CHANNEL” button (B2) for 3 seconds to cancel that channel and will receive the channel again

(“Beep” sound can be heard.). Then, press “ TX “ button (D5) on the thermo sensor unit to transmit

signal to the main unit manually

zThe trend pointer displayed on the LCD indicates the trend of the outdoor temperature.

“” indicates the outdoor temperature is increasing.

“” indicates the outdoor temperature is steady.

“” indicates the outdoor temperature is decreasing.

zPress “ °C /°F” button (D4), on the Thermo Sensor unit, to select Thermo Sensor displayed in

Celsius mode or Fahrenheit mode.

Maximum/Minimum In/Outdoor Temperature and indoor humidity Recording Function:

zPress “MAX/MIN” button (B3) to show the maximum or minimum Temperature/humidity reading.

“ ” is shown on the LCD if maximum record is shown.

“ ” is shown on the LCD if minimum record is shown.

zHold “MAX/MIN” button (B3) for 3 seconds to clear the recorded maximum and minimum reading.

Time Setting:

zWhen the LCD display Time mode, hold “MODE” button (B5) for 3 seconds to enter Clock/Calendar

setting Mode .

zPress “+” (B6) or “-” (B7) buttons to adjust the setting and press “MODE” button (B5) to confirm

each setting.

zThe setting sequence is shown as follow: Hour, Minutes, Second, Year, Month/Day sequence,

Month, Day, Time Zone, Day-of-week (language).

z8 languages can be selected in Day-of-week, they are: German, English, Russian, Denmark, Dutch,

Italian Spanish and French. The languages and their selected abbreviations for each day of the

week are shown in the following table.

Language

Sunday

Monday Tuesday Wednesday Thursday Friday Saturday

German, GE SO MO DI MI DO FR SA

English, EN SU MO TU WE TH FR SA

Russian, RU BC NH BT CP HT NT CY

Denmark, DA SO MA TI ON TO FR LO

Dutch, NE ZO MA DI WO DO VR ZA

Italian, IT DO LU MA ME GI VE SA

Spanish, ES DO LU MA MI JU VI SA

French, FR DI LU MA ME JE VE SA

12/24 Hour Display mode:

yPress “+(12/24)” button (B6) to select 12 or 24 hours mode.

Snooze Alarm Clock Function:

zPress “MODE” button (B5) to select to view :

Time Weekday AlarmTime(“ALM“ShownontheCD)

zWhen viewing the Alarm Time, hold “MODE” button (B5) for 3 seconds to enter Alarm Time setting.

Press “ +” (B6) or “-” (B7) buttons to adjust the alarm time.

zPress “ALARM on/off” button (B1) to switch alarm on or off. If it is on, “ ” shown on the LCD.

zWhen Alarming, press “SNOOZE / LIGHT” button (B4) to activate the snooze alarm. The alarm will

snooze for 5 minutes, then it alarms again. This snooze function can be enabled for maximum 7

times.

zPress any button to stop the snooze alarm.

Moon Phase Display

The Moon Phase (A1) of each day is shown on the LCD.

A:NewMoon B:WaxingCrescent C:FirstQuarter

D: Waxing Gibbous E: Full Moon F: Waning Gibbous

G: Last Quarter H: Waning Crescent

Low batteries indicator:

yLow battery icon “ “appear at outdoor temperature row in particular channel indicating the

external transmitter of the channel in low battery status. The batteries should be replaced.

Note:

zUse a pin to press the reset button (B8) if the Unit does not work properly.

zAvoid placing the clock near interference sources/metal frames such as computer or TV sets.

zThe clock loses its time information when the battery is removed.

zAll Setting Mode will automatically exit in 15 seconds without any adjustment.
