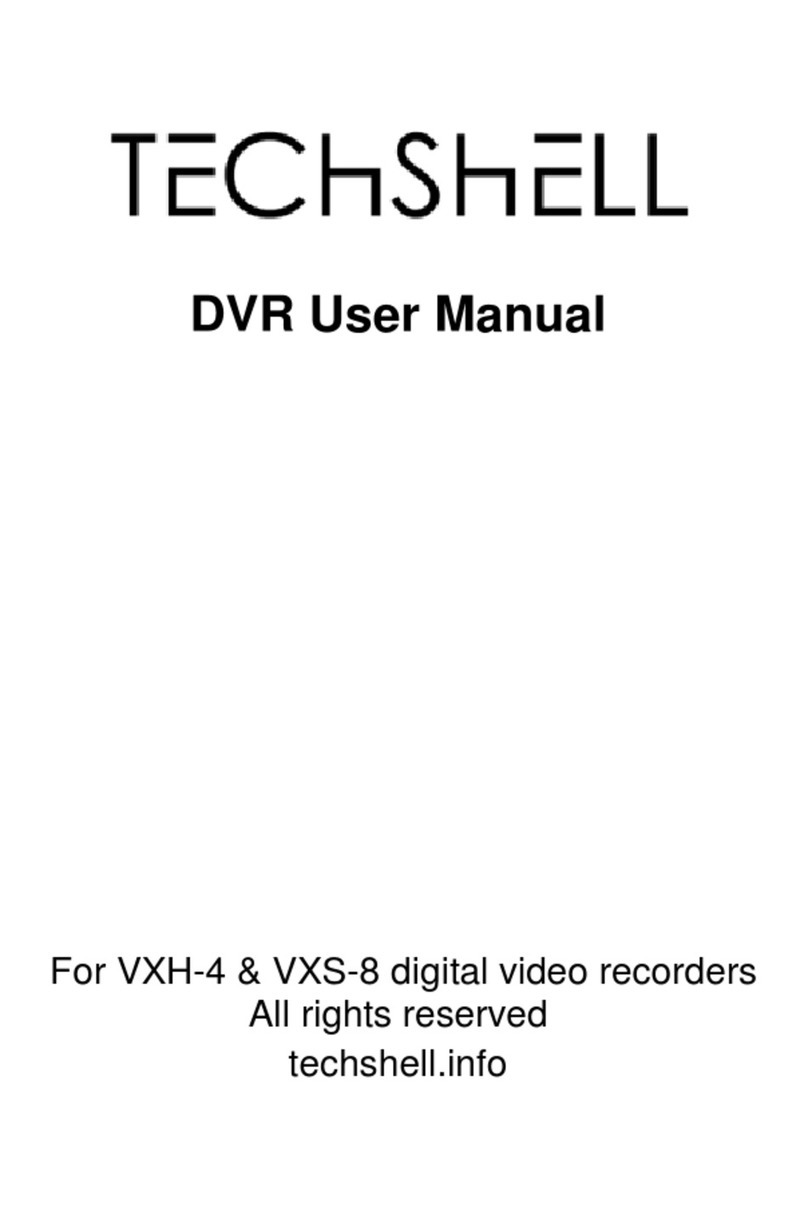

TECHSHELL 4/8 DVR Quick Start Guide
10
Appendix A Q7 in the user manual.
5.2 Access DVR on WAN
Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in
both the DVR and router.
Enter Video to set network video parameters like resolution, frame rate etc.
Forward IP address and port number in Virtual Server setup of the router or
virtual server. Close firewall.
If users want to utilize dynamic domain name, need apply for a domain name
in a DNS server supported by the DVR or router. Then add to the DVR or
router.
Open IE browser, input IP address, or dynamic domain name and enter. If
HTTP port is not 80, add the port number after IP address or domain name.
IE will download ActiveX automatically. Then a window pops up and asks for
user name and password.
Input name and password correctly, and enter to view.
5.3 Connect the DVR to Internet through dial-up ADSL
Input IP address, Subnet, Gateway gotten from your ISP. If using ADSL,
please input user name and password, and click OK. The DVR will connect
the server and show “connection succeeds”.
The following steps are the same as STEP4-7 of the connection way above.
If users want to utilize dynamic domain name, need apply for a domain name
in a DDNS server supported by the DVR or router. Then add to the DVR or
router.
Open IE browser, input IP address, or dynamic domain name and enter. If
HTTP port is not 80, add the port number after IP address or domain name.
IE will download ActiveX automatically. Then a window pops up and asks for
user name and password.
Input name and password correctly, and enter to view.
