1. GENERAL PROVISIONS
1.1 The effect of this Guide applies to household wall-mounted electric water heater TEKNIX series ESPRO (hereinafter -
"boiler") models .
The boiler is designed for individual heating of apartments, residential buildings, premises and other facilities equipped
with a water heating system with forced water circulation, and is also used as a backup heating source. The boiler can also
be used to heat domestic water (DHW) in an external storage water heater indirect heating (boiler).
Industrial use of boilers for the production of heat for technological needs is prohibited.
1.2 TEKNIX electric boilers of the ESPRO series with a production capacity of 4.5 to 24 kW, designed to operate in both
single-phase and three-phase AC networks with a nominal voltage of 230/400V, a frequency of 50 Hz and a grounding
system TN-C-S, TN-S.
1.3 For boilers with a capacity of 4.5; 6 and 7.5 kW provides the ability to work in single-phase AC networks with a
frequency of 50 Hz and a nominal voltage of 230V.
1.4 The boiler meets the requirements of the Directives 2014/35/EU of the European Parliament and the Council on Low
Voltage Equipment (Low Voltage Directive LVD), Directive 2014/30/EU of the European Parliament and the Council on
Electromagnetic Compatibility Directive (EMC), confirmed by a certificate of conformity and declaration of conformity
(CE).
1.5 Installation and commissioning of the boiler is carried out only by an authorized service organization that has a permit
(license) for this activity and a certificate from TEKNIX.
1.6 The manufacturer reserves the right to make design changes that will not lead to deterioration of the technical
characteristics of the boiler.
1.7 The boiler is easy to operate, it can be operated by persons over eighteen years of age, as well as persons with
disabilities who have been instructed in the proper safe operation of the boiler and who are aware of the dangers of
non-compliance with the operating instructions in this manual.
1.8.1 When choosing a boiler, the heat loss of the room must be taken into account, which must not exceed the nominal
heat output of the boiler. For the correct and most cost-effective operation of the heating system, the boiler and related
equipment must be installed and used in accordance with the technical design developed in accordance with applicable
laws and regulations.
1.8.2 To connect an electric boiler to the mains, the user must have a permit from the local electricity supply organization.
The maximum power of the boiler can not exceed the allowable power.
1.9.1 The boiler is designed to operate in rooms with ambient temperatures from + 5 °C to + 40 °C and relative humidity up
to 70%.
1.9.2 The boiler is not intended for work in damp and damp rooms, rooms with aggressive environment, saturated with
vapors of acids, alkalis and other substances, in explosive and flammable places.
WARNING!
misuse.
Improper or improper use may endanger the health and life of the user or third parties, as
well as the risk of damage to the product and other property.
1.10 Use of the boiler for its intended purpose means compliance with the rules and instructions on the operation of the
product, timely inspection and maintenance set out in this Manual.
1.11 The package includes:
- electric boiler in a box (1 piece);
- Operation manual (1 piece);
- warranty card (1 piece);
- terminal jumper of the terminal box for connection to a single-phase network (for models ESPRO-4.5, ESPRO-6,
ESPRO-7.5) (1 piece);
- boiler temperature sensor (1 piece);
- air temperature sensor (1 piece);
- mounting bracket with fasteners (1 set).
WARNING!
When buying a boiler:
card.
- check the equipment and appearance. After the sale of the boiler, the manufacturer does
not accept claims regarding the complete set, appearance and mechanical damage to the
boiler.
6
DHW MODE
6.3.21 To activate/deactivate the DHW mode (indirect heating boiler heating), briefly press the button____after
activating the control panel. When the DHW mode is on, the button____is 100% illuminated.
6.3.22 In the DHW mode it is provided:
► the setting of the water heating temperature in the indirect heating boiler is displayed by the indicator____ ;
► The on / off function of the "Anti-Legionella" function is indicated by the indicator____ .
6.3.23 By default, the value of the coolant temperature at the boiler outlet for heating the DHW circuit is set +80°C. The
boiler control unit controls the heating temperature in the DHW tank. When the DHW circuit heating is switched on, the
indicator____lights up on the display. When the set water temperature in the DHW tank is reached, the heating is
switched off. When operating in combined mode, the three-way valve is automatically switched to heat the heating
system.
WARNING!
The maximum value of water temperature in the boiler of indirect heating +60°C
(limited to the service menu).
6.3.24 For optimal heating of water in the DHW circuit it is necessary that the temperature of the coolant at the boiler
outlet was 20 - 25°C above the set value of water temperature in the boiler (see section "Service menu" Table 3
Parameters ., ., .).
6.3.25 When activating the "Anti-Legionella" function (indicator____), the boiler heats the water in the boiler of
indirect DHW heating to a temperature of + 70 ° C and maintains it for 10 minutes. After that, the boiler returns to
operating mode. The indicator____goes out when the "Anti-Legionella" function expires.
WARNING!
The "Anti-Legionella" function is available after switching on the boiler regardless of the
selected operating mode. When activating the "Anti-Legionella" function, the value of the
operating settings of the boiler in DHW mode.
WARNING!
It is forbidden to use the indirect heating boiler when activating the "Anti-Legionella"
function! Risk of thermal burns due to high temperature of water heating in the boiler of
6.3.26 You can activate the "Anti-Legionella" function (indicator____) in the "DHW settings" menu. To enter the DHW
settings menu, press and hold the button____for 5 seconds, after which the button____starts flashing.
Buttons________used to select the parameter (the indicator____should light up, the display shows the current status of
the parameter). To turn on the "Anti-Legionella" function, press the button____after which the
indicator____starts flashing. Use the buttons________to select the status of the "On" parameter.
To forcibly disable the "Anti-Legionella" function in the "DHW settings" menu with the buttons________, you can
select the status of the parameter.
6.3.27 Changing and adjusting the DHW mode parameters is performed in the "DHW settings" menu. To enter the
DHW settings menu, press____and hold for 5 seconds. In the "DHW settings" menu, the button____flashes when the
mode settings are changed.
6.3.28 When entering the DHW settings menu, the display will show the last parameter edited.
6.3.29 In the "DHW settings" menu, the setting parameter is selected by pressing the buttons________. The selected
parameter is illuminated by the corresponding indicator.
6.3.30 You can complete the configuration in one of the following ways:
- inactivity for 10 seconds, after which the new values are saved;
- by pressing the button____for one second.
6.3.31 You can change the value of the parameter "Water heating temperature in the indirect heating boiler"
(indicator____) in the menu "DHW settings". To enter the DHW settings menu, press and hold the button____for 5
seconds, after which the button____starts flashing. Buttons________are used to select the parameter (the
indicator____lights up, the display shows the current value of the water temperature in the indirect heating boiler). To
change the value of the water temperature in the tank, press the button____, after which the indicator____starts
flashing. Buttons________are used to set the desired value of the water temperature in the tank in the range from +30
to +60°C.
6.2.5 When the boiler is in standby mode (power supply is supplied, external circuit breaker is switched on), all protective
functions of the boiler are active, including the "Antifreeze" function. The indicator button on the display lights up in
red____.
WARNING!
"Antifreeze", are not active. Therefore, it is important to consider the ambient temperature.
coolant from the boiler, heating system and hot water supply circuit.
6.3 SELECTING AND SETTING THE OPERATING MODE
6.3.1 After switching on from the control panel, the following boiler operating modes are available:
►heating mode;
►DHW mode;
►combined mode (boiler works for DHW and HS heating).
WARNING!
Water heating in the DHW indirect heating boiler is a priority mode of boiler operation. When
heating the water in the DHW boiler, the heating system does not heat up!
6.3.2 The algorithm of the "Antifreeze" function is implemented as follows. The boiler controls the temperature of the
coolant at the boiler outlet. When the temperature drops to +5°C, the circulation pump starts automatically, the
three-way valve is moved to the "Heating system" position, and the heating of the heating system is switched on. The
message "AFr" appears on the display. Heating continues until the temperature of the coolant at the outlet of the boiler
+ 30°C. After that, the heating is switched off and the message "AFr" disappears on the display.
WARNING!
When the "Antifreeze" function is activated, the DHW circuit heating stops automatically. At
the end of the "Antifreeze" cycle, the boiler returns to its original mode.
6.3.3 The "Pump and three-way valve protection" function is activated if the pump and three-way valve have not been
operated for 24 hours. The pump will switch on for 1 minute and the three-way valve will switch and return to its original
position. When the function is activated, the message "PPr" (Pump Protection) appears on the display.
In case of prolonged disconnection of the boiler from the mains, it is recommended to periodically start the boiler at
least once a month at regular intervals.
6.3.4 Operation of the circulation pump in any operating mode of the boiler is indicated____by an indicator on the control
panel.
6.3.5 Implementation of the "Child lock" function involves locking the control panel. The control panel buttons are
automatically locked when switched off for 20 seconds or when the button is pressed briefly (1 second)____.

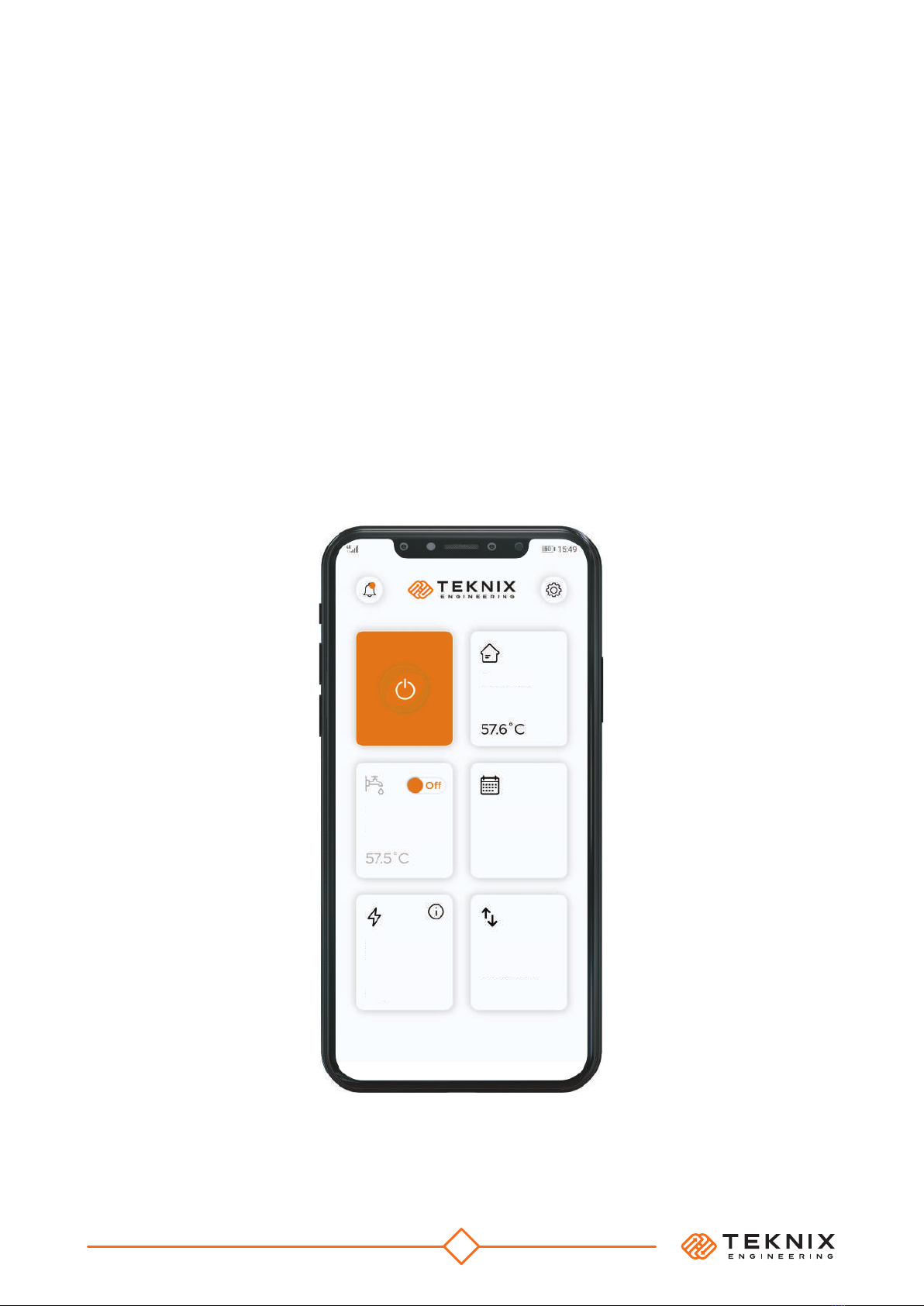

6.3.6 Control of operating modes and parameter settings are available from the control panel, the appearance of which
is presented in Figure 3, as well as through the appendix (the operation of the program is described in Appendix 1 to this
manual).
6.3.7 To unlock the control panel, press and hold the button for 5 second____.
HEATING MODE
6.3.8 ____.
When switching to heating mode, the button____is illuminated 100%.
6.3.9 In the heating mode the following parameters can be set:
► the temperature of the coolant at the boiler outlet is displayed by an indicator____;
► room air temperature (temperature sensor supplied with the boiler) is indicated by an indicator____;
► the value of the difference between the on and off temperatures of the boiler;
► Input value (contact status) "Thermostat".
6.3.10 With the active parameter "Coolant outlet temperature" (indicator____), the boiler maintains the coolant outlet
temperature set for the heating mode. Automatic switching on of the boiler heating elements occurs when the coolant
temperature decreases (by default - by 5 ° С from the set temperature parameter____). When the heating is switched on,
the indicator____lights up on the display. The heating will be switched off when the coolant temperature reaches the
set value.
6.3.11 When the "Indoor air temperature" parameter (indicator____) is active, the boiler maintains the set room air
temperature in which the supplied temperature sensor is installed. Automatic activation of the boiler heating elements
occurs when the room temperature decreases by 0.5 ° C (when the heating is switched on, the indicator____lights up on
