KONA MEGA GATEWAY –900MHZ

TDD

User Guide

Document Type:

User Guide

Document Number:

T0008387_UG

Document Issue:

1.0

Document Status:

Approved

Product Name:

KONA Mega Gateway

Product Code:

See Table 1

Issue Date:

October 14, 2022

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 2 of 20

Document Revision

Revision

Issue

Date

Status

Editor

Comments

0.1

Oct. 12, 2022

Draft

K. Minderhoud

Original Draft

1.0

Oct. 14, 2022

Released

K. Minderhoud

Approved

KONA Mega Gateway User Guide T0008387_UG Version 1.0
TEKTELIC Communications Inc. Page 3 of 20
Table of Contents
1Product Description................................................................................................................. 6
1.1 Overview .......................................................................................................................... 6
1.2 Bulkhead Layout............................................................................................................... 8
1.3 Specifications.................................................................................................................. 10
2Installation............................................................................................................................. 11
2.1 Safety Precautions.......................................................................................................... 11
2.2 Unpacking and Inspection.............................................................................................. 12
2.3 Required Equipment for Installation.............................................................................. 12
2.4 KONA Mega Gateway Mounting.................................................................................... 12
2.5 Ground Cable Installation .............................................................................................. 14
2.6 Direct DC Power Cable Installation ................................................................................ 15
2.7 RF Cable Installation....................................................................................................... 16
2.8 Antenna Installation....................................................................................................... 16
2.9 Copper Ethernet Cable Installation................................................................................ 17
3Radio Compliance Statements .............................................................................................. 18
4Déclarations de conformité à la radio................................................................................... 20



KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 4 of 20

List of Tables

Table 1: KONA Mega Gateway Models........................................................................................... 6

Table 2: KONA Mega Gateway Interface Connector Types.......................................................... 10

Table 3: KONA Mega Gateway Specifications............................................................................... 10

Table 4: Maximum 3G/4G antenna gain....................................................................................... 16

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 5 of 20

List of Figures

Figure 1: KONA Mega Gateway Common Dimensions................................................................... 7

Figure 2: KONA Mega Gateway Option #1 with Circular Plastic Connector Bulkhead Field .......... 8

Figure 3: KONA Mega Gateway Option #2 with Circular Plastic Connector Bulkhead Field .......... 8

Figure 4: KONA Mega Gateway Option #3 with Circular Plastic Connector Bulkhead Field .......... 9

Figure 5: KONA Mega Gateway Option #4 with Circular Plastic Connector Bulkhead Field .......... 9

Figure 6: KONA Module with Mounting Bracket .......................................................................... 13

Figure 7: Chassis Ground Connection........................................................................................... 14

Figure 8: Direct DC Power CPC Connector Connection Polarity................................................... 15

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 6 of 20

1Product Description

1.1 Overview

The KONA Mega Gateway is a LoRaWAN IoT gateway that supports a broad range of LoRaWAN

channels. The Mega platform is designed to support a multitude of deployment configurations in

an outdoor environment. The hardware architecture supports one or two LoRa antennas, a GPS

antenna, direct DC input power or Power over Ethernet (PoE), and backhaul options including

copper Ethernet and 3G/4G wireless.

This user guide is specific to a subset of the full KONA Mega portfolio, inclusive only of Mega

gateways employing Time Division Duplexing (TDD), operating in the 900MHz frequency band,

and optionally including the Sierra Wireless EM7455 3G/4G modem. Table 1 lists all such KONA

Mega Gateway models.

Table 1: KONA Mega Gateway Models

Product Number

1X LoRa ANT

2X LoRa ANT

LTE Modem

Reference

T0004978

Figure 2

T0004982

Figure 4

T0004988

Figure 2

T0004992

Figure 4

T0004996

Figure 2

T0005000

Figure 4

T0005004

Figure 2

T0005006

Figure 3

T0005008

Figure 4

T0005010

Figure 5

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 7 of 20

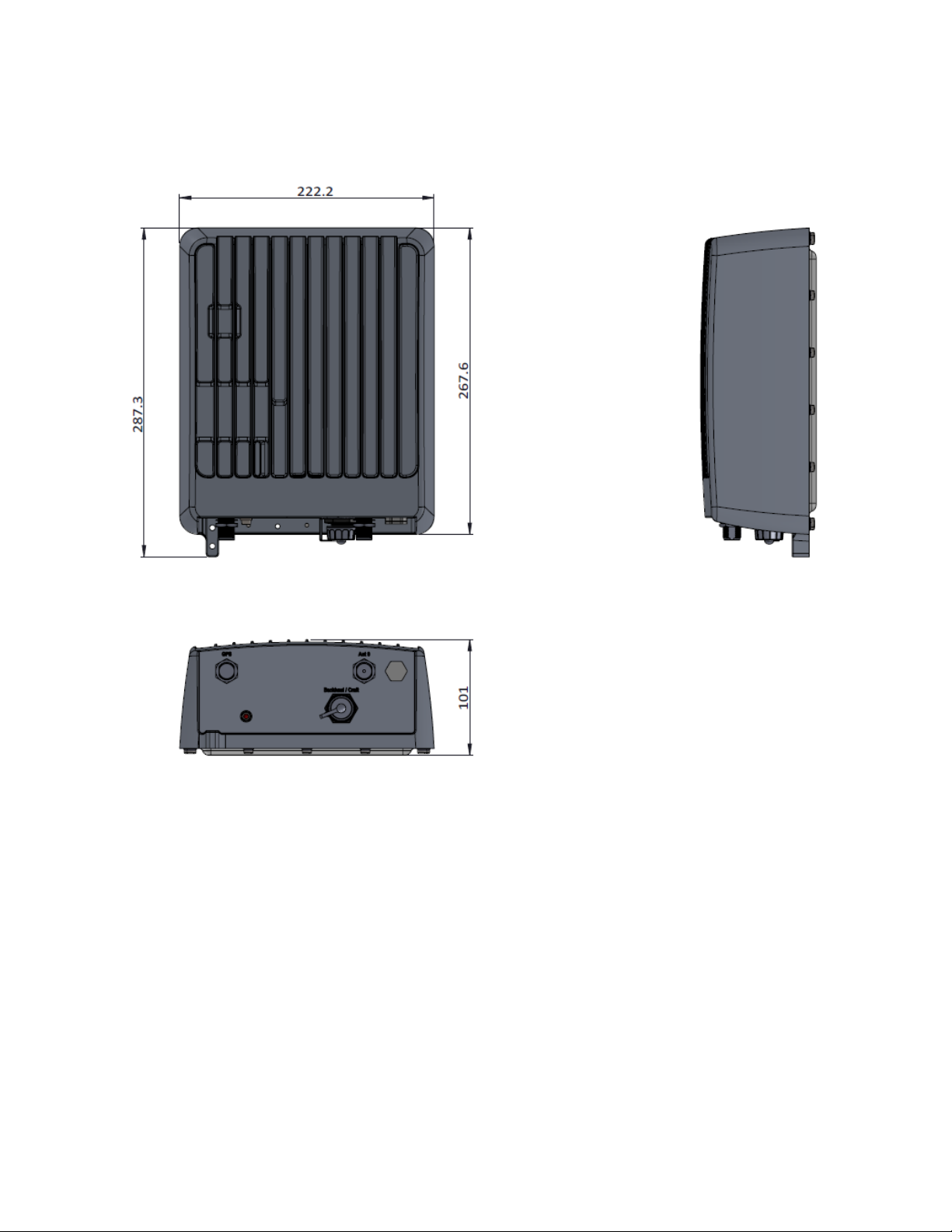

Figure 1 illustrates the common Gateway external form-factor. The differences between the

options are limited to the bulkhead field, and the internal cavity bandpass filters.

Figure 1: KONA Mega Gateway Common Dimensions

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 8 of 20

1.2 Bulkhead Layout

The KONA Mega Gateway bulkhead component fields are detailed in the following figures.

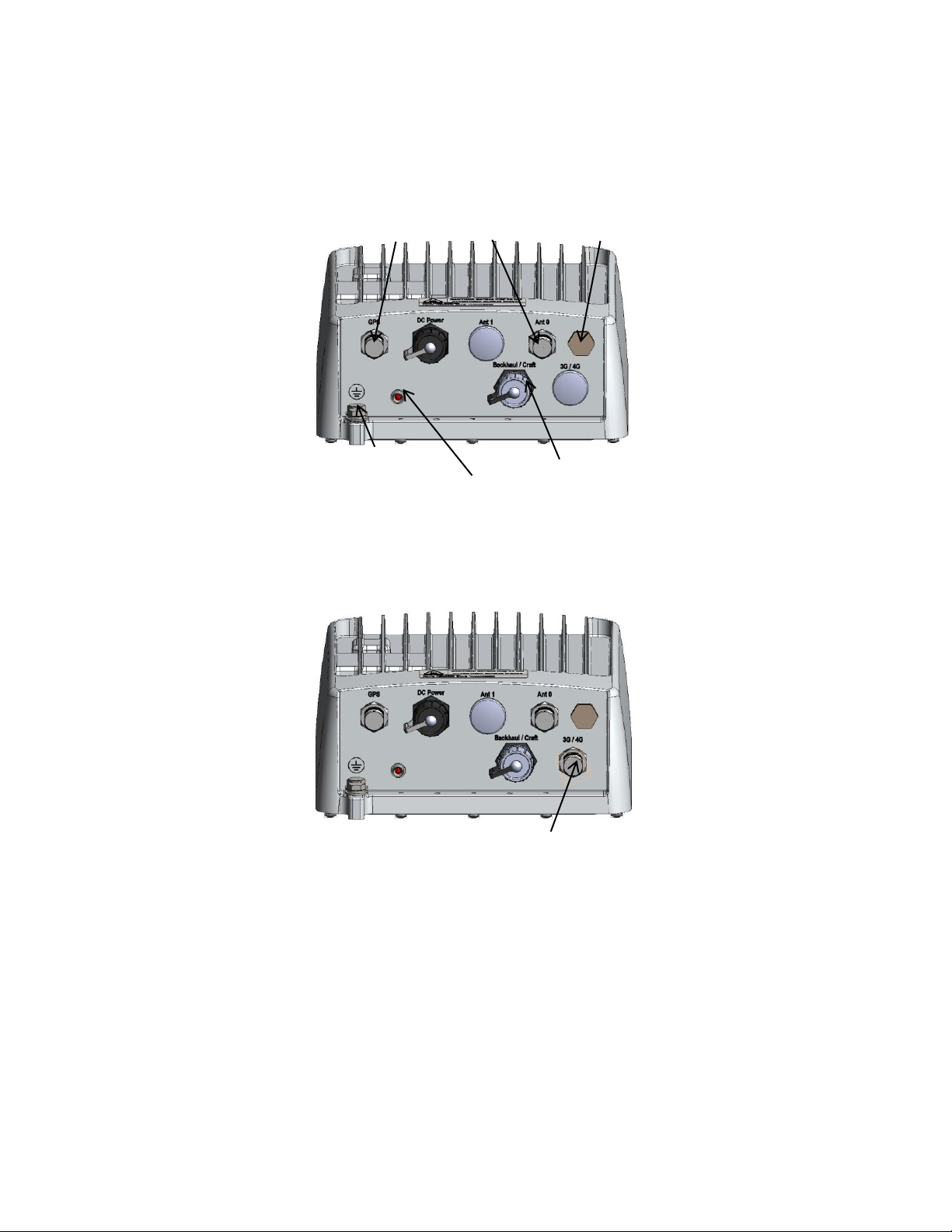

Figure 2: KONA Mega Gateway Option #1 with Circular Plastic Connector Bulkhead Field

Figure 3: KONA Mega Gateway Option #2 with Circular Plastic Connector Bulkhead Field

GPS

Antenna

LoRa RF

Antenna 0

Enclosure

Vent

LED

Protective

Earth Ground

Copper

Ethernet

LTE Antenna

Port

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 9 of 20

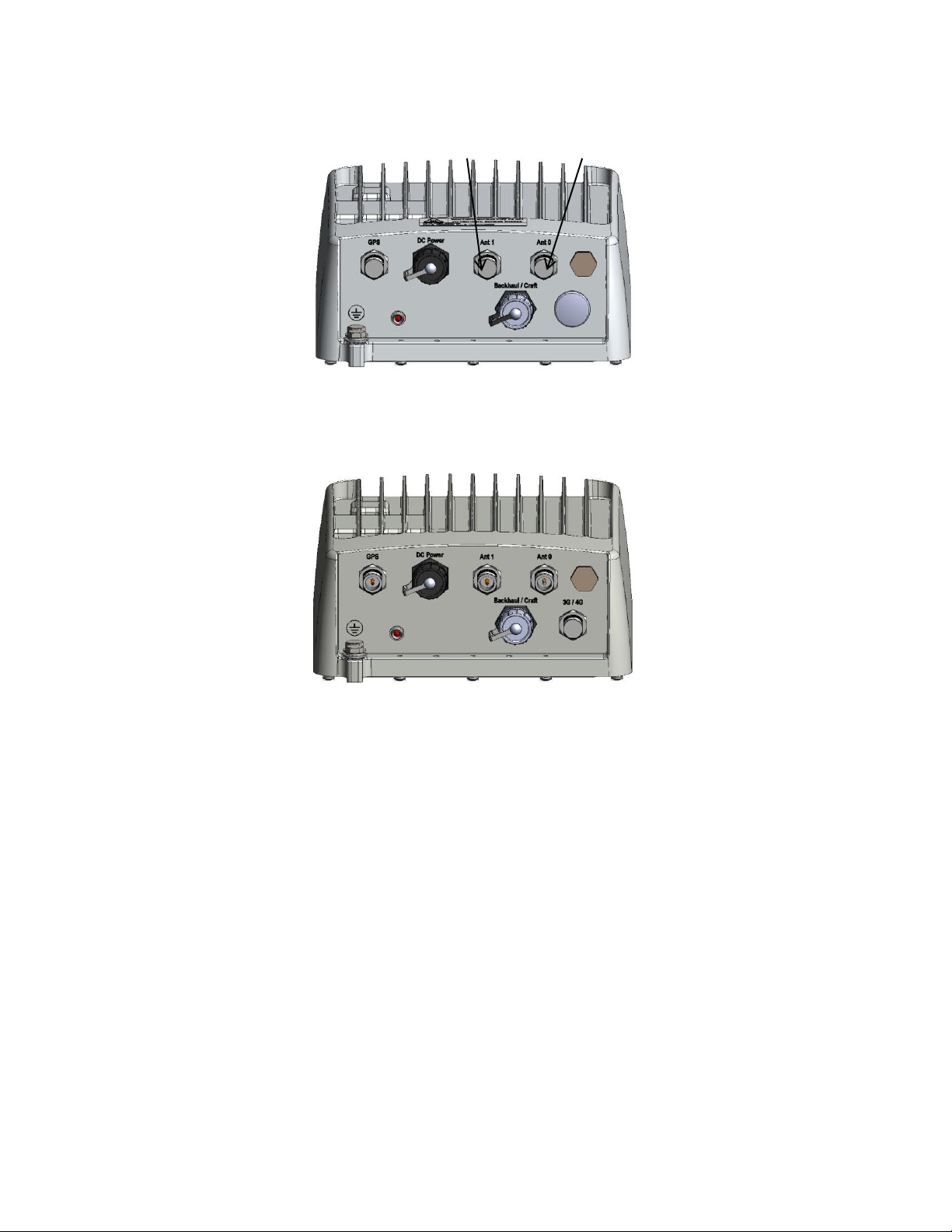

Figure 4: KONA Mega Gateway Option #3 with Circular Plastic Connector Bulkhead Field

Figure 5: KONA Mega Gateway Option #4 with Circular Plastic Connector Bulkhead Field

All KONA Gateway module interconnect is located on the bottom facing bulkhead. The RF

connectors are waterproof while unmated but all other connectors must be terminated with

mating connectors or covered with the supplied protective cap when not in use in order to be

water tight. Connector types and their mating connectors are listed in Table 2 .

LoRa RF

Antenna 0

LoRa RF

Antenna 1

KONA Mega Gateway User Guide T0008387_UG Version 1.0

TEKTELIC Communications Inc. Page 10 of 20

Table 2: KONA Mega Gateway Interface Connector Types

Interface

Connector Type

Mating Connector

LoRa Antenna

N-Type female

Industry standard N-Type male

Cellular Antenna

N-Type female

Industry standard N-Type male

GPS Antenna

N-Type female

Industry standard N-Type male

Copper Ethernet

(CPC connector)

Circular plastic threaded,

RJ-45

Shenzhen Chogori Technology Co., Ltd. Approved

mating connector (p/n 33000111-02 or equivalent)

DC Power Input

(CPC connector)

Circular plastic threaded,

2 contact, DC power

Shenzhen Chogori Technology Co., Ltd. Approved

mating connector (p/n 23002211-02 or equivalent)

Earth Ground

1/4 - 20 UNC double hole

Industry standard 2-hole lug, 1/4 x 0.75” spacing

1.3 Specifications

The KONA Mega Gateway specifications are listed in Table 3.

Table 3: KONA Mega Gateway Specifications

Attribute

Specification

Dimensions

222.2mm (8.7”) wide x 101mm (4.0”) deep x 287.3mm (11.3”) tall

Weight

5.1 kg (11.3 lbs)

Operating Temperature

-40°C to 60°C (-40°F to 140°F) at sea level Including solar loading.

Relative Humidity

10% to 100%

Operating Altitude

-60 m to 4,000 m (-197 ft to 13,123 ft)

Power Input, Direct DC

48 VDC nominal, 37 to 57 VDC operating range (after 42 V maximum start-

up threshold).

Positive or negative ground referenced feed. SELV & LPS source required.

Maximum 10A input overcurrent protection.

Power Input, PoE

IEEE 802.3 at over all four pairs (Mode A + Mode B) required

Power Consumption

35 W maximum

Weather Tightness

UL Type 6 (IP-67)

Regulatory Compliance

CSA/UL/EN 62368-1, CSA/UL/EN 60950-1, CSA/UL/EN 60950-22CE

FCC Pt. 15 Class B

Surge Protection

All interfaces are protected to primary levels except for the 3G/4G modem

antenna port which supports local antenna mounting only or requires an

external surge suppressor.
