TelcoBridges TMG3202 Manuale utente

Two AC power cords

19” equipment rack

Items not included in this box that you will need:

In the box, you will find:

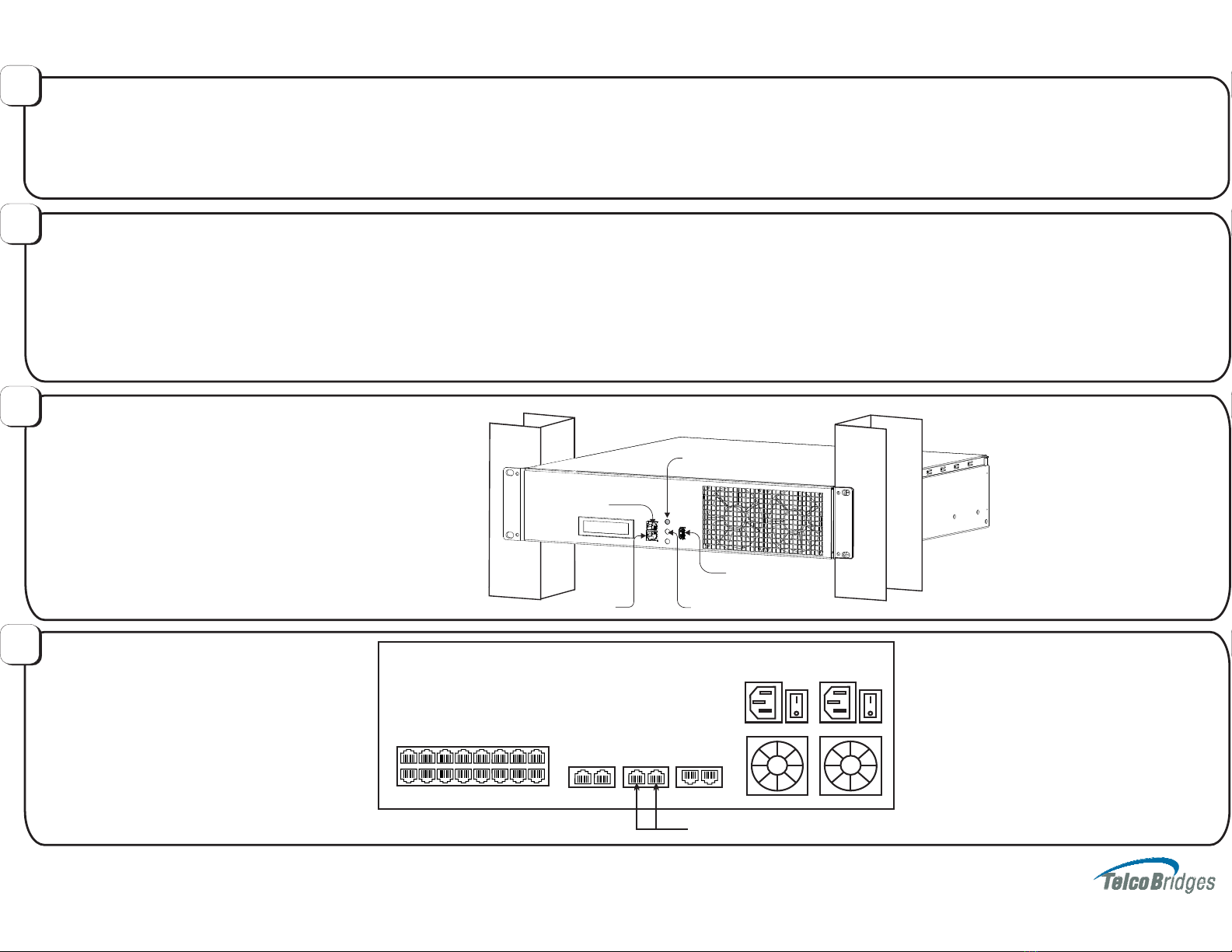

A) Install rack-mounting hardware on TMG3202

and install on equipment rack.

B) Connect Ethernet port to Linux Host.

Connect to VoIP network.

Power LED

Serial Port

TMG3202 AC Quick Installation Guide, 9010-00183-2A, Issue 3.2

TelcoBridges, On a Blade, System-Blade, TB-1+1 Solution, TB-16-E1/T1/J1, TB640-DS3, TB640-E1/T1/J1, TB640-OC3/STM-1, TB-8-E1/T1/J1, TB-IVR Mezzanine, TB-Multi-Blade, TB-Multi-Blade Mezzanine, TB-N+1-15 Solution,

TB-N+1-3 Solution, TB-StreamServer, TBVideo,TB-VoIP Mezzanine, TM-1000 Network Probe, Tmedia, TMP6400, TMG3200, TMS1600, TMP800, TMG800 are trademarks of ridges Inc. All rights reserved 2009. All other

trademarks are property of their owners. Information subject to change without notice.

TelcoB

VoIP Ports 1& 2 (VoIP-1&2)

Reset Button

One TMG3202

One set of mounting brackets with screws

One DB-9 to RJ-45 adapter

SCSI Cables and Patch Panels, if applicable

Three RJ45 Ethernet Straight Cables (male-male)

One warranty sheet

One packing slip

One TMG3202 Quick Installation Guide

Ethernet Port

Linux Host

USB Port

Linux Host

*ETH VoIP *TMS

16151413121110

1211 22

*NOTE:

Ethernet ports (ETH-1&2), and

TMS ports (TMS-1&2) are

unused.

trademarks are property of their owners. Information subject to change without notice. 9020-000183-2A, Issue 3.1

TelcoB

RJ-48 Interface (T1/E1/J1)

SCSI Interface (T1/E1/J1), a patch panel is provided

Connect to PSTN Network, using one of the following options:

Dual BNC (DS3)

Optical Interface (OC3/STM-1)

ETH VoIP TMS

1211 22

49-64

33-48

17-32

1-16

SCSI

ETH VoIP TMS

16151413121110

1211 22

RJ-48

ETH VoIP TMS

1211 22

BIT1

BIT2

APS MAIN

STM 1

ETH VoIP TMS

1211 22

RxTx

BIT1

BIT2

RxTxRxTx

321

DS3

A) Connect to two independent

power sources (if only one power source is used,

press the green button at the rear

of the unit to disable the audible alarm).

B) Verify Power LED = Solid Green

(Refer to Panel 3)

Audible

alarm

button

ETH VoIP TMS

1211 22

Power

switch

Power

socket

16151413121110

765432

Connect to the Linux host through management Ethernet OR serial connector. The IP address

of the management port is assigned through DHCP. If DHCP is not available, use the serial

cable to connect to the TMG Linux Host for the first time.

Default HOSTNAME is the Linux Host serial number, which can be found in the packing slip.

Default username and password are "root":"root" to log onto the Linux OS.

Navigate to: HTTP://HOSTNAME:12358, to configure the TMG3202.

More information is available on the TelcoBridges TB Wiki at:

http://docs.telcobridges.com/mediawiki/index.php/TMG3200

Next Steps?

TMG3202 AC Quick Installation Guide, 9010-00183-2A, Issue 3.2
