Teleco Flat Sat Classic Smart 85 Istruzioni per il montaggio

Installation guide

and user manual

Information

Congratulations on your purchase! Flat Sat Classic Smart is among the most technologically

advanced products in the field of satellite TV reception. This handbook has been prepared

to provide information on how to install, use, maintain and technical specifications your Flat

Sat Classic Smart.

For additional information, please contact your local dealer or directly the manufacturers:

TELECO s.p.a.

Via E. Majorana 49

48022 LUGO (RA)

Web site: www.telecogroup.com

Technical attendance: 899.899.856

TELECO .p.a. declines all responsibility for any errors contained in this manual. All the

contained information are up to the dates of printing and of the above-mentioned software

revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by

the development of its products.

TELECO WARRANTY

Teleco guarantees its satellite dishes and terrestrial antennas against any

material and/or construction fault and defect. The warranty offered by TELECO

is limited to the free-of-charge replacement or repairing of any parts that are

deemed faulty by TELECO. The warranty is applicable for a period of 3

YEARS starting from the product purchase date; however, it will only be

considered valid if the Customer is able to produce a written document

(invoice or tax receipt) showing the purchase date.

The following is excluded from the TELECO warranty:

a. Damages caused by incorrect installation and/or use and/or maintenance

b. Damages resulting from product alterations not authorised by Teleco

c. Damages resulting from the use of spare parts different from original

Teleco parts

d. Damages resulting from repairs carried out by personnel not

authorised by Teleco

e. Normal part wear;

f. Expenses incurred for spare parts transport between the Customer's

and the service centre

g. Damages that may occur during transport:

the Customer shall always be responsible for transport risks.

TABLE OF CONTENTS Page

Information.............................................................................................................................1

List of accessories.................................................................................................................3

Installation of dish on motor unit............................................................................................4

Assembly instructions............................................................................................................5

Control Unit Installation..........................................................................................................8

Connections...........................................................................................................................9

LNB rotation.........................................................................................................................10

Tips on the best use of Flat Sat Classic Smart....................................................................12

The Smart function ..............................................................................................................13

Troubleshooting...................................................................................................................17

Technical specifications.......................................................................................................17

Spare Parts Table ................................................................................................................18

Recycling: with a view to reducing disposal of waste electrical and electronic

equipment as much as possible, do not throw out this end of life appliance together

with other unsorted municipal waste, but make use of a recycling centre.

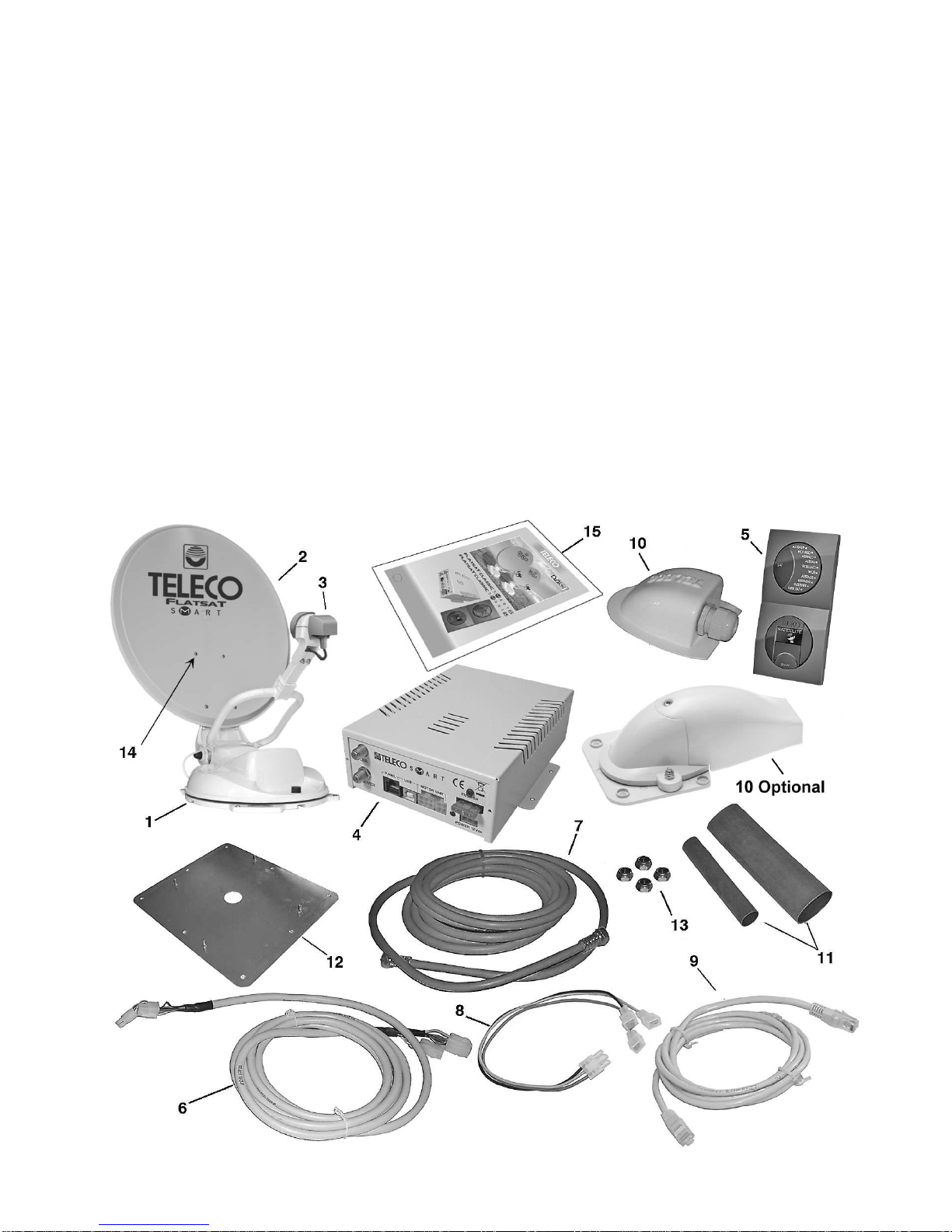

List of accessories

Flat Sat Classic Smart is delivered inside a cardboard case that has been specially made

to protect it from knocks and pressure. The following accessories are supplied:

1 External motor-driven unit

2 65 - 85 cm dish

3 Universal LNB

3 SKEW (OPTIONAL)

4 Control unit

5 Wall-mounted Control panel

6 Motor connecting cable extension

7 Coaxial cable extension for antenna signal

8 Power Supply Cable

9 Control unit/Control panel connection cable

10 Waterproof box to pass leads through to interior

11 Heat-shrinking sheaths

12 Roof attachment plate

13 No. 4 Locknuts M6

14 No. 4 Screws and Locknuts – M6

15 User’s manual

Important notice

Flat Sat Classic Smart is packaged in two separate cartons for transport reasons:

a) the first package contains the driving unit with all the cables, and the Control unit.

b) the second package only contains the dish.

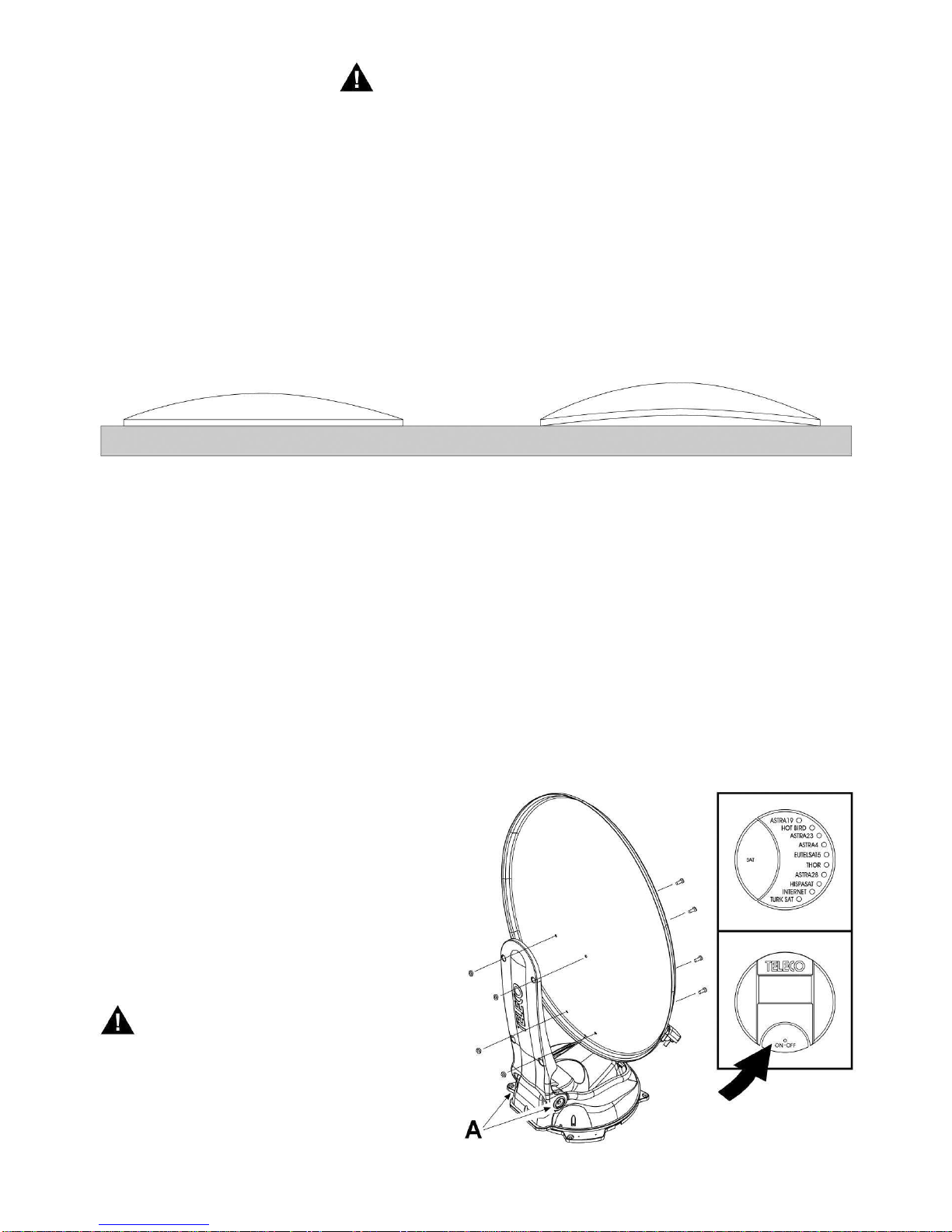

• It is important to check that the dish has not been damaged during transport when the

package is opened. In particular, check the following well:

• By resting the dish edge against a flat surface (e.g. the floor or a wall) check that it makes

contact to the surface all around. If it is not so, try and make the edge level, without denting

the dish, or call our After-Sales Service.

• After checking that everything is in order, install the dish on the driving unit as follows:

1) Temporarily connect the Control unit to the driving unit through the grey motor cable.

2) Connect the Control panel to the Control unit through the RJ45 cable.

3) Power the Control unit using a battery.

Warning: For correct connection of the wiring and to prevent damage to the equipment

please consult page 9 “Connections”.

4) Press the switch-on button on the Control panel and wait

for the dish support mast to rise.

5) Once you have reached the desired position, disconnect the power supply cable to

switch off the Flat Sat Classic Smart.

6) Secure the dish to the mast and screw

down the four supplied screws.

7) Turn the unit on again and wait for

the antenna to close.

8) Disconnect the the Control unit,

the battery and install the driving

unit on the vehicle

Warning:

NEVER loosen the two dish arm lock

screws (A) to attach the dish as this

will result in loss of alignment with

the antenna.

YES NO

Assembly instructions

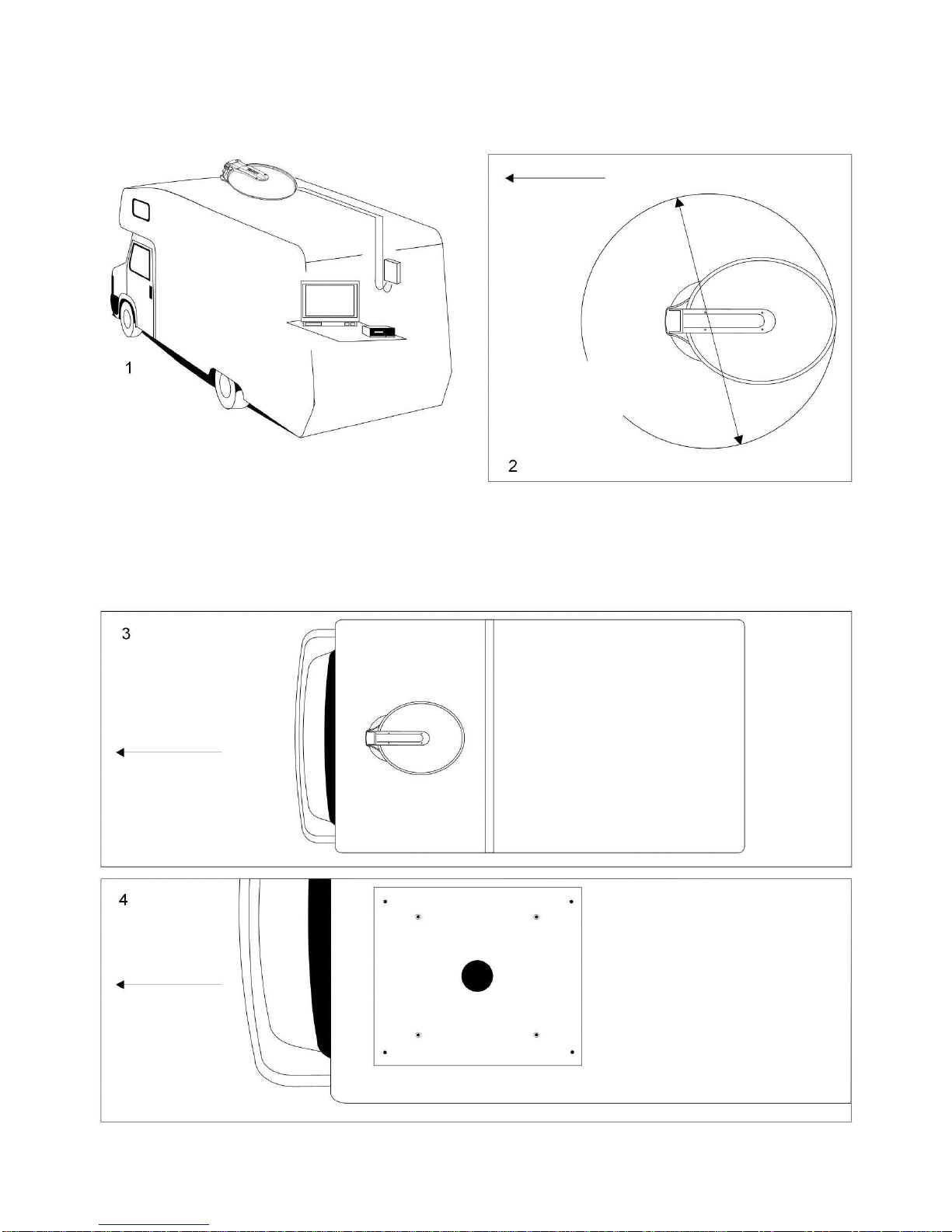

1) On the roof of the vehicle, choose a free area large enough to allow the antenna to

revolve (Fig. 2).

4) Clean the roof carefully in the area the OUTSIDE UNIT is to be installed in.

3) Remembering that the OUTSIDE UNIT must be fastened as shown on Fig. 3, position

the base plate as shown on Fig. 4, with the short side towards the driving direction

of the vehicle.

Flat Sat Classic Smart 65 - 140 cm

Flat Sat Classic Smart 85 - 160 cm

Driving direction

of the vehicle

Driving direction

of the vehicle

Driving direction

of the vehicle

When they are present, remove the transparent films from the BASE PLATE (Fig. 5).

4) Clean the lower part of the BASE PLATE carefully, applying a layer of glue on the

whole surface (e.g. SIKAFLEX).

Outside Unit Installation

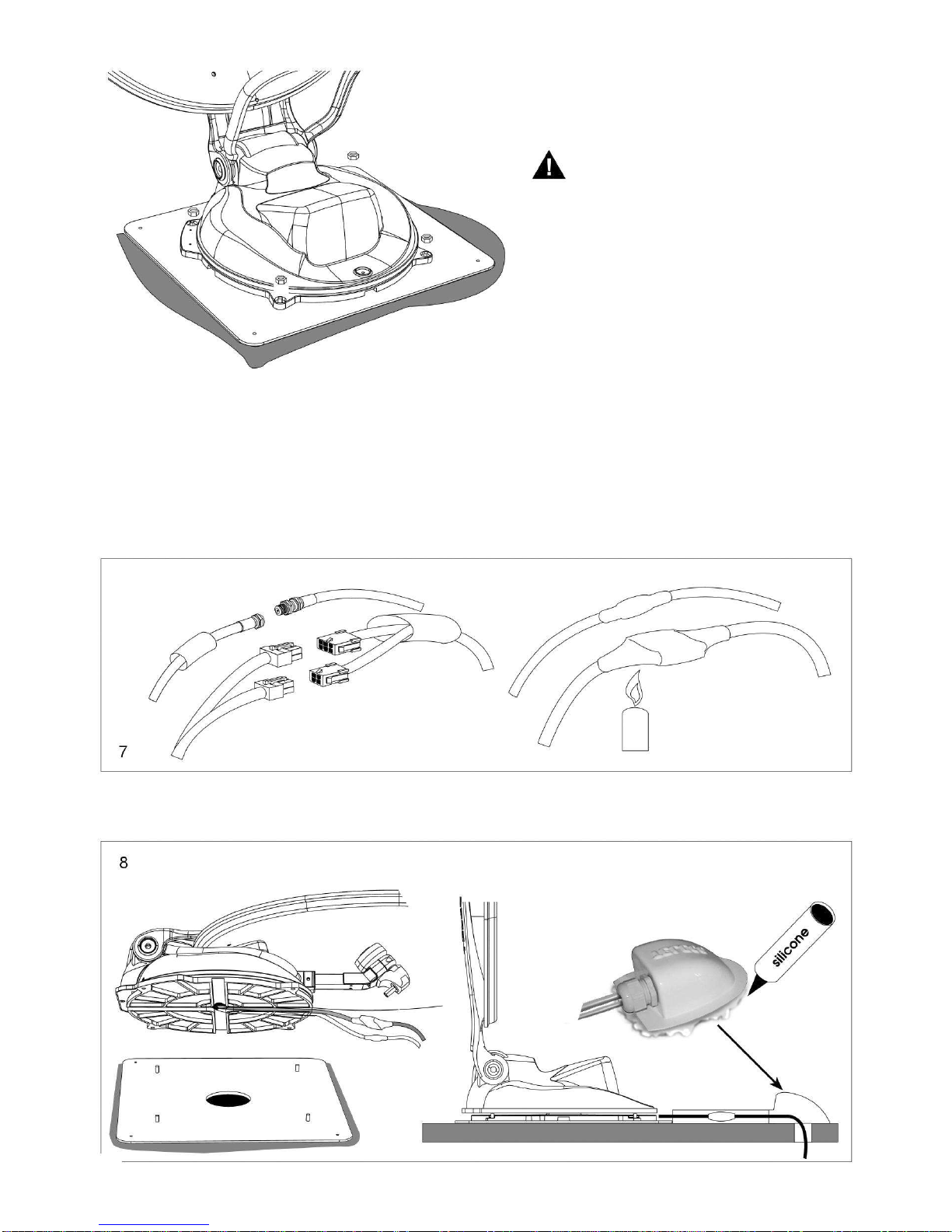

1) Fasten the OUTSIDE UNIT on the base plate and lead the two cables through any of

the 4 existing grooves, according to the position as shown on Fig. 6.

WARNING: When performing this operation, do not draw the two cables forcefully, as this

might pull them out.

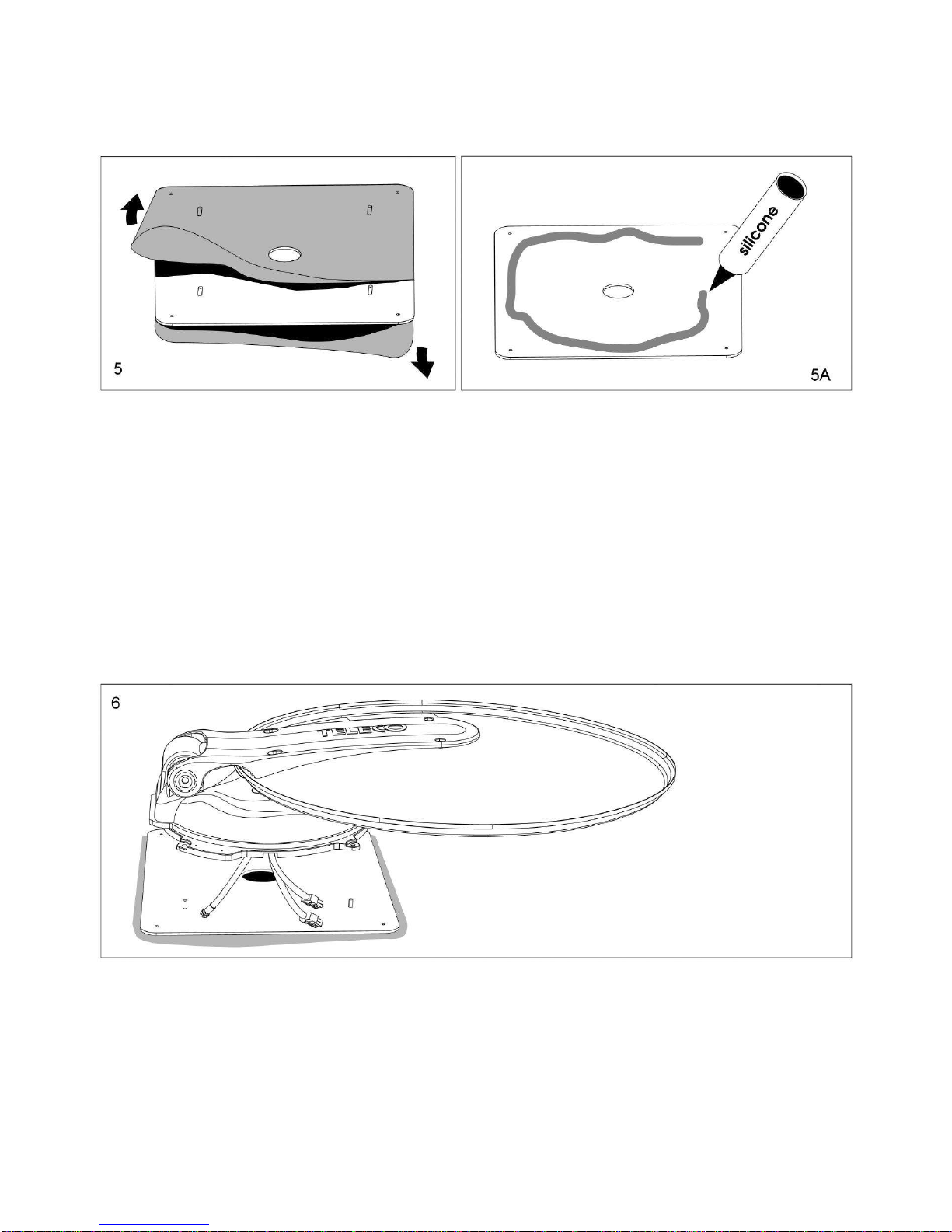

5) Fasten the BASE PLATE to the roof (short side towards the vehicle driving direction).

6) Apply a layer of silicone all around the BASE PLATE in order to make it completely

waterproof (Fig. 5A)

3) Accomodate the cables into a protection raceway up to the point where the cables go

into the vehicle, using the suitable supplied fairlead.

Seal the fairlead carefully so as to

prevent any infiltration by water

Connection with extension

WARNING The Grey and Black cables coming out of the Outside Unit are generally long

enough to allow for connection to the Control unit. If it is not so, use the extension cables

and perform the following operations:

1) Connect the two cables coming from the centre of the OUTSIDE UNIT to the two supplied

extensions, waterproofing the connectors using the two pieces of heat-shrinking tube.

Caution:

to ensure ideal nut tightening and

prevent possible pin breaks,

tighten the nut with a torque

wrench set to 8 Newtons/metre

2) Fasten the external powered unit to the four stud

bolts of the plate, using the four nuts supplied with

the equipment.

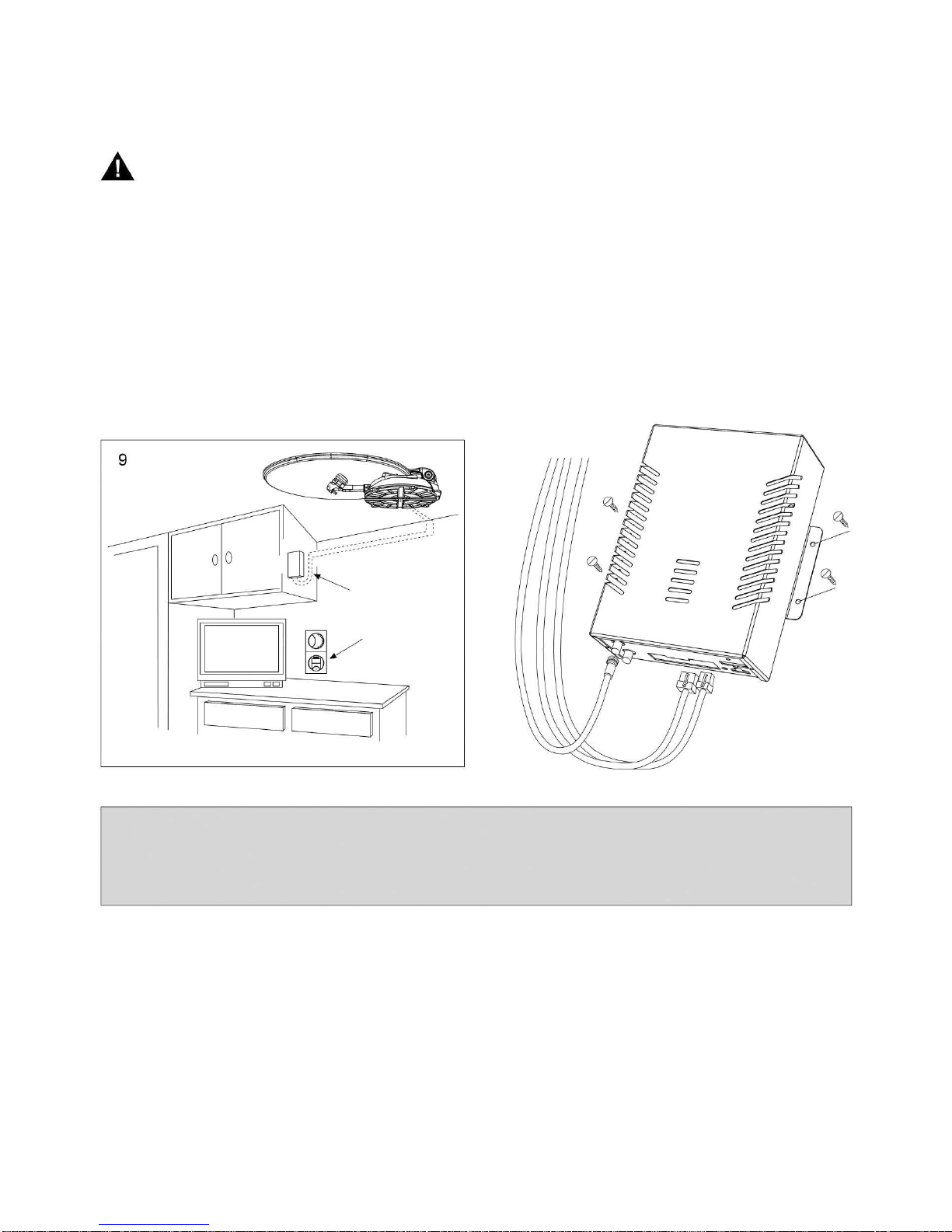

Control Unit Installation

1) Position the Control unit in an easy accessible, ventilated compartment.

WARNING:

Do not install the Control unit in areas where liquids can be spilled, since this could

cause irreparable damage.

Do not install the Control unit in very small, unventilated compartments, since overheating

could compromise its functionality and render the warranty null and void.

2) Place the Control panel comando in an easily accessible, visible position.

3) Install the connection cables (Grey and Black) until you reach the

OUTSIDE UNIT installation area.

Note: Install the wall-mounted control unit with the (Grey and Black) connection cables

bent as shown in the picture. This installation tip will prevent any condensation water from

flowing down the cables into your control unit electronics - damaging it beyond repair and

voiding your warranty.

Control Unit

Control Panel

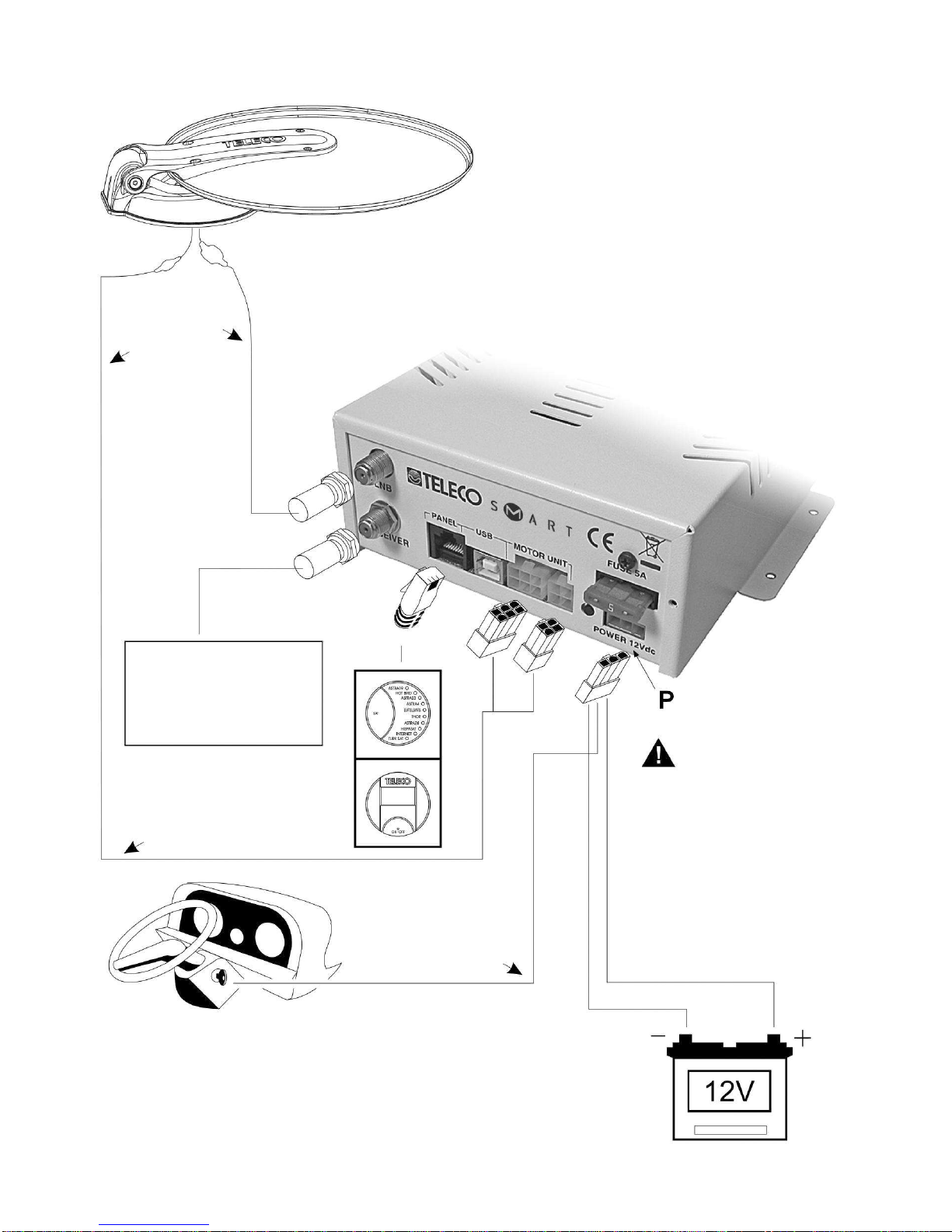

Connections

Black

Grey

Sat Receiver or

Television with Sat

Receiver

not supplied

WARNING:

The 3-way power connector (P)

must only be inserted in the

12 Vac POWER socket.

Inserting this connector in any

other socket will cause

irreparable damage to the board

and render the warranty null

and void.

4) The GREEN safety cable of the Control Unit must be

connected to the consensus of the vehicle startup console (in

many cases such consensus is located on Pin 15 in the main

terminal board). In this way, whenever the motor is started,

this cable receives a positive + 12 Vdc voltage, which will

automatically lower the antenna and lock all functions of the

Control Unit simultaneously.

1) Connect the grey cable (motors) to the MOTOR

UNIT connector and the Black coaxial cable

(antenna) to the LNB connector of the Control unit.

2) Connect the Receiver or the TV with Receiver

to the SAT RECEIVER connector. You can connect

any satellite receiver.

3) Connect directly the BLACK cable of the Control unit to the NEGATIVE

POLE of the vehicle 12 Volt Battery, and the RED cable to the POSITIVE

POLE + (remember not to mix the + and - poles up), using 2 cables of

a cross section of 2.5 mm².

Green

Grey
