1 Getting Started

1.1 Disclaimer

Use the orldNav at your own risk. To reduce the

risk of unsafe operation, please carefully review

and understand this user manual.

It is the user's responsibility to use this product

prudently. This product is intended to be used only

as a navigational aid and must not be used for any

purpose requiring precise measurement of

direction, distance, location, or topography.

Statistics provided such as trip time are best

estimates and may not accurately reflect true

conditions.

The Global Positioning System (GPS) is operated by

the United States Government, which is solely

responsible for its accuracy and maintenance. The

system is subject to changes which could affect the

accuracy and performance of all GPS equipment.

Getting Started

For use in vehicles, it is the sole responsibility of the

operator of the TeleType GPS orldNav to place

and secure the GPS unit so that it will not interfere

with the vehicle operating controls and safety

devices, obstruct the driver's view of driving

conditions, or cause damage or personal injury in

the event of an accident. Do not mount the

TeleType GPS orldNav in a place where the driver

or passengers are likely to impact it in an accident

or collision. The mounting hardware supplied by

TeleType Co. is not warranted against collision

damage or the consequences thereof.

It is the sole responsibility of the driver of the

vehicle to operate the vehicle in a safe manner, to

maintain full surveillance of all driving conditions at

all times, and not become distracted by the GPS

system to the exclusion of safe driving practices. It

is unsafe to operate the controls of the GPS system

while you are driving. Failure by the driver of a

vehicle equipped with a TeleType GPS system to

pay full attention to operation of the vehicle and

road conditions while the vehicle is in motion could

result in an accident or collision with property

damage and personal injury.

Hardware User Guide

IN NO EVENT SHALL TELETYPE CO BE LIABLE FOR

ANY INCIDENTAL, SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES, HETHER RESULTING

FROM THE USE, MISUSE, OR INABILITY TO USE THIS

PRODUCT OR FROM DEFECTS IN THE PRODUCT.

SOME STATES DO NOT ALLO THE EXCLUSION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO

THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

1.2 Accessories

Before using the GPS, make sure you have all of the

accessories listed below. If any of the accessories

are damaged or missing, contact TeleType.

1. AC ( all) Charger

2. DC (Cigarette Lighter) Charger

3. USB Cord

4. indow Mount (Cradle and Suction Cup)

5. User Manuals

Getting Started

1.3 Specifications

CPU SiRF Atlas IV AT842 533MHz

NAND Flash 4 GB

DDR 128 MB

LCD 7.0 inch TFT screen, resolution:

800 x 480 pixels

Touch Screen High precision touch screen

USB USB Client 2.0,MINI USB interface

Micro SD Micro SD slot, supports Micro SD

card (maximum 32GB)

AV Input Automatic camera detection (sold

separately)

Antenna Internal antenna; External antenna

jack

Precision Position < 10 meters / 32 ft

Audio frequency

1. 2 att Built-in Speaker

2. Hi-Fi stereo sound

3. 20m @32ohm audio output

Bluetooth

Built-in Bluetooth with Bluetooth

1.2 standard; allows for hands-free

cell phone use

Hardware User Guide

FM Transmitter Broadcasts GPS audio through

vehicle speakers

GPS

Cold boot:<42 seconds

Hot boot:<9 seconds (with

unobstructed view of the sky)

arm boot:<18 seconds

Battery Built-in high capacity Lithium back

up battery (1200 mAh)

Battery charging DC 5V (use together with USB-in)

Power Adaptor 100/220V power adaptor, 5V/1.5A

Car Charger Converts 12V to 5V/1.5A

LED status Red light: Charging; Green light:

Fully Charged

Temperature

orking temperature:

0 °C - 60 °C (32°F - 140°F)

Storing temperature:

-20 °C - 60 °C (-4°F - 140°F)

New eight 366 grams / 13 oz

Dimensions 175 x 109.2 x 14.1 mm

6.88” x 4.29” x .55”

System Platform Microsoft indows CE 6.0

Navigation software

location

Internal flash memory or Micro SD

card

Part II

Hardware User Guide

2 Basic Operation

Turning on and off

Turn on or off your GPS by pressing the power

button on the top of the device.

Hardware Reset

Occasionally, you may need to perform a hardware

reset when your GPS stops responding or appears

to be "frozen" or "locked up." You can perform a

reset by pressing the RESET button on the back of

the device.

Power Supply

In addition to the built-in lithium battery, you may

power the device using the cigarette lighter charger

(DC), the wall charger (AC), or the USB charger.

Micro SD Card

This device supports micro SD cards. Be sure the

card is securely inserted before use.

Touch Screen/ Stylus Pen

Your device comes equipped with an LCD touch

screen, allowing you to move the screen using your

Basic Operation

finger or a stylus pen (included). Simply press the

desired icon or location on the map to move the

screen.

Window Mount

Attach your device to the included window mount

and position in a location where it has an

unobstructed view of the sky so it receives a strong

satellite signal. You may choose to provide some

additional cushioning, such as foam on your

dashboard, to help absorb shock.

Part III

Hardware User Guide

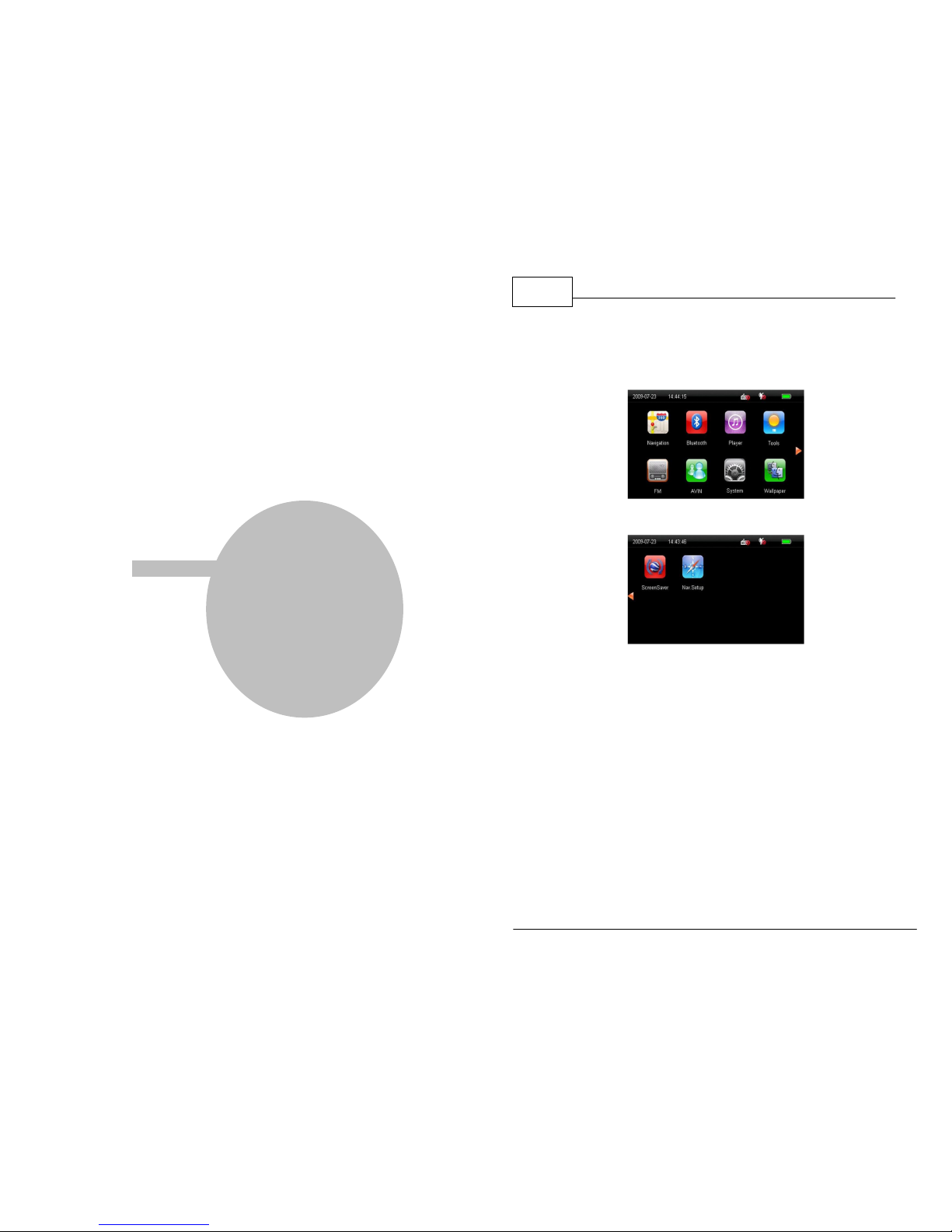

3 Main Menu

Main Menu Page 1

Main Menu Page 2

•Navigation - Provides navigation function

•Bluetooth - Allows you to connect you

Bluetooth-enabled cell phone directly to the GPS;

you can then dial numbers and receive calls

directly from your GPS

•Media Player - Allows you to access media files

such as videos, music and eBooks

•Tools - Offers a variety of useful tools such as a

calculator, notepad and calendar

Main Menu

•FM Radio - Allows you to hear your GPS

instructions over your vehicle's speakers

•AV-in - Connect a device such as a rearview

camera to your GPS

•System - Allows you to set your device's system

functions such as volume, power and language

3.1 Navigation

Please carefully read the orldNav Software Guide

for navigation instructions.

Hardware User Guide

3.2 Bluetooth

This GPS device has the ability to sync with a

Bluetooth-enabled cell phone, allowing you to

make and receive calls directly from your GPS.

Instructions for setting up your Bluetooth feature

are below:

1. Begin by enabling the Bluetooth setting on

your cell phone.

2. Click on the <Bluetooth> icon on the GPS Main

Menu screen.

3. Click the icon.

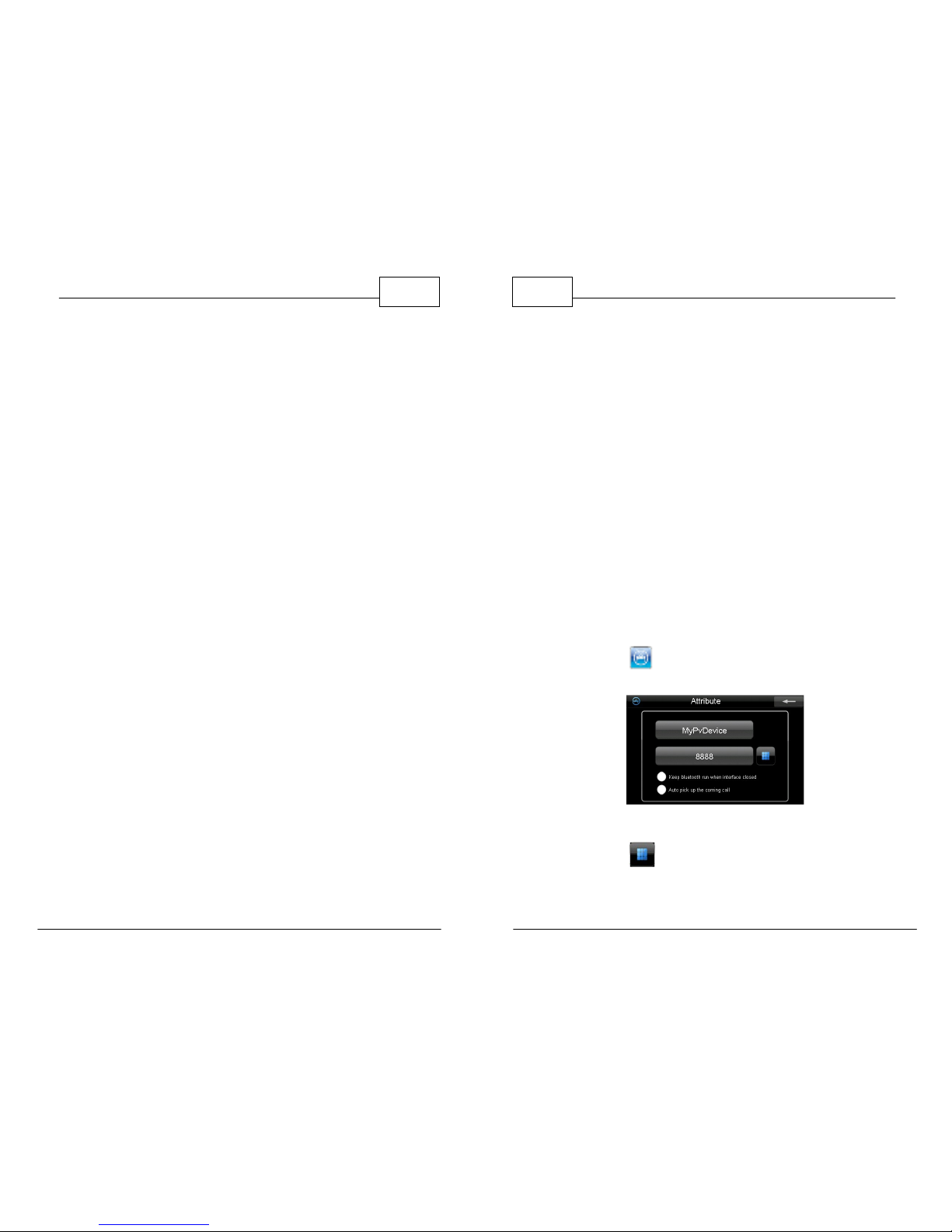

Bluetooth Settings Screen

4. Click the icon and set the pin code, then

Main Menu

press the icon to confirm the pin.

Pin Entry Screen

5. Click the icon. This will pair your phone to

the GPS. This may take a few minutes. Once

the phone recognizes the GPS, it will ask for the

pin code, enter 8888 and then confirm. The

pair is complete.

. To make calls from your GPS, press the

icon. hen receiving calls, the callers phone

number will appear on-screen.

7. Access your Call Log by pressing on the

icon.

8. Display a record of all the devices paired with

you GPS by pressing .

Hardware User Guide

3.3 Media Player

1. Click the icon to access your media player

menu. Here you can select <Music>, <Video>,

<Ebook>, <Photo>, or <Flash>.

2. Select the type of media (music, video, etc)

you want to play. For this example, choose

Ebook. Browse to your memory card folder.

Select the desired file from your selections.

3. You can now view the selected file. You can

scroll from page to page (or song/video/photo)

by using the arrows on the right side.

Ebook Selection Screen Ebook Reader
