Televes T-03 Manuale utente

Single Channel Amplifiers

User manual

T-03

User manual Single Channel Amplifiers

ENGLISH

1.- REFERENCES DESCRIPTION

Ref. 5081 .... Low gain BI amplifier

Ref. 5083 .... Low gain BIII amplifier

Ref. 5087 .... Mid Band amplifier

Ref. 5088 .... Upper Band amplifier

Ref. 5089 .... Hyper Band amplifier

Ref. 5099 .... DAB amplifier

Ref. 5082 .... FM Amplifier T03

Ref. 5084 .... Low gain UHF amplifier

Ref. 5094 .... High gain UHF amplifier

Ref. 5097 .... A.G.C. UHF amplifier

Ref. 5098 .... UHF amplifier high selectivity

Ref. 5086 .... UHF DTT amplifier

Ref. 5085 .... UHF DTT amplifier with coupler

Ref. 5080 .... IF Amplifier (950 - 2150 MHz)

Ref. 5498 .... Power supply (230 V ± 15 % - 50/60 Hz)

(24 V - 2,5 A)

Accessories:

Ref. 4061 .... Load“F” 75 ohm

Ref. 5073 .... Face plate

Ref. 5074 .... Link “F” connectors

Ref. 5071 .... Wall mount (10 mod. + P.S.U.)

Ref. 5239 .... Wall mount (12 mód. + P.S.U.)

Ref. 5072 .... Universal cabinet (10 mod. + P.S.U.)

Ref. 5069 .... Universal cabinet (14 mod. + P.S.U.)

Ref. 5235 .... Universal cabinet (22 mod. + P.S.U.)

Ref. 5301 .... 19” wall/sub-rack

Ref. 8250 .... 19” sub-rack

Ref. 5302 .... MATV headend cabinet

Ref. 5301 Ref. 5302

Refs. 5072, 5069, 5235 Ref. 8250

User manual Single Channel Amplifiers

2.- TECHNICAL SPECIFICATIONS

2.1.- VHF Single-channels

1.- Adjust CH13 (refer to channels table on page 21)

2.- Fordi= 50 dB (2 channels at 4 MHz)

Reference 5081 5083 5099 5087 5088 5089

Bandwidth (MHz) 7 7 / 16 (1) 37 7 7 8

Gain (dB) 50 ±2 50 ±2 45 ±3 58 ±2 58 ±2 58 ±2

Flatness (dB) < 1 < 1 < 3 < 1 < 1 < 1

Gain adjustment (dB) > 35 > 35 > 35 > 35 > 35 > 35

Rejection (n ±2) (dB) > 40 > 30 > 20 > 30 > 25 > 30

Output level (EN 50083-5) (dBµV) 123 123 -- 125 124 125

Output level (DAB) (dBµV) -- 112 (2) 114 (2) -- -- --

Noise figure (dB) < 9 < 9 < 9 < 9 < 9 < 9

Consump. at 24Vcc (mA) 65 ±5 65 ±5 90 ±5 90 ±5 90 ±5 90 ±5

Preamp. max. current (24Vcc) (mA) 100 100 100 100 100 100

nn+1 n+2n-1n-2

7 MHz14 MHz 14 MHz

n+3n-3

Rejection

n -3

Rejection

n +2

Rejection

n -2

Rejection

n +3

User manual Single Channel Amplifiers

ENGLISH

Ref. Band Chan. Channel

Freq. (MHz)

5081 B I 2 47 ... 54

3 54 ... 61

4 61 ... 68

Sub L1 68 ... 75

Band L2 75 ... 82

L3 82 ... 89

5083 B III C5 174 ... 181

C6 181 ... 188

C7 188 ... 195

C8 195 ... 202

C9 202 ... 209

C10 209 ... 216

C11 216 ... 223

C12 223 ... 230

C13

216 ... 232 (DAB-UK)

5099 DAB 195 ... 232

Ref. Band Chan. Channel

Freq. (MHz)

5087 BS S1 104 ... 111

Mid S2 111 ... 118

S3 118 ... 125

S4 125 ... 132

S5 132 ... 139

S6 139 ... 146

S7 146 ... 153

S8 153 ... 160

S9 160 ... 167

S10 167 ... 174

5088 BS S11 230 ... 237

Upper S12 237 ... 244

S13 244 ... 251

S14 251 ... 258

S15 258 ... 265

S16 265 ... 272

S17 272 ... 279

S18 279 ... 286

S19 286 ... 293

S20 293 ... 300

Ref. Band Chan. Channel

Freq. (MHz)

5089 BS S21 302 ... 310

Hyper S22 310 ... 318

S23 318 ... 326

S24 326 ... 334

S25 334 ... 342

S26 342 ... 350

S27 350 ... 358

S28 358 ... 366

S29 366 ... 374

S30 374 ... 382

S31 382 ... 390

S32 390 ... 398

S33 398 ... 406

S34 406 ... 414

S35 414 ... 422

S36 422 ... 430

S37 430 ... 438

S38 438 ... 446

S39 446 ... 454

S40 454 ... 462

S41 462 ... 470

User manual Single Channel Amplifiers

2.2.- FM Amplifier

Reference 5082

Bandwidth (MHz) 87,5 - 108

Gain (dB) 35 ±3

Flatness (dB) < 3

Gain adjustment (dB) > 35

Rejection77 MHz and 120 MHz (dB) > 30

Output level (UNE - 523-79) (dBµV) 114

Noise figure (dB) < 9

Consumption at 24Vcc (mA) 65 ±5

Preamp. maximum current (24Vcc) (mA) 100

User manual Single Channel Amplifiers

ENGLISH

nn+1 n+2n-1n-2

8 MHz16 MHz 16 MHz

n+3n-3

2.3.- UHF Single-channels

Notes:

- Especify channels on ordering.

- Rejection (n±1): measured between PV N and PA N-1 or PA N and PV N+1, if N is the

adjusted channel and N+1 and N-1 are the channels

inmediately above and below respectively.

Rejection

n-2

Rejection

n-3

Rejection

n+2

Rejection

n+3

Reference 5084 5094 5086 5085 (DTT) 5098 5097

Bandwidth (MHz) 8 8 16 24 32 40 32 6 8

Gain (dB) 48 ±2 57 ±3 50 ±3 57 ±2 52 ±3 57 ±3

Flatness (dB) < 1 < 1 < 3 < 3 < 2 > 1

Output level EN 50083-5 (dBµV) > 120 > 125 111 109 108 108 > 106 > 121

A:125 / D:118

Rejection (n ± 1) (dB) > 3 > 3 > 3 - > 15 > 3

Rejection (n ± 2) (dB) > 25 > 25 > 15 - > 50 > 25

Rejection (n ± 3) (dB) > 50 > 50 > 30 - - > 50

Rejection Vc ch 65 (dB) - - > 20 > 15 > 22 - -

Noise figure (dB) < 9 < 9 < 9 < 9 < 11 < 9

Gain adjustment (dB) > 30 > 30 > 30 > 30 > 30 20

Directivity (output mixing) (dB) - - - > 15 - -

Output through attenuation (dB) - - - < 1,2 - -

A.G.C. margin (dB) - - - - - 30

Consump. at 24Vdc (mA) 70 ±5 90 ±5 70 ±5 90 ±5 90 ±5 90 ±5

Pream. max. current (24Vdc) (mA) 100 100 100 100 100 100

User manual Single Channel Amplifiers

2.4.- IF Amplifier

* For the installation calculation, add the predicted LNB consumption

Reference 5080

Bandwidth (MHz) 47 - 862 950 - 2150

Gain (dB) --- 35 - 50

Output level (DIN V VDE 0855/12) (dBµV) --- 124

Rejection between inputs (dB) --- > 10

Return losses (dB) --- > 10

Insertion losses (dB) < 1.5 ---

Input level (dBµV) > 100 ---

Attenuation margin (dB) --- > 20

Equalisation margin (dB) --- > 12

Noise figure (dB) --- 12.5

Consumption at 24Vcc (just amplifier)* (mA) --- 130

LNB current (input 2) (mA) --- 400 max.

Reference 5498

Mains voltage (V~) 230 ± 15 %

Frequency (Hz) 50 / 60

Maximum power (W) 70

Output voltage (V=) 24

Maximum output current (A) 2.5 (24V)

Maximum output power (W) 60

2.5.- Power Supply Unit

User manual Single Channel Amplifiers

ENGLISH

3 .- MOUNTING

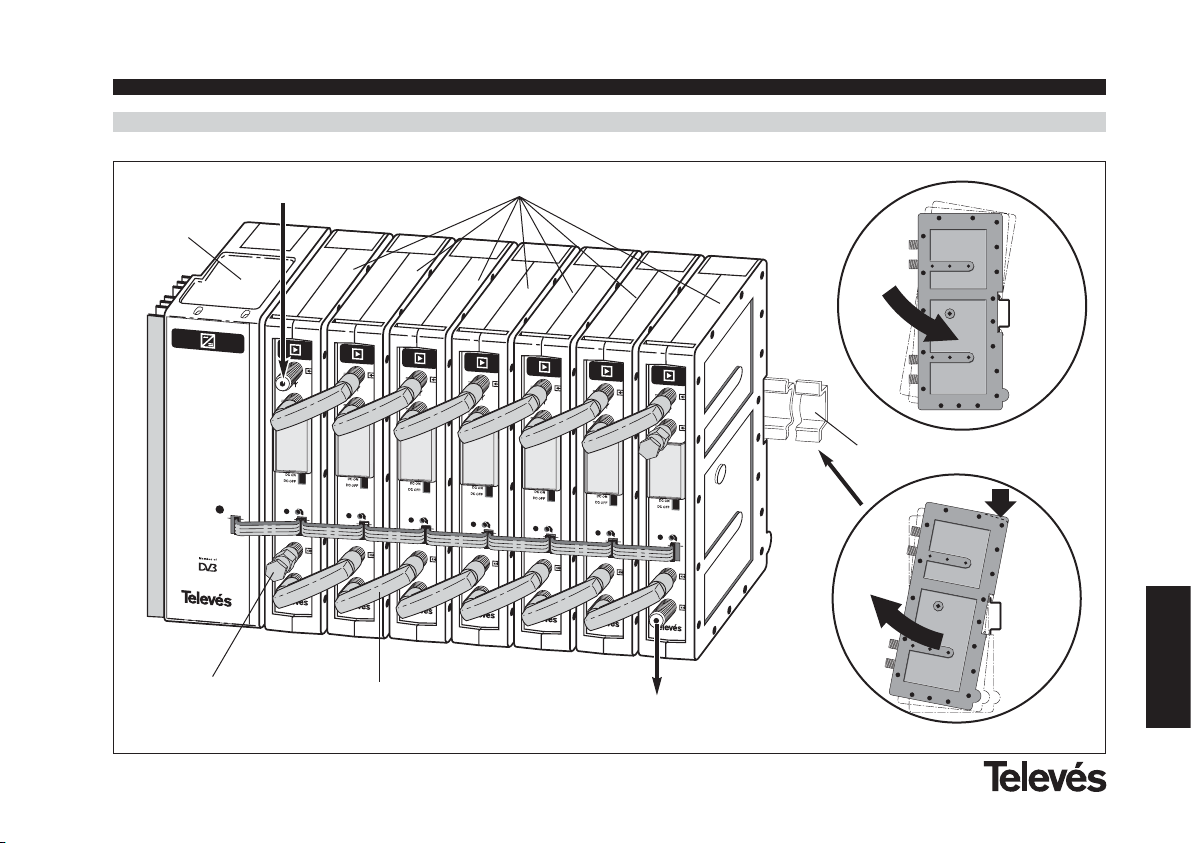

3.1.- Wall Mounting

PWR

CLAC!

5498

Single channel amplifiers

5071

5239

4061 5074 Signal output

Signal input

User manual Single Channel Amplifiers

PWR

3.2.- 19” Rack Mounting

5073

8250

5301

CLAC!
