Televes ZapperBox A1 Manuale utente
A1Indoor/Outdoor Antenna
by Televes
QUICK START GUIDE
Page 2
Also needed:
(not included)
• Built-in amplifier
• Integrated LTE filter
• Removable reflector
• Integrated 5G antenna
FEATURES
IN THE BOX
ANTENNA
AREFLECTOR
E
CLAMP
BWING NUTS
CSCREWS
D
TOTV TO ANT
USB
POWER INJECTOR
G
WRENCH
J
RF CABLE
I
POWER ADAPTER
H
USB CABLE
F
PH #2
A1Indoor/Outdoor Antenna
by Televes
QUICK START GUIDE
MODEL: ZXA1
Page 3
Installation Instructions
NOTE: SHOULD I USE THE REFLECTOR?
Using the reflector can greatly enhance the forward gain of an antenna, particularly indoors
where multipath reflections from bouncing signals cause reception issues. With a reflector,
interference from the rear is minimized and gain in the forward direction is increased,
resulting in better performance. However, antennas with reflectors need to be aimed
towards the direction of the towers. If the signal is very strong, going without a reflector
may be an option to increase omnidirectionality.
Nevertheless, it is generally recommended to use a reflector and aim the antenna towards
the transmitters for optimal performance, as broadcast television relies on line-of-sight
signal delivery.
Does a reflector improve reception for
both ATSC 1.0 and ATSC 3.0 signals?
YES.
Should the reflector be used
outdoors too?
YES.
zzz

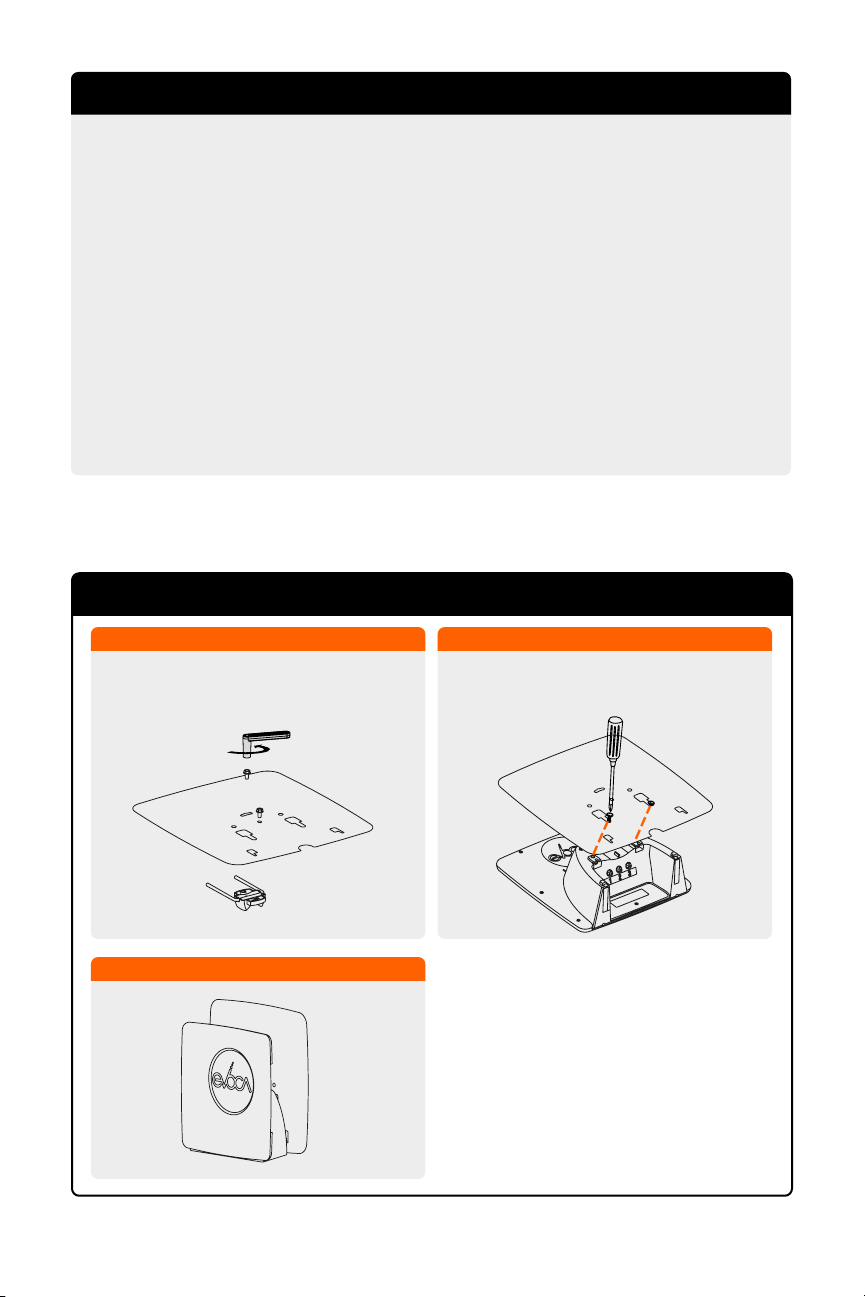

TABLE MOUNT (WITH REFLECTOR)
Step 1
Remove the pole mounting hardware from the
Reflector (E) using the included Wrench (J).
Step 2
Place the Reflector (E) in the position shown
below and fasten with included Screws (D).
Fully Assembled for Table Mount
Continue on page 5 with Connection Steps.
Page 4
Sh
S
WALL MOUNT (WITH REFLECTOR)
POLE MOUNT (WITH REFLECTOR)
Step 1
Step 1
Remove the pole mounting hardware from the
Reflector (E) using the included Wrench (J).
Step 2
Step 2
Place the Reflector (E) in the position shown
below and fasten with included Screws (D).
Attach the antenna to a pole with the Clamp
(B) and Wing Nuts (C).
Step 3
Continue on page 5 with Connection Steps.
Attach to wall using 2 screws (not included).
Place the Reflector (E) in the position shown
below and fasten with included Screws (D).
Page 5
Connect the Power Injector (G) to your ZapperBox/Set-top Box/TV.
Use the RF Cable (I) to connect the Power Injector (G) to Output 3 on the Antenna (A).
Use the USB Cable (F) to connect the Power Injector (G) to the Power Adapter (H).
Plug the Power Adapter (H) into a wall receptacle.
Antenna Connections
TV Connection
For future use (MIMO)*
5G Cellular Out*
3
2
1
1
2
3
4
GZapperBox/STB/TV
FH
1
2
3
I
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
*Input 1 and 2 are capped and terminated
to reduce noise interference.
Manufactured and Imported by:
Televes USA LLC, Norfolk Tech Center
16596 E. 2nd Ave, Aurora, CO 80011
televes.usa@televes.com
Distributed by:
ZapperBox
1776 22nd Street, Suite 200
West Des Moines, IA 50266
A
Safety Instructions
*Self-regulating gain.
LIGHTNING PROTECTION
TECHNICAL SPECIFICATIONS
WARNINGS
• If installed outdoors, be sure the antenna system
is grounded so as to provide protection against
voltage surges and built-up static charges.
Section 810 of the National Electrical Code ANSI/
NFPA70, or CSA C22.1 sections 10, 16, and 54, of
the Canadian Electrical Code, provide information
with respect to proper grounding of the mast nd
supporting structure, grounding of the antenna
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode (see
figure and instructions).
• Mount the lightning arrestor or 75 ohm coaxial
grounding block as close as possible to where the
75 ohm coaxial cable down lead enters the house.
• The ground wires for both the mast and the down
lead should be copper or aluminium wire, number
eight (8) or larger.
• The down lead wire from the antenna to the
lightning arrestor and the mast ground wire should
be secured to the house, spaced from four (4) to six
(6) feet apart.
• In the case of a “ground up” antenna installation
it may not be necessary to ground the mast if
the mast extends four or more feet in the earth.
Consult a TV serviceman for the proper depth in
your location.
• To prevent fire or shock hazard, do not expose the
included power supply to rain or moisture.
• Installation of off-air antennas near power lines is
dangerous. For your safety, follow the installation
instructions.
• Any alteration or modification to the product or
usage not in accordance with product instructions
voids the warranty.
Antenna L ead
in Wire
Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
NEC - National Electrical Code
Ground
clamp
Electric Service
Equipment
Ground clamps
Power service Grounding Electrode System
(NEC Art 250, Part H)
Antenna Discharge Unit
(NEC Section 810-20)
(May s ubstitute a 7 5 ohm
Coax Grounding Block)
Grounding Conductors
(NEC Section 810-21)
Outputs 5G VERTICAL HORIZONTAL
Frequency 630 - 960 MHz
1.7 - 2.7 GHz
UHF
(Ch.14 - Ch.36)
470 - 608MHz
High VHF / UHF
(Ch.7 - Ch.13) / (Ch.14 - Ch.36)
174-216 MHz / 470-608 MHz
Gain 0dBi 32dBi* 23dBi*/dBi32*
Crosspolar rejection >13dB
Power 150mA @ 5V DC
Dimensions 14” x 14” x 4” (w/o pole mount)
Temp. Range -5°C - 45°C
IP Rating IP53
Page 7
Notes
v1.0
zapperbox.com
